Model # 875198640 Official Craftsman impact wrench

Here are the diagrams and repair parts for Official Craftsman 875198640 impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Fr Gasket 8700894
#34

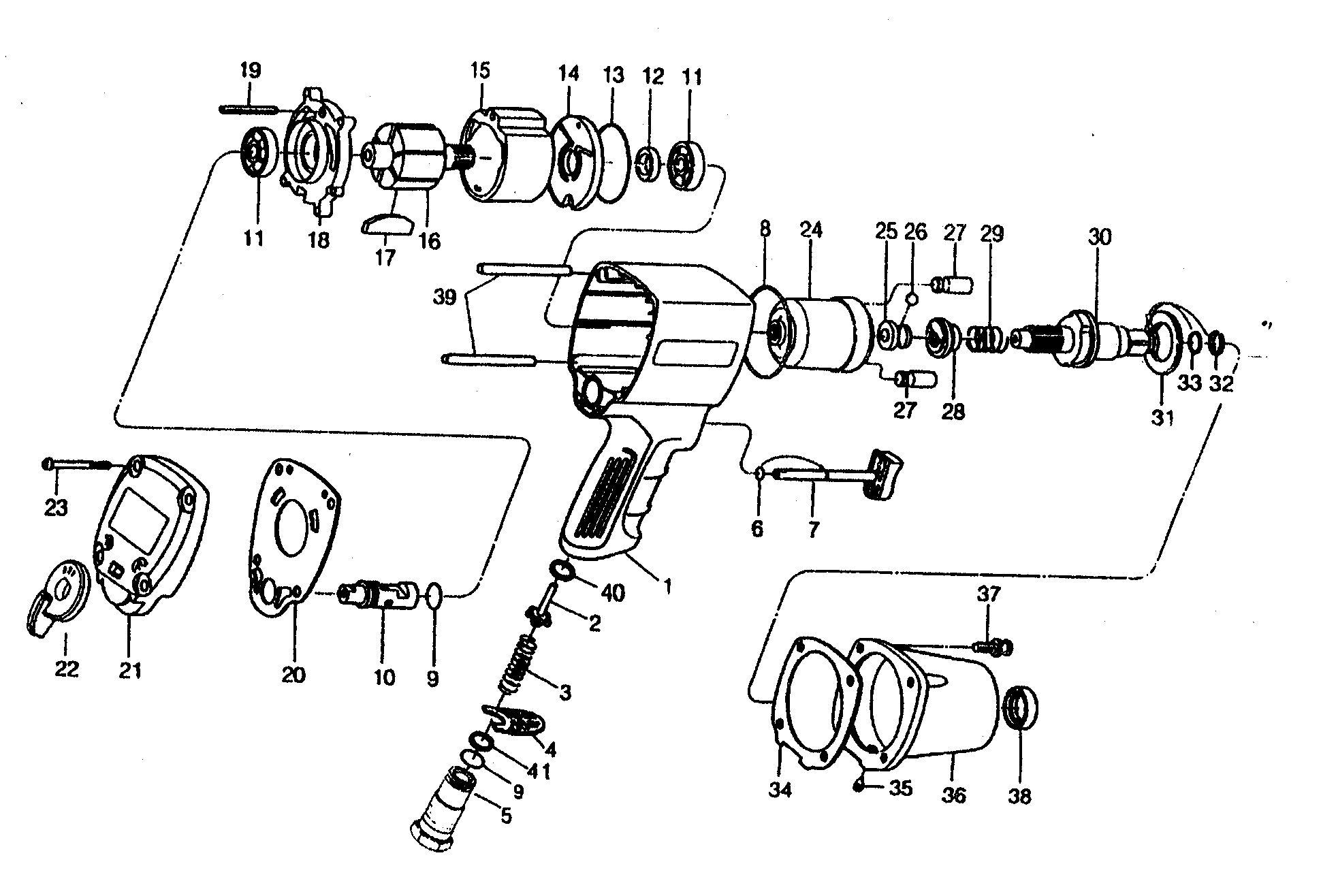

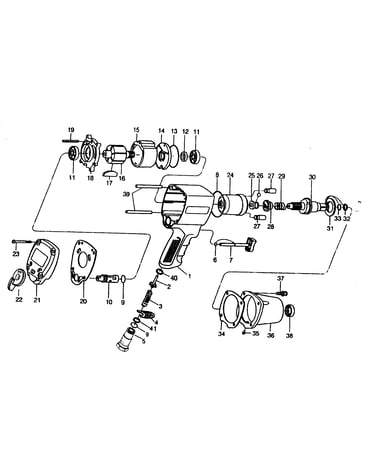

Wrench diagram

Fr gasket

Part #8700894

The manufacturer no longer makes this part, and there's no substitute part

Rod 8700897
#39

Wrench diagram

Rod

Part #8700897

The manufacturer no longer makes this part, and there's no substitute part

Pneumatic Impact Wrench Valve Stem Bushing 8700880
#40

Wrench diagram

Pneumatic impact wrench valve stem bushing

Part #8700880

The manufacturer no longer makes this part, and there's no substitute part

Rotor 8700886
#16

Wrench diagram

Rotor

Part #8700886

The manufacturer no longer makes this part, and there's no substitute part

Pneumatic Wrench Rotor Blade 8700887
#17

Wrench diagram

Pneumatic wrench rotor blade

Part #8700887

The manufacturer no longer makes this part, and there's no substitute part

Valve Stem 8700862
#2

Wrench diagram

Valve stem

Part #8700862

The manufacturer no longer makes this part, and there's no substitute part

O-ring 8700868
#13

Wrench diagram

O-ring

Part #8700868

The manufacturer no longer makes this part, and there's no substitute part

Washer 8700923
#41

Wrench diagram

Washer

Part #8700923

The manufacturer no longer makes this part, and there's no substitute part

Impact Wrench Socket Retainer Ring 81013129
#32

Wrench diagram

Impact wrench socket retainer ring

Part #81013129

The manufacturer no longer makes this part, and there's no substitute part

Rear Plate 8700888
#18

Wrench diagram

Rear plate

Part #8700888

The manufacturer no longer makes this part, and there's no substitute part
