Model # JGRP18GEL5 Official GE gas wall oven
Here are the diagrams and repair parts for Official GE JGRP18GEL5 gas wall oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forJGRP18GEL5 Wall Ovens

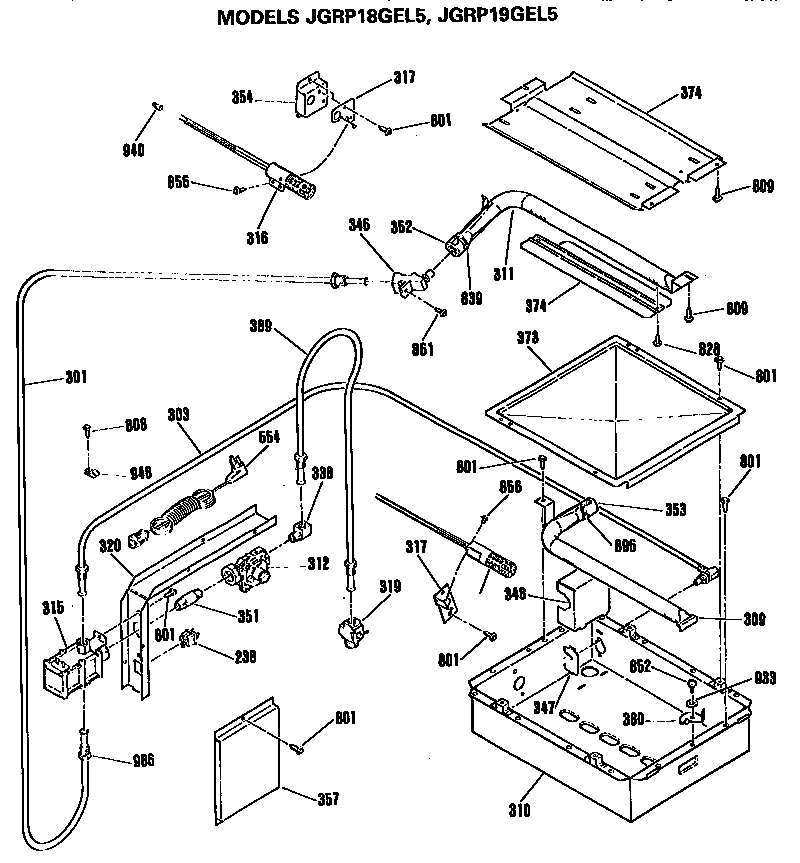

#316

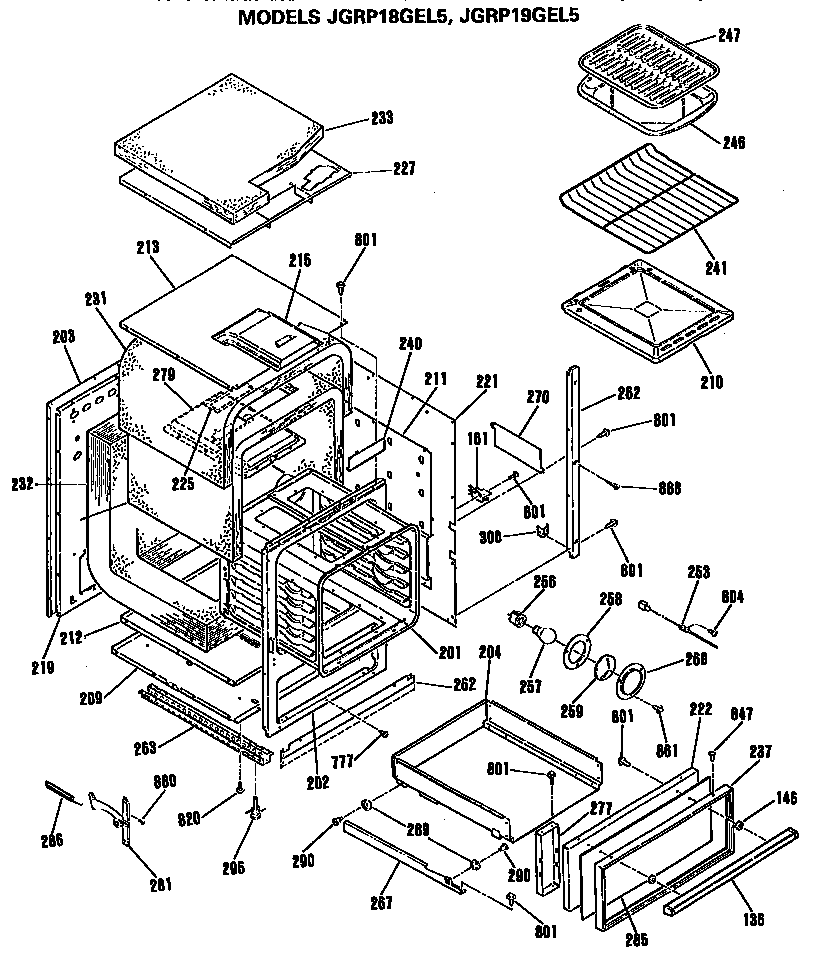

All parts diagram
G.e. kenmore range oven burner igniterPart #WB2X9154
$93.95 |6% OFF Phone Price : $99.95In Stock#253

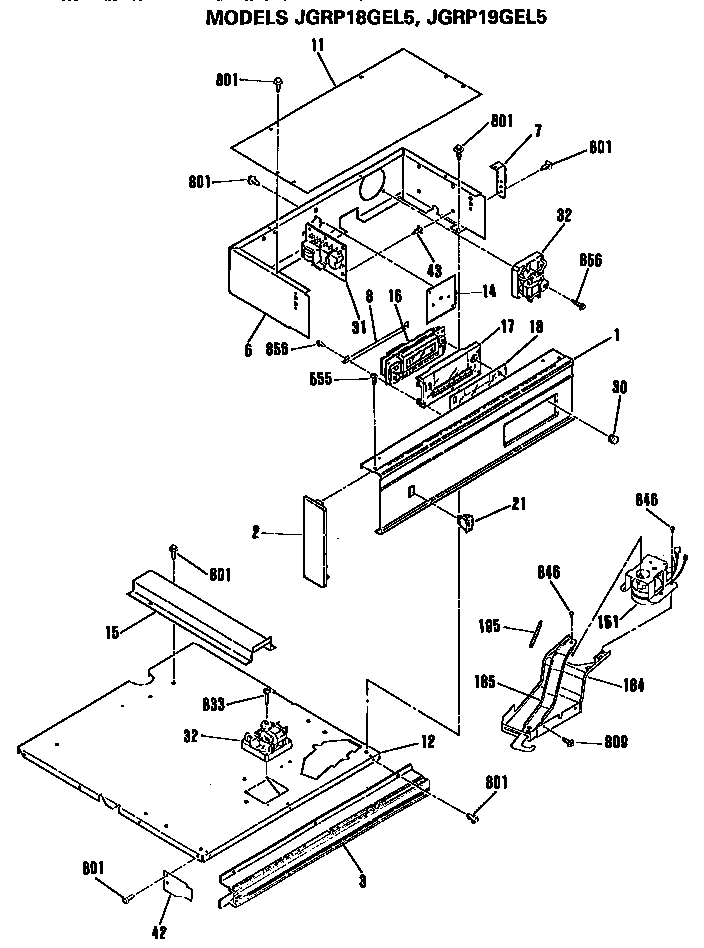

All parts diagram
SensorPart #WB20X106
Replaced by #WB21X5301
?Manufacturer substitutionThis part replaces WB20X106. Substitute parts can look different from the original.$103.13 |10% OFF Phone Price : $115.13In Stock#856
All parts diagram
Range screwPart #WB1X1293
This item is not returnable$8.70 |10% OFF Phone Price : $9.70In Stock#32
All parts diagram
Wall oven cooling fan assemblyPart #WB26X114
$111.01 |10% OFF Phone Price : $123.01In Stock#830
All parts diagram
Screw-10-32Part #WB1X1135
Replaced by #WB1X1130
?Manufacturer substitutionThis part replaces WB1X1135. Substitute parts can look different from the original.$8.70 |10% OFF Phone Price : $9.70In Stock#801
All parts diagram
Screw-4-pkPart #WB1M01
Replaced by #WB1M1
?Manufacturer substitutionThis part replaces WB1M01. Substitute parts can look different from the original.This item is not returnable$7.17 |12% OFF Phone Price : $8.17In Stock#315
All parts diagram
Range gas control valvePart #WB20X126
$345.97 |21% OFF Was : $438.93In Stock#266
All parts diagram
ChannelPart #WB2X9634
$15.11 |12% OFF Phone Price : $17.11In Stock#123
All parts diagram
Wall oven door center glassPart #WB36X779
$103.89 |10% OFF Phone Price : $115.89In Stock#296
All parts diagram
LevelingPart #WB2X9635
$26.07In Stock
