Model # 229965291 Official Kenmore gas-fired steam boiler

Here are the diagrams and repair parts for Official Kenmore 229965291 gas-fired steam boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Gas Valve 146-62-052
#1A

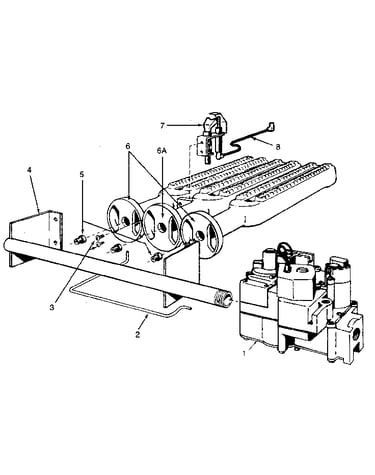

Gas burners and manifold diagram

Gas valve

Part #146-62-052

The manufacturer no longer makes this part, and there's no substitute part

Pilot Control 146-62-073-60
#10

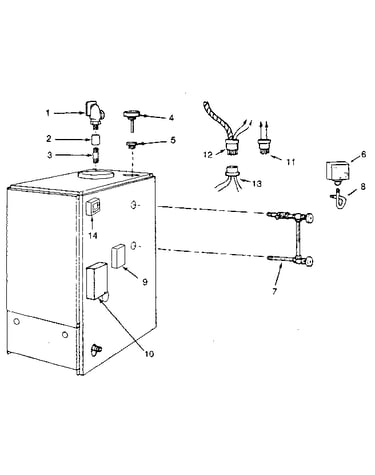

Pressure and glass gauge assembly diagram

Pilot control

Part #146-62-073-60

Replaced by #BG1600M51EF-1AA

?
Manufacturer substitution
This part replaces 146-62-073-60. Substitute parts can look different from the original.
$191.94 |
6% OFF Phone Price : $203.94
In Stock
Gas Valve 146-62-035-60
#1B

Gas burners and manifold diagram

Gas valve

Part #146-62-035-60

The manufacturer no longer makes this part, and there's no substitute part

Burner 146-62-072-60
#7B

Gas burners and manifold diagram

Burner

Part #146-62-072-60

The manufacturer no longer makes this part, and there's no substitute part

Sh Met Screw 146-95-074-60
#21

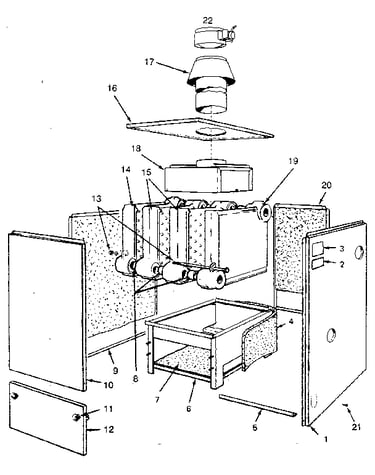

Jacket - sections & base diagram

Sh met screw

Part #146-95-074-60

The manufacturer no longer makes this part, and there's no substitute part

Press Limit 146-62-015
#6

Pressure and glass gauge assembly diagram

Press limit

Part #146-62-015

Replaced by #PA404A1033

?
Manufacturer substitution
This part replaces 146-62-015. Substitute parts can look different from the original.
$312.53 |
$12.00 OFF Phone Price : $324.53
In Stock
Ignik Cable 146-62-074-60
#8A

Gas burners and manifold diagram

Ignik cable

Part #146-62-074-60

The manufacturer no longer makes this part, and there's no substitute part

Vent Damper 433-60-502
#22B

Jacket - sections & base diagram

Vent damper

Part #433-60-502

Replaced by #FC46487201

?
Manufacturer substitution
This part replaces 433-60-502. Substitute parts can look different from the original.
$233.99
In Stock
Transformer 146-62-045-60
#14

Pressure and glass gauge assembly diagram

Transformer

Part #146-62-045-60

Replaced by #AT150A1007

?
Manufacturer substitution
This part replaces 146-62-045-60. Substitute parts can look different from the original.
$54.18
In Stock
Ignit Cable 146-62-075-60
#8B

Gas burners and manifold diagram

Ignit cable

Part #146-62-075-60

The manufacturer no longer makes this part, and there's no substitute part
