Electric Range

Model # JB480DM1BB Official GE electric freestanding range

Here are the diagrams and repair parts for Official GE JB480DM1BB electric freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

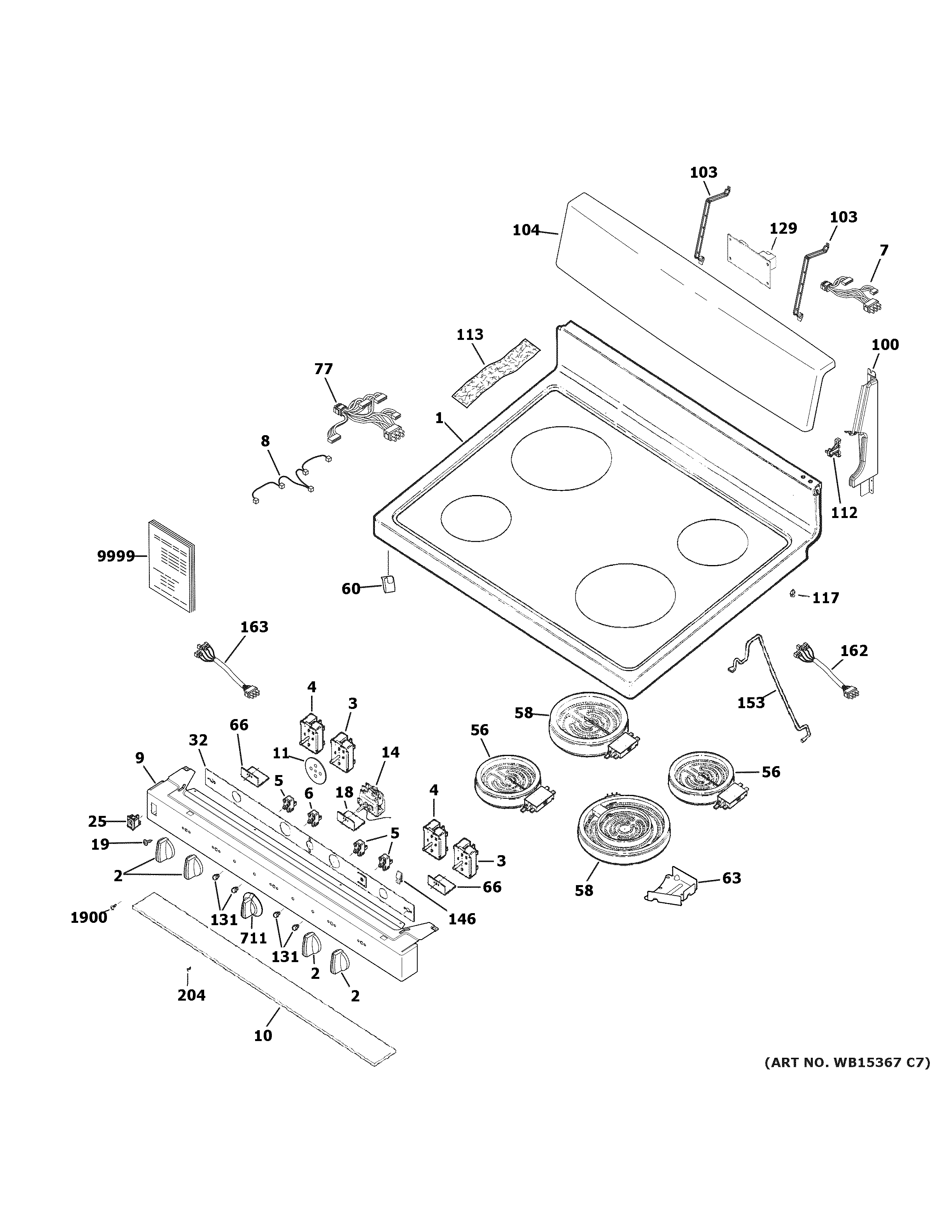

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JB480DM1BB Ranges
40a15bulb STD372401
#235

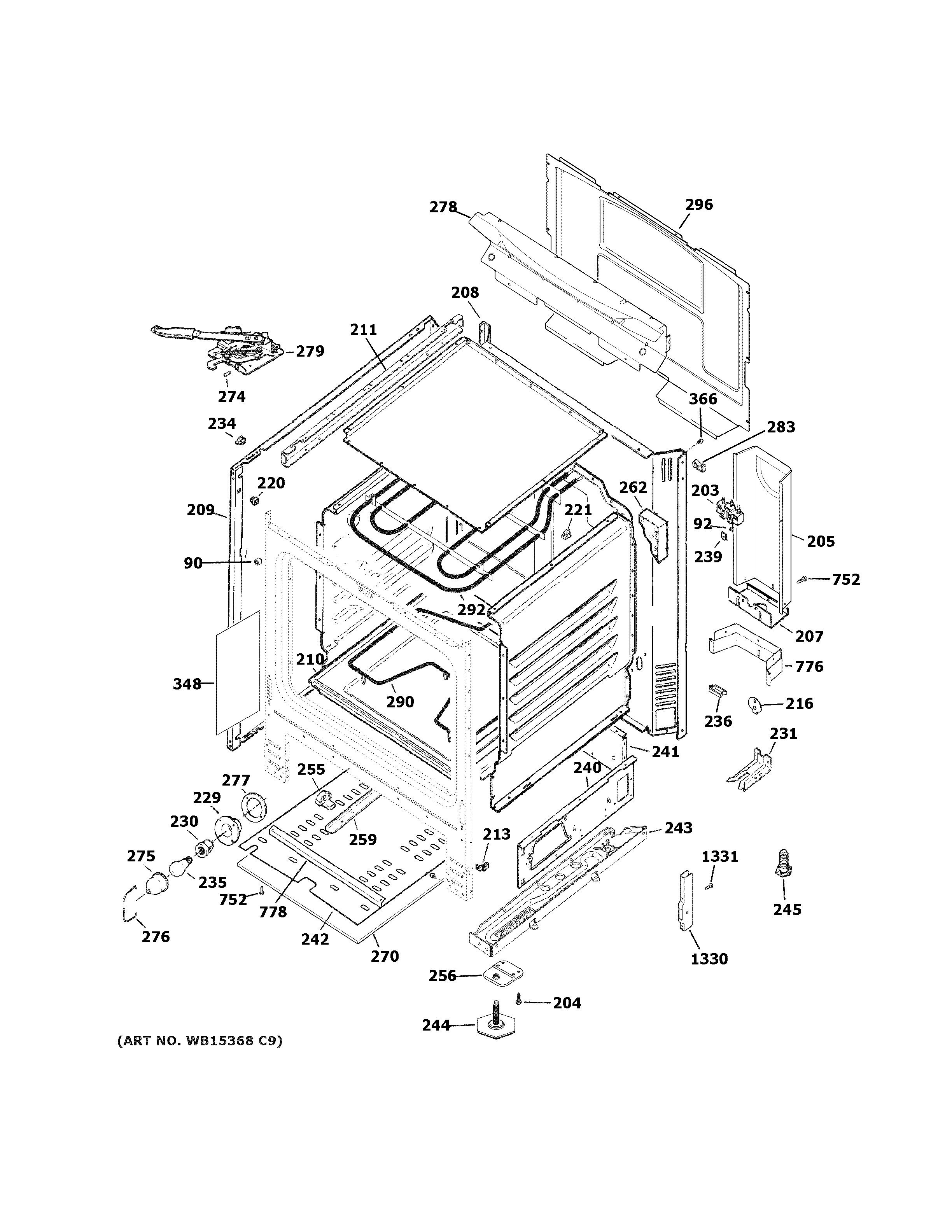

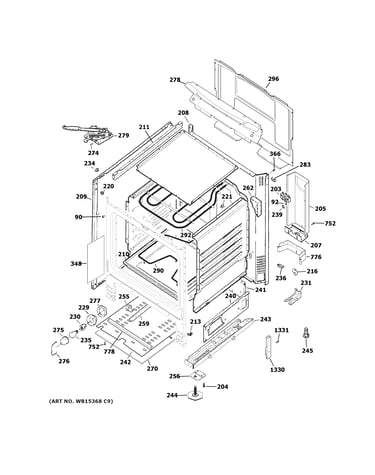

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Range Bake Element WB44K10005
#290

Body parts diagram

Range bake element

Part #WB44K10005

Replaced by #WB30X46987

?
Manufacturer substitution
This part replaces WB44K10005. Substitute parts can look different from the original.
BEST SELLER
$182.06
In Stock
Range Terminal Block (replaces Wb17t10016, Wb17t10023) WB17T10011
#203

Body parts diagram

Range terminal block (replaces wb17t10016, wb17t10023)

Part #WB17T10011

5 (1)
BEST SELLER
$54.72 |
14% OFF Phone Price : $63.60
In Stock
Range Surface Burner Grate Bumper WB02X24790
#311

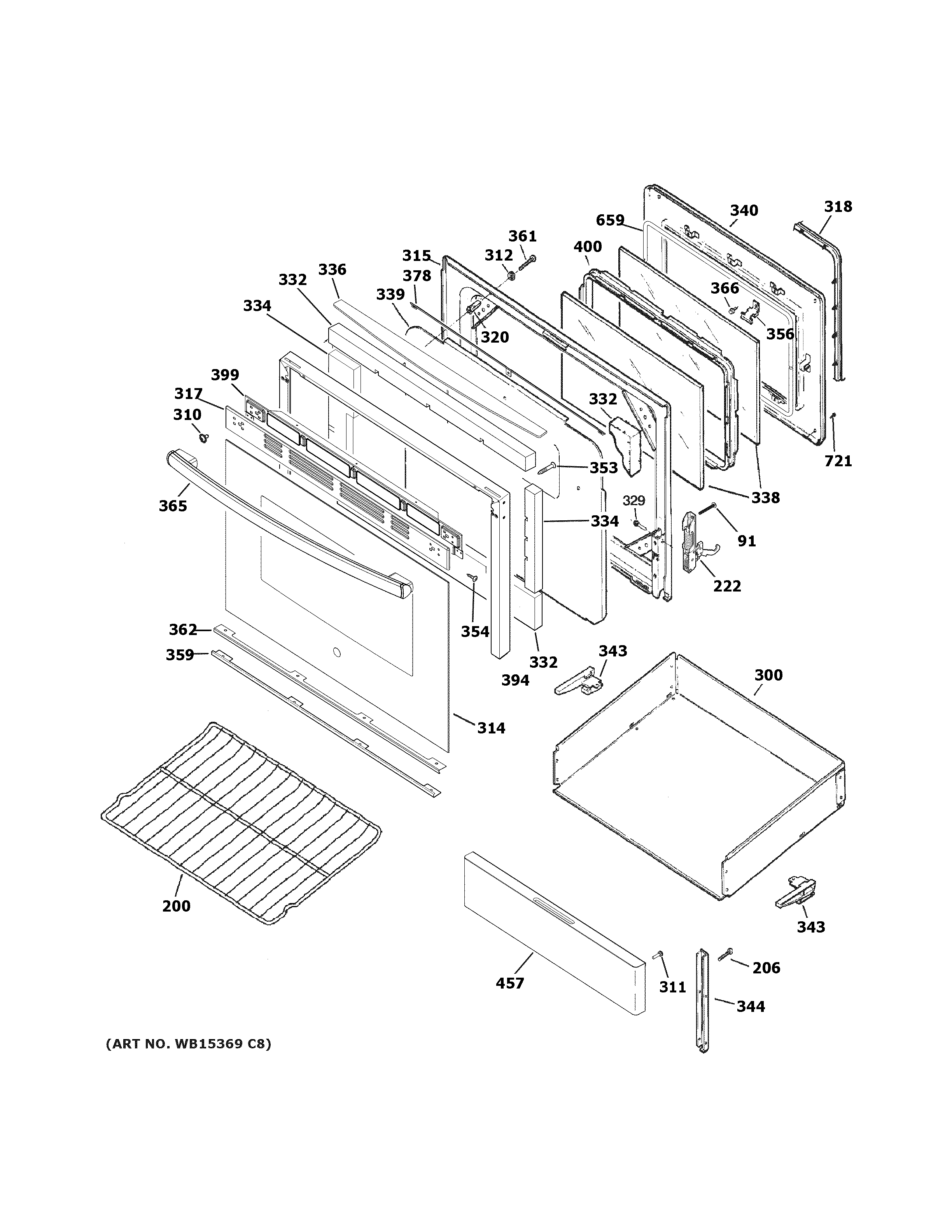

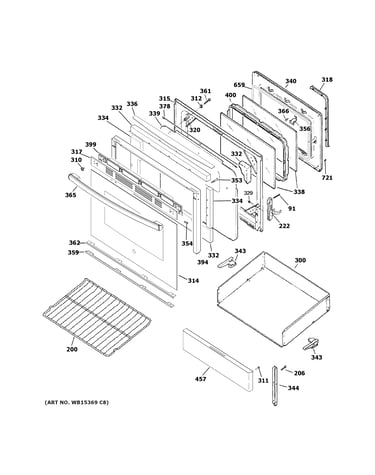

Door & drawer parts diagram

Range surface burner grate bumper

Part #WB02X24790

4.75 (16)
$9.42 |
10% OFF Phone Price : $10.42
In Stock
Range Oven Door Outer Glass WB56X23809
#338

Door & drawer parts diagram

Range oven door outer glass

Part #WB56X23809

$85.67 |
11% OFF Phone Price : $96.18
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#230

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.95 |
15% OFF Phone Price : $9.37
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
#91

Door & drawer parts diagram

Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$9.89 |
20% OFF Phone Price : $12.41
In Stock
Wb36x389 WB08K0005
#275

Body parts diagram

Wb36x389

Part #WB08K0005

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB08K0005. Substitute parts can look different from the original.
5 (1)
This item is not returnable
$13.58 |
13% OFF Phone Price : $15.58
In Stock
Range Oven Rack WB48X20249
#200

Door & drawer parts diagram

Range oven rack

Part #WB48X20249

5 (1)
$57.56 |
14% OFF Phone Price : $66.59
In Stock
Range Leveling Leg (replaces Wb02k10379) WB02K10182
#245

Body parts diagram

Range leveling leg (replaces wb02k10379)

Part #WB02K10182

This item is not returnable
$8.75 |
14% OFF Phone Price : $10.21
In Stock
