Kenmore
Space Heater

Model # 40307 Official Kenmore kerosene heater

Here are the diagrams and repair parts for Official Kenmore 40307 kerosene heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Igniter A0S720-A22AX
#22

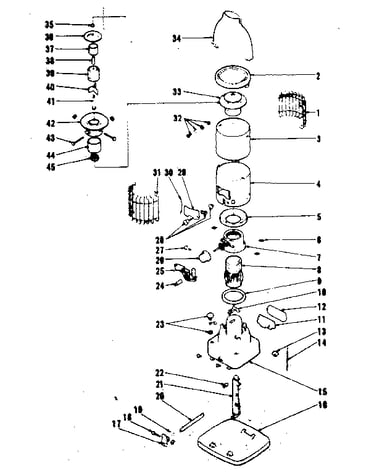

Replacement parts diagram

Igniter

Part #A0S720-A22AX

The manufacturer no longer makes this part, and there's no substitute part

Plate K0S4537X52AX
#38

Replacement parts diagram

Plate

Part #K0S4537X52AX

The manufacturer no longer makes this part, and there's no substitute part

Plte Rfltn K0S1510B52AX
#2

Replacement parts diagram

Plte rfltn

Part #K0S1510B52AX

The manufacturer no longer makes this part, and there's no substitute part

Lever K0S6510X52AX
#20

Replacement parts diagram

Lever

Part #K0S6510X52AX

The manufacturer no longer makes this part, and there's no substitute part

Guard K0S160AX52AX
Guard

Part #K0S160AX52AX

The manufacturer no longer makes this part, and there's no substitute part

Gauge K0S353AX07AX
#23

Replacement parts diagram

Gauge

Part #K0S353AX07AX

The manufacturer no longer makes this part, and there's no substitute part

Lever Axis K0S6620X50AX
#18

Replacement parts diagram

Lever axis

Part #K0S6620X50AX

The manufacturer no longer makes this part, and there's no substitute part

Siphon A0S000-024AX

#NI

All parts diagram

Siphon

Part #A0S000-024AX

The manufacturer no longer makes this part, and there's no substitute part

Chimney Nut A0S001-031BX
#35

Replacement parts diagram

Chimney nut

Part #A0S001-031BX

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut A0S001-212AX
#6

Replacement parts diagram

Wing nut

Part #A0S001-212AX

The manufacturer no longer makes this part, and there's no substitute part
