Kenmore
Charcoal Grill

Model # 25822149 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 25822149 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Rotisserie 10004-81
#80

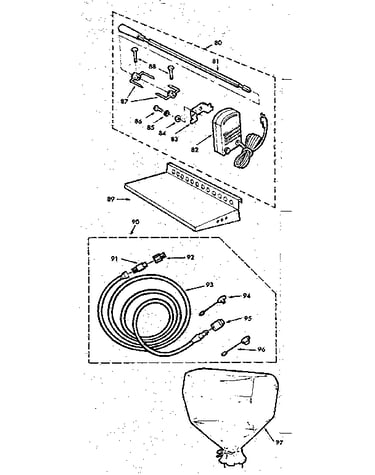

Optional accessories diagram

Rotisserie

Part #10004-81

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-11983
#51

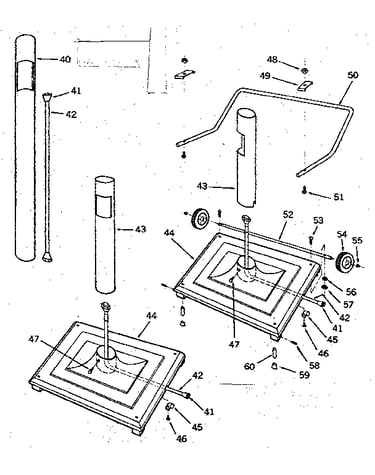

Post assemblies diagram

Screw

Part #Y-11983

The manufacturer no longer makes this part, and there's no substitute part

Flare Nut Y-5603
#41

Post assemblies diagram

Flare nut

Part #Y-5603

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw Y-6090
#6

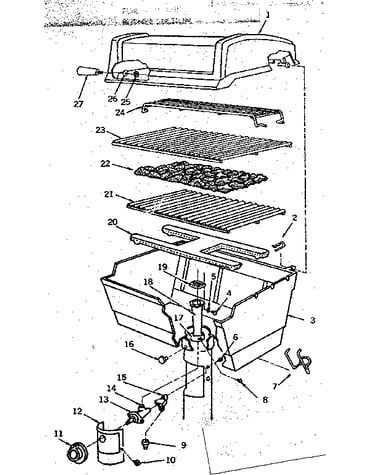

Grill and burner diagram

Cap screw

Part #Y-6090

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw Y-12310
#16

Grill and burner diagram

Cap screw

Part #Y-12310

The manufacturer no longer makes this part, and there's no substitute part

Thumb Screw Y-12046
#47

Post assemblies diagram

Thumb screw

Part #Y-12046

The manufacturer no longer makes this part, and there's no substitute part

Lp Gas Orifice 10403-13
#14B

Grill and burner diagram

Lp gas orifice

Part #10403-13

The manufacturer no longer makes this part, and there's no substitute part

Burner 10397-6
#20

Grill and burner diagram

Burner

Part #10397-6

The manufacturer no longer makes this part, and there's no substitute part

Holder 10578-3
#7

Grill and burner diagram

Holder

Part #10578-3

The manufacturer no longer makes this part, and there's no substitute part

Dust Cap 10803-4
#96

Optional accessories diagram

Dust cap

Part #10803-4

The manufacturer no longer makes this part, and there's no substitute part
