Model # DM15HW-14B Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM15HW-14B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Screw 03020087
#12

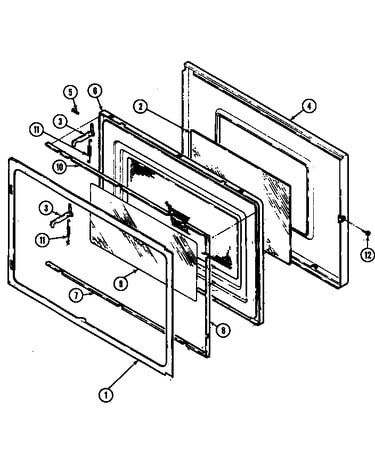

Door diagram

Screw

Part #03020087

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 03020087. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 03020079
#38A

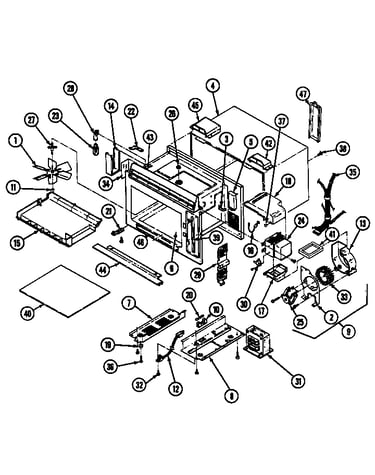

Base & cavity diagram

Screw

Part #03020079

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020079. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Capacitor 01020021
#5

Base & cavity diagram

Capacitor

Part #01020021

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 01020021. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Screw 03010119
#22A

Base & cavity diagram

Screw

Part #03010119

Replaced by #WP250830

?
Manufacturer substitution
This part replaces 03010119. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 03020068
Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cover 02300032
#13

Base & cavity diagram

Cover

Part #02300032

The manufacturer no longer makes this part, and there's no substitute part

"bracket, Int" 02030152
#29D

Base & cavity diagram

"bracket, int"

Part #02030152

The manufacturer no longer makes this part, and there's no substitute part

Channel Base 02090011
#8

Base & cavity diagram

Channel base

Part #02090011

The manufacturer no longer makes this part, and there's no substitute part

Manual, Use & Care - Series 01 06010337
#6A

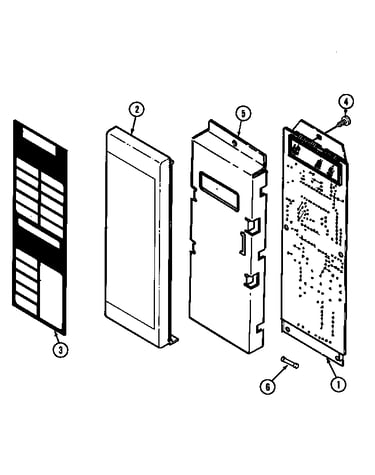

Control panel diagram

Manual, use & care - series 01

Part #06010337

The manufacturer no longer makes this part, and there's no substitute part

Switch Panel 02060369
#3

Control panel diagram

Switch panel

Part #02060369

The manufacturer no longer makes this part, and there's no substitute part
