KitchenAid
Countertop Microwave

Model # KCMS2055SSS0 Official KitchenAid countertop microwave

Here are the diagrams and repair parts for Official KitchenAid KCMS2055SSS0 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Magnetron 8205460
#12

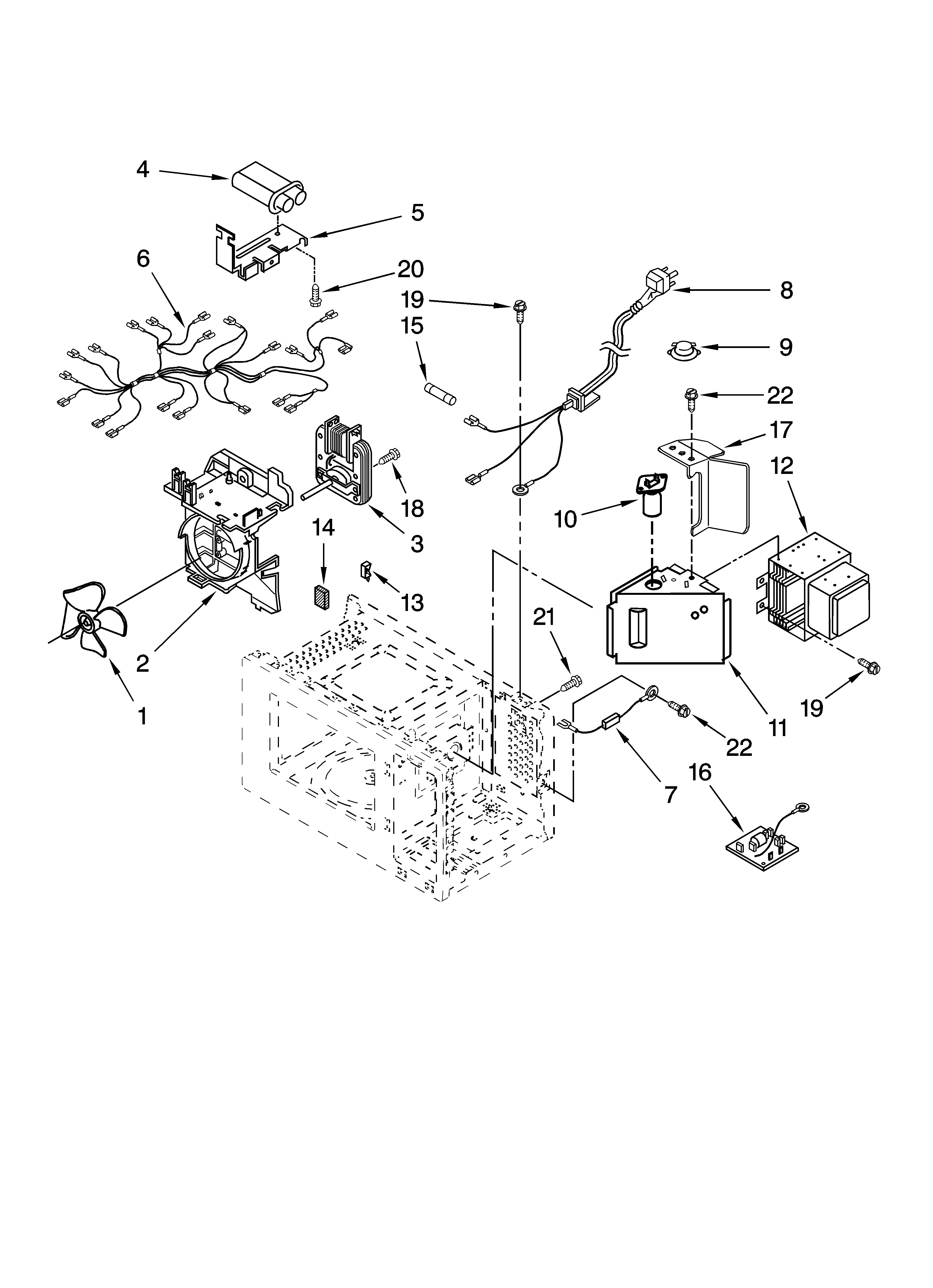

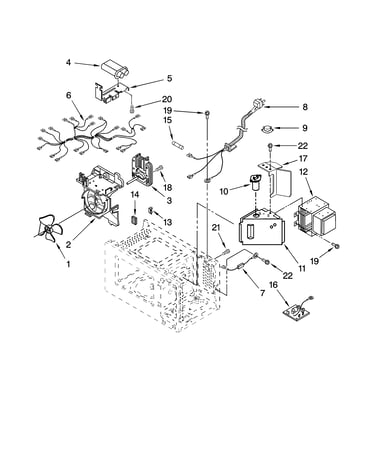

Oven interior parts diagram

Magnetron

Part #8205460

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 8185272
#4

Oven interior parts diagram

Capacitor

Part #8185272

Replaced by #WP8184813

?
Manufacturer substitution
This part replaces 8185272. Substitute parts can look different from the original.
$79.79 |
7% OFF Phone Price : $85.79
In Stock
Spring 8184272
#2

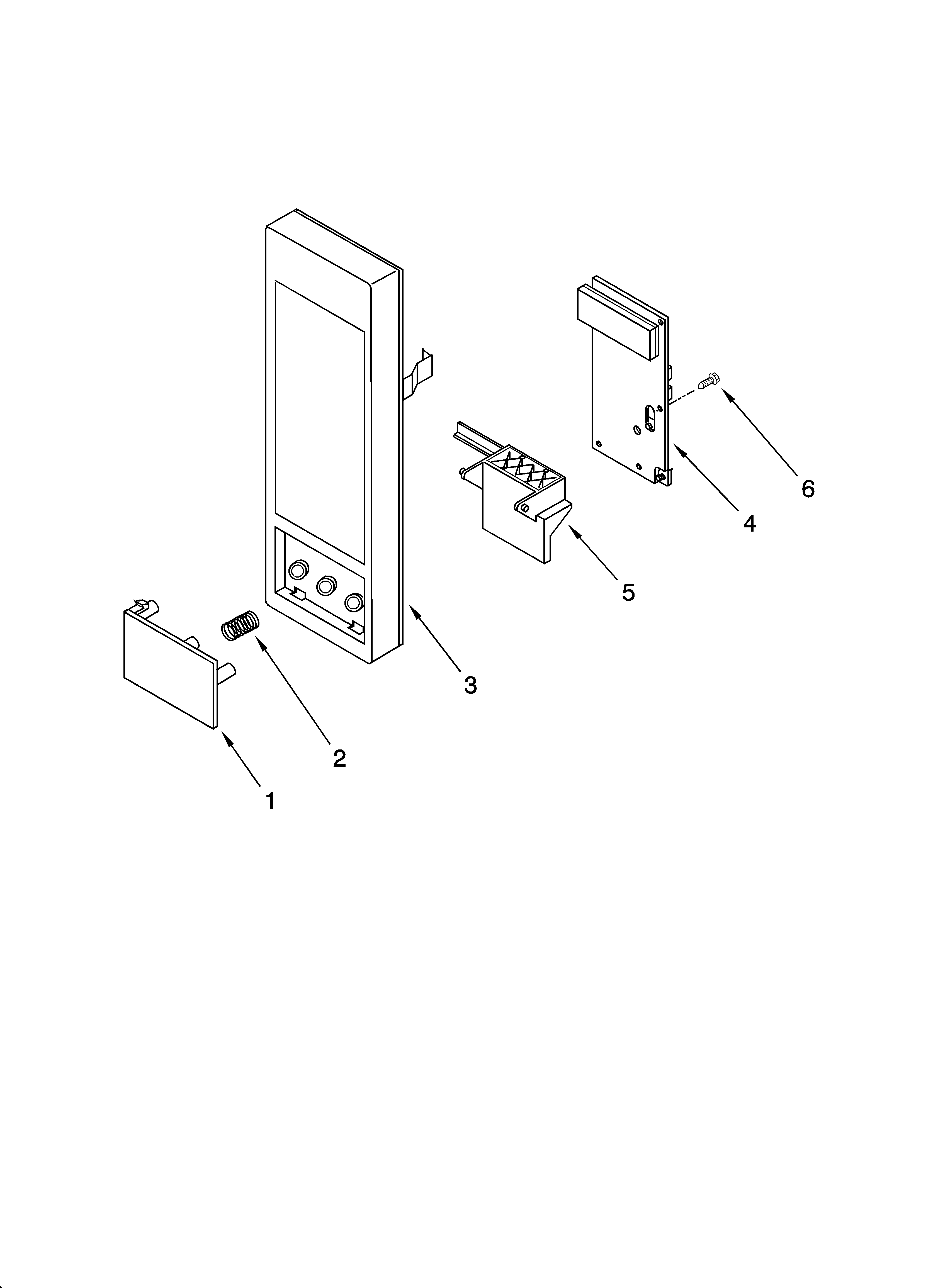

Control panel parts diagram

Spring

Part #8184272

Replaced by #WP4158178

?
Manufacturer substitution
This part replaces 8184272. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Power Cord 8206281
#8

Oven interior parts diagram

Power cord

Part #8206281

$46.16
In Stock
Cook Guide W10114101
#1B

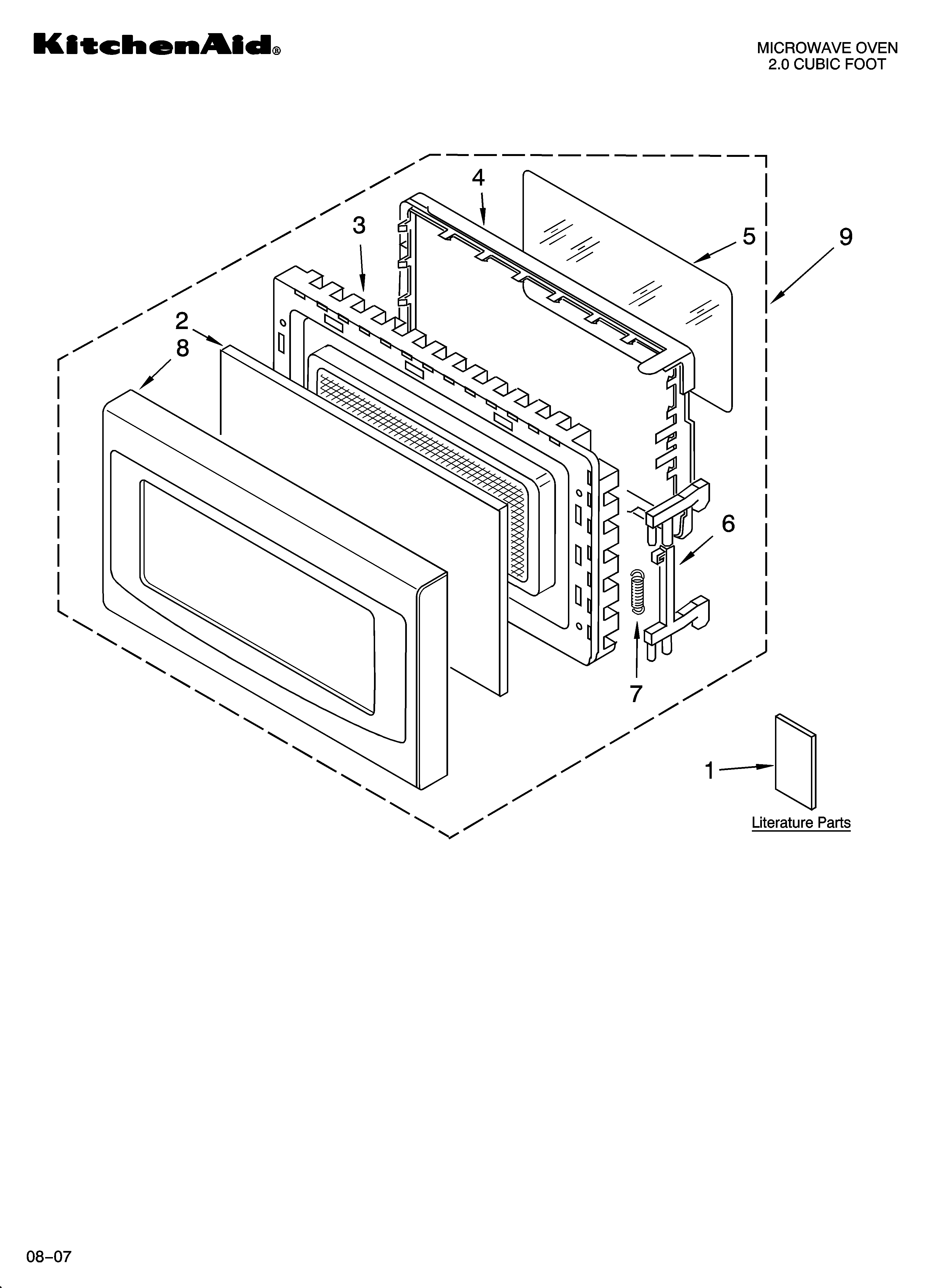

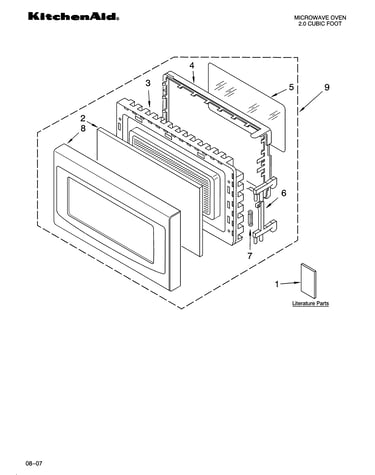

Door parts diagram

Cook guide

Part #W10114101

This item is not returnable
$5.70
In Stock
Voltage Wire W10160548
#7

Oven interior parts diagram

Voltage wire

Part #W10160548

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces W10160548. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Switch 8183561
#3

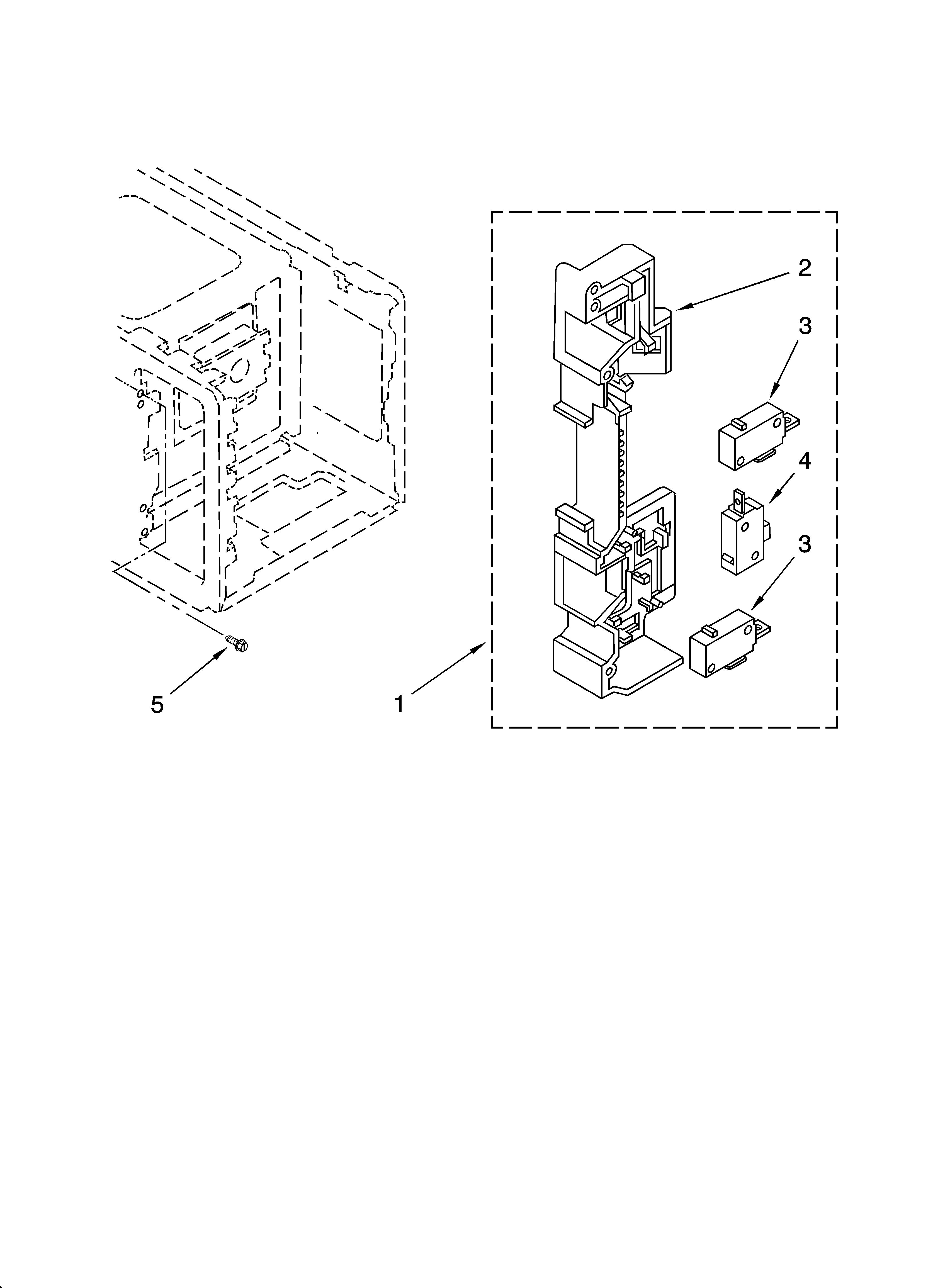

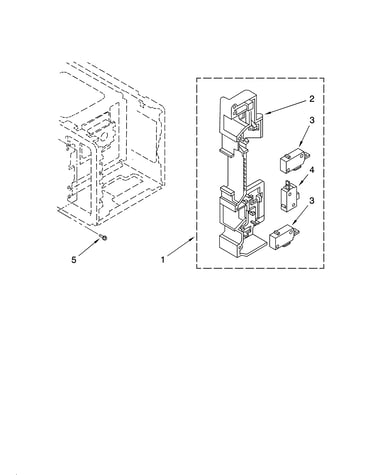

Latch board parts diagram

Switch

Part #8183561

Replaced by #4392027

?
Manufacturer substitution
This part replaces 8183561. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Screw 4358192
#5

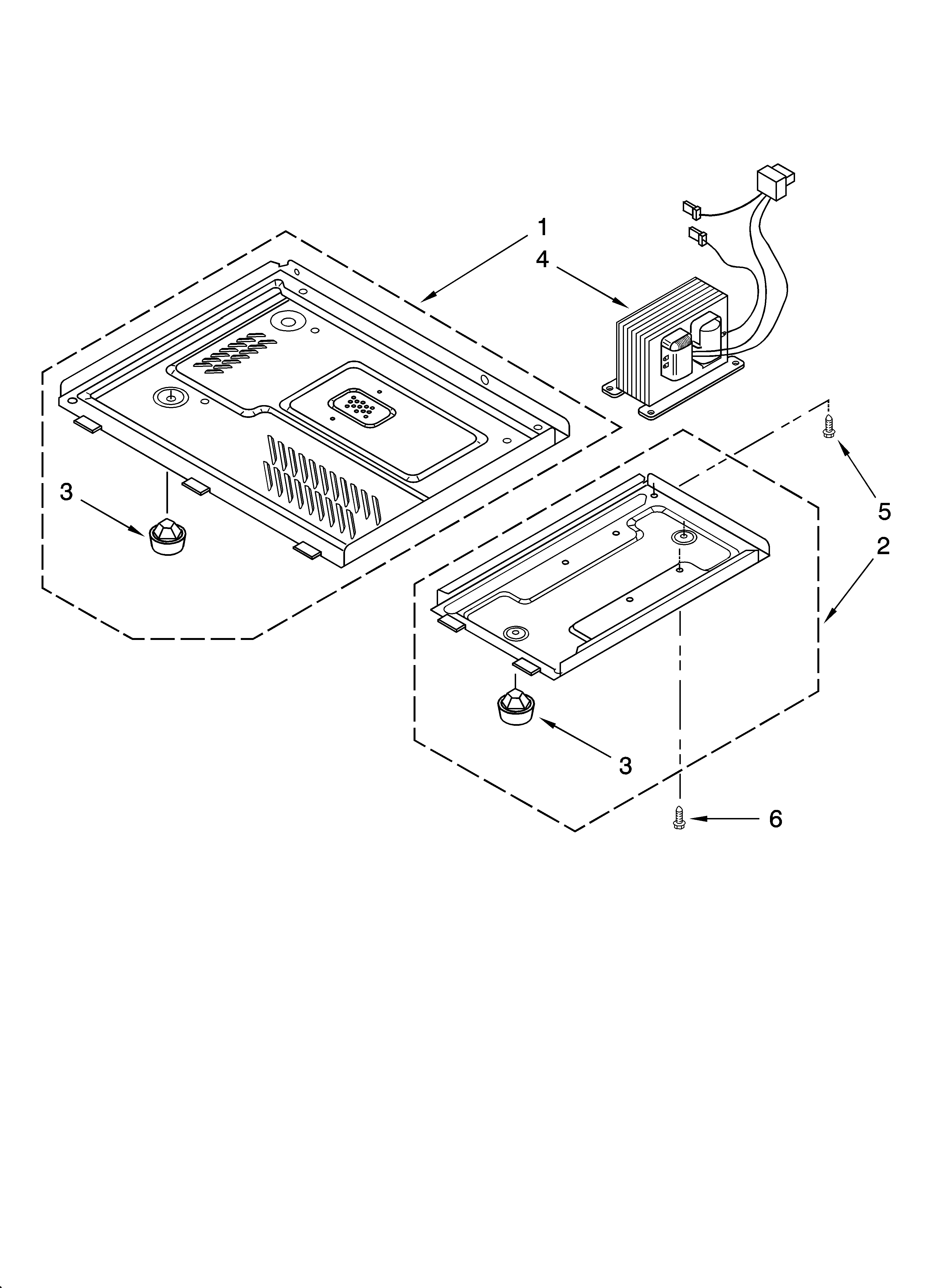

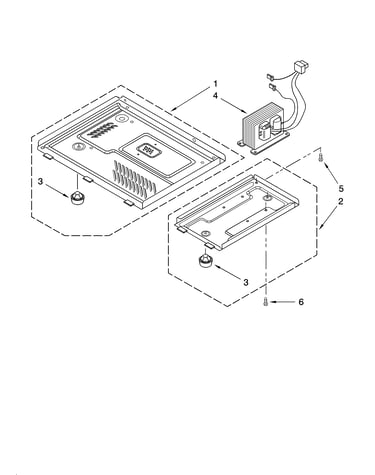

Base plate parts diagram

Screw

Part #4358192

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358192. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Screw 8171862
#8

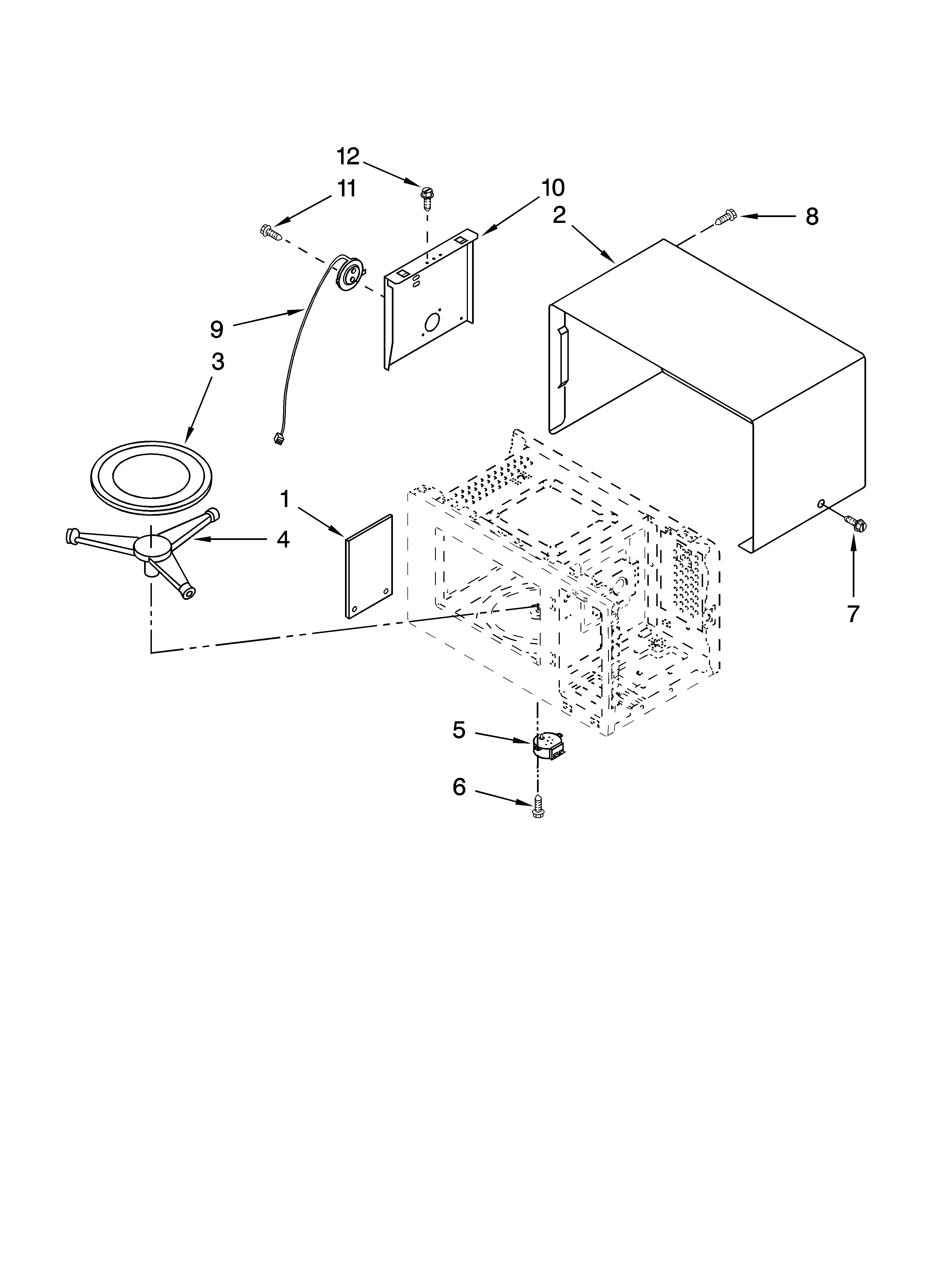

Oven cavity parts diagram

Screw

Part #8171862

Replaced by #8169474

?
Manufacturer substitution
This part replaces 8171862. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Microwave Turntable Ring W10160542
#4

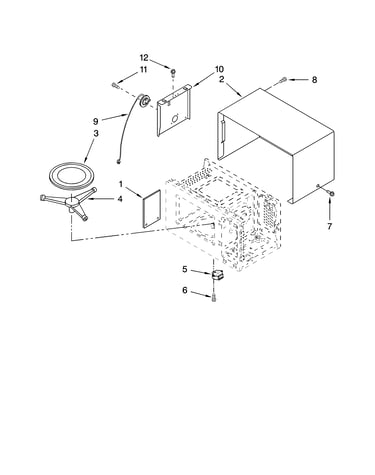

Oven cavity parts diagram

Microwave turntable ring

Part #W10160542

Replaced by #WPW10160542

?
Manufacturer substitution
This part replaces W10160542. Substitute parts can look different from the original.
$42.98
