Toro
Gas Walk-Behind Mower

Model # 20330C (311000001-311999999) Official Toro lawn mower - 2011

Here are the diagrams and repair parts for Official Toro 20330C-311000001-311999999 lawn mower - 2011, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 392 parts  |
Lawn Mower Recoil Starter Rope Guide (replaces 46-8080, 93-7383, 95-4457, 98-2684) 86-9671
#6

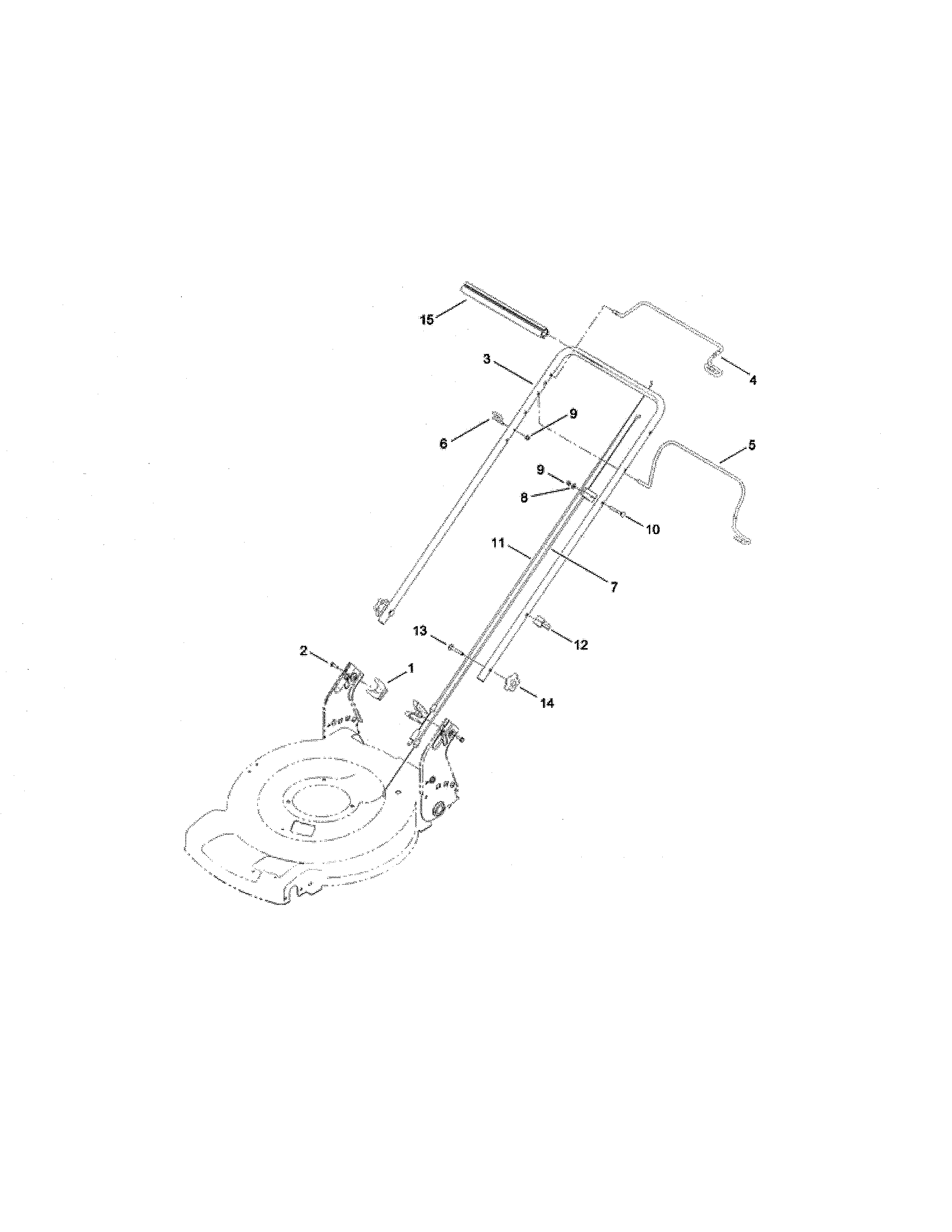

Handle diagram

Lawn mower recoil starter rope guide (replaces 46-8080, 93-7383, 95-4457, 98-2684)

Part #86-9671

This item is not returnable
$5.74 |
15% OFF Phone Price : $6.74
In Stock
Lawn-boy Lawn Mower Screw 95-1726
#8

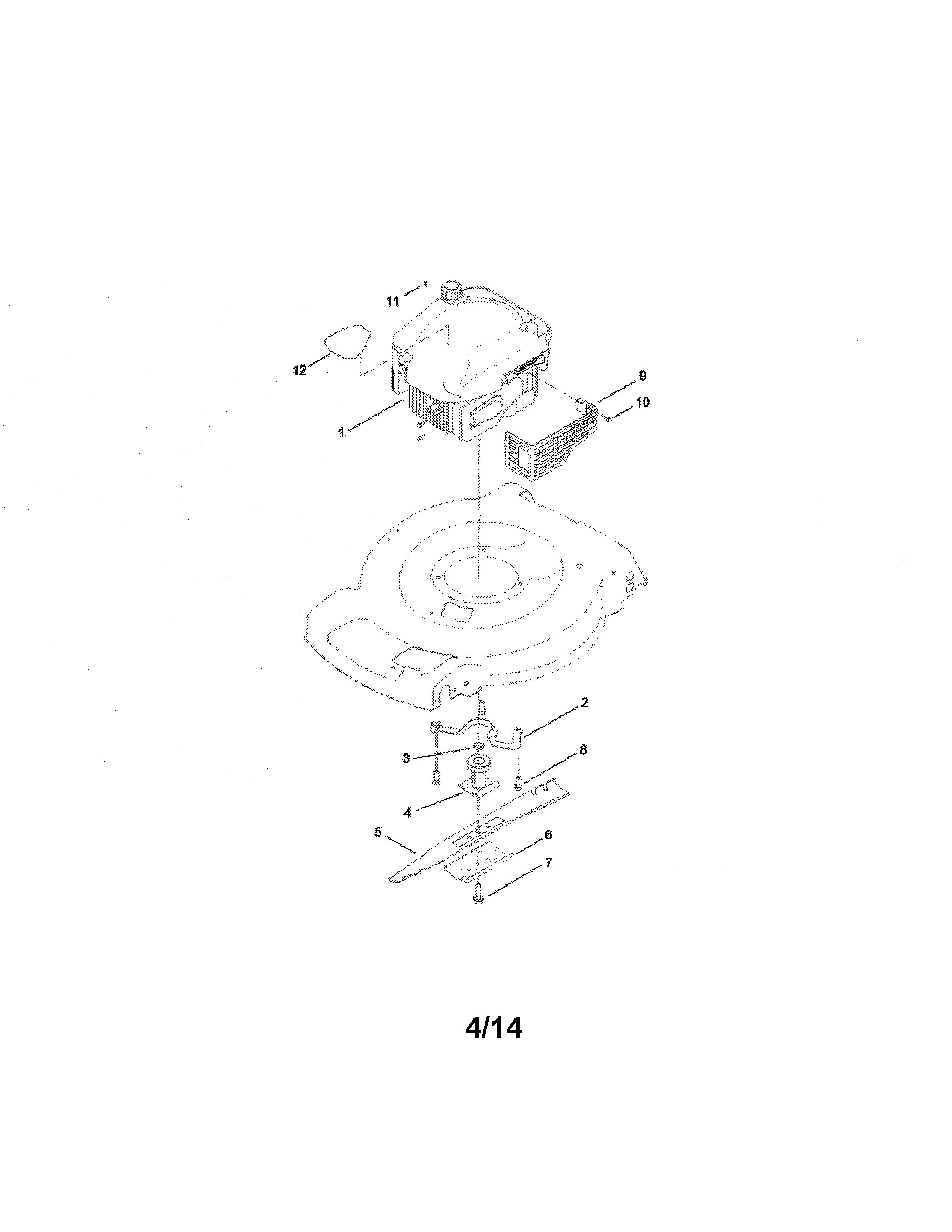

Engine & blade diagram

Lawn-boy lawn mower screw

Part #95-1726

This item is not returnable
$3.74
In Stock
Cap Screw 322-7
#7

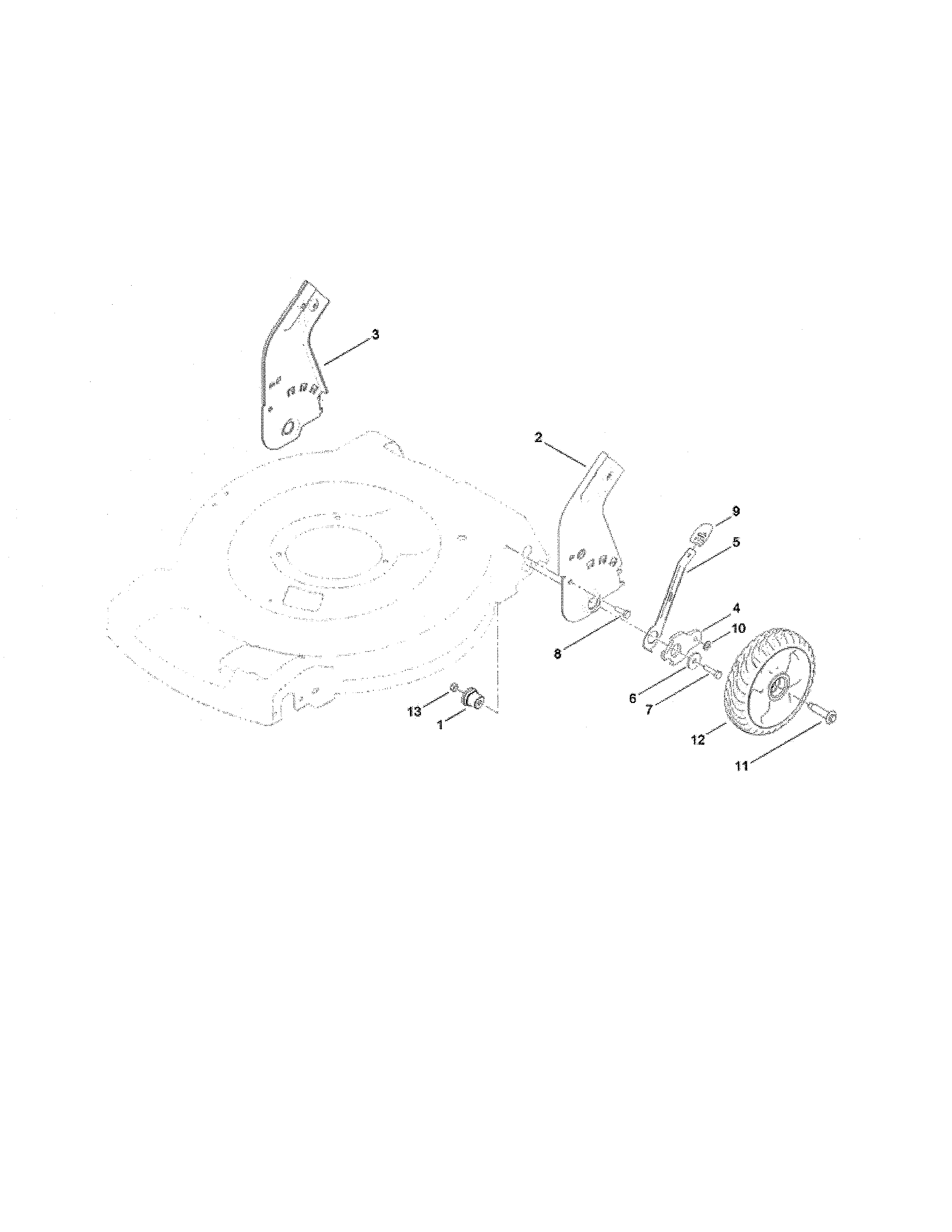

Rear wheel/height-of-cut diagram

Cap screw

Part #322-7

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Washer 3256-1
#8

Handle diagram

Lawn & garden equipment washer

Part #3256-1

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Lock Washer 3254-5
#14

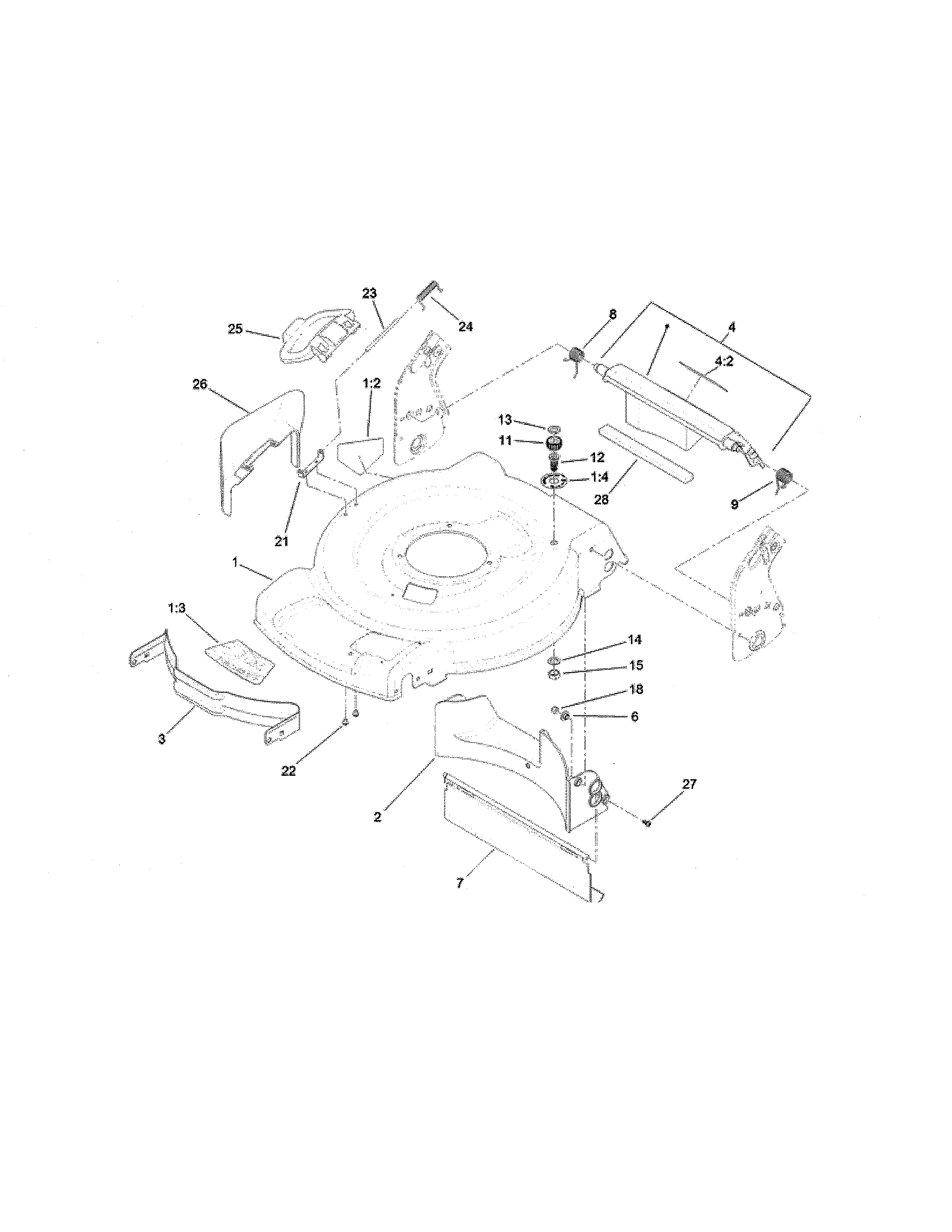

Housing & rear door diagram

Lawn & garden equipment lock washer

Part #3254-5

This item is not returnable
$2.16
In Stock
Lawn Mower Drive Control Cable 119-2379
#11

Handle diagram

Lawn mower drive control cable

Part #119-2379

$50.76
In Stock
Plate Hoc, Front (2) 115-1956-03
#3

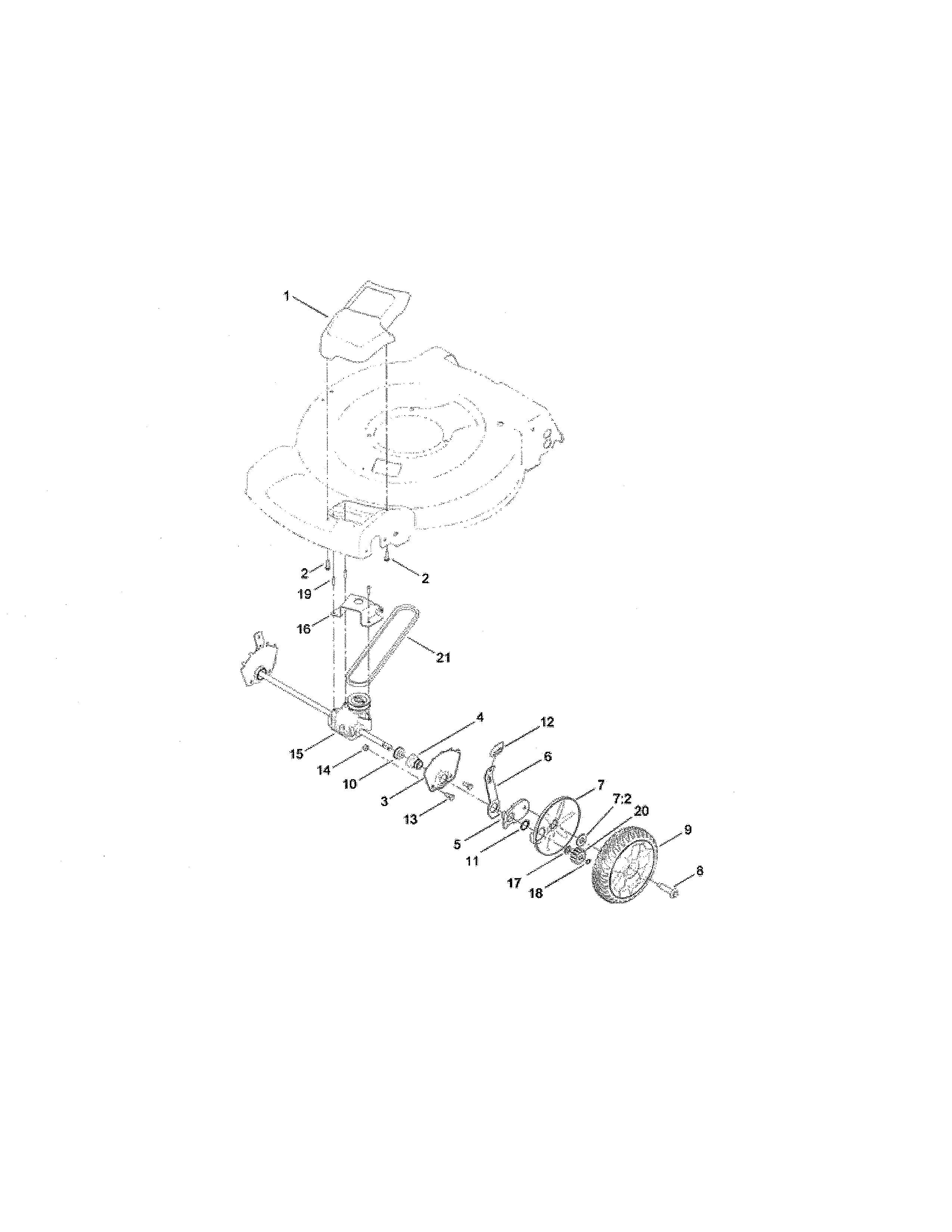

Transmission/front wheel drive diagram

Plate hoc, front (2)

Part #115-1956-03

$19.34
In Stock
Lawn Mower Grass Bag 115-4664
#1

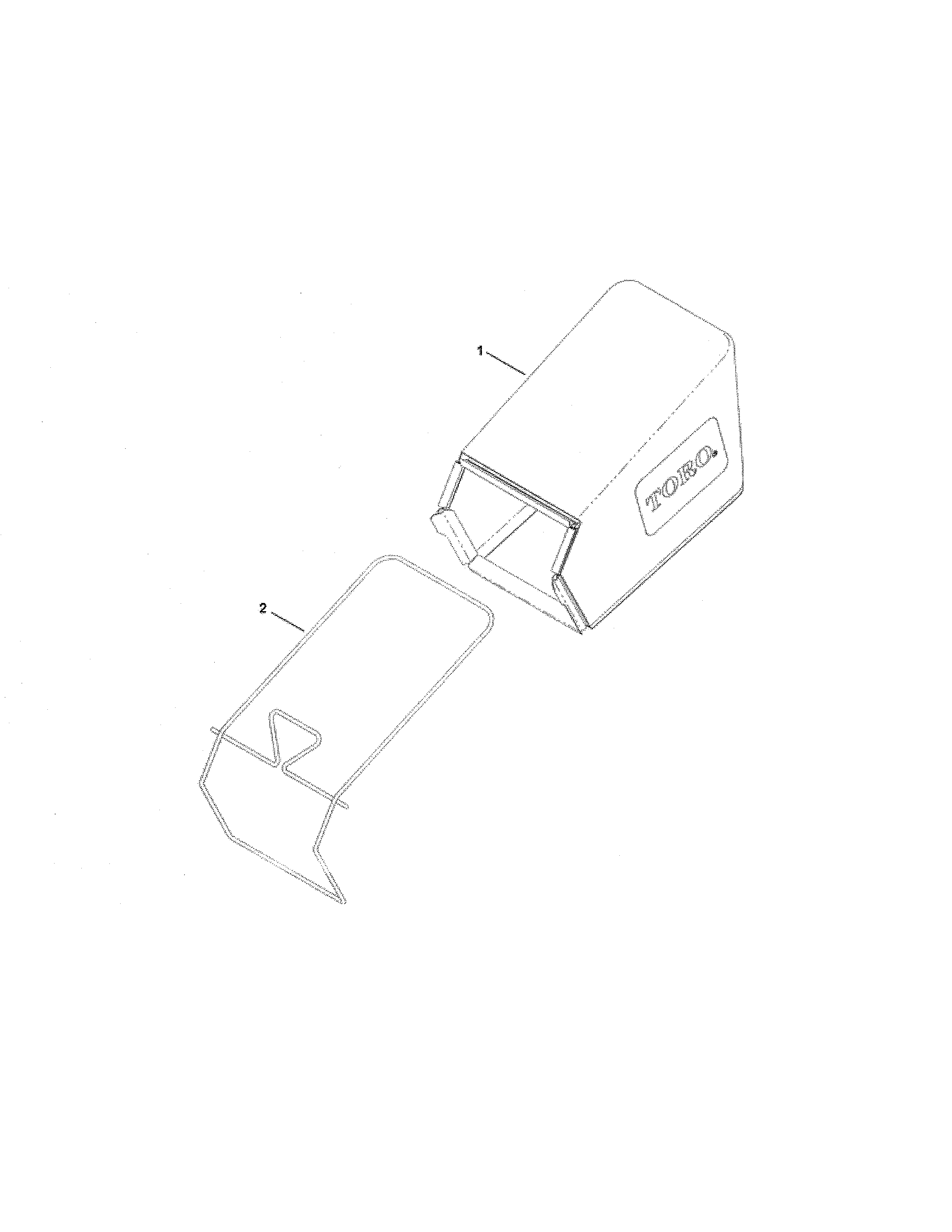

Rear bag diagram

Lawn mower grass bag

Part #115-4664

$105.32 |
10% OFF Phone Price : $117.32
In Stock
Knob Handle, Locking (2) 117-5976
#14

Handle diagram

Knob handle, locking (2)

Part #117-5976

This item is not returnable
$3.40
In Stock
Lawn Mower Ground Drive Belt 117-1018
#21

Transmission/front wheel drive diagram

Lawn mower ground drive belt

Part #117-1018

This item is not returnable

Get free shipping with Automatic Reorder

$25.51
In Stock
