Model # LT1010C Official LG room air conditioner

Here are the diagrams and repair parts for Official LG LT1010C room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Friedrich Room Air Conditioner Fan Motor Capacitor 6120AR2194K
#W0CZZ

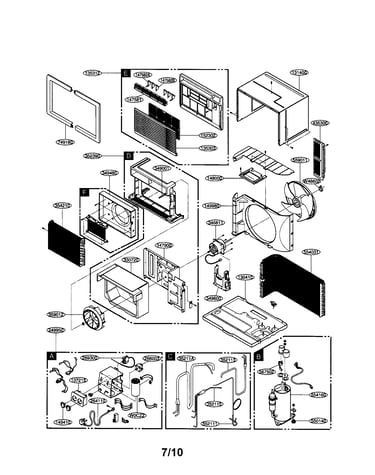

Room a/c diagram

Friedrich room air conditioner fan motor capacitor

Part #6120AR2194K

$38.30 |
14% OFF Phone Price : $44.30
In Stock
Room Air Conditioner Evaporator Fan Blade 5900A20009A
#359012

Room a/c diagram

Room air conditioner evaporator fan blade

Part #5900A20009A

Replaced by #5900A20009E

?
Manufacturer substitution
This part replaces 5900A20009A. Substitute parts can look different from the original.
$29.57 |
17% OFF Phone Price : $35.57
In Stock
Thermostat 2H01109M
#269300

Room a/c diagram

Thermostat

Part #2H01109M

Replaced by #2H01109L

?
Manufacturer substitution
This part replaces 2H01109M. Substitute parts can look different from the original.
$31.05 |
16% OFF Phone Price : $37.05
In Stock
Room Air Conditioner Front Trim 4918A20001A
#749180

Room a/c diagram

Room air conditioner front trim

Part #4918A20001A

This item is not returnable
$24.09
In Stock
Louver,hor 4758A20008B
#147581

Room a/c diagram

Louver,hor

Part #4758A20008B

$18.83
In Stock
Scroll 3072A20003B
#330720

Room a/c diagram

Scroll

Part #3072A20003B

$24.09
In Stock
Friedrich Room Air Conditioner Compressor Overload Protector 6750U-L031A
#567502

Room a/c diagram

Friedrich room air conditioner compressor overload protector

Part #6750U-L031A

$24.09
In Stock
Brace 4800A30002A
#148000

Room a/c diagram

Brace

Part #4800A30002A

This item is not returnable
$7.00
In Stock
Orifice 4948A10006A
#349480

Room a/c diagram

Orifice

Part #4948A10006A

$24.09
In Stock
Ac Power Cord Assembly 2H00677R
#264110

Room a/c diagram

Ac power cord assembly

Part #2H00677R

$40.87
In Stock
