Thermador
Range Hood

Model # HTSW Official Thermador range hood

Here are the diagrams and repair parts for Official Thermador HTSW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

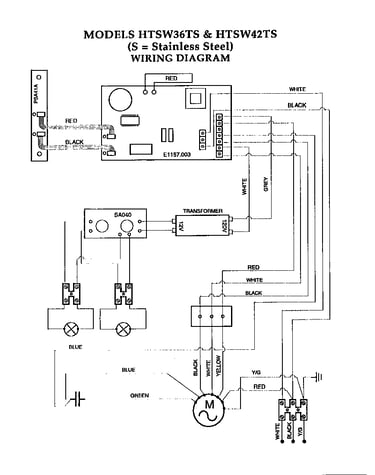

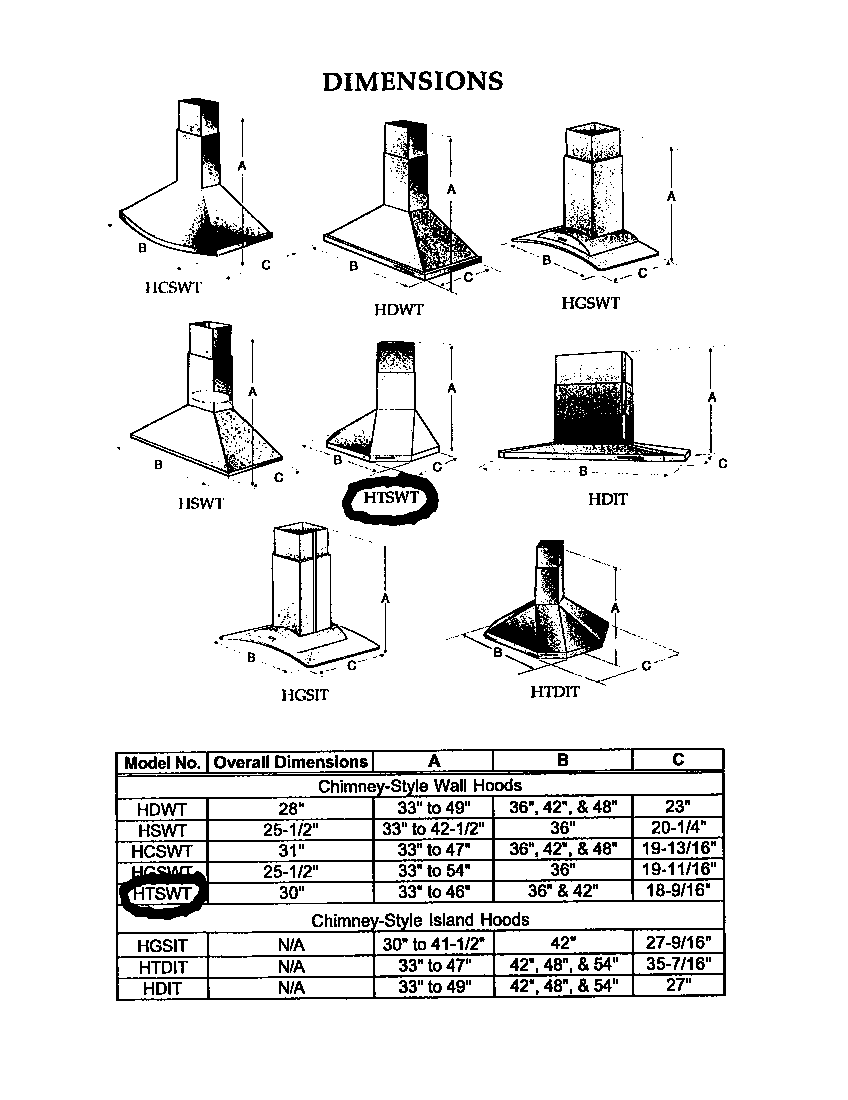

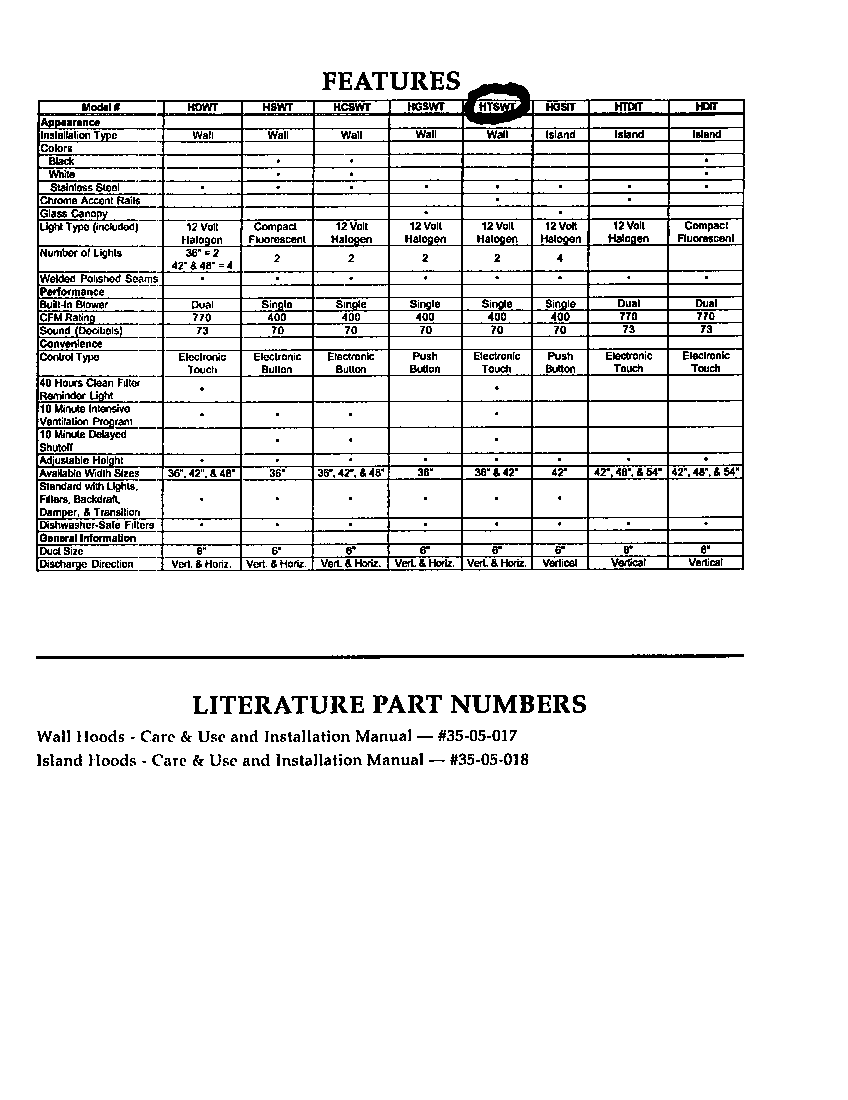

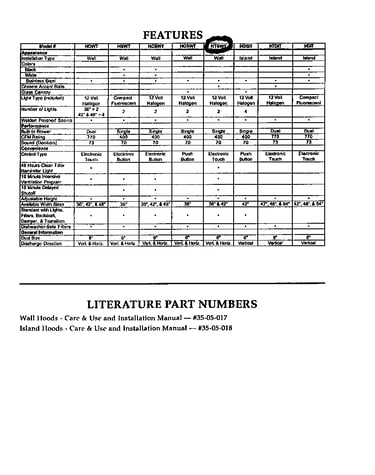

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Overlay 35-05-013
#8

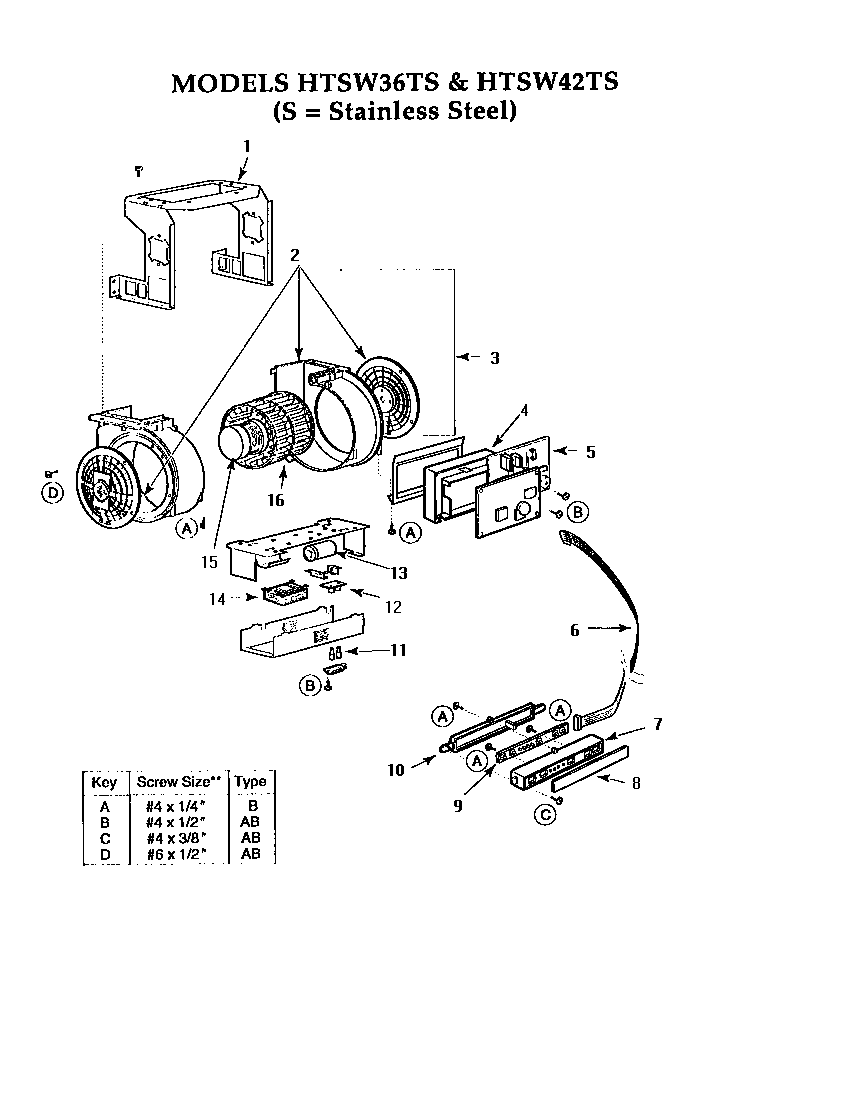

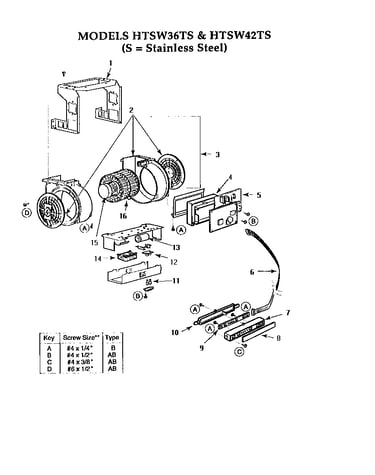

Blower assembly diagram

Overlay

Part #35-05-013

Replaced by #00582360

?
Manufacturer substitution
This part replaces 35-05-013. Substitute parts can look different from the original.
$49.91
In Stock
Filter 35-05-003
#7

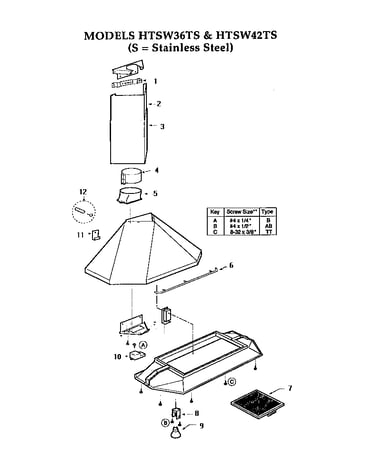

Range hood diagram

Filter

Part #35-05-003

Replaced by #00487410

?
Manufacturer substitution
This part replaces 35-05-003. Substitute parts can look different from the original.
$96.25 |
11% OFF Phone Price : $108.25
In Stock
Control Panel 35-05-133
#7

Blower assembly diagram

Control panel

Part #35-05-133

Replaced by #00487434

?
Manufacturer substitution
This part replaces 35-05-133. Substitute parts can look different from the original.
$89.60
In Stock
12v Halogen Lamp (part May Be Purchased Locally) 35-05-115
#9

Range hood diagram

12v halogen lamp (part may be purchased locally)

Part #35-05-115

The manufacturer no longer makes this part, and there's no substitute part

Switch Cocver (part Is Not Normally Stocked Because Of L 35-05-134
#10

Blower assembly diagram

Switch cocver (part is not normally stocked because of l

Part #35-05-134

The manufacturer no longer makes this part, and there's no substitute part

Lamp Holder 35-05-088
#8

Range hood diagram

Lamp holder

Part #35-05-088

The manufacturer no longer makes this part, and there's no substitute part

Duct Cover, Upper 35-05-167
#2

Range hood diagram

Duct cover, upper

Part #35-05-167

The manufacturer no longer makes this part, and there's no substitute part

Blower Assembly (includes Motor, Housing, Wheel And Inle 35-05-170
#3

Blower assembly diagram

Blower assembly (includes motor, housing, wheel and inle

Part #35-05-170

The manufacturer no longer makes this part, and there's no substitute part

Electronic Control (eff. S/n 98010000) 35-05-204
#9A

Blower assembly diagram

Electronic control (eff. s/n 98010000)

Part #35-05-204

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Fan 35-05-002
#16

Blower assembly diagram

Range hood blower fan

Part #35-05-002

The manufacturer no longer makes this part, and there's no substitute part
