Maytag
Refrigerator

Model # DNF17H Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag DNF17H freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Drier 13900
#13

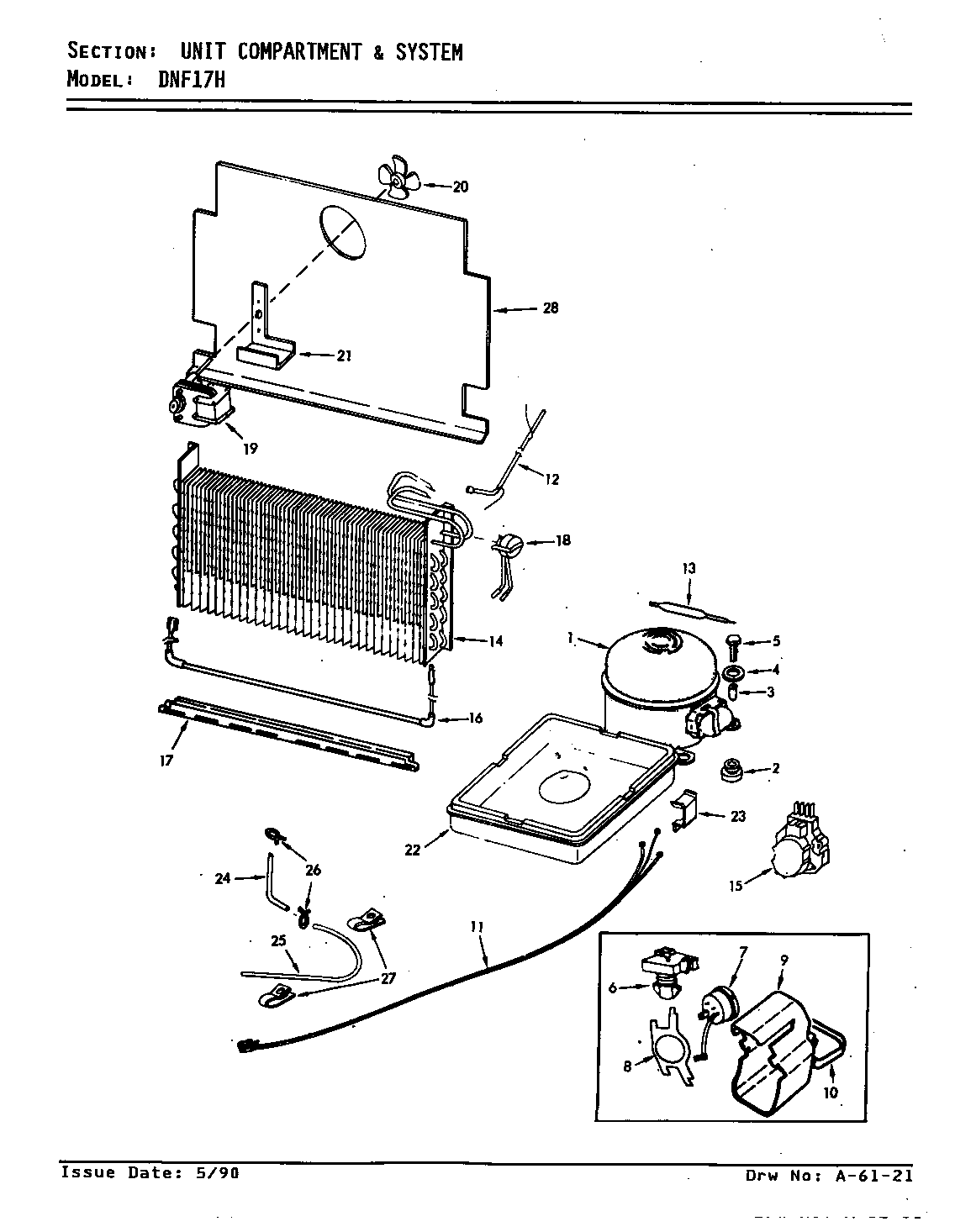

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 55732-1
#11

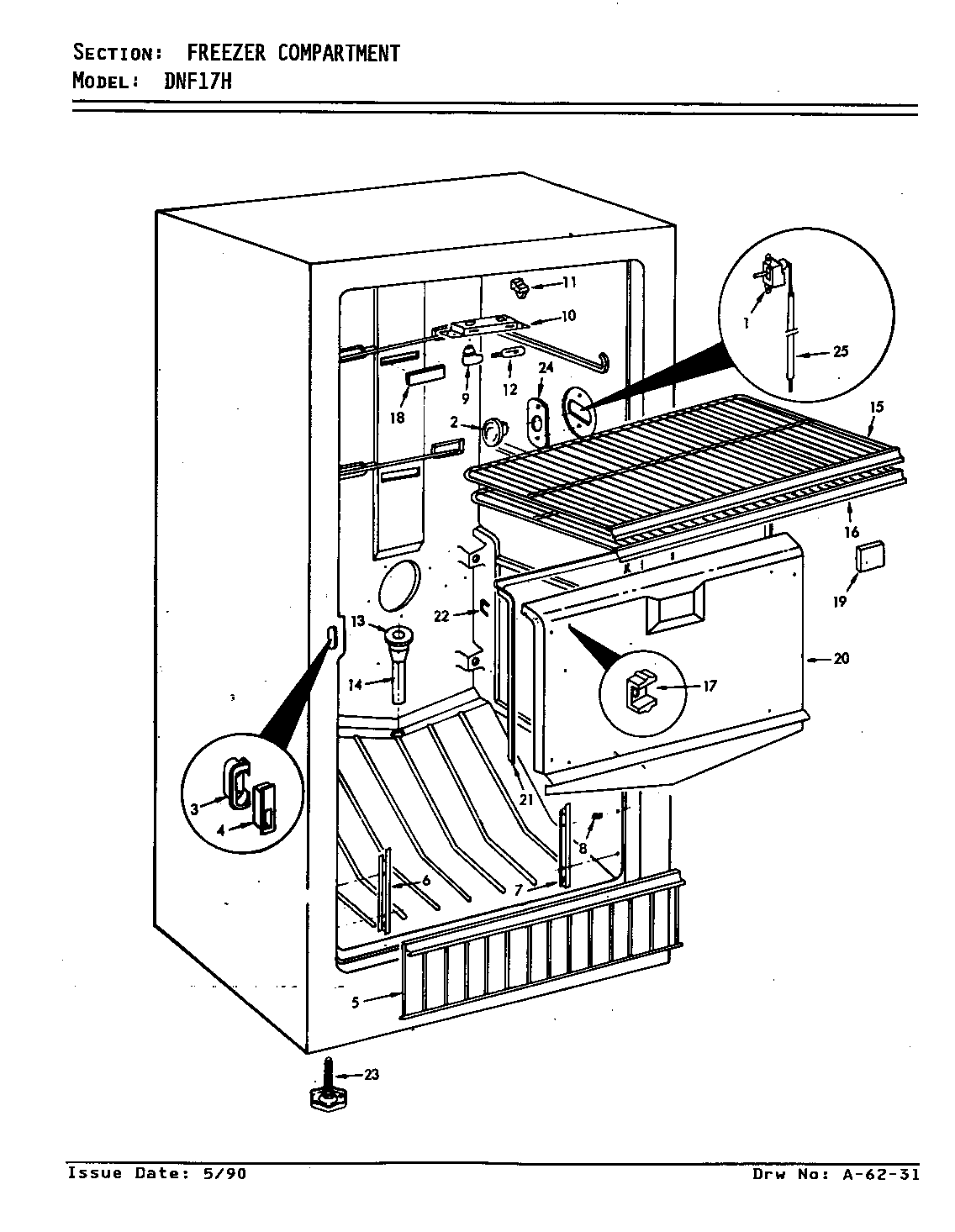

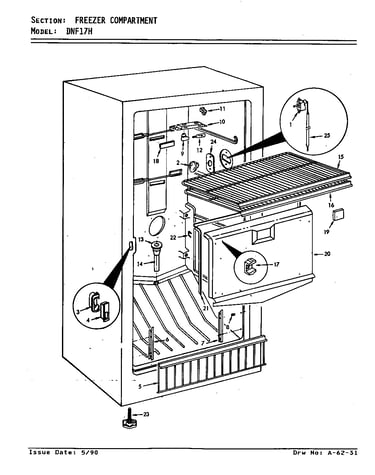

Freezer compartment diagram

Light switch

Part #55732-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 55732-1. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Defrost Heater 045329-01
#16

Unit compartment & system diagram

Defrost heater

Part #045329-01

Replaced by #W11175809

?
Manufacturer substitution
This part replaces 045329-01. Substitute parts can look different from the original.
$78.88 |
7% OFF Phone Price : $84.88
In Stock
Screw 046897-05
#9E

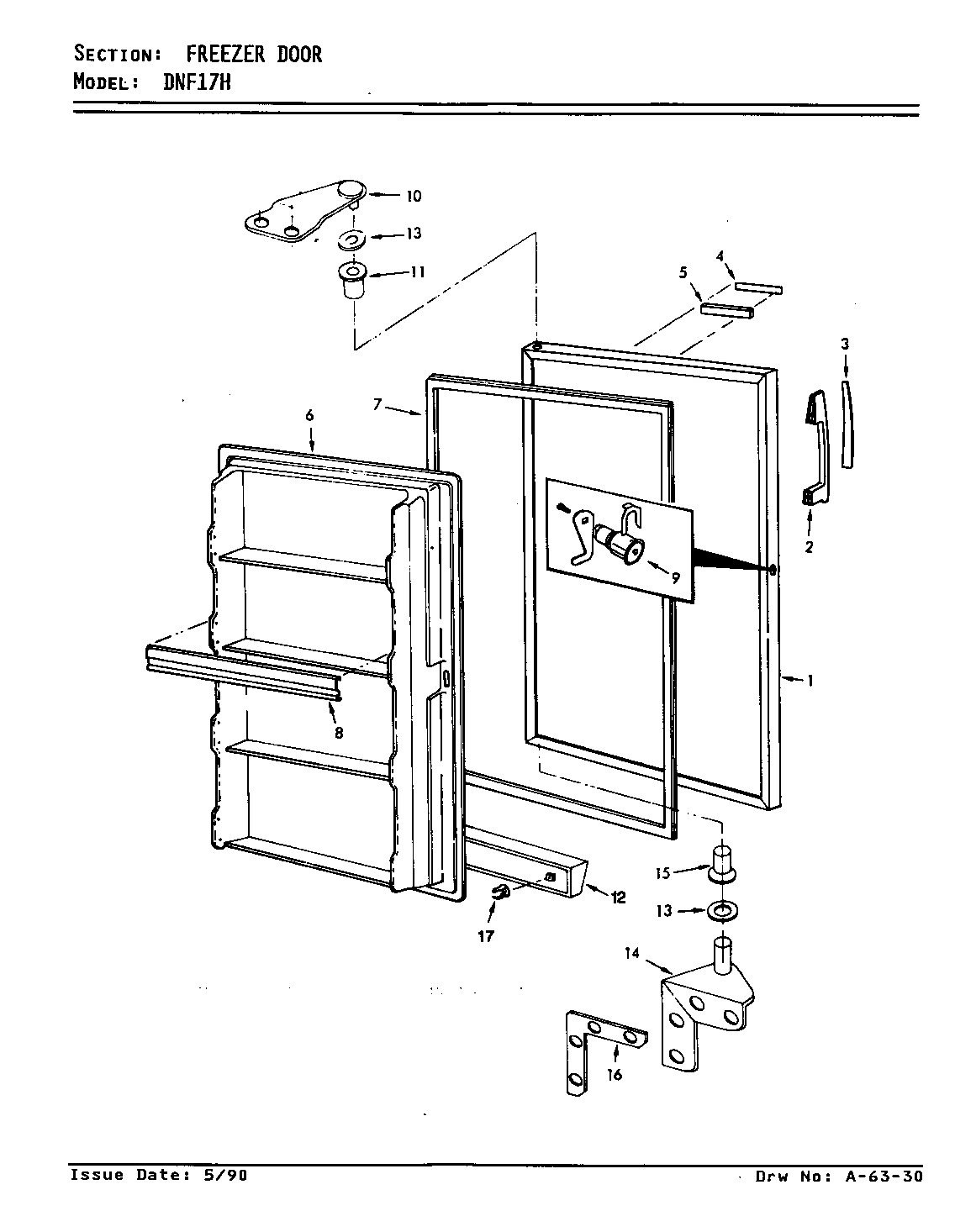

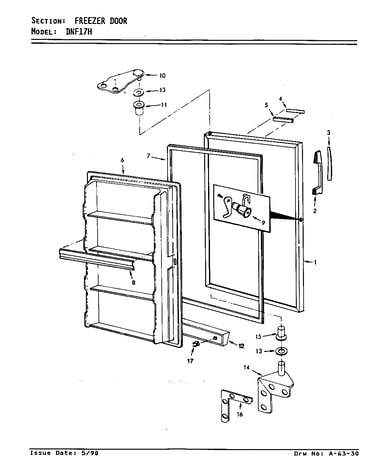

Freezer door diagram

Screw

Part #046897-05

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 046897-05. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 046374-01
#14C

Unit compartment & system diagram

Screw

Part #046374-01

Replaced by #WP3-24004-109

?
Manufacturer substitution
This part replaces 046374-01. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Refrigerator Door Hinge Nylon Washer 52185-1
#13

Freezer door diagram

Refrigerator door hinge nylon washer

Part #52185-1

Replaced by #WP52185-1

?
Manufacturer substitution
This part replaces 52185-1. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Clip 045520-01
#17

Freezer door diagram

Clip

Part #045520-01

Replaced by #1-80247-101

?
Manufacturer substitution
This part replaces 045520-01. Substitute parts can look different from the original.
$8.22 |
11% OFF Phone Price : $9.22
In Stock
Refrigerator Defrost Timer 66128-1
#15

Unit compartment & system diagram

Refrigerator defrost timer

Part #66128-1

Replaced by #WP4391974

?
Manufacturer substitution
This part replaces 66128-1. Substitute parts can look different from the original.
$88.36 |
6% OFF Phone Price : $94.36
In Stock
Lock Bolt 046897-02
#9B

Freezer door diagram

Lock bolt

Part #046897-02

Replaced by #3-35284-001

?
Manufacturer substitution
This part replaces 046897-02. Substitute parts can look different from the original.
$20.56 |
23% OFF Phone Price : $26.56
In Stock
Kick Plate 045532-07
#12

Freezer door diagram

Kick plate

Part #045532-07

Replaced by #WP4-60461-005

?
Manufacturer substitution
This part replaces 045532-07. Substitute parts can look different from the original.
$46.59 |
11% OFF Phone Price : $52.59
In Stock
