KitchenAid
Coffee Grinder

Model # 5KCG0702BMS0 Official KitchenAid coffee grinder

Here are the diagrams and repair parts for Official KitchenAid 5KCG0702BMS0 coffee grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Coffee Grinder Burr Assembly 4176702
#13

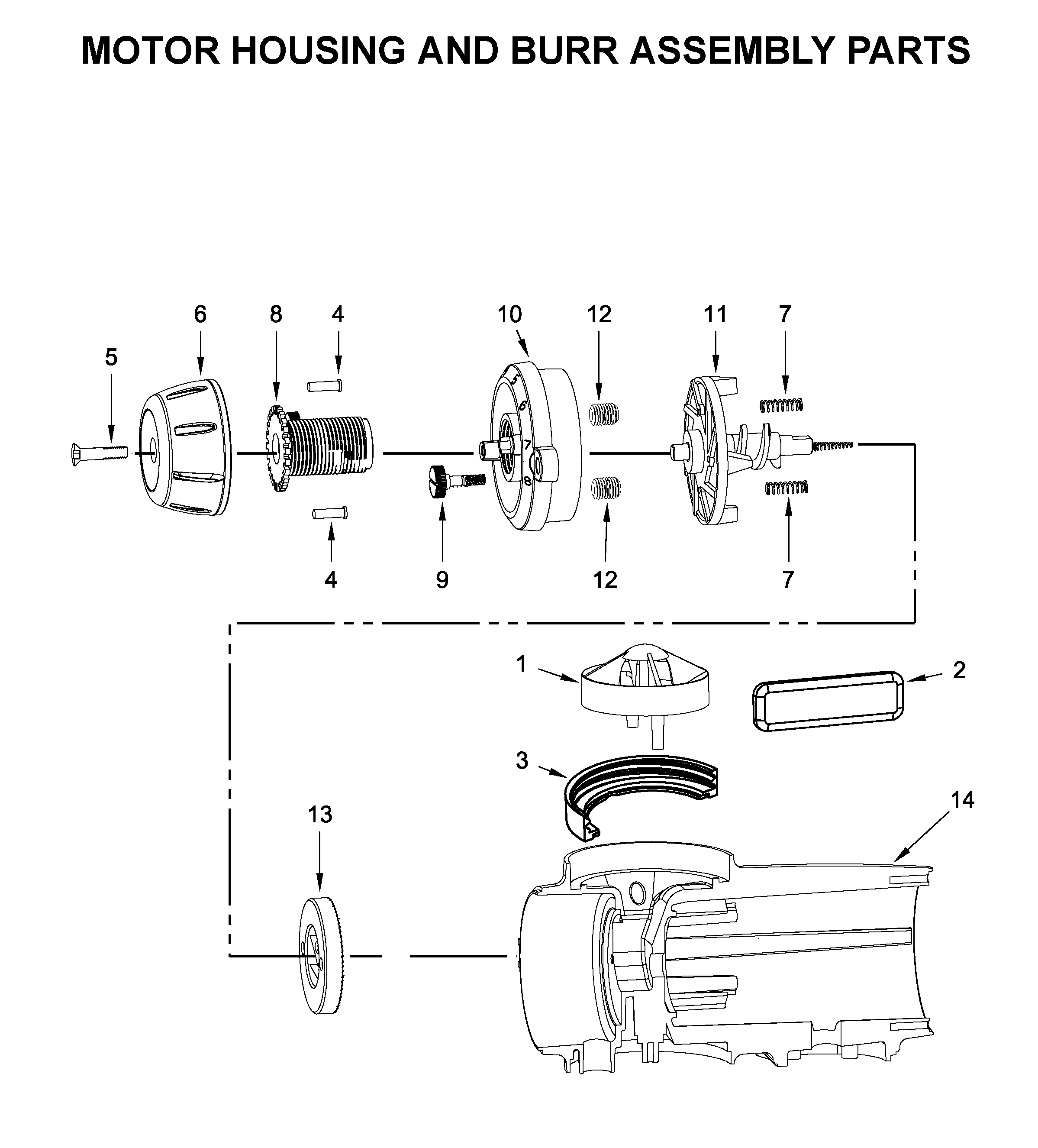

Motor housing and burr assembly parts diagram

Coffee grinder burr assembly

Part #4176702

Replaced by #W11109860

?
Manufacturer substitution
This part replaces 4176702. Substitute parts can look different from the original.
This item is not returnable
$28.95 |
17% OFF Phone Price : $34.95
In Stock
Housing W10845874
#14B

Motor housing and burr assembly parts diagram

Housing

Part #W10845874

$114.49
In Stock
Spacer 4176724
#12

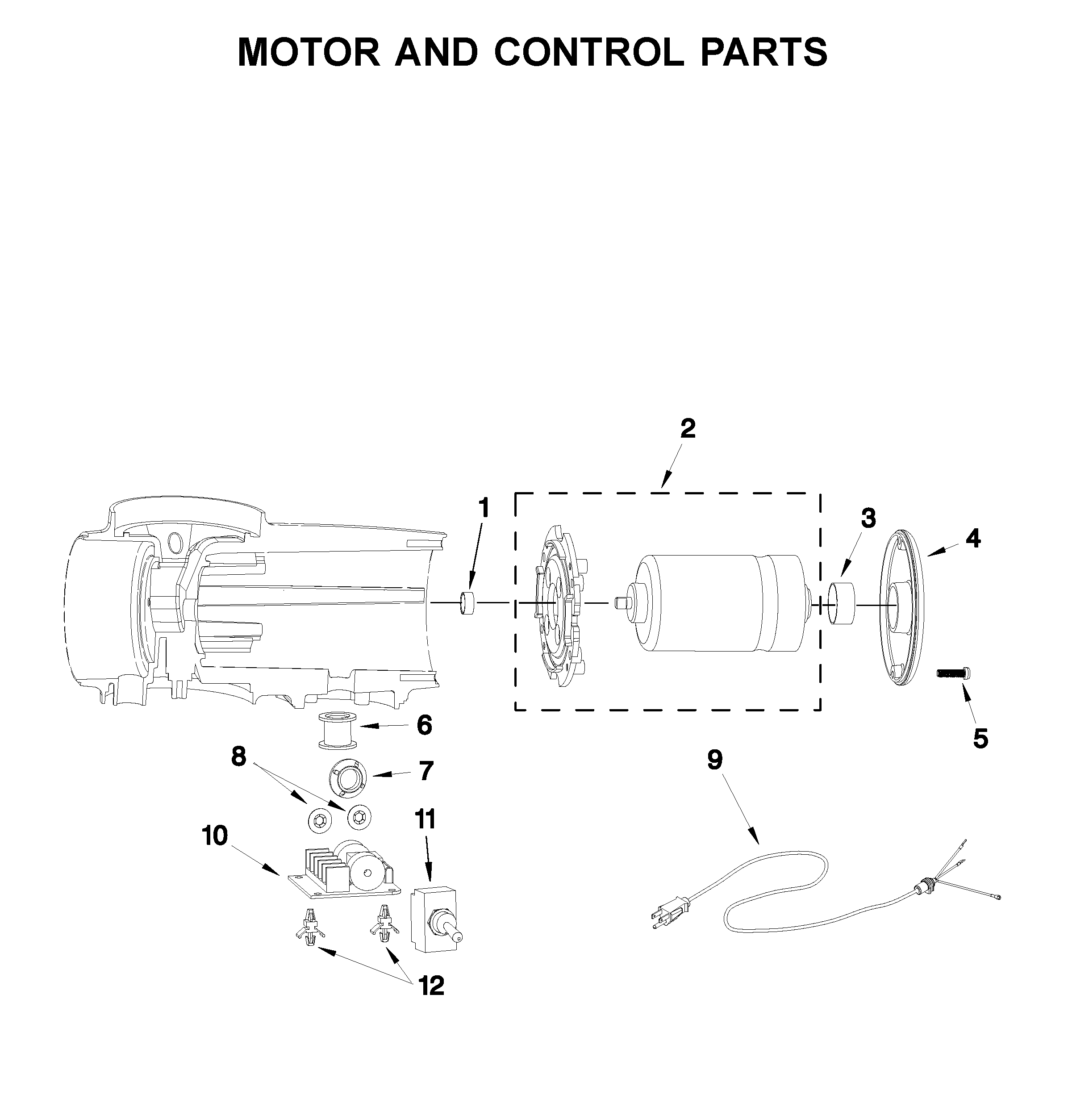

Motor and control parts diagram

Spacer

Part #4176724

$23.49
In Stock
Housing W10845876
#14C

Motor housing and burr assembly parts diagram

Housing

Part #W10845876

$114.49
In Stock
Base W10845867
#13D

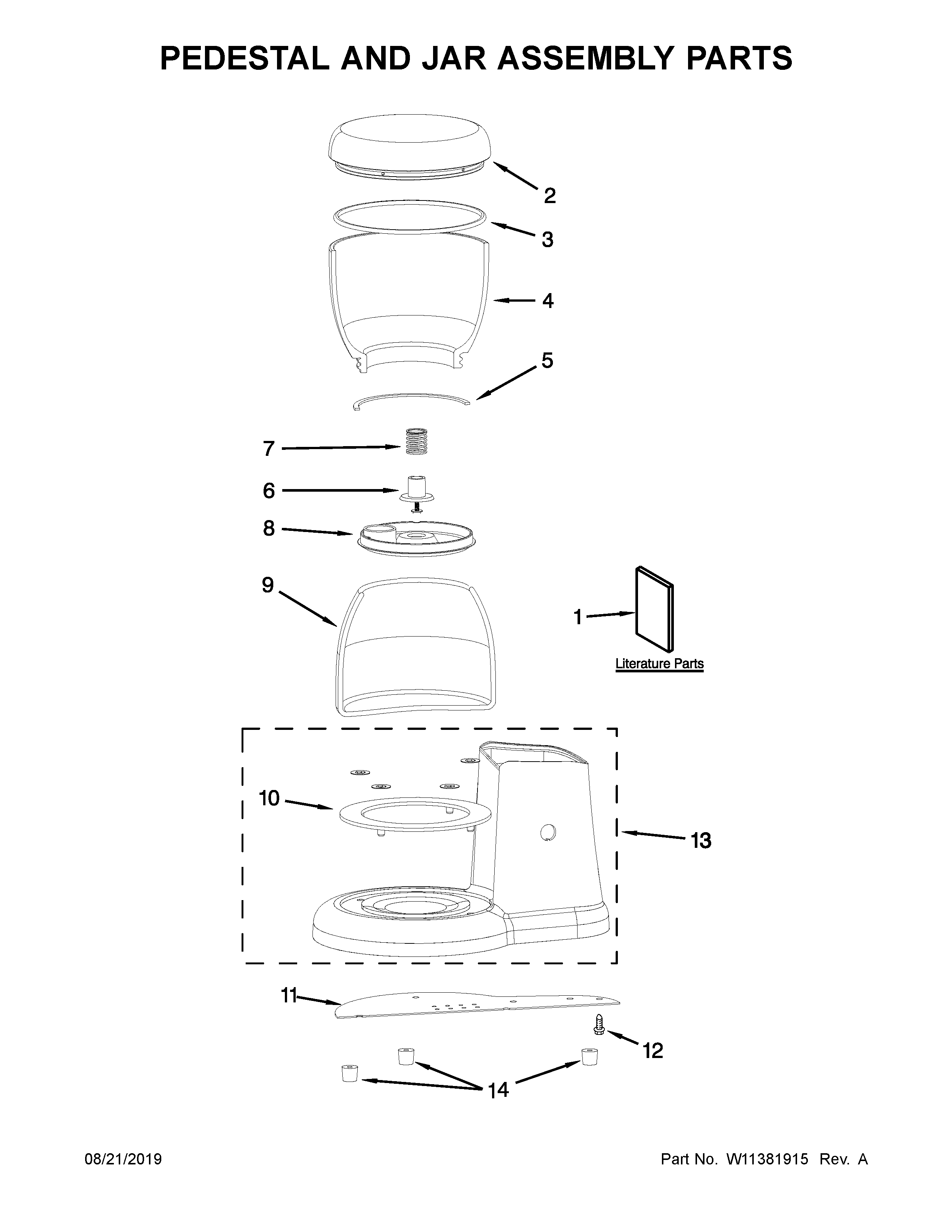

Pedestal and jar assembly parts diagram

Base

Part #W10845867

$75.91
In Stock
Housing W10845879
#14

Motor housing and burr assembly parts diagram

Housing

Part #W10845879

$114.49
In Stock
Scoop 4176764
#NI

Motor and control parts diagram

Scoop

Part #4176764

$22.89
In Stock
Support 4176694
#11

Motor housing and burr assembly parts diagram

Support

Part #4176694

$54.85 |
10% OFF Phone Price : $60.85
In Stock
Spring, Housing 4176715
#7

Pedestal and jar assembly parts diagram

Spring, housing

Part #4176715

$22.64
In Stock
Housing W10845875
#14D

Motor housing and burr assembly parts diagram

Housing

Part #W10845875

$114.49
In Stock
