Frigidaire
Electric Range

Model # CFEF3012USA Official Frigidaire electric freestanding range

Here are the diagrams and repair parts for Official Frigidaire CFEF3012USA electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

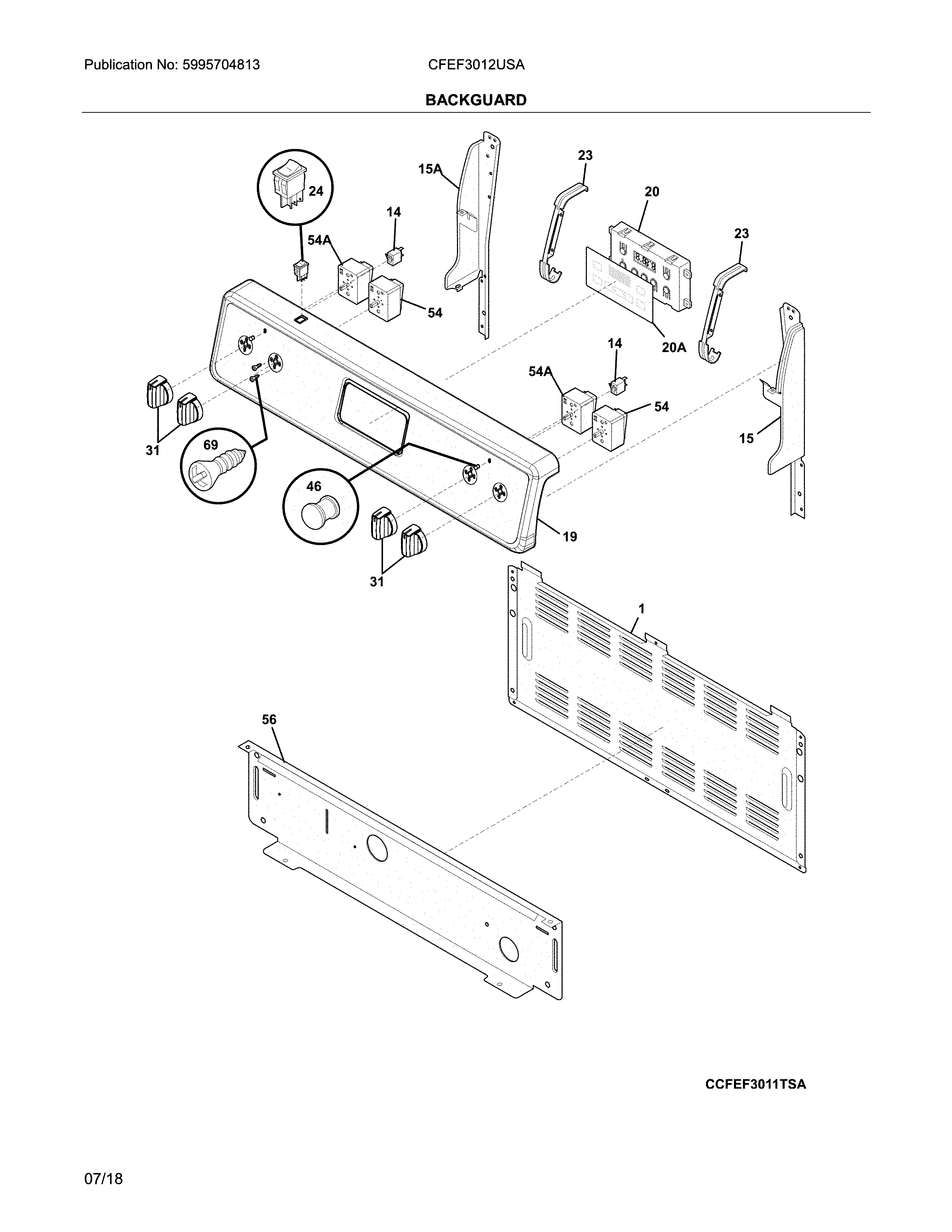

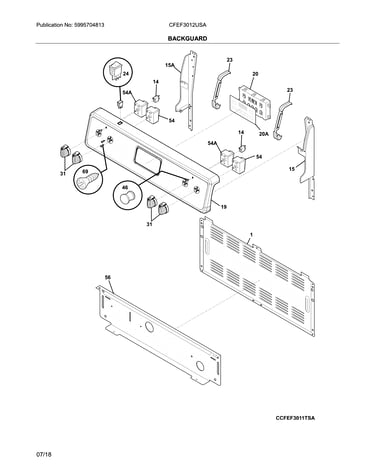

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

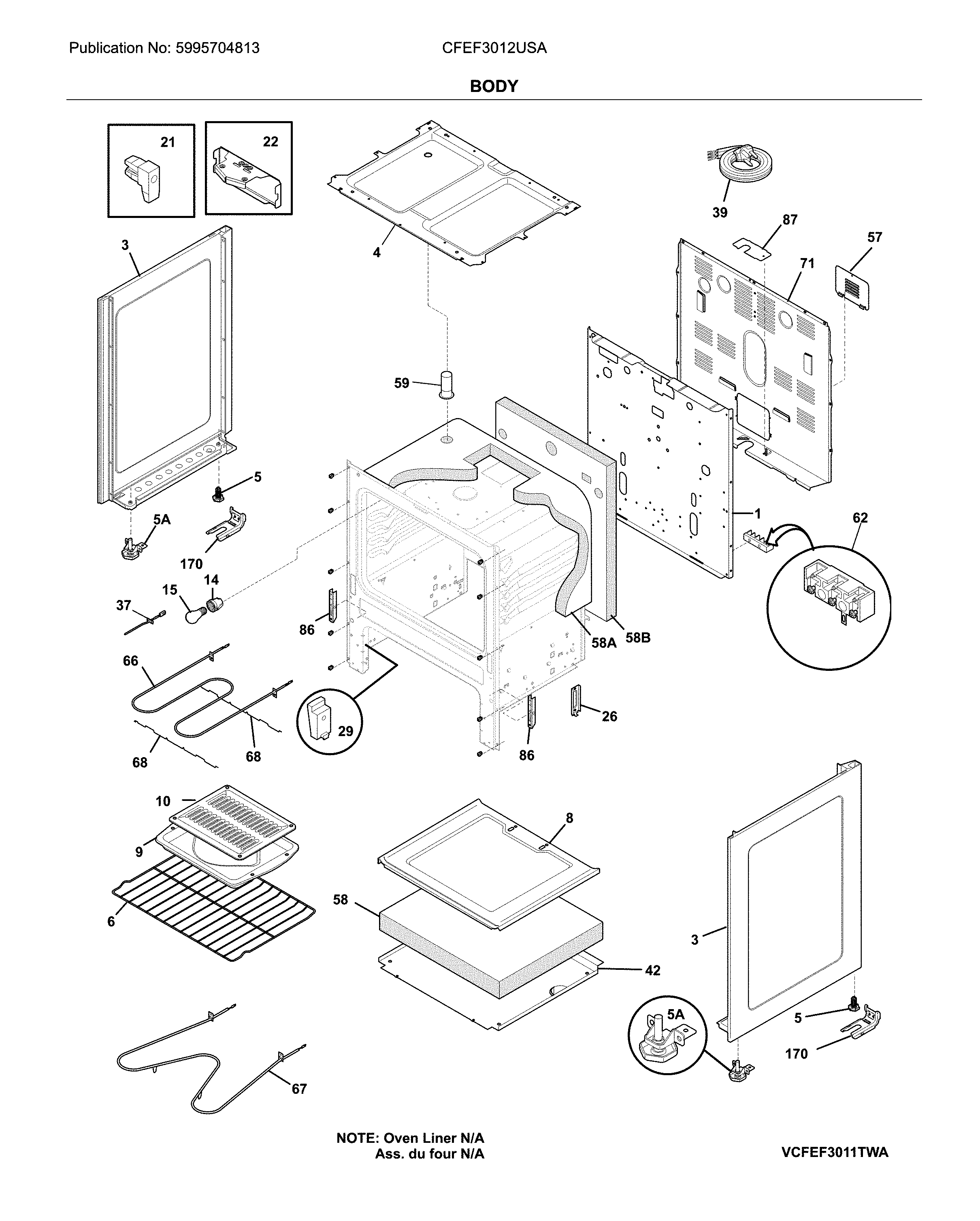

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Temperature Sensor 316233903
#37

Body diagram

Range oven temperature sensor

Part #316233903

Replaced by #316217008

?
Manufacturer substitution
This part replaces 316233903. Substitute parts can look different from the original.
BEST SELLER
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Range Oven Door Inner Glass (replaces 316117502, 316117503) 5304503232
#8

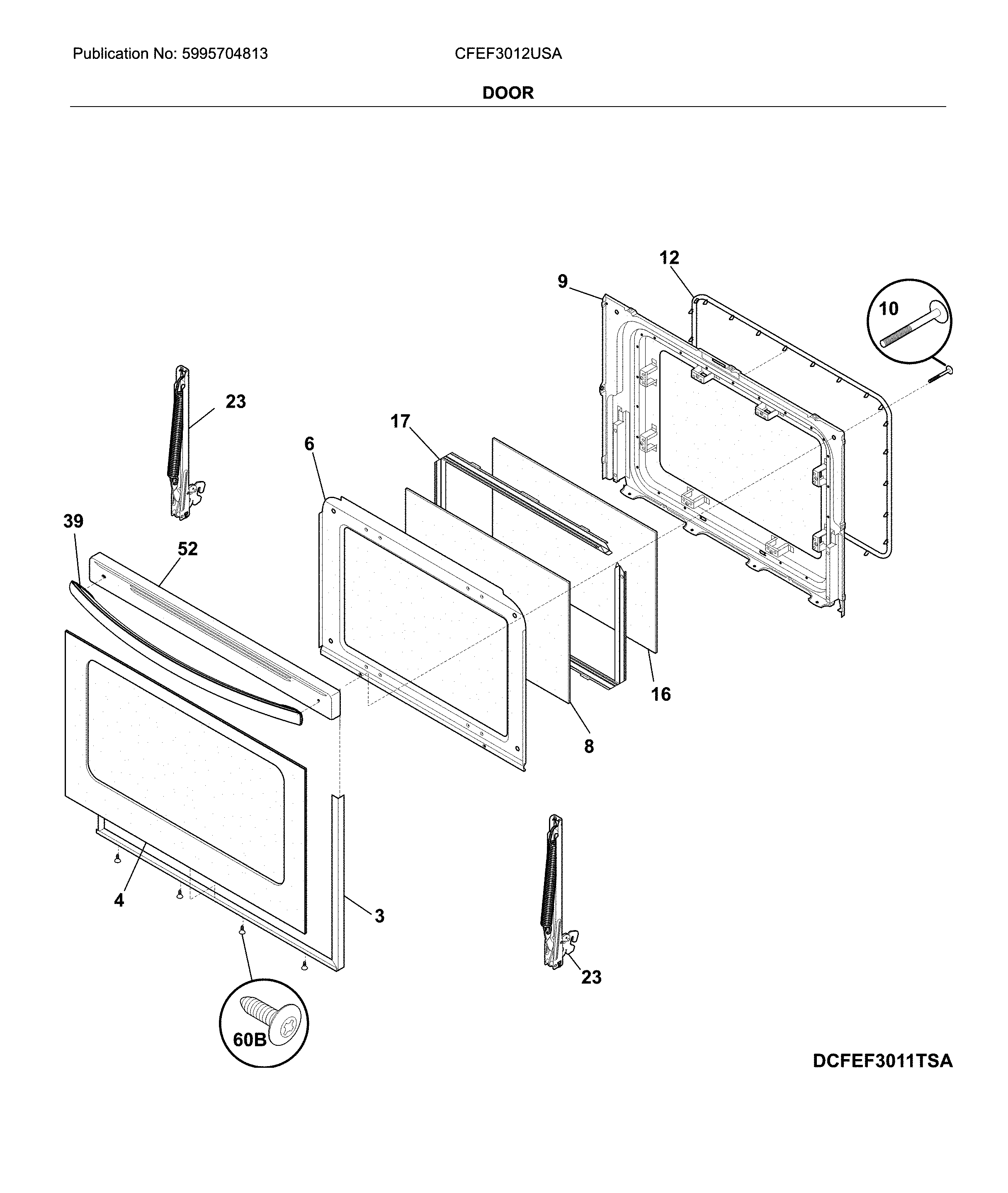

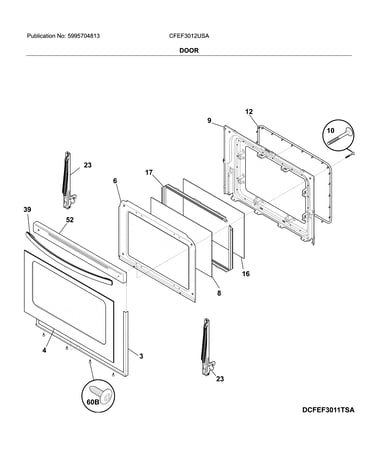

Door diagram

Range oven door inner glass (replaces 316117502, 316117503)

Part #5304503232

BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Oven Door Inner Glass 316117503
#16

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Oven Control Overlay (black) (replaces 316220701) 316220729
#20A

Backguard diagram

Range oven control overlay (black) (replaces 316220701)

Part #316220729

BEST SELLER
$34.97 |
15% OFF Phone Price : $40.97
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Range Surface Burner Drip Pan, 8-in 318067075
#19

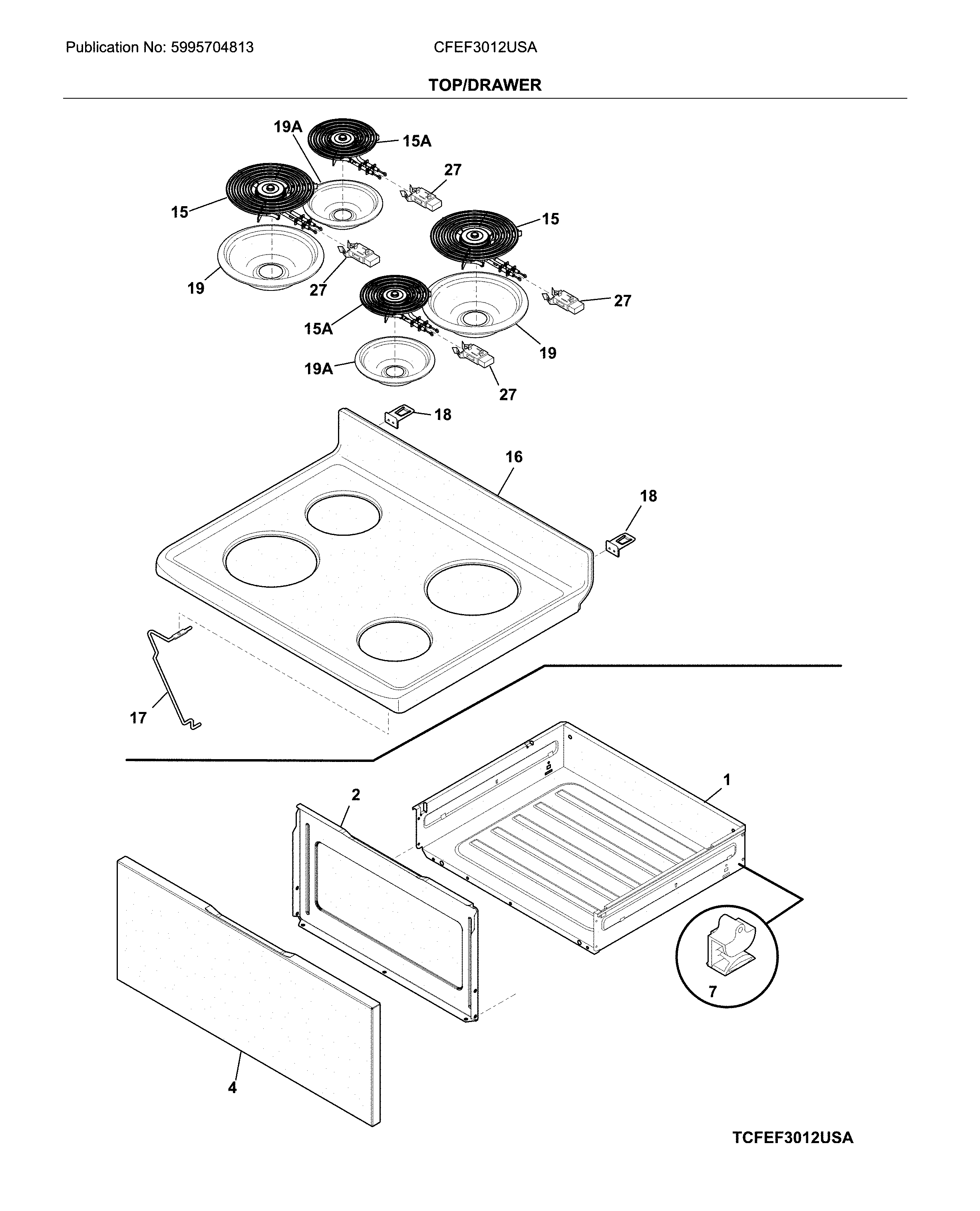

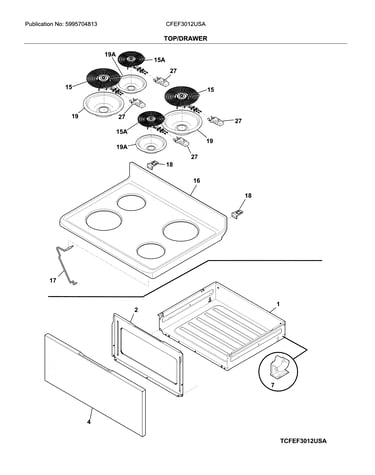

Top/drawer diagram

Range surface burner drip pan, 8-in

Part #318067075

Replaced by #A316222301

?
Manufacturer substitution
This part replaces 318067075. Substitute parts can look different from the original.
BEST SELLER
$12.67 |
14% OFF Phone Price : $14.67
In Stock
