Model # ZGG48N42YSS Official GE outdoor grill

Here are the diagrams and repair parts for Official GE ZGG48N42YSS outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

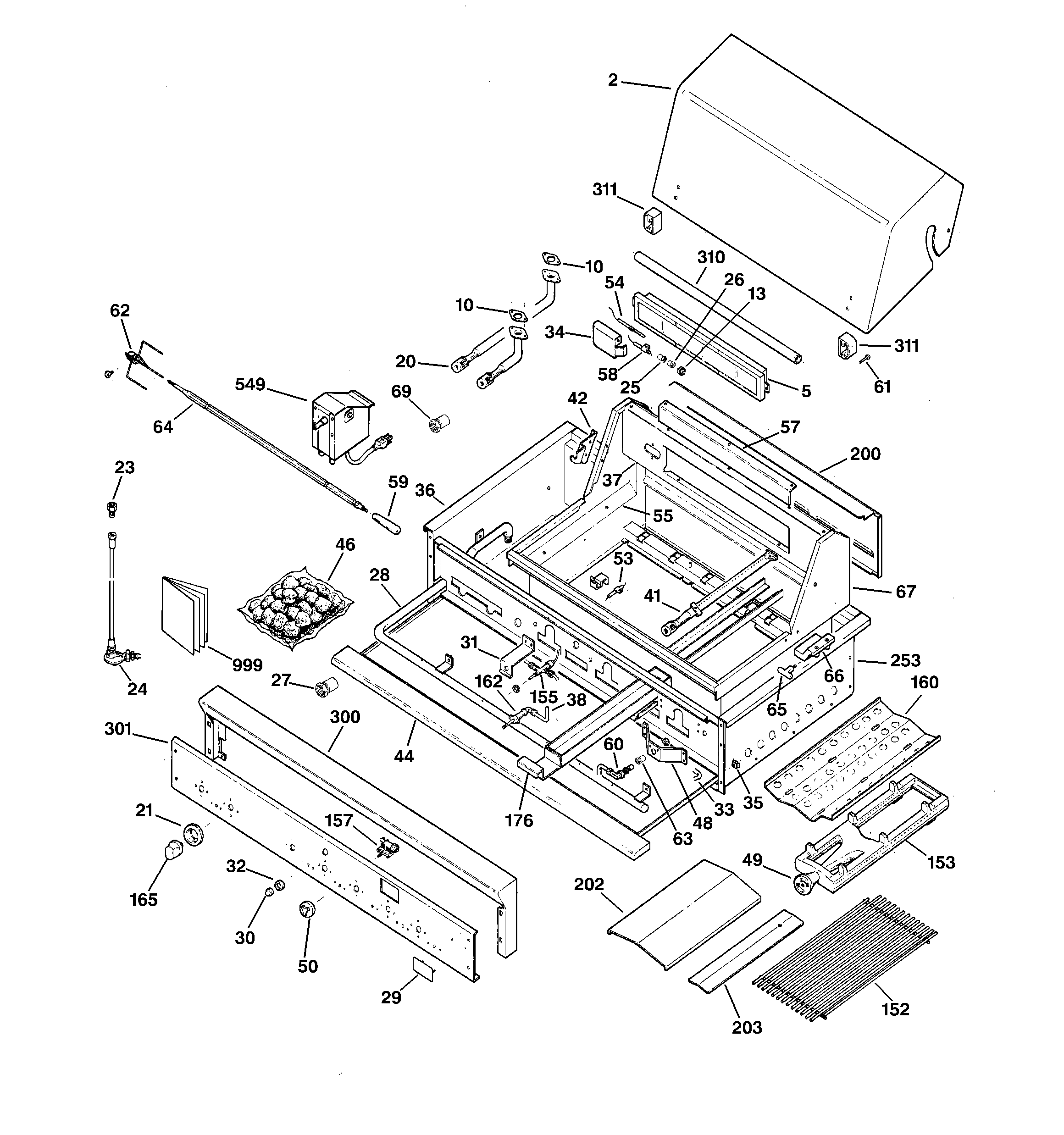

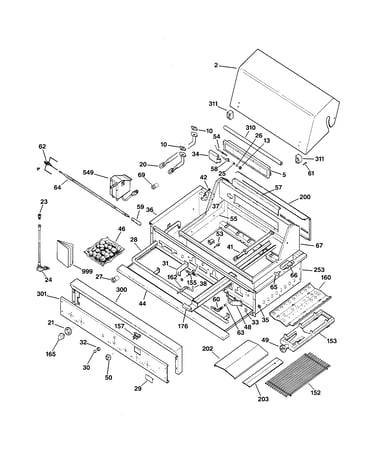

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Monogram Logo WB02X10349
#29

Gas range diagram

Monogram logo

Part #WB02X10349

$21.49
In Stock
H-burner WB28X10008
#153

Gas range diagram

H-burner

Part #WB28X10008

Replaced by #WB28X10021

?
Manufacturer substitution
This part replaces WB28X10008. Substitute parts can look different from the original.
$249.52 |
5% OFF Phone Price : $261.52
In Stock
Uc Only Outd 49-8822
#999

Gas range diagram

Uc only outd

Part #49-8822

Replaced by #049-80377

?
Manufacturer substitution
This part replaces 49-8822. Substitute parts can look different from the original.
$17.99
In Stock
Safety Knob WB03X10014
#30

Gas range diagram

Safety knob

Part #WB03X10014

The manufacturer no longer makes this part, and there's no substitute part

Landing Ledg WB07X10045
#300

Gas range diagram

Landing ledg

Part #WB07X10045

The manufacturer no longer makes this part, and there's no substitute part

4 Prong Meat WB02X10665
#62

Gas range diagram

4 prong meat

Part #WB02X10665

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie Orifice WB01X10166
#26

Gas range diagram

Rotisserie orifice

Part #WB01X10166

The manufacturer no longer makes this part, and there's no substitute part

Roll Top Lid WB63X10006
#2

Gas range diagram

Roll top lid

Part #WB63X10006

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie WB01X10167
#26

Gas range diagram

Rotisserie

Part #WB01X10167

The manufacturer no longer makes this part, and there's no substitute part

Flared Adapt WB02X10378
#23

Gas range diagram

Flared adapt

Part #WB02X10378

The manufacturer no longer makes this part, and there's no substitute part
