Model # 300016 Official Blazon playground equipment

Here are the diagrams and repair parts for Official Blazon 300016 playground equipment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

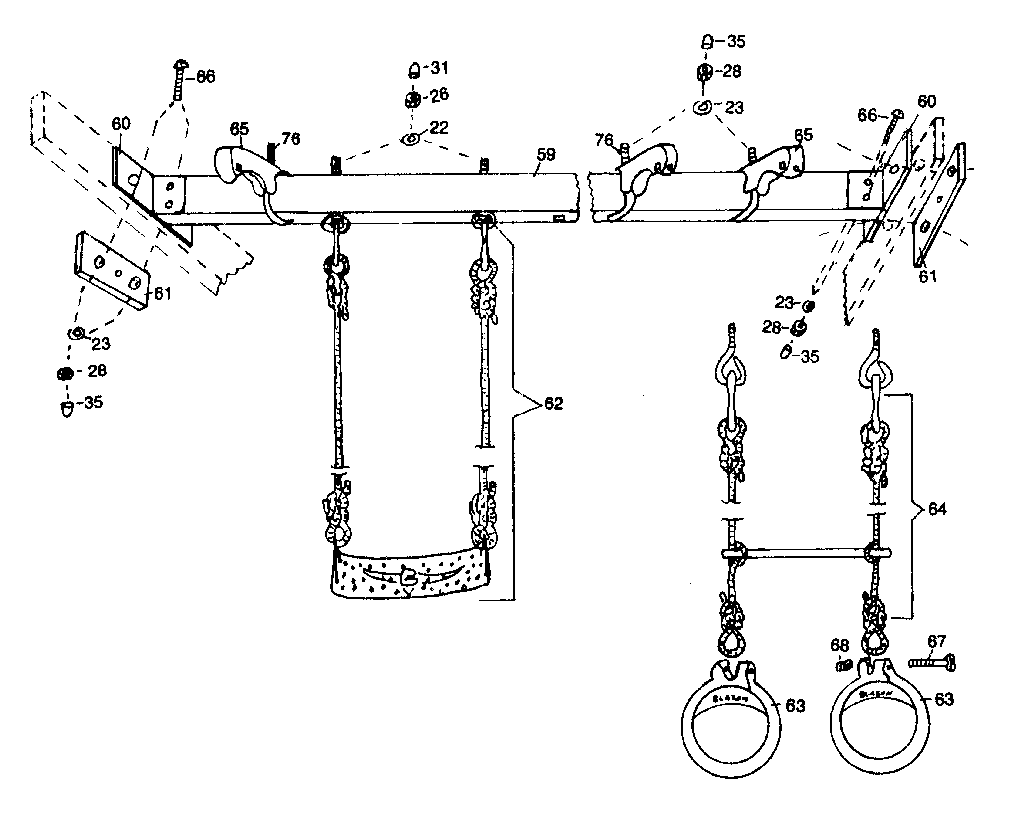

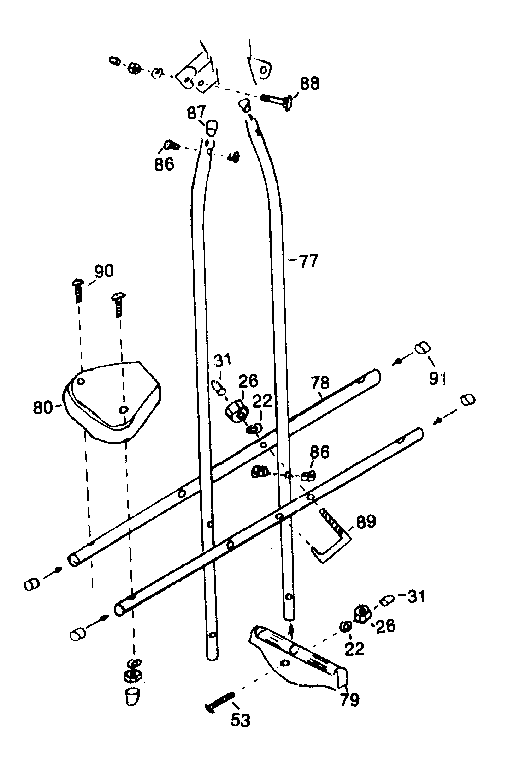

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Anchors 93953M
#39

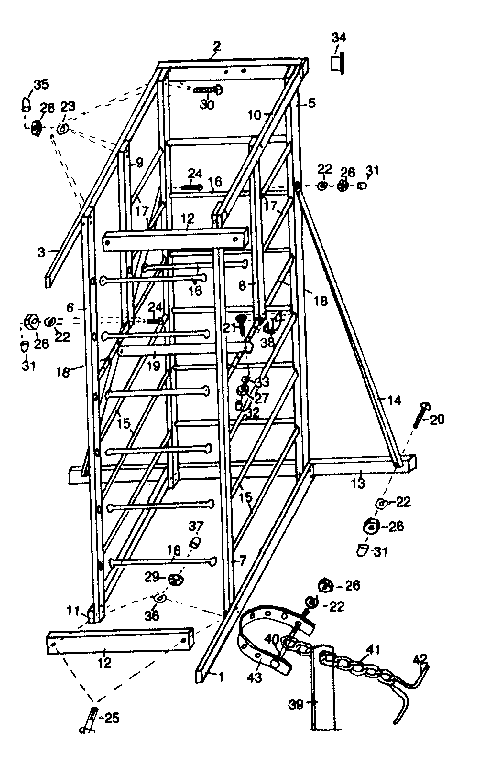

Frame assembly diagram

Anchors

Part #93953M

The manufacturer no longer makes this part, and there's no substitute part

Rope Bar B 71202M
#1

Frame assembly diagram

Rope bar b

Part #71202M

The manufacturer no longer makes this part, and there's no substitute part

1/4x3/4 Bo 1144P
#92

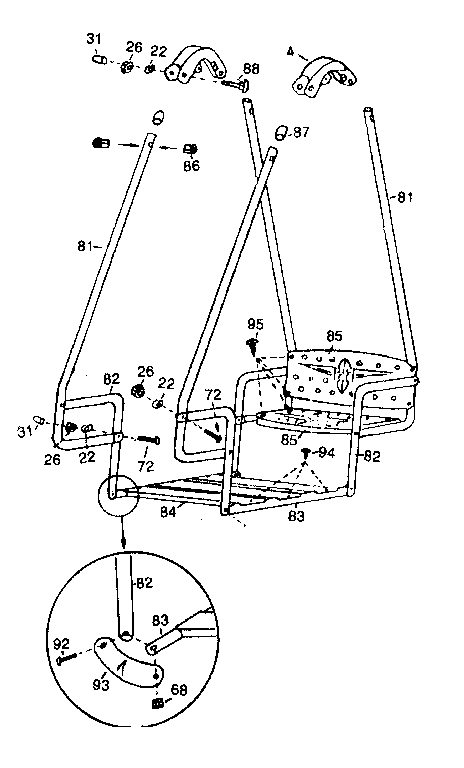

Lawn swing assembly diagram

1/4x3/4 bo

Part #1144P

The manufacturer no longer makes this part, and there's no substitute part

End Rung 71902M
#16

Frame assembly diagram

End rung

Part #71902M

The manufacturer no longer makes this part, and there's no substitute part

3/16 Hex N 1212P
#27

Frame assembly diagram

3/16 hex n

Part #1212P

The manufacturer no longer makes this part, and there's no substitute part

Seat 1527P
#85

Lawn swing assembly diagram

Seat

Part #1527P

The manufacturer no longer makes this part, and there's no substitute part

Hex Bolt 1095
#25

Frame assembly diagram

Hex bolt

Part #1095

The manufacturer no longer makes this part, and there's no substitute part

1/4 Hex Nu 1213P
1/4 hex nu

Part #1213P

The manufacturer no longer makes this part, and there's no substitute part

1/4x1-3/4 1021P
1/4x1-3/4

Part #1021P

The manufacturer no longer makes this part, and there's no substitute part

1/4x3-3/4 1209P
#56

Tower assembly diagram

1/4x3-3/4

Part #1209P

The manufacturer no longer makes this part, and there's no substitute part
