KitchenAid
Electric Cooktop

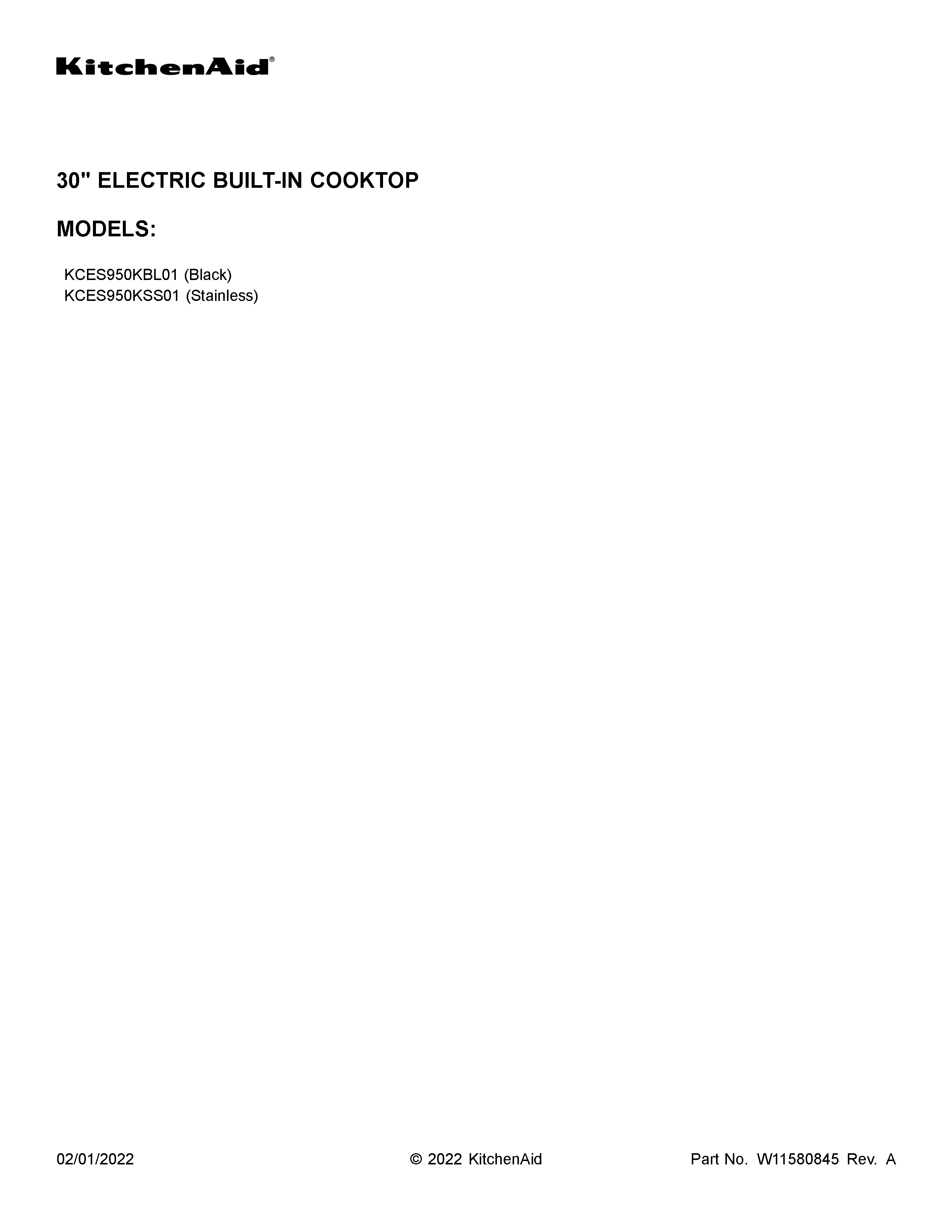

Model # KCES950KBL01 Official KitchenAid electric built-in cooktop

Here are the diagrams and repair parts for Official KitchenAid KCES950KBL01 electric built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Range Radiant Surface Element 8273994
#11B

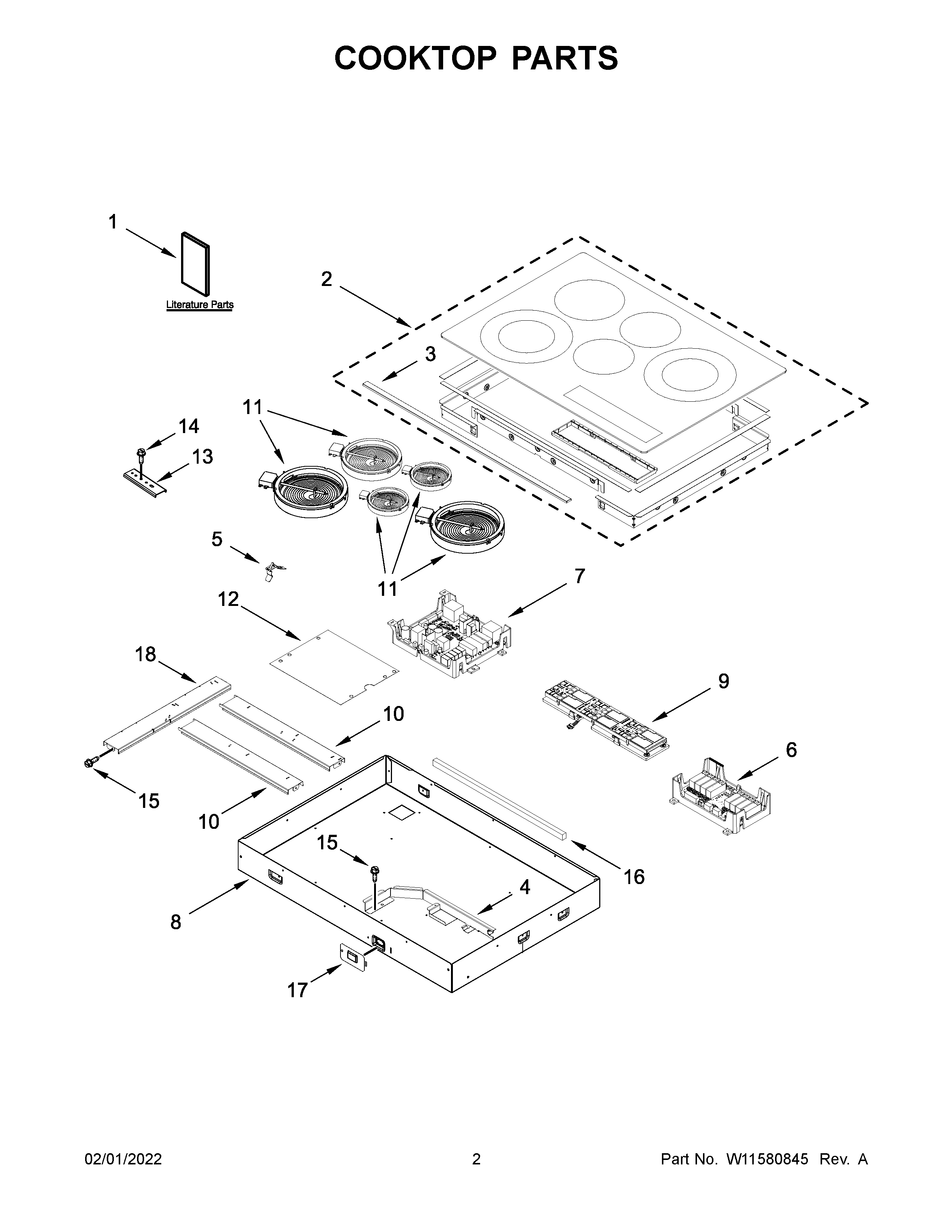

Cooktop parts diagram

Range radiant surface element

Part #8273994

Replaced by #W11171119

?
Manufacturer substitution
This part replaces 8273994. Substitute parts can look different from the original.
BEST SELLER
$102.34 |
10% OFF Phone Price : $114.34
In Stock
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

Optional parts (not included) diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Cooktop Scraper WA906B
#NI

Optional parts (not included) diagram

Cooktop scraper

Part #WA906B

This item is not returnable

Get free shipping with Automatic Reorder

$6.29 |
14% OFF Phone Price : $7.29
In Stock
Rail-ckt, Ve W11110713
#18

Cooktop parts diagram

Rail-ckt, ve

Part #W11110713

$46.71
In Stock
Rail-ckt, Ho W11110715
#10

Cooktop parts diagram

Rail-ckt, ho

Part #W11110715

$46.71
In Stock
Main Harness W11110555
#NI

Cooktop parts diagram

Main harness

Part #W11110555

$167.93
In Stock
Heat Shield W11102056
#4

Cooktop parts diagram

Heat shield

Part #W11102056

$33.98
In Stock
Pad, Insulation W11242976
#12

Cooktop parts diagram

Pad, insulation

Part #W11242976

$13.15
In Stock
Screw 3400093
#14

Cooktop parts diagram

Screw

Part #3400093

Replaced by #WP3400093

?
Manufacturer substitution
This part replaces 3400093. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Seal Switch 3192439
#NI

Cooktop parts diagram

Seal switch

Part #3192439

Replaced by #W10491984

?
Manufacturer substitution
This part replaces 3192439. Substitute parts can look different from the original.
This item is not returnable
$8.79 |
10% OFF Phone Price : $9.79
In Stock
