Chest Freezer

Model # CB15DFC Official GE freezer

Here are the diagrams and repair parts for Official GE CB15DFC freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Hinge WR13X5140
#15

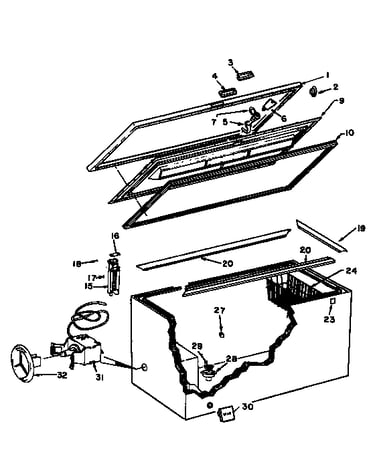

Freezer assembly diagram

Hinge

Part #WR13X5140

The manufacturer no longer makes this part, and there's no substitute part

Plug Button Liner WR2X3907
#27B

Freezer assembly diagram

Plug button liner

Part #WR2X3907

The manufacturer no longer makes this part, and there's no substitute part

Mtg. Slee WR2X5642
#52

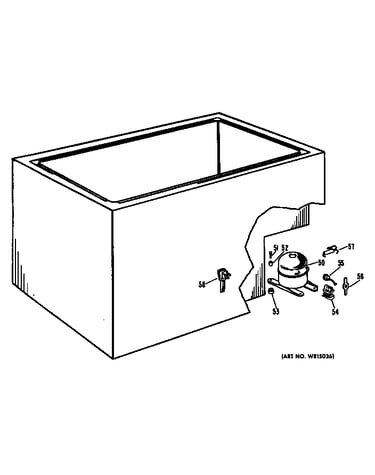

Unit diagram

Mtg. slee

Part #WR2X5642

The manufacturer no longer makes this part, and there's no substitute part

Screw Hinge & Cabinet WR1X5481
#17

Freezer assembly diagram

Screw hinge & cabinet

Part #WR1X5481

The manufacturer no longer makes this part, and there's no substitute part

Clip WR1X1521
#18A

Freezer assembly diagram

Clip

Part #WR1X1521

The manufacturer no longer makes this part, and there's no substitute part

Breaker Strip WR40X5419
#20

Freezer assembly diagram

Breaker strip

Part #WR40X5419

The manufacturer no longer makes this part, and there's no substitute part

F59555 WR1X5134
#53

Unit diagram

F59555

Part #WR1X5134

The manufacturer no longer makes this part, and there's no substitute part

Plug Button Liner WR1X5246
#27A

Freezer assembly diagram

Plug button liner

Part #WR1X5246

The manufacturer no longer makes this part, and there's no substitute part

Screw Hinge To Cabinet WR1X1524
#18B

Freezer assembly diagram

Screw hinge to cabinet

Part #WR1X1524

The manufacturer no longer makes this part, and there's no substitute part

Breaker Strip WR40X5434
#19

Freezer assembly diagram

Breaker strip

Part #WR40X5434

The manufacturer no longer makes this part, and there's no substitute part
