Model # DW674 TYPE 1 Official Black & Decker laminate trimmer

Here are the diagrams and repair parts for Official Black & Decker DW674-TYPE-1 laminate trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 36 parts |

#108

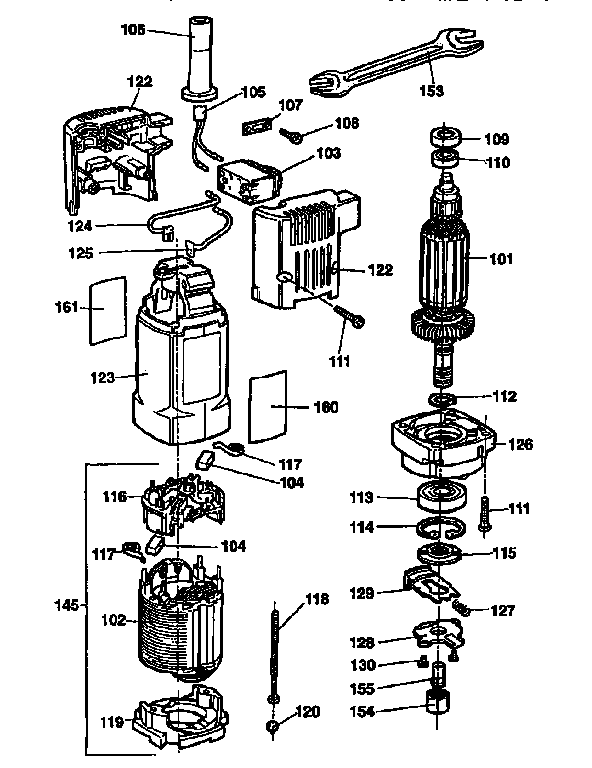

Unit parts diagram

Black & decker screw

Part #930276-00

The manufacturer no longer makes this part, and there's no substitute part

#154

Unit parts diagram

Black & decker nut

Part #943270-00

The manufacturer no longer makes this part, and there's no substitute part

#115

Unit parts diagram

Black & decker washer

Part #944484-00

The manufacturer no longer makes this part, and there's no substitute part

#130

Unit parts diagram

Black & decker screw

Part #930224-00

The manufacturer no longer makes this part, and there's no substitute part

#126

Unit parts diagram

Black & decker base

Part #943178-01

The manufacturer no longer makes this part, and there's no substitute part

#116

Unit parts diagram

Black & decker housing

Part #930749-00

The manufacturer no longer makes this part, and there's no substitute part

#106

Unit parts diagram

Black & decker sleeve

Part #949835-01

The manufacturer no longer makes this part, and there's no substitute part

#103

Unit parts diagram

Black & decker switch

Part #760952-00

The manufacturer no longer makes this part, and there's no substitute part

#111

Unit parts diagram

Black & decker screw

Part #930079-00

The manufacturer no longer makes this part, and there's no substitute part

#114

Unit parts diagram

Black & decker rtng ring

Part #931398-00

The manufacturer no longer makes this part, and there's no substitute part
