Frigidaire
Dryer

Model # FFQE5000QW0 Official Frigidaire dryer

Here are the diagrams and repair parts for Official Frigidaire FFQE5000QW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

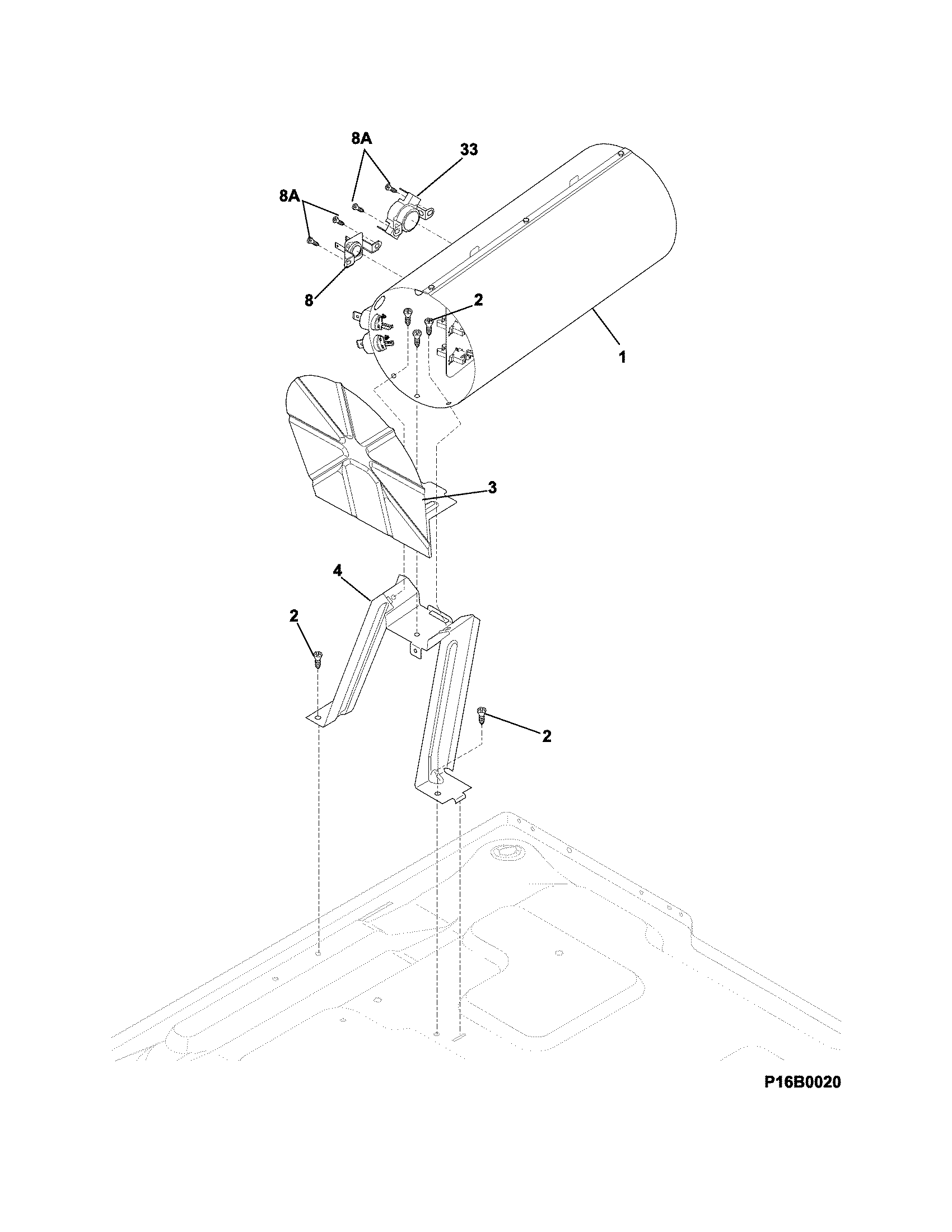

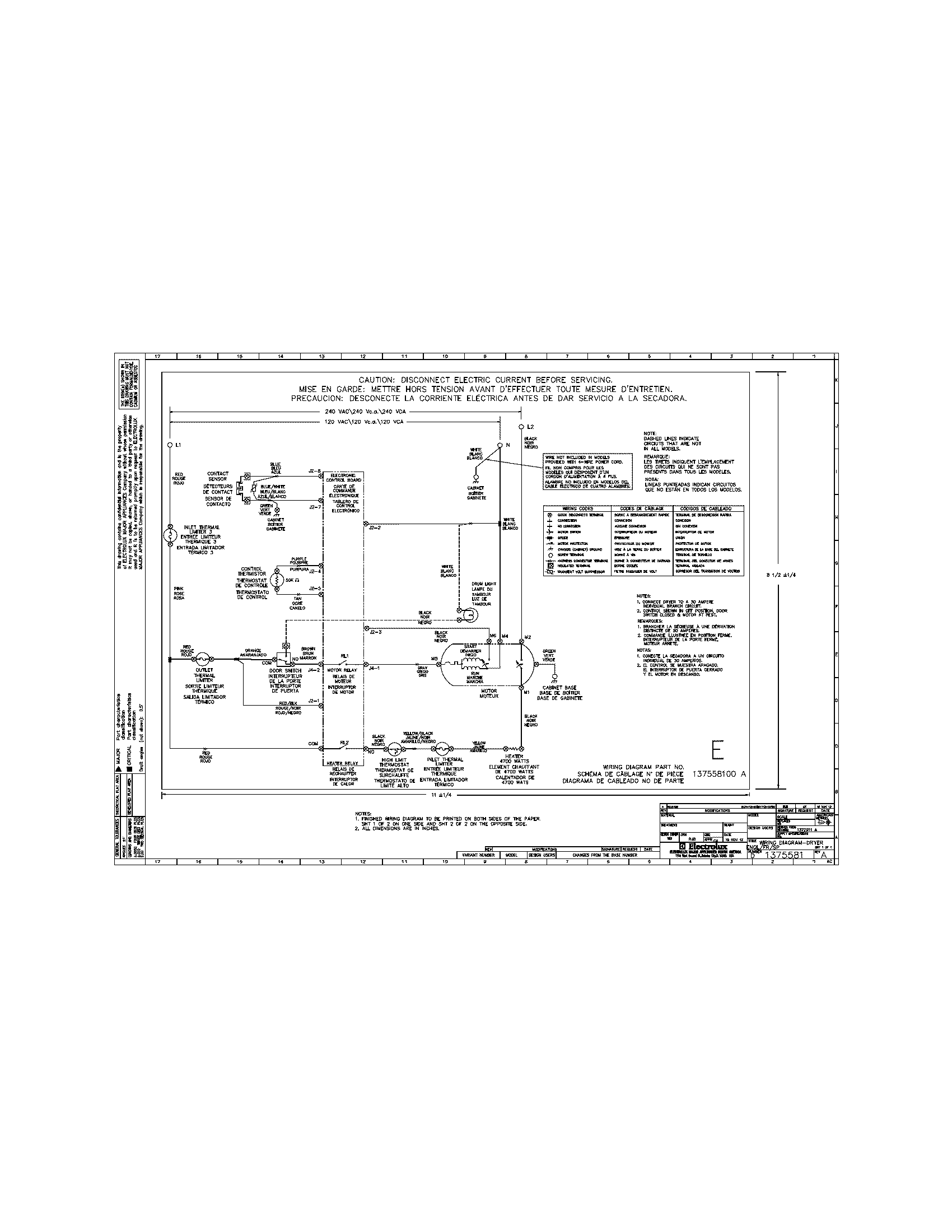

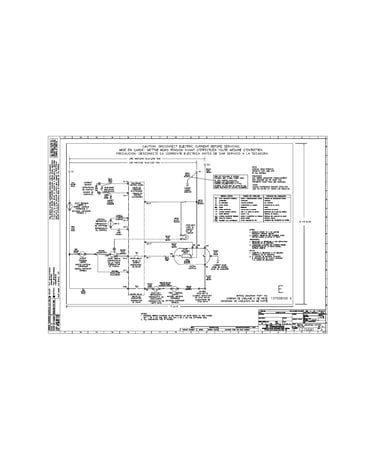

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Dryer Idler Assembly 134793500
#23

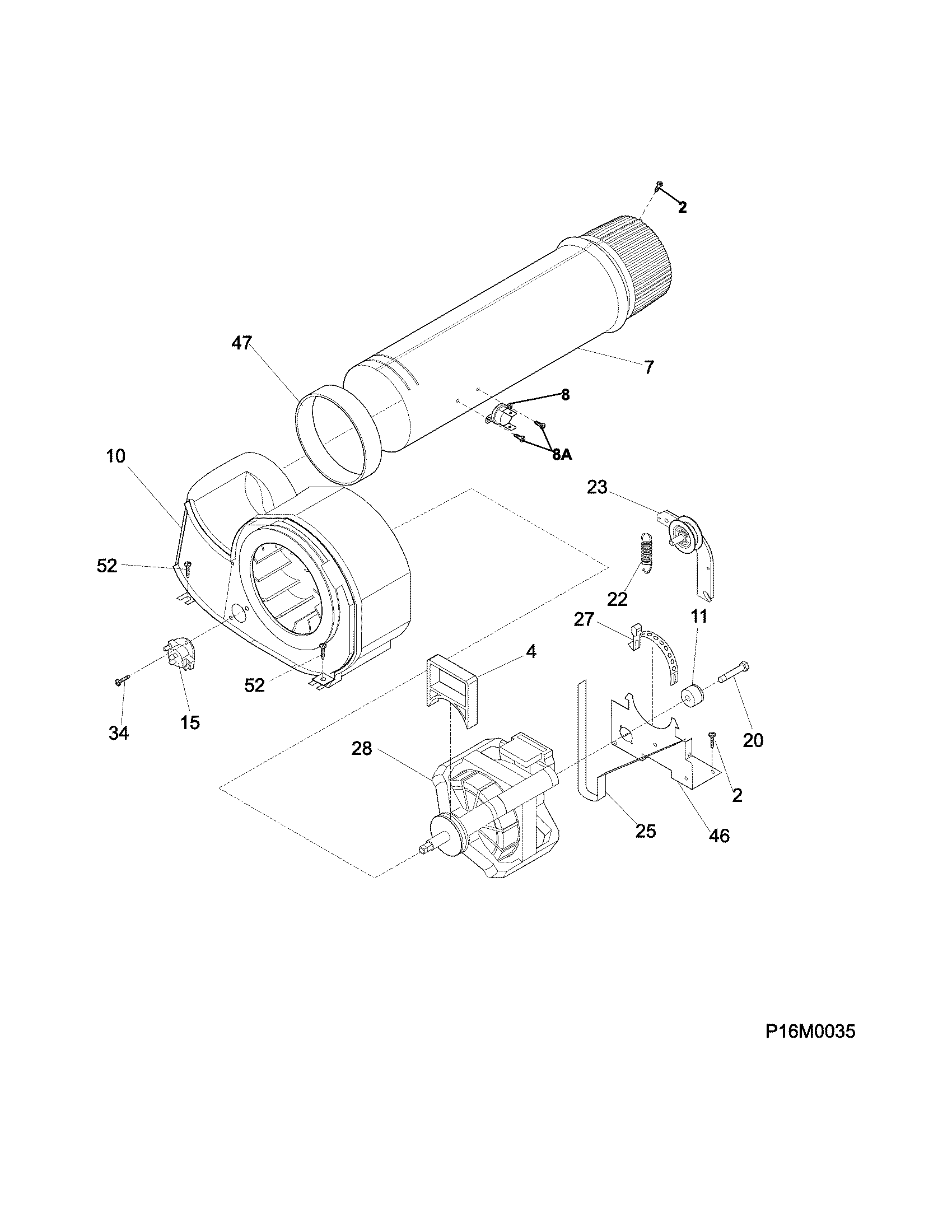

Motor/fan diagram

Dryer idler assembly

Part #134793500

Replaced by #134793511

?
Manufacturer substitution
This part replaces 134793500. Substitute parts can look different from the original.
BEST SELLER
$39.35 |
13% OFF Phone Price : $45.35
In Stock
Kelvinator Dryer High-limit Thermostat (replaces 73204267) 3204267
Kelvinator dryer high-limit thermostat (replaces 73204267)

Part #3204267

BEST SELLER
$70.42 |
8% OFF Phone Price : $76.42
In Stock
Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

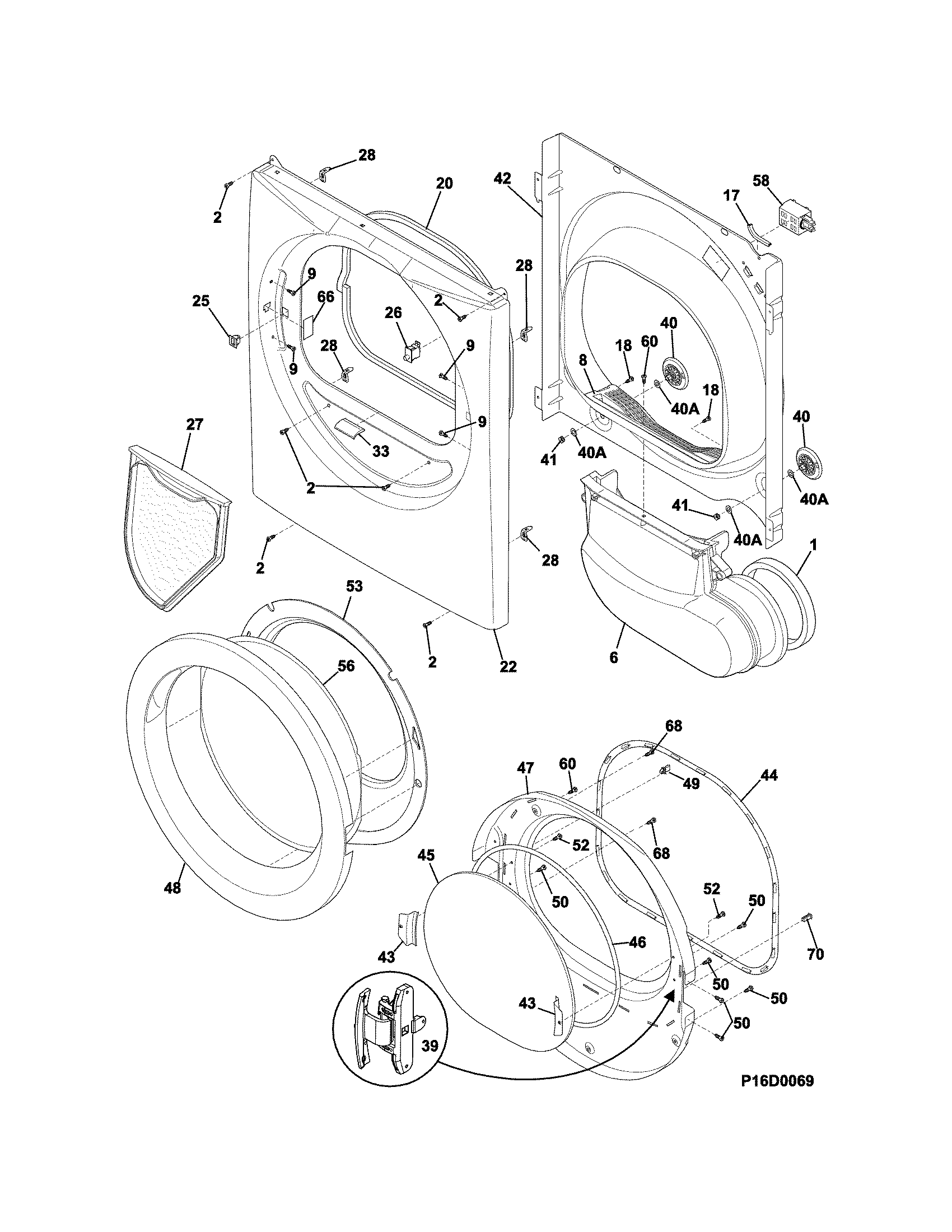

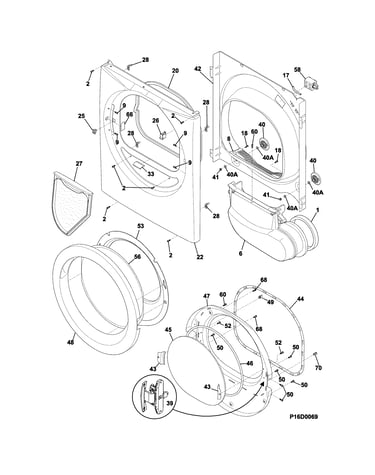

Front panel/lint filter diagram

Dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

BEST SELLER
$47.61 |
11% OFF Phone Price : $53.61
In Stock
Dryer Electronic Control Board 137070890
#1

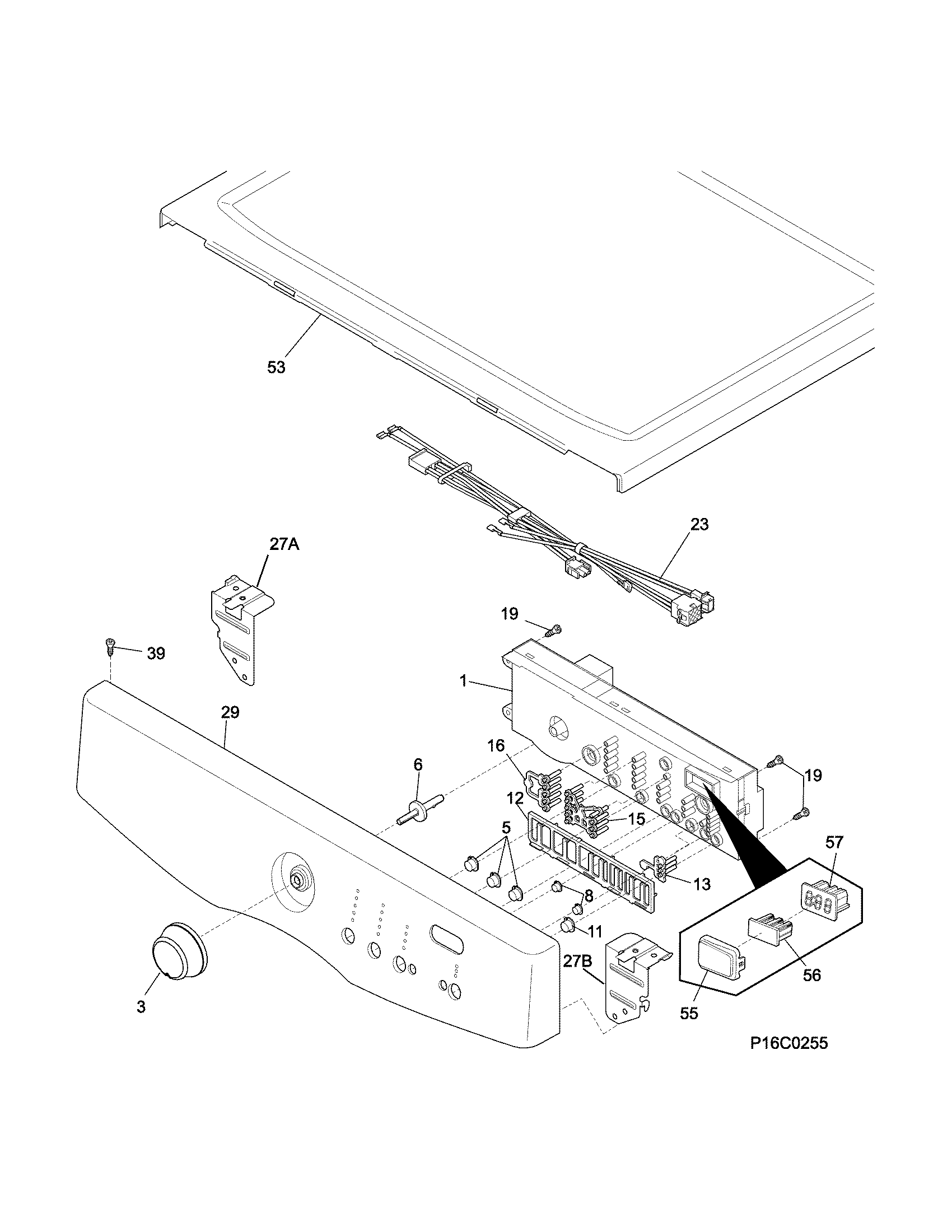

Controls diagram

Dryer electronic control board

Part #137070890

Replaced by #137070890NH

?
Manufacturer substitution
This part replaces 137070890. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$192.26 |
6% OFF Phone Price : $204.26
In Stock
Dryer Blower Housing 137551110
#10

Motor/fan diagram

Dryer blower housing

Part #137551110

BEST SELLER
$136.41 |
8% OFF Phone Price : $148.41
In Stock
Dryer Rear Heat Duct 134694030
#16

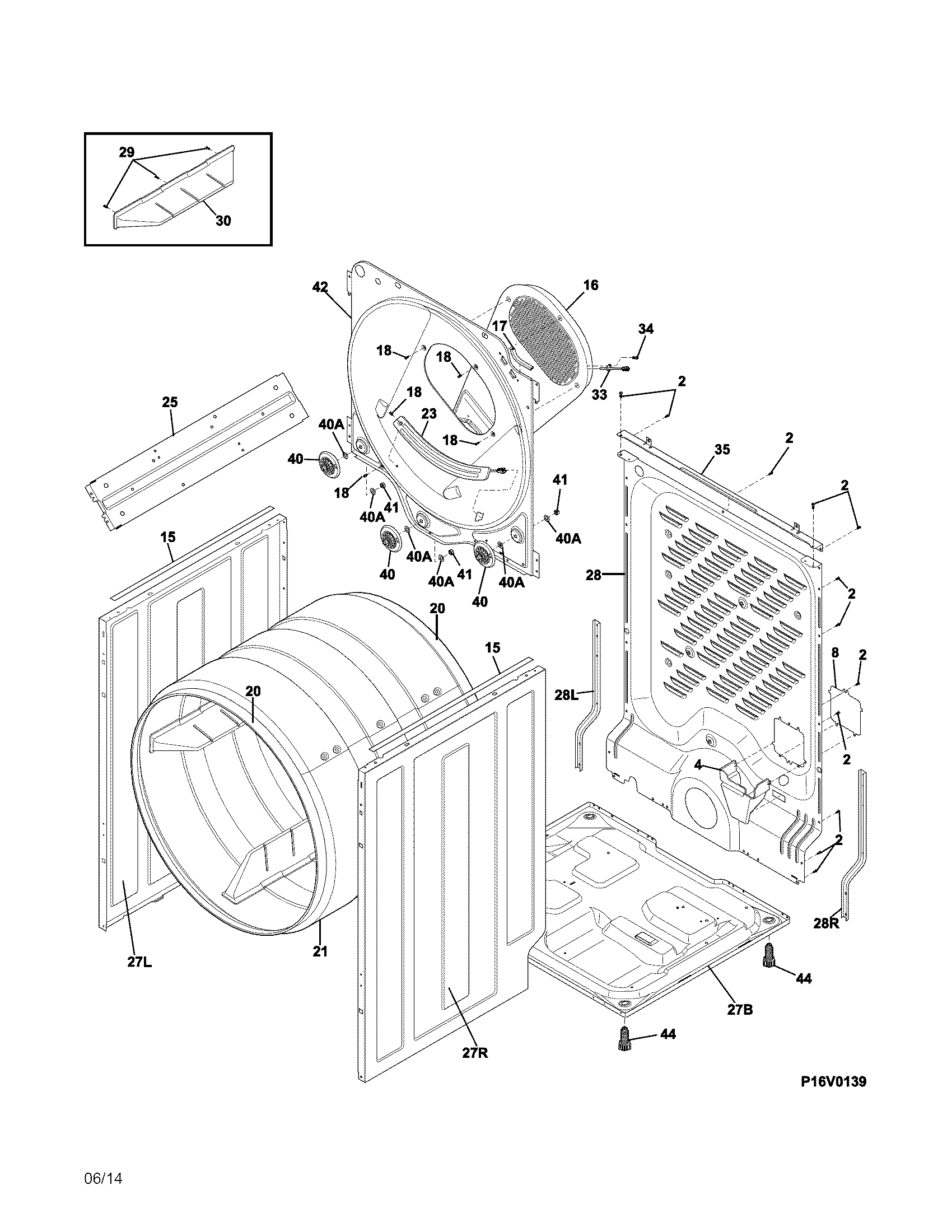

Cabinet/drum diagram

Dryer rear heat duct

Part #134694030

Replaced by #5304508449

?
Manufacturer substitution
This part replaces 134694030. Substitute parts can look different from the original.
BEST SELLER
$63.21 |
9% OFF Phone Price : $69.21
In Stock
Dryer Drum Support Roller 134715900
Dryer drum support roller

Part #134715900

BEST SELLER
$68.09 |
8% OFF Phone Price : $74.09
In Stock
Leveling L 134158000
#44

Cabinet/drum diagram

Leveling l

Part #134158000

Replaced by #216396900

?
Manufacturer substitution
This part replaces 134158000. Substitute parts can look different from the original.
BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Dryer Idler Spring (replaces 7131601000) 131601000
#22

Motor/fan diagram

Dryer idler spring (replaces 7131601000)

Part #131601000

$42.09 |
12% OFF Phone Price : $48.09
In Stock
Strike 5303211430
#49

Front panel/lint filter diagram

Strike

Part #5303211430

Replaced by #5303207102

?
Manufacturer substitution
This part replaces 5303211430. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
