Model # 131978810 Official Craftsman 22" power-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 131978810 22" power-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Selector Knob 77865
#45

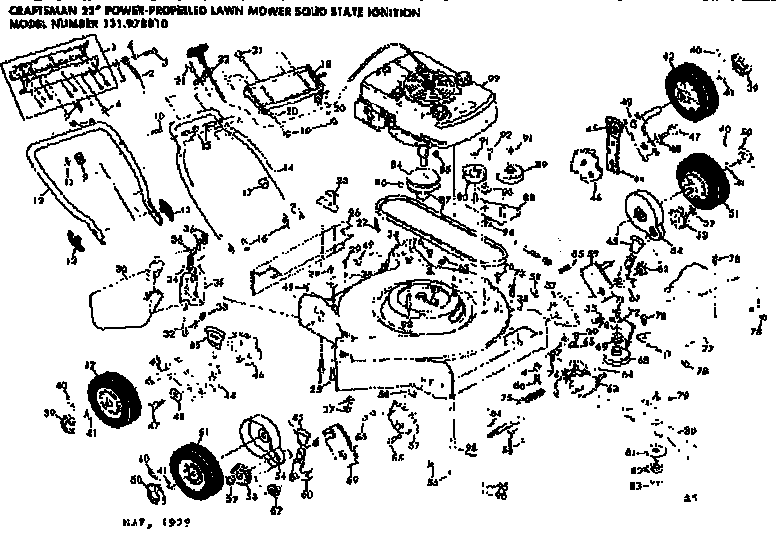

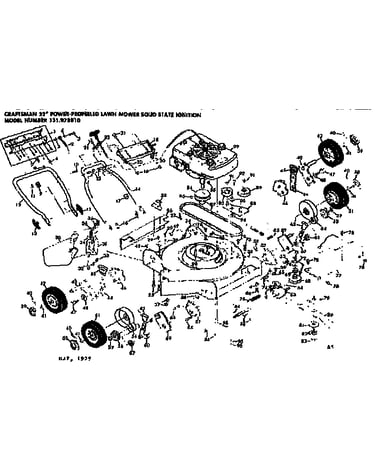

Solid state ignition diagram

Selector knob

Part #77865

Replaced by #532701037

?
Manufacturer substitution
This part replaces 77865. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Bolt 58714
#15

Solid state ignition diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Handle Knob 58715
#13

Solid state ignition diagram

Handle knob

Part #58715

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58715. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Lawn Mower Retainer Clip, 4-pack 55015
#40

Solid state ignition diagram

Lawn mower retainer clip, 4-pack

Part #55015

Replaced by #582934801

?
Manufacturer substitution
This part replaces 55015. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn Tractor Transaxle Wheel Axle Oil Seal 57072
#8

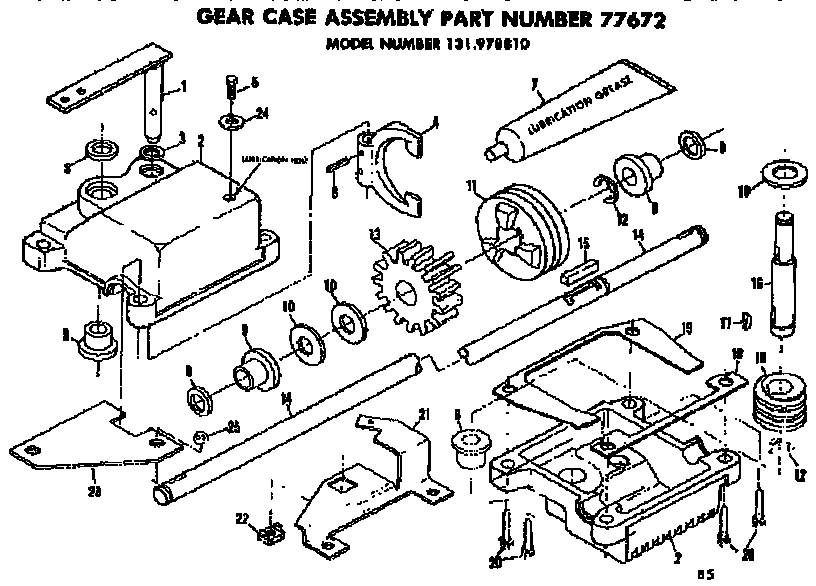

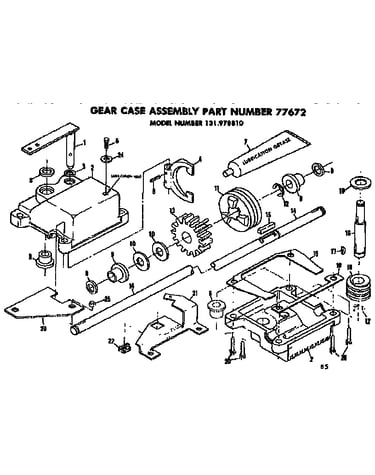

Solid state ignition/gear case asm diagram

Lawn tractor transaxle wheel axle oil seal

Part #57072

Replaced by #532057072

?
Manufacturer substitution
This part replaces 57072. Substitute parts can look different from the original.
$8.54
In Stock
Blade 69334
Blade

Part #69334

Replaced by #532406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Hairpin 51793
#16

Solid state ignition diagram

Hairpin

Part #51793

Replaced by #532051793

?
Manufacturer substitution
This part replaces 51793. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Bracket Support 62887
#24

Solid state ignition diagram

Bracket support

Part #62887

Replaced by #532192983

?
Manufacturer substitution
This part replaces 62887. Substitute parts can look different from the original.
$37.31
In Stock
Bracket Assembly 62886
#23

Solid state ignition diagram

Bracket assembly

Part #62886

Replaced by #532192983

?
Manufacturer substitution
This part replaces 62886. Substitute parts can look different from the original.
$37.31
In Stock
Washer 52160
#41

Solid state ignition diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
