Model # DW4650PW1 Official Frigidaire 24" portable dishwasher - 5995209128

Here are the diagrams and repair parts for Official Frigidaire DW4650PW1 24" portable dishwasher - 5995209128, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

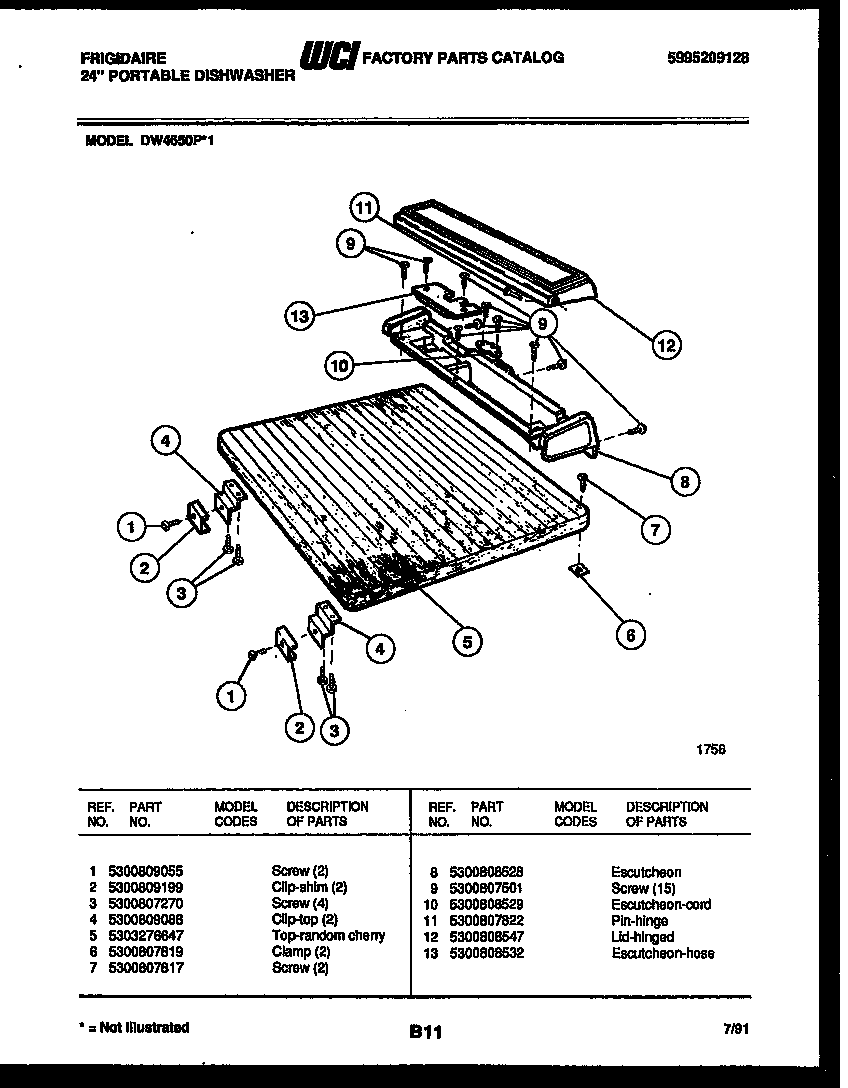

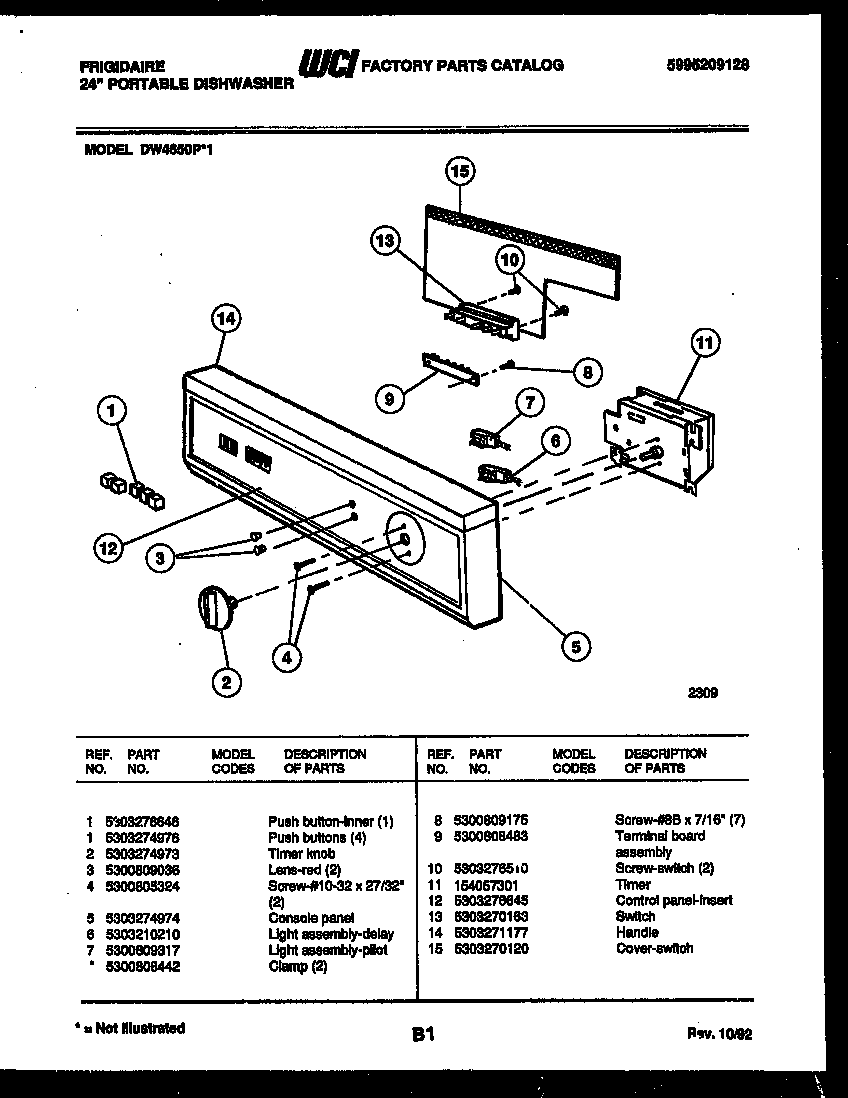

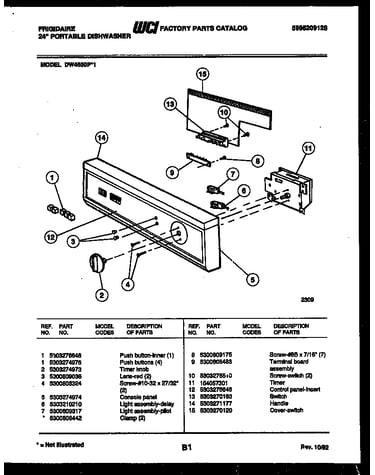

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Nut 5300806834
#19

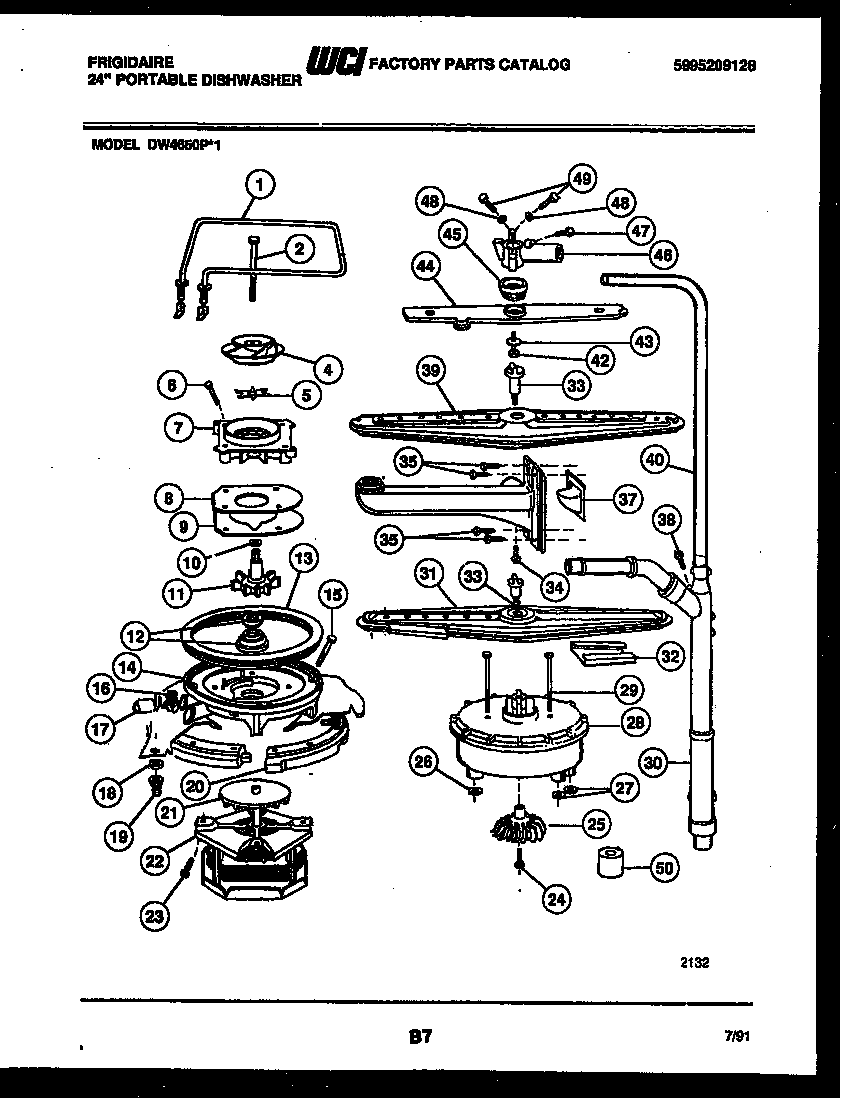

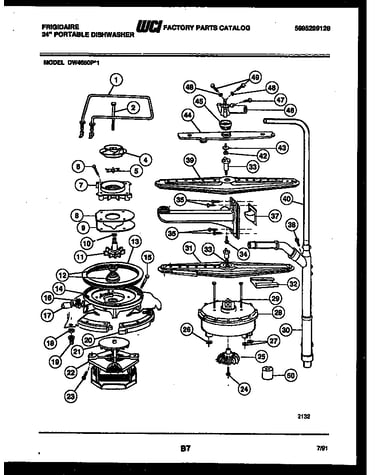

Motor pump parts diagram

Nut

Part #5300806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 5300806834. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Basket 5303208524
#3

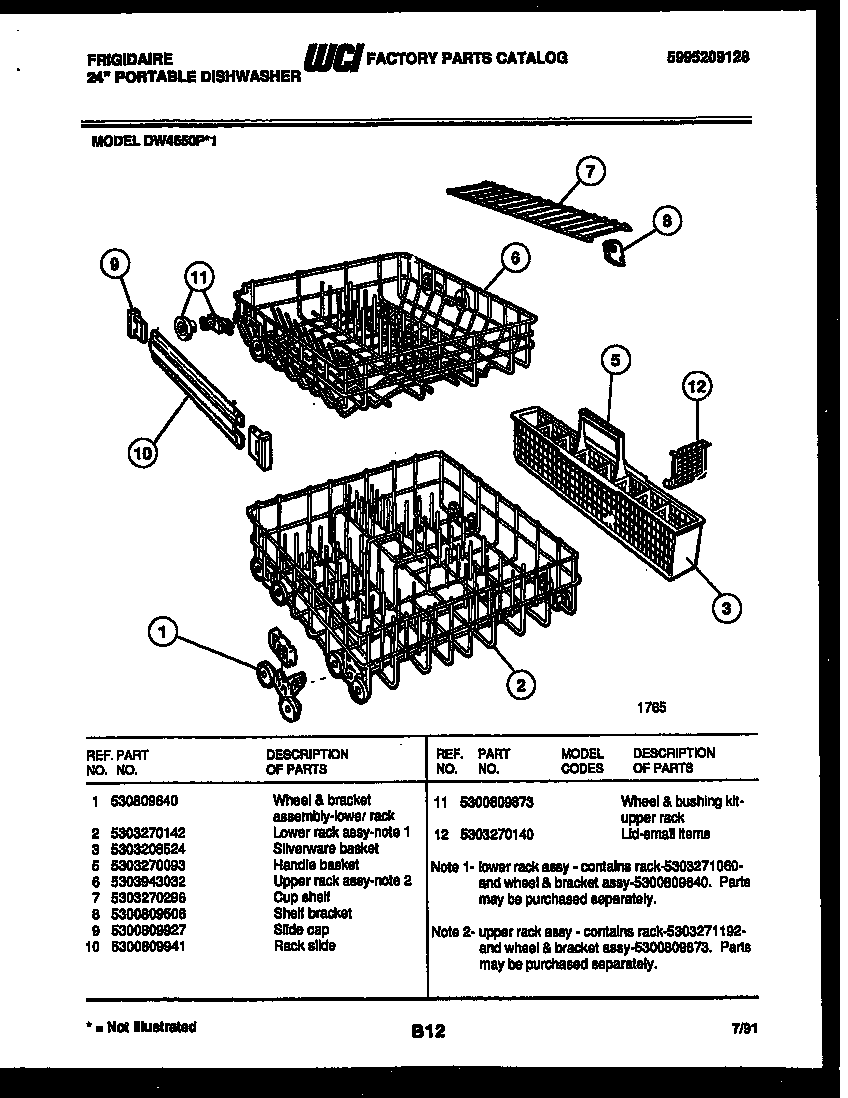

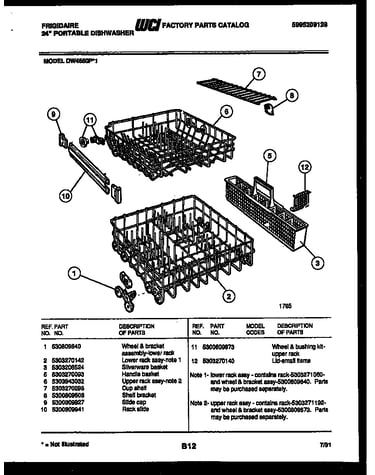

Racks and trays diagram

Basket

Part #5303208524

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 5303208524. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Lock Nut 5300808470
#5

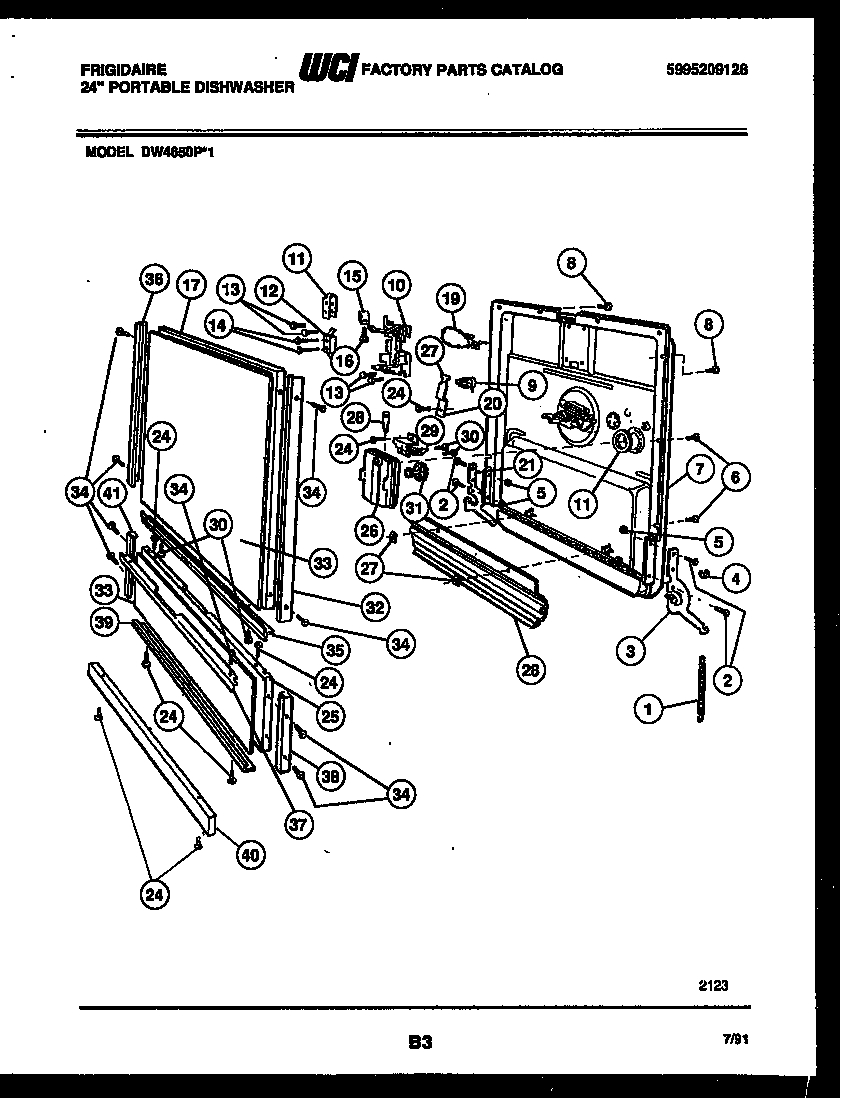

Door parts diagram

Lock nut

Part #5300808470

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 5300808470. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Tub Roller 5300809917
#11

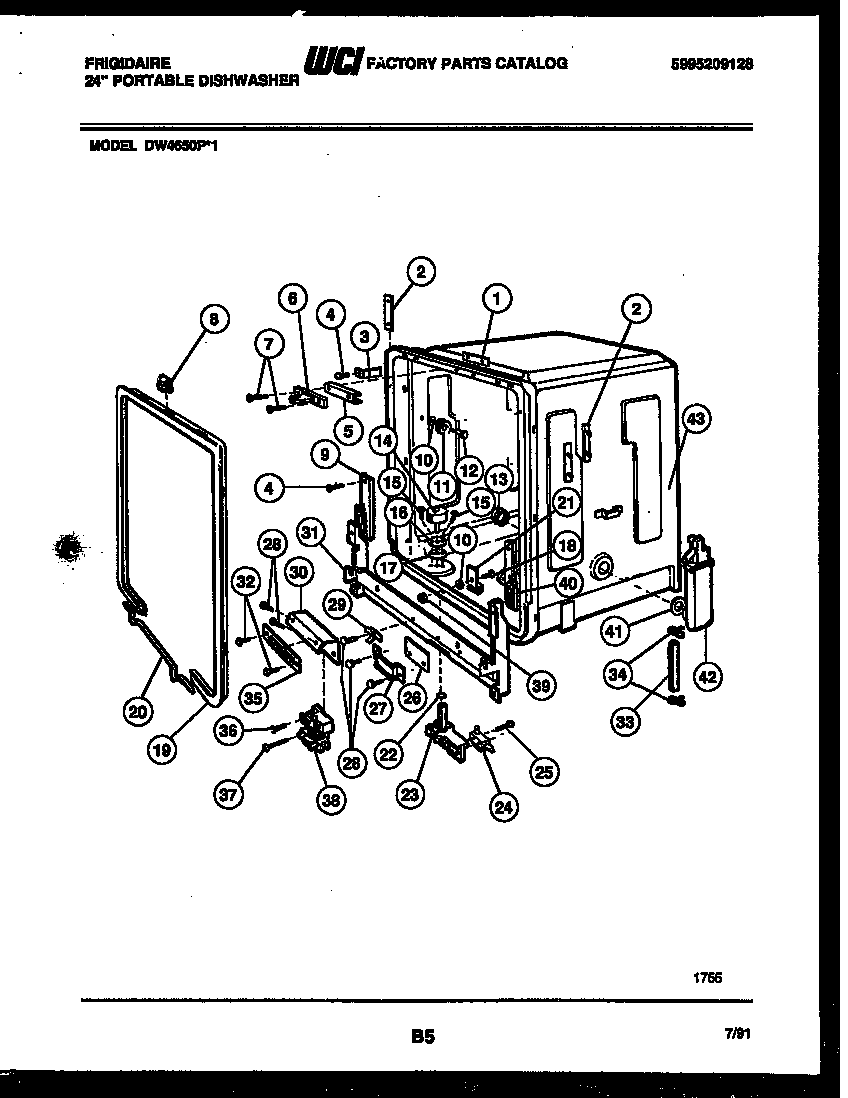

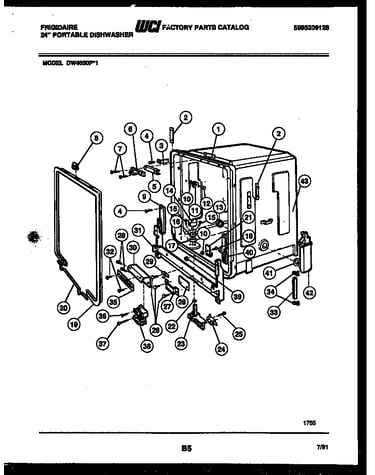

Tub and frame parts diagram

Tub roller

Part #5300809917

Replaced by #5304507405

?
Manufacturer substitution
This part replaces 5300809917. Substitute parts can look different from the original.
This item is not returnable
$16.71
In Stock
Dishwasher Tub Gasket Clip Set 5300805763
#8

Tub and frame parts diagram

Dishwasher tub gasket clip set

Part #5300805763

$84.49
In Stock
Kelvinator Washer 5300808613
#18

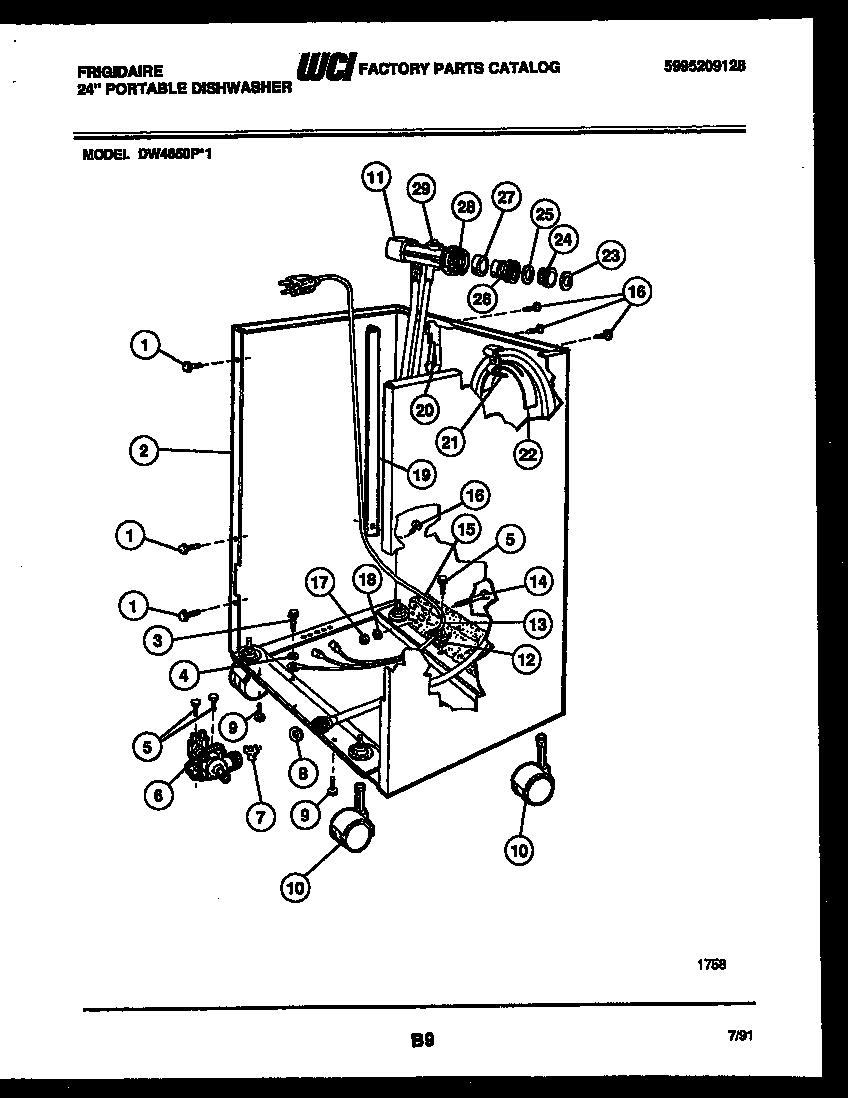

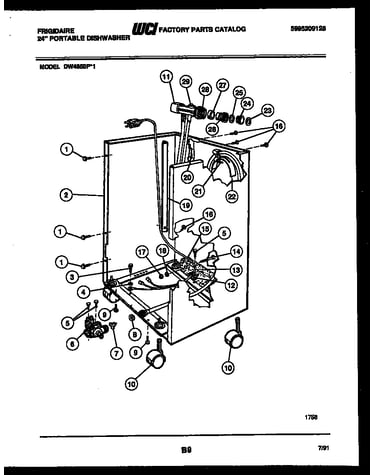

Cabinet parts diagram

Kelvinator washer

Part #5300808613

$7.73
In Stock
Dishwasher Detergent Dispenser Door Compression Spring 5300806567
#4

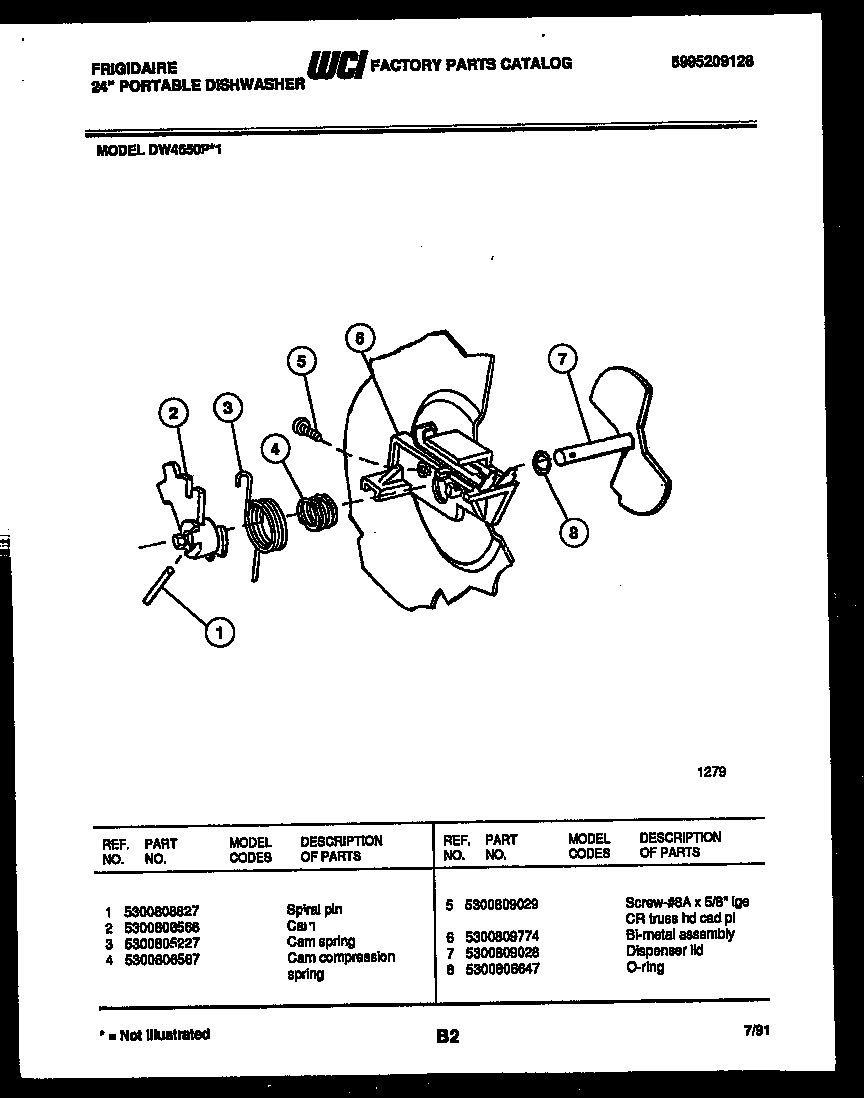

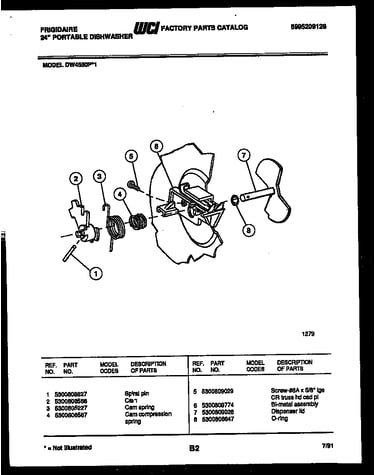

Cam diagram

Dishwasher detergent dispenser door compression spring

Part #5300806567

$29.93
In Stock
Dishwasher Upper Spray Arm Manifold 5300808464
#46

Motor pump parts diagram

Dishwasher upper spray arm manifold

Part #5300808464

This item is not returnable
$5.26
In Stock
Dishwasher Spray Arm Shield 5300809938
#32

Motor pump parts diagram

Dishwasher spray arm shield

Part #5300809938

$34.98
In Stock
Universal/multiflex (frigidaire) Washer 5300800787
#8

Cabinet parts diagram

Universal/multiflex (frigidaire) washer

Part #5300800787

This item is not returnable
$2.91
In Stock
