Model # JBQ42N Official Jenn-Air gas grill

Here are the diagrams and repair parts for Official Jenn-Air JBQ42N gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Broiler Pan 70001090
#9

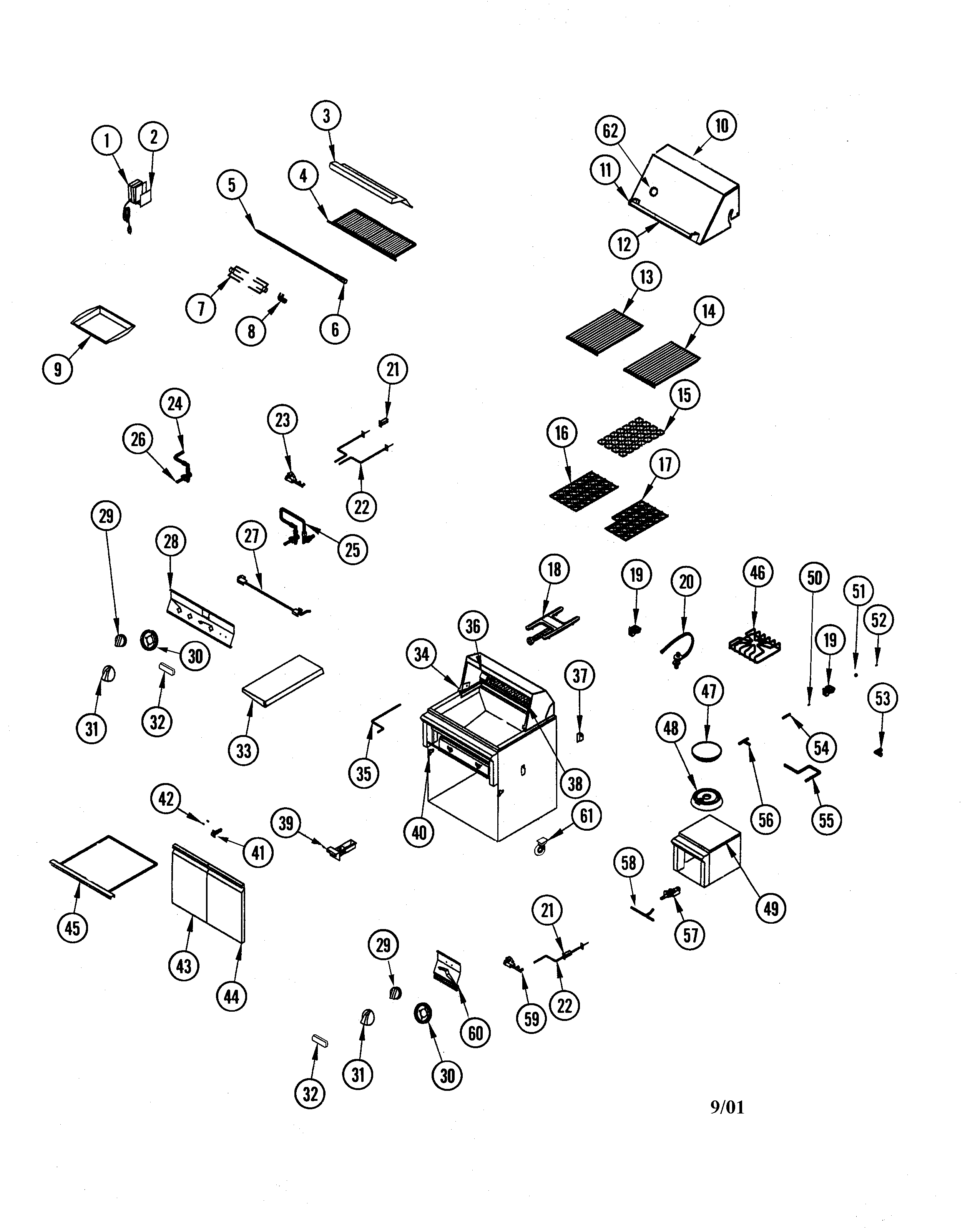

Body diagram

Broiler pan

Part #70001090

Replaced by #4396923

?
Manufacturer substitution
This part replaces 70001090. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Handle Hood 70002052
#12A

Body diagram

Handle hood

Part #70002052

$82.40
In Stock
Burner Seal 70002087
#48

Body diagram

Burner seal

Part #70002087

The manufacturer no longer makes this part, and there's no substitute part

Burner Knob 70001049
#31

Body diagram

Burner knob

Part #70001049

The manufacturer no longer makes this part, and there's no substitute part

Flex Tubing 70002058
#25

Body diagram

Flex tubing

Part #70002058

The manufacturer no longer makes this part, and there's no substitute part

Support 70002073
#37

Body diagram

Support

Part #70002073

The manufacturer no longer makes this part, and there's no substitute part

Shelf 70002104
#33

Body diagram

Shelf

Part #70002104

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve 70002059
Burner valve

Part #70002059

The manufacturer no longer makes this part, and there's no substitute part

Door Assy (4 70002079
#43

Body diagram

Door assy (4

Part #70002079

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual 70002111
#65A

Body diagram

Use and care manual

Part #70002111

The manufacturer no longer makes this part, and there's no substitute part
