Model # 2582357670 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2582357670 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Rotisserie 10004-147
#140

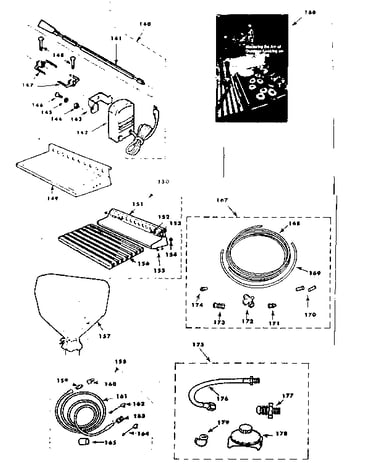

Optional accessories diagram

Rotisserie

Part #10004-147

The manufacturer no longer makes this part, and there's no substitute part

Hose Assembly 10111-4
#176

Optional accessories diagram

Hose assembly

Part #10111-4

The manufacturer no longer makes this part, and there's no substitute part

Support 10184-46
#153

Optional accessories diagram

Support

Part #10184-46

The manufacturer no longer makes this part, and there's no substitute part

T-bolt Y-12427
#30

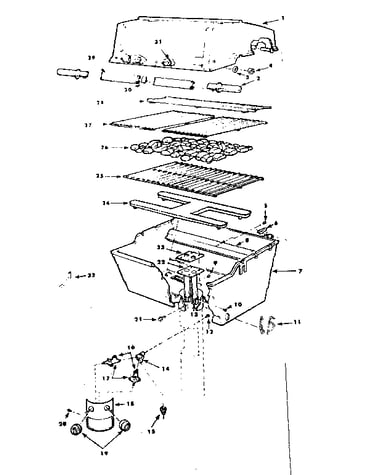

Grill and burner section diagram

T-bolt

Part #Y-12427

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut Y-12082
#154

Optional accessories diagram

Hex nut

Part #Y-12082

The manufacturer no longer makes this part, and there's no substitute part

Support 10184-48
#8

Grill and burner section diagram

Support

Part #10184-48

The manufacturer no longer makes this part, and there's no substitute part

Access Cover 10081-191
#18

Grill and burner section diagram

Access cover

Part #10081-191

The manufacturer no longer makes this part, and there's no substitute part

Trim 10130-5
#29

Grill and burner section diagram

Trim

Part #10130-5

The manufacturer no longer makes this part, and there's no substitute part

Hub Cap 10803-6
#105

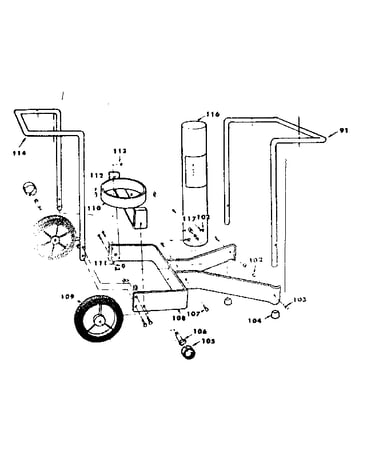

Portable cart assemblies diagram

Hub cap

Part #10803-6

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10724-4
#151

Optional accessories diagram

Shelf

Part #10724-4

The manufacturer no longer makes this part, and there's no substitute part
