Model # LFXC22526S/01 Official LG bottom-mount refrigerator

Here are the diagrams and repair parts for Official LG LFXC22526S-01 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 165 parts  |
Refrigerator Air Filter ADQ73214404

#631C

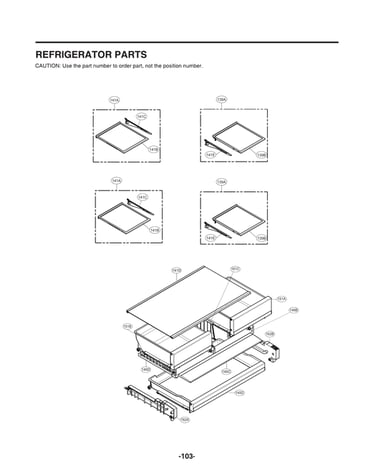

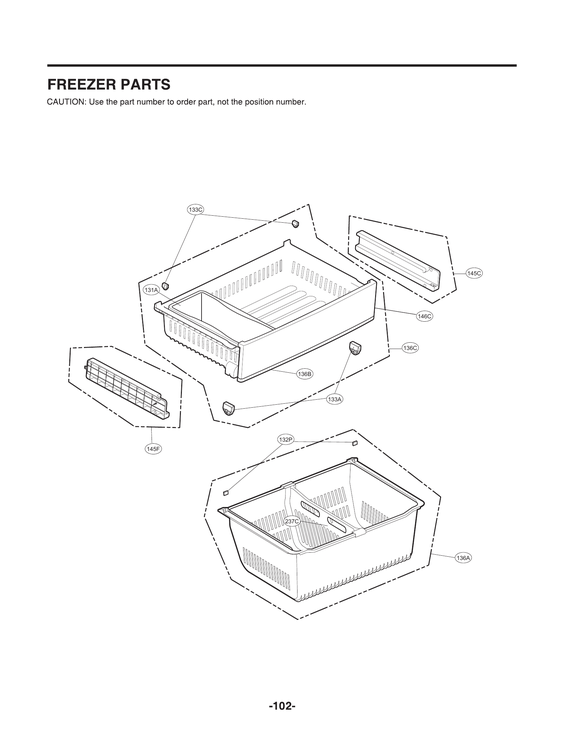

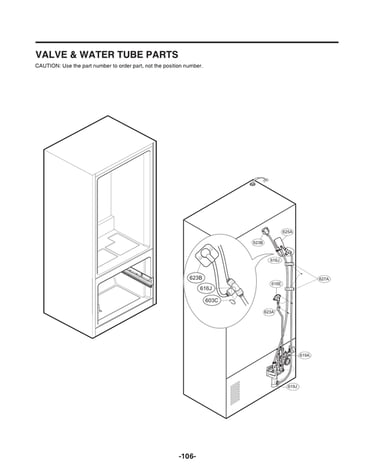

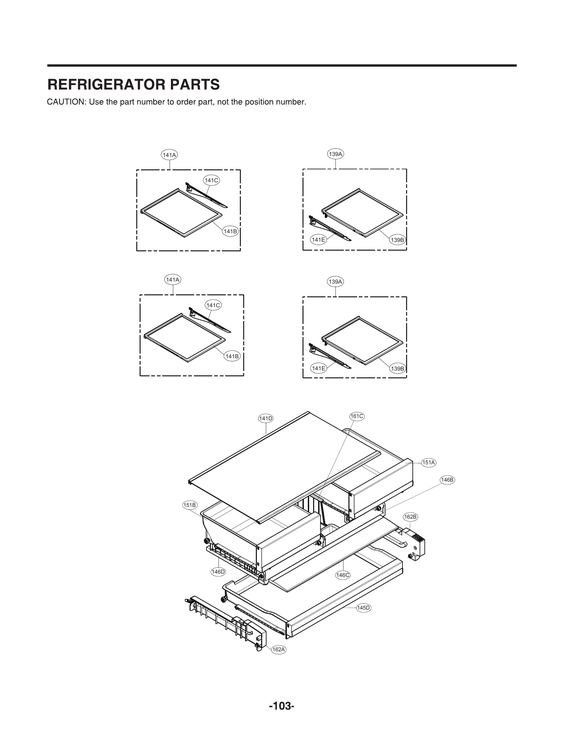

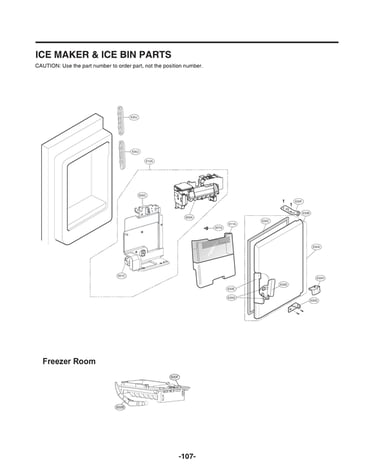

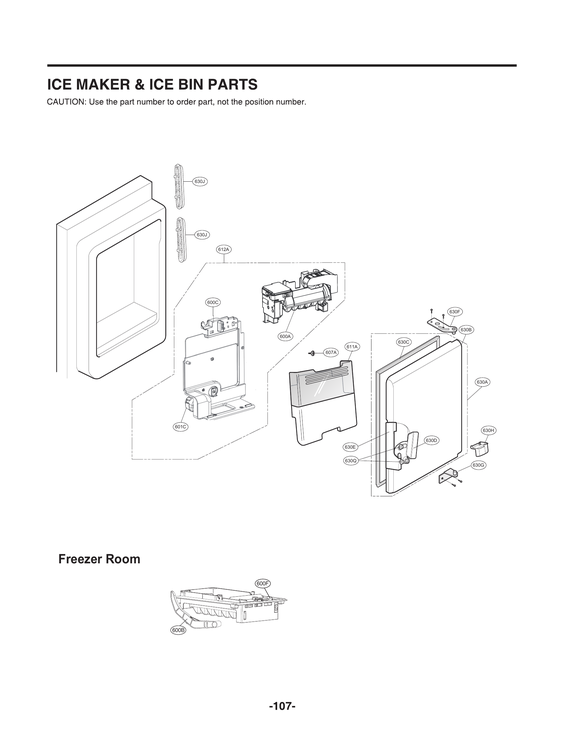

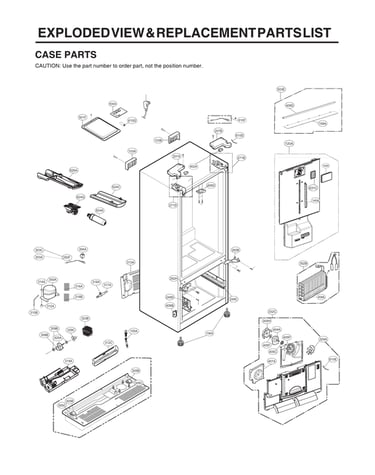

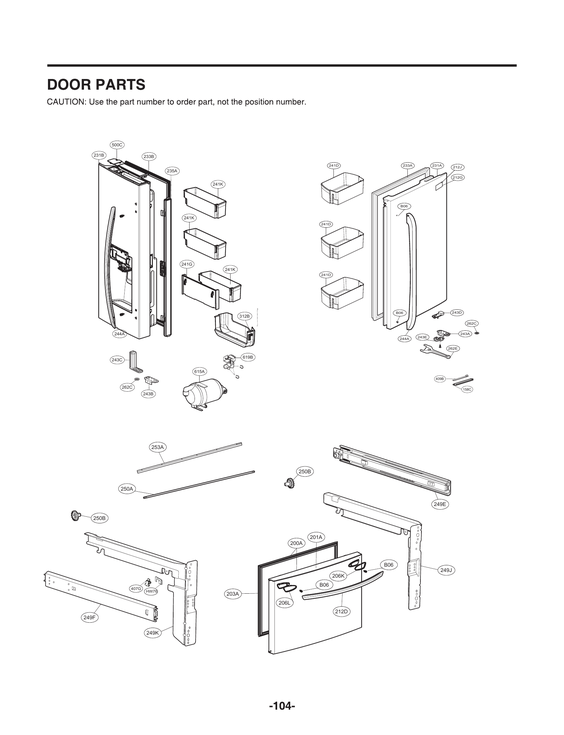

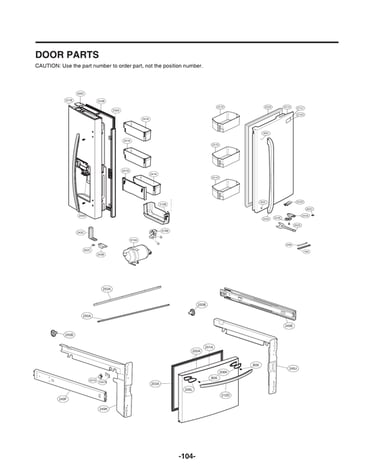

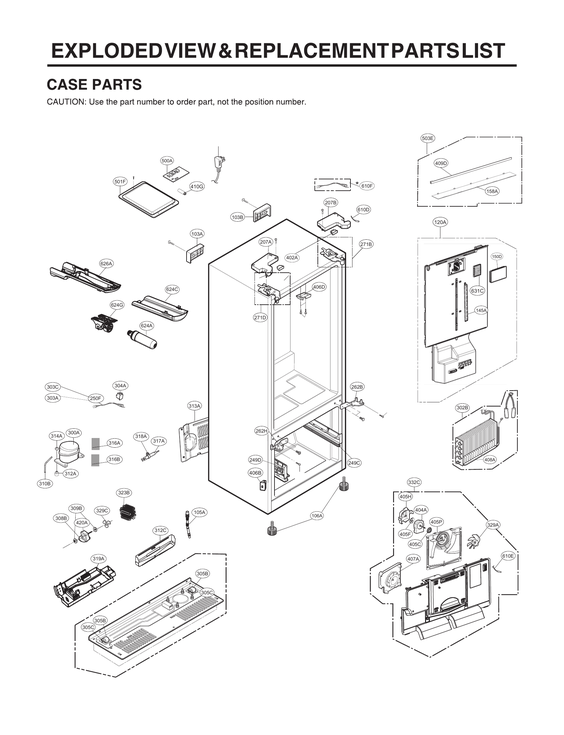

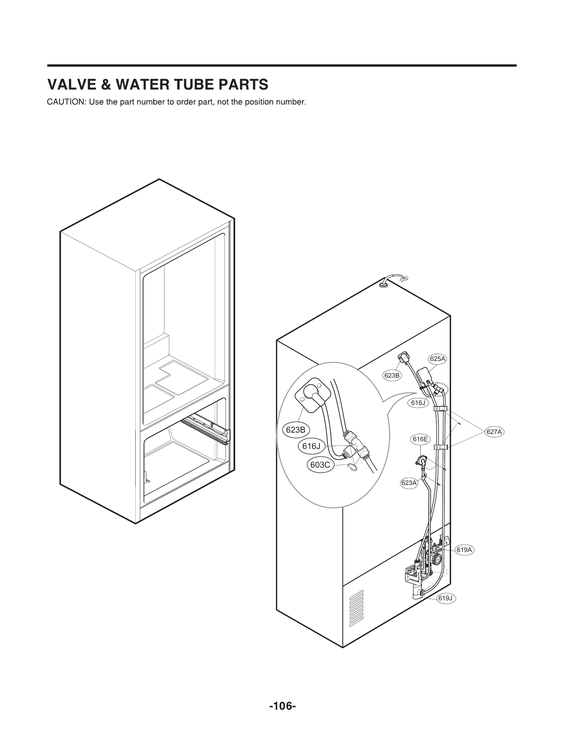

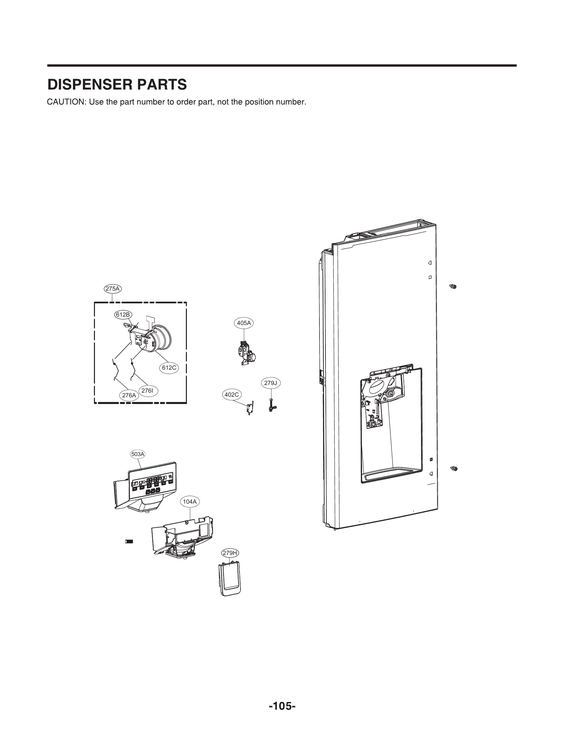

All parts diagram

Refrigerator air filter

Part #ADQ73214404

Replaced by #ADQ73214408

?
Manufacturer substitution
This part replaces ADQ73214404. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$31.91 |
16% OFF Phone Price : $37.91
In Stock
Lg Lt1000p Refrigerator Water Filter ADQ74793501

#624A

All parts diagram

Lg lt1000p refrigerator water filter

Part #ADQ74793501

Replaced by #AGF80300704

?
Manufacturer substitution
This part replaces ADQ74793501. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$66.99
In Stock
Refrigerator Ice Maker Assembly (replaces Aeq72909601) AEQ72909602

#600F

All parts diagram

Refrigerator ice maker assembly (replaces aeq72909601)

Part #AEQ72909602

BEST SELLER
$91.54 |
6% OFF Phone Price : $97.54
In Stock
Refrigerator Filter Dryer ADH73590310

#317A

All parts diagram

Refrigerator filter dryer

Part #ADH73590310

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Refrigerator Flipper Assembly (replaces Agu73530705, Agu73530708, Agu73530710, Agu73530711, Agu74110901, Agu74110904, Agu75188613, Agu75188618) AGU75188619

#235A

All parts diagram

Refrigerator flipper assembly (replaces agu73530705, agu73530708, agu73530710, agu73530711, agu74110901, agu74110904, agu75188613, agu75188618)

Part #AGU75188619

BEST SELLER
$120.82 |
9% OFF Phone Price : $132.82
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204

#405A

All parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$52.52 |
10% OFF Phone Price : $58.52
In Stock
Refrigerator Water Inlet Valve (replaces 5221ja2011p, Aju72992606, Ebd60664501) AJU72992601

#619A

All parts diagram

Refrigerator water inlet valve (replaces 5221ja2011p, aju72992606, ebd60664501)

Part #AJU72992601

BEST SELLER
$111.69 |
10% OFF Phone Price : $123.69
In Stock
Refrigerator Ice Container Assembly (replaces Akc73249303) AKC73249304

#611A

All parts diagram

Refrigerator ice container assembly (replaces akc73249303)

Part #AKC73249304

BEST SELLER
$48.33 |
11% OFF Phone Price : $54.33
In Stock
Refrigerator Compressor Process Tube (replaces 4j00977n) 4J00977P

#310B

All parts diagram

Refrigerator compressor process tube (replaces 4j00977n)

Part #4J00977P

BEST SELLER
This item is not returnable
$7.22 |
12% OFF Phone Price : $8.22
In Stock
Refrigerator Ice Room Fan Motor Assembly ABA74248410

#407A

All parts diagram

Refrigerator ice room fan motor assembly

Part #ABA74248410

Replaced by #ABA74248415

?
Manufacturer substitution
This part replaces ABA74248410. Substitute parts can look different from the original.
BEST SELLER
$93.03 |
6% OFF Phone Price : $99.03
In Stock
