Model # G-FD030S17A Official York evaporator coil

Here are the diagrams and repair parts for Official York G-FD030S17A evaporator coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Panel, Access (btm) 373-17797-001
#5

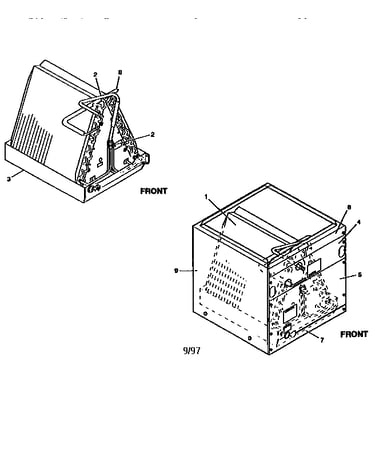

Unit coil add-on diagram

Panel, access (btm)

Part #373-17797-001

The manufacturer no longer makes this part, and there's no substitute part

Manifold 373-14588-001
#8

Unit coil add-on diagram

Manifold

Part #373-14588-001

The manufacturer no longer makes this part, and there's no substitute part

Distributor, Refrigerant 025-32645-065
#2

Unit coil add-on diagram

Distributor, refrigerant

Part #025-32645-065

The manufacturer no longer makes this part, and there's no substitute part

Grommet 3/4 028-13204-000
#12

Unit coil add-on diagram

Grommet 3/4

Part #028-13204-000

The manufacturer no longer makes this part, and there's no substitute part

Grommet 3'8 028-13202-000
#10

Unit coil add-on diagram

Grommet 3'8

Part #028-13202-000

The manufacturer no longer makes this part, and there's no substitute part

Top Panel 373-17440-001
#6

Unit coil add-on diagram

Top panel

Part #373-17440-001

The manufacturer no longer makes this part, and there's no substitute part

Door, Filter Access 373-17800-001
#7

Unit coil add-on diagram

Door, filter access

Part #373-17800-001

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 373-17789-002
#9

Unit coil add-on diagram

Wrapper

Part #373-17789-002

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Coil G-FD030S17
#1

Unit coil add-on diagram

Evaporator coil

Part #G-FD030S17

The manufacturer no longer makes this part, and there's no substitute part

Drain Pan 373-17548-003
#3

Unit coil add-on diagram

Drain pan

Part #373-17548-003

The manufacturer no longer makes this part, and there's no substitute part
