Maytag
Countertop Microwave

Model # DM15H-14B-R Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM15H-14B-R microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

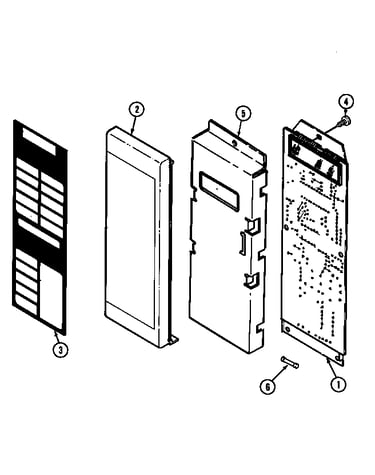

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Capacitor 01020021
#5

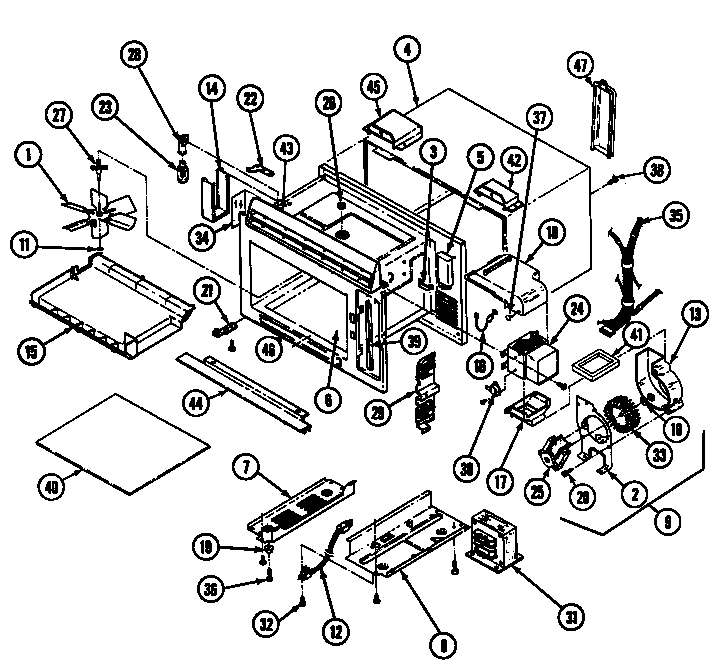

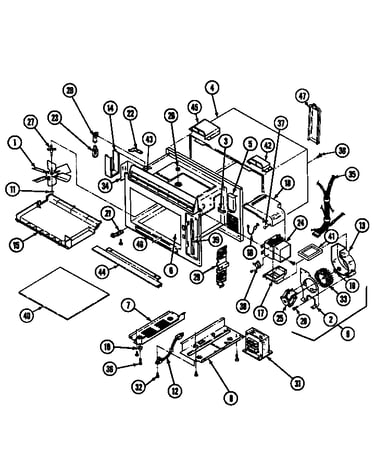

Base & cavity diagram

Capacitor

Part #01020021

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 01020021. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Screw 03020068
Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 03020079
#38A

Base & cavity diagram

Screw

Part #03020079

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020079. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 03010119
#22A

Base & cavity diagram

Screw

Part #03010119

Replaced by #WP250830

?
Manufacturer substitution
This part replaces 03010119. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Screw 707113
#20

Base & cavity diagram

Screw

Part #707113

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707113. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 03020087
Screw

Part #03020087

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 03020087. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
"pin, Latch P" 03070040
#5

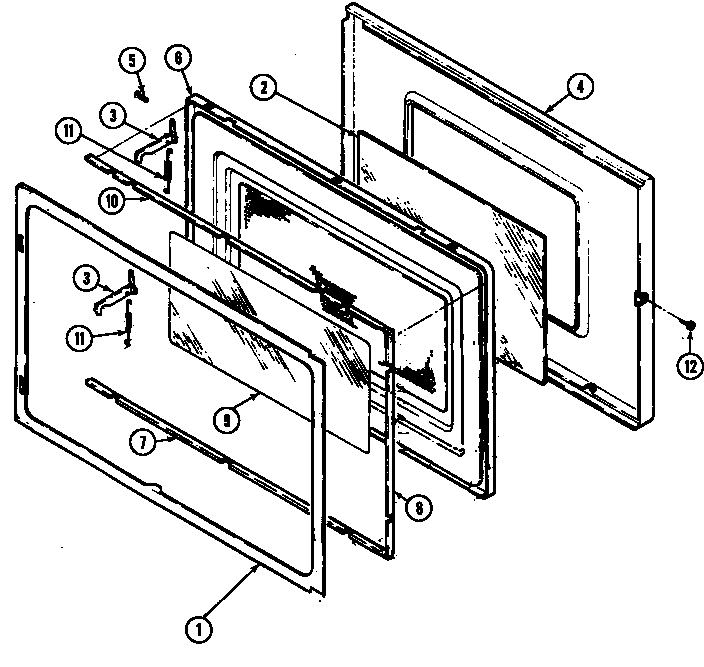

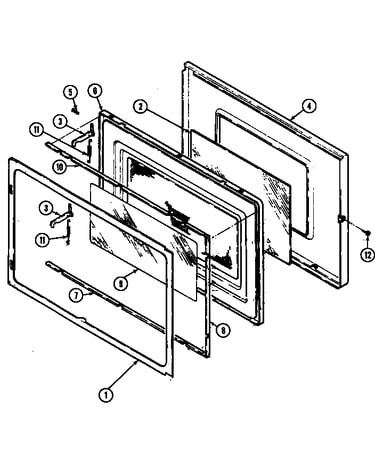

Door diagram

"pin, latch p"

Part #03070040

The manufacturer no longer makes this part, and there's no substitute part

Bracket 02030157
#2B

Door diagram

Bracket

Part #02030157

The manufacturer no longer makes this part, and there's no substitute part

Trim 02100171
#44

Base & cavity diagram

Trim

Part #02100171

The manufacturer no longer makes this part, and there's no substitute part

Seal 02120162
#7

Door diagram

Seal

Part #02120162

The manufacturer no longer makes this part, and there's no substitute part
