Model # 63013003018 Official Kenmore Elite dishwasher
Here are the diagrams and repair parts for Official Kenmore Elite 63013003018 dishwasher, as well as links to manuals and error code tables, if available.
By Schematic
By Part

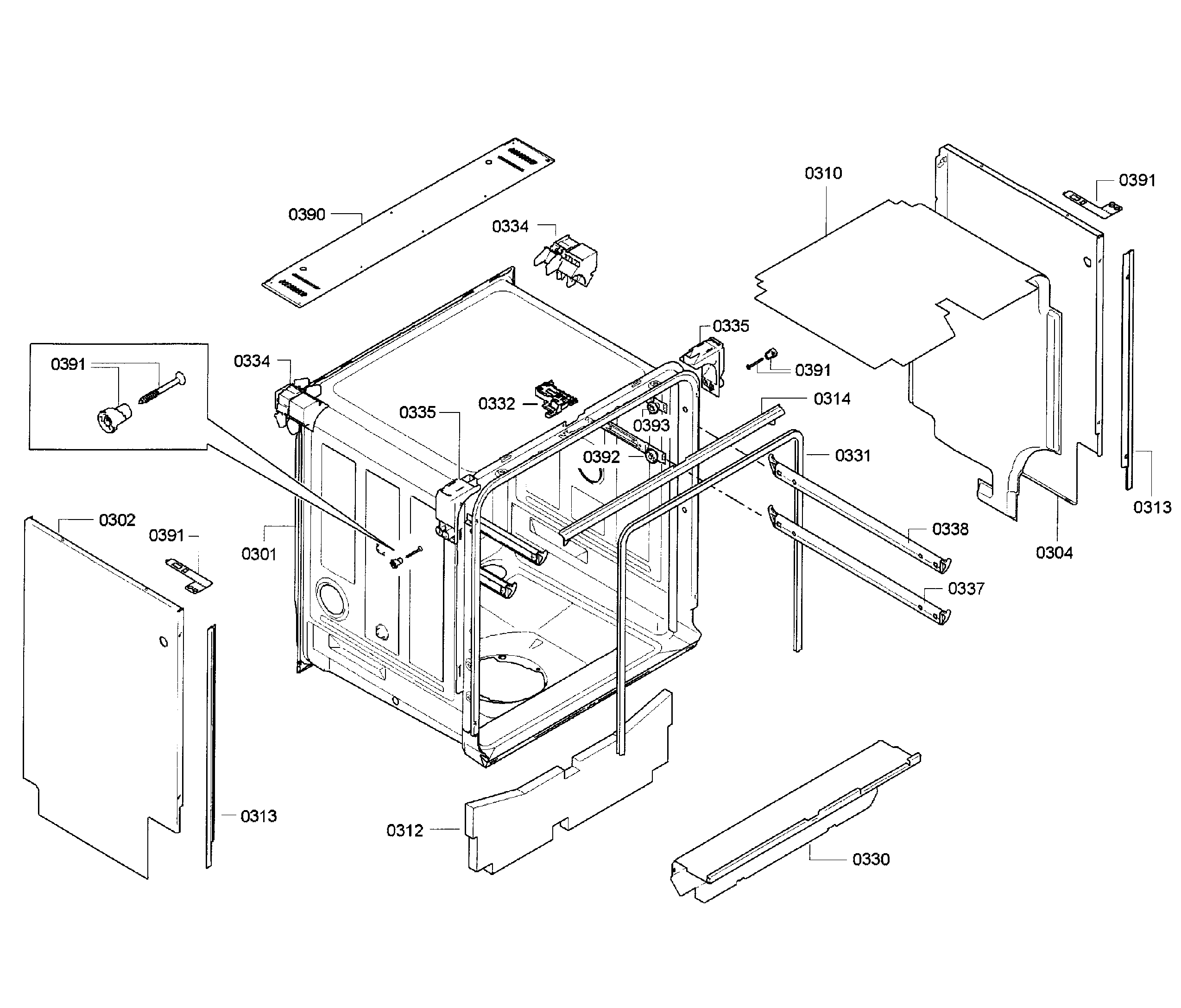

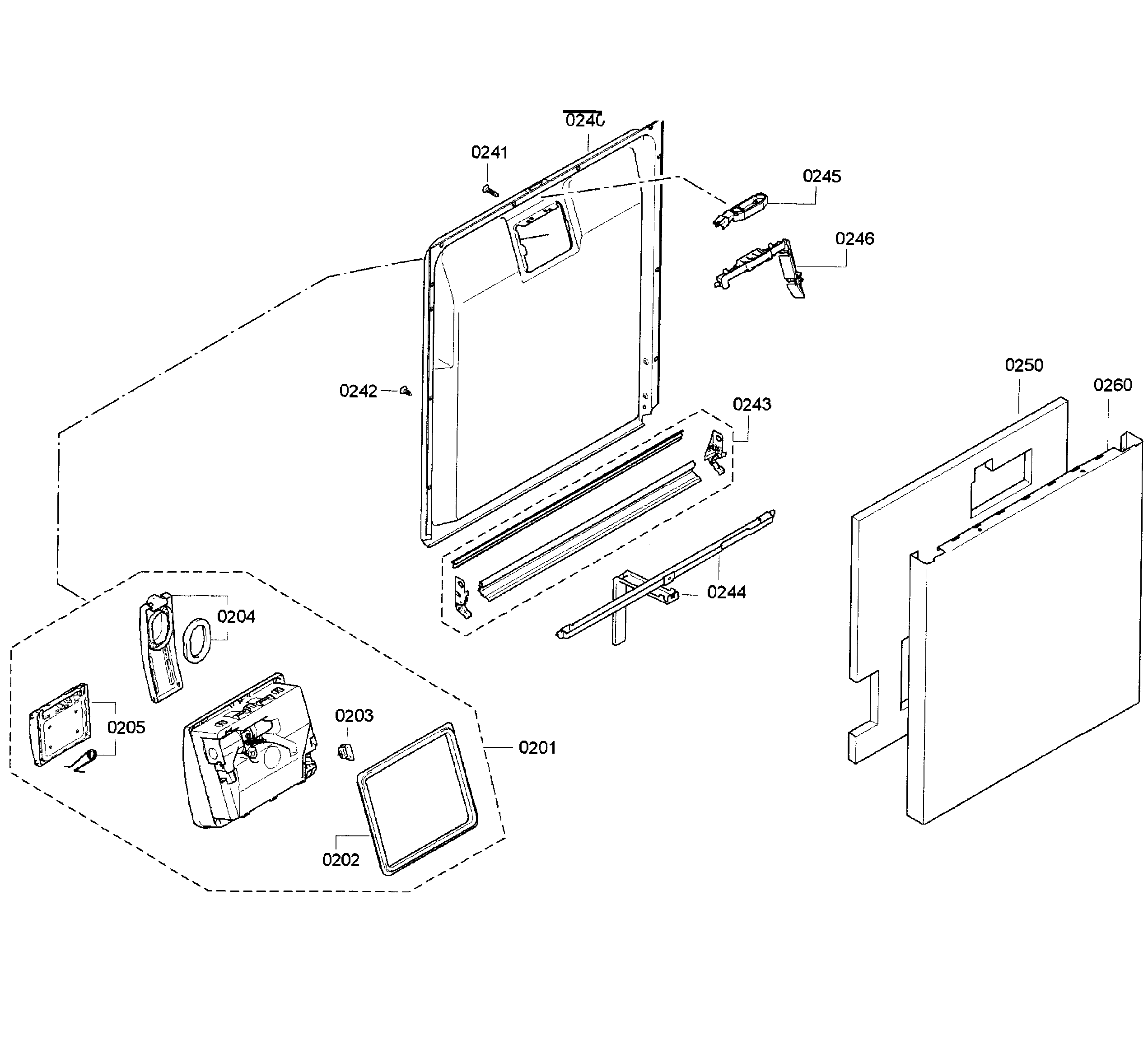

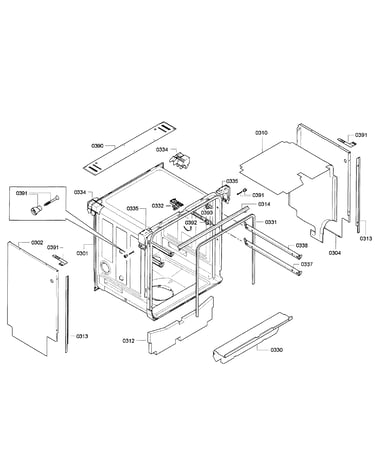

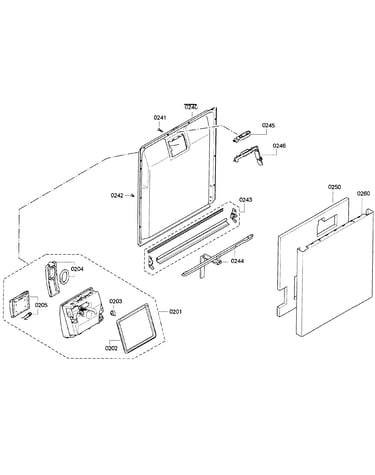

SELECT DIAGRAM
Browse Parts for
63013003018 Dishwasher
#455

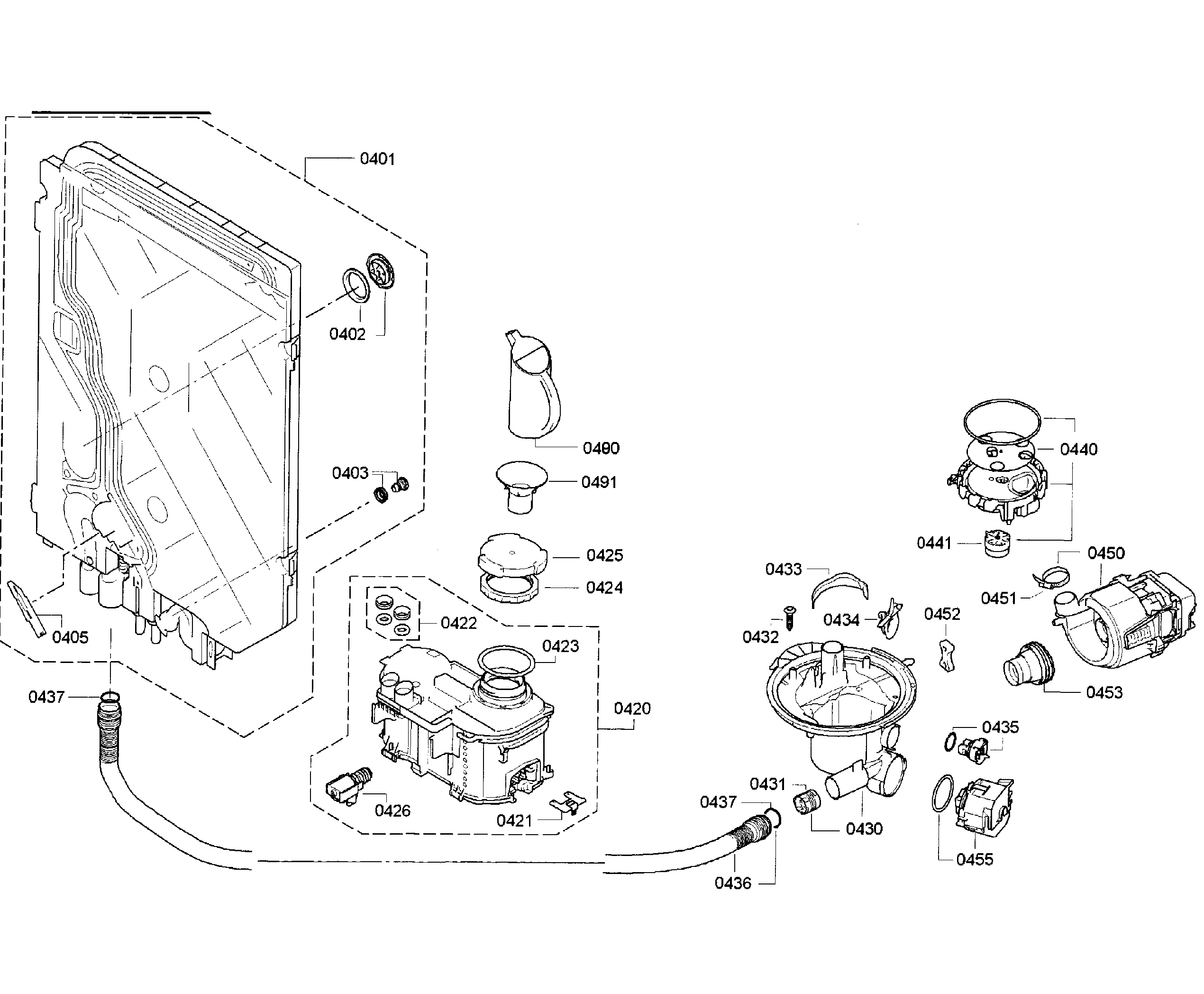

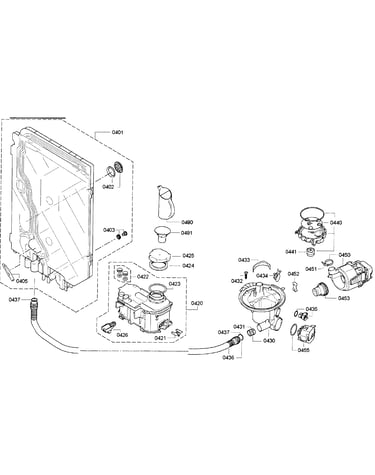

Pump assy diagram
Drain pump
Part #611332
Replaced by #00611332
?
Manufacturer substitution
This part replaces 611332. Substitute parts can look different from the original.
$55.45 |
10% OFF Phone Price : $61.45
In Stock
#451
Pump assy diagram
Hose clamp
Part #172272
Replaced by #00172272
?
Manufacturer substitution
This part replaces 172272. Substitute parts can look different from the original.
$28.11 |
18% OFF Phone Price : $34.11
In Stock
#621

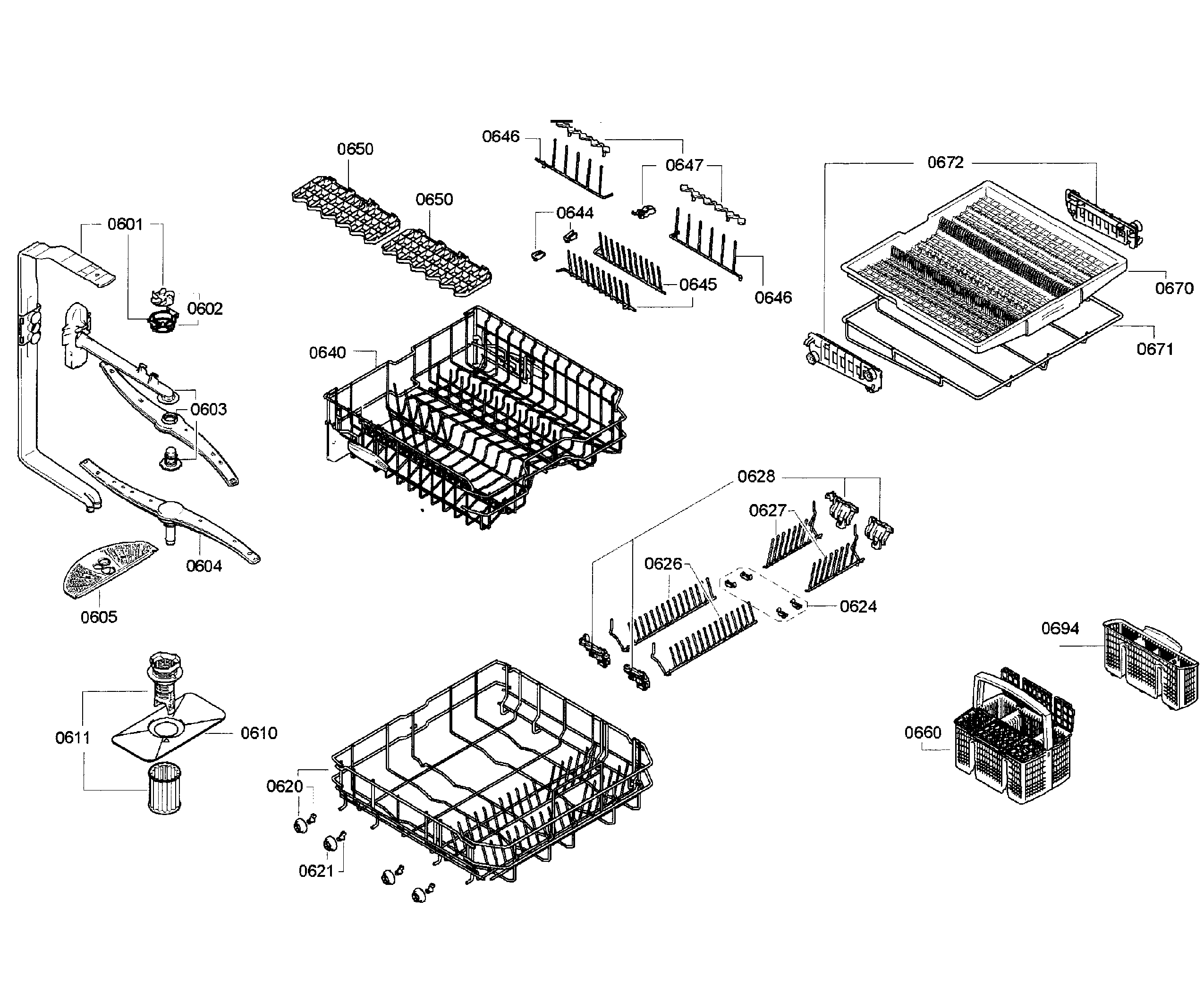

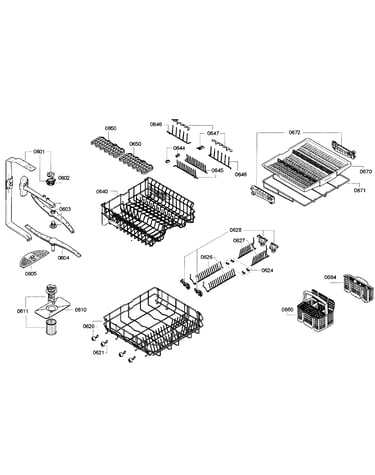

Baskets diagram
Wheel
Part #611475
Replaced by #00611475
?
Manufacturer substitution
This part replaces 611475. Substitute parts can look different from the original.
$15.14 |
12% OFF Phone Price : $17.14
In Stock
#435
Pump assy diagram
Sensor
Part #611323
Replaced by #00611323
?
Manufacturer substitution
This part replaces 611323. Substitute parts can look different from the original.
$38.75 |
13% OFF Phone Price : $44.75
In Stock
#430
Pump assy diagram
Sump
Part #668102
Replaced by #00668102
?
Manufacturer substitution
This part replaces 668102. Substitute parts can look different from the original.
$75.17 |
7% OFF Phone Price : $81.17
In Stock
#434
Pump assy diagram
Lid
Part #611322
Replaced by #00611322
?
Manufacturer substitution
This part replaces 611322. Substitute parts can look different from the original.
$25.09 |
19% OFF Phone Price : $31.09
In Stock
#552

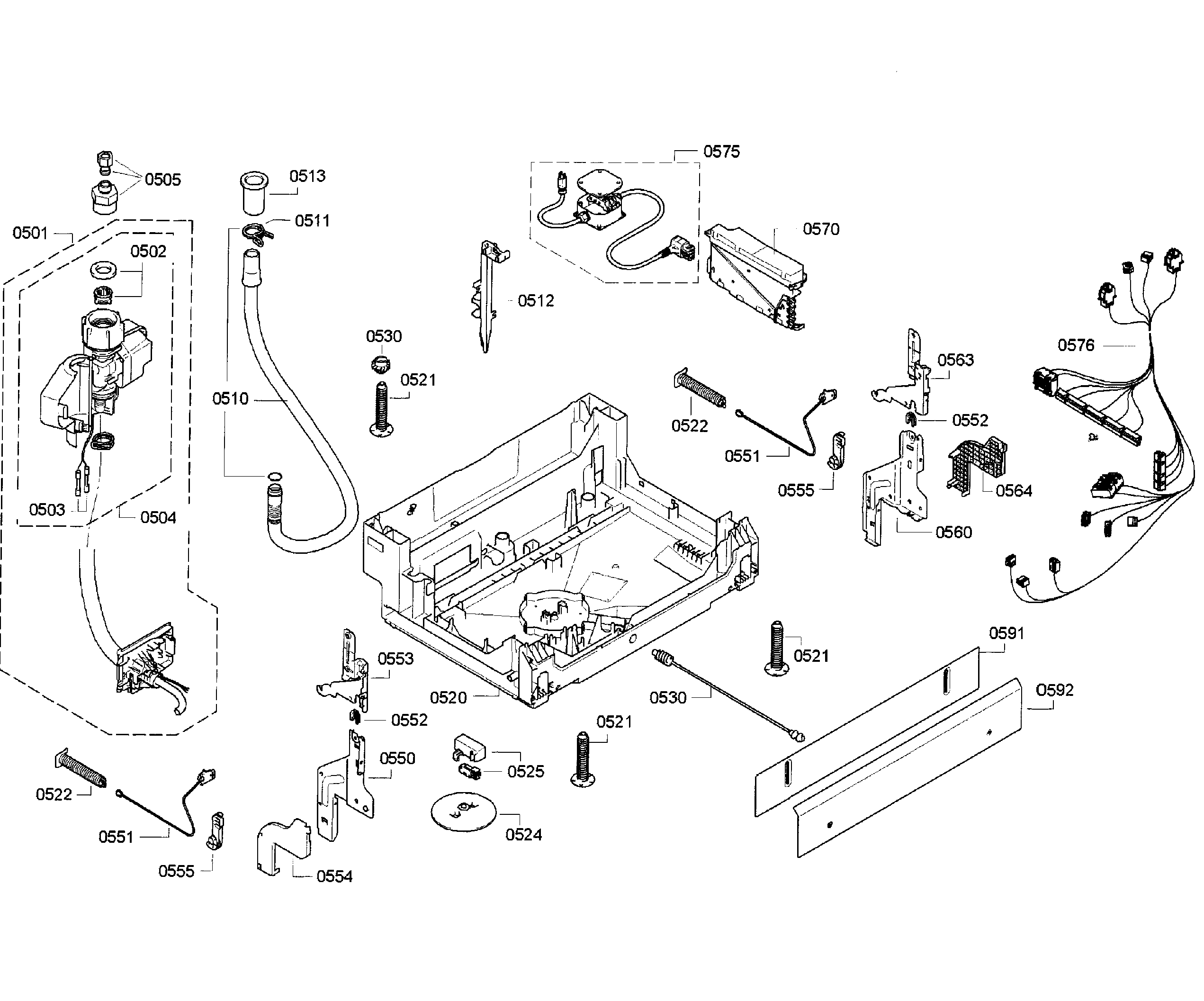

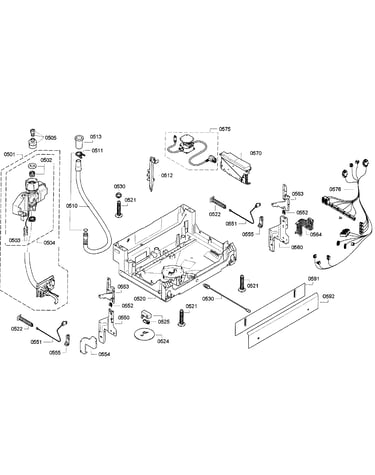

Base assy diagram
Bearing
Part #165296
Replaced by #00165296
?
Manufacturer substitution
This part replaces 165296. Substitute parts can look different from the original.
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
#522
Base assy diagram
Spring
Part #611336
Replaced by #00611336
?
Manufacturer substitution
This part replaces 611336. Substitute parts can look different from the original.
$28.89 |
17% OFF Phone Price : $34.89
In Stock
#109

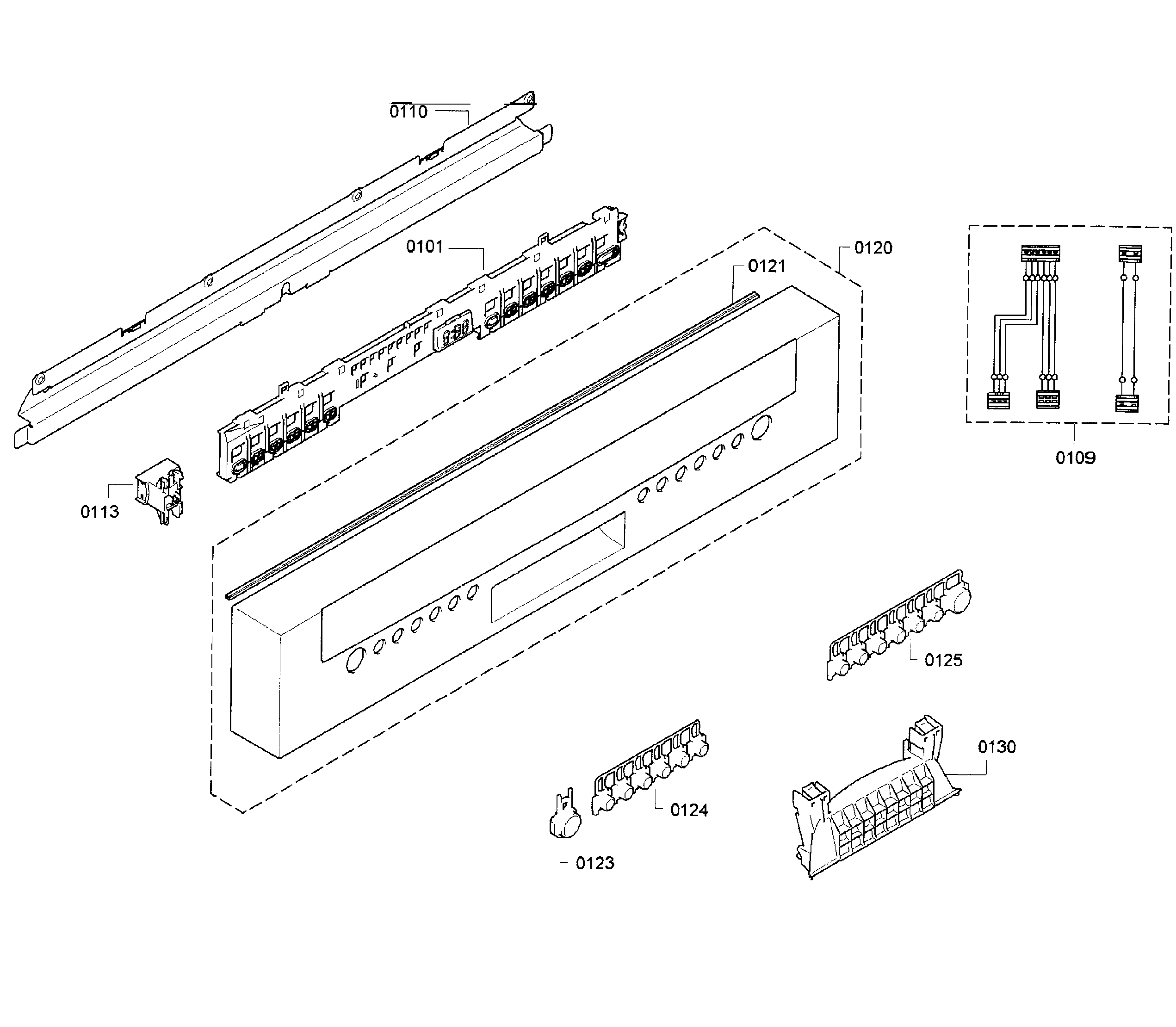

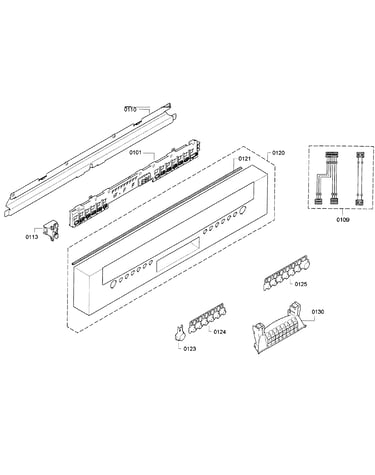

Control panel diagram
Cable
Part #648135
Replaced by #00648135
?
Manufacturer substitution
This part replaces 648135. Substitute parts can look different from the original.
$80.49 |
7% OFF Phone Price : $86.49
In Stock
#501
Base assy diagram
Aquastop
Part #674387
Replaced by #00674387
?
Manufacturer substitution
This part replaces 674387. Substitute parts can look different from the original.
$189.51 |
6% OFF Phone Price : $201.51
In Stock
