Kenmore
Upright Vacuum

Model # 72135079500 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 72135079500 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Us Pressed Steel Screw 1TPL0402818
#4-19

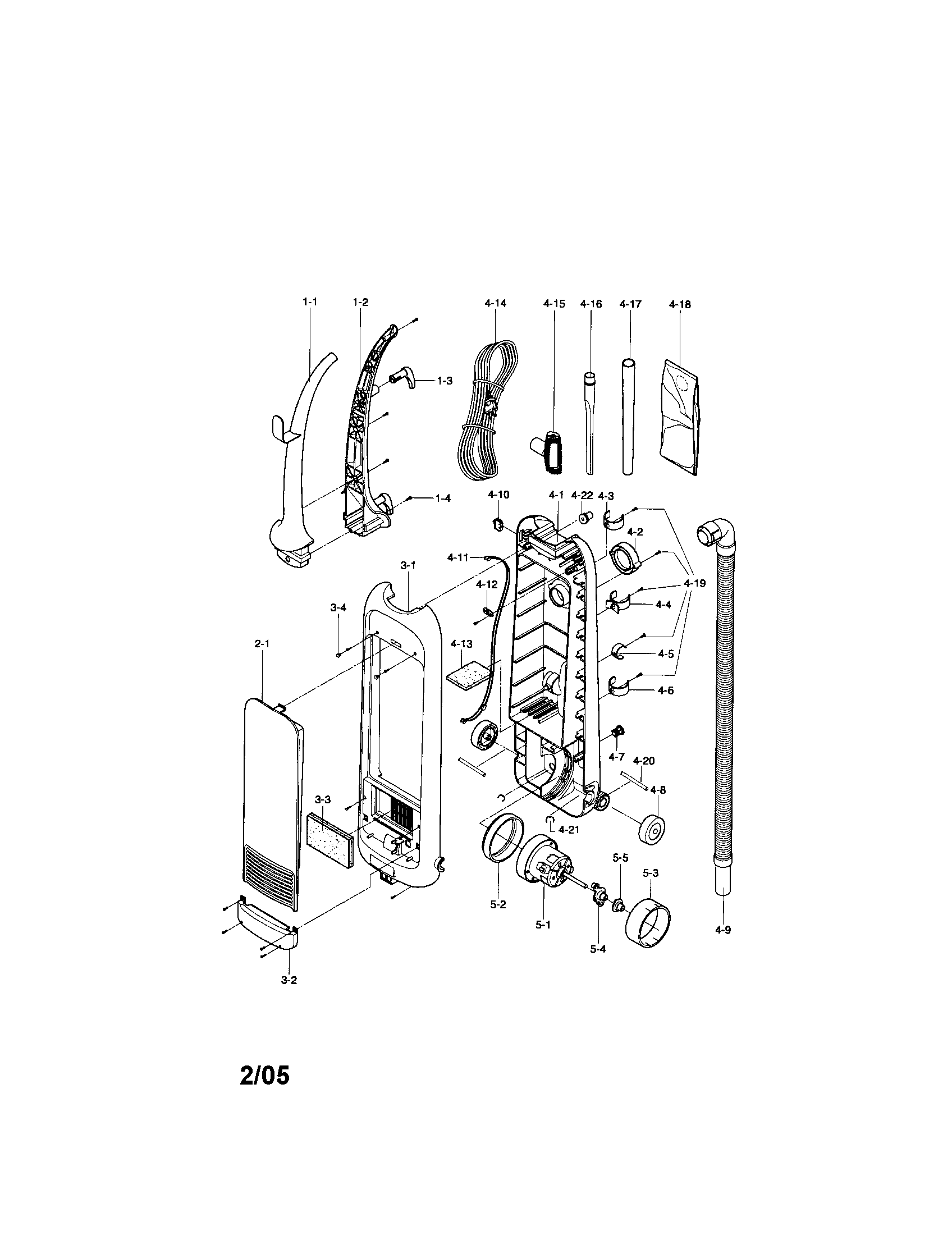

Handle/body cover/hose diagram

Us pressed steel screw

Part #1TPL0402818

This item is not returnable
$2.27
In Stock
Shaft 3470FI3691A
#4-20

Handle/body cover/hose diagram

Shaft

Part #3470FI3691A

Replaced by #4370FI3691A

?
Manufacturer substitution
This part replaces 3470FI3691A. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Vacuum Bag 5231FI2453F
#4-18

Handle/body cover/hose diagram

Vacuum bag

Part #5231FI2453F

The manufacturer no longer makes this part, and there's no substitute part

Connector Assembly 6601FI2003B
#4-11

Handle/body cover/hose diagram

Connector assembly

Part #6601FI2003B

The manufacturer no longer makes this part, and there's no substitute part

Head Base 3040FI1512A
#7-1

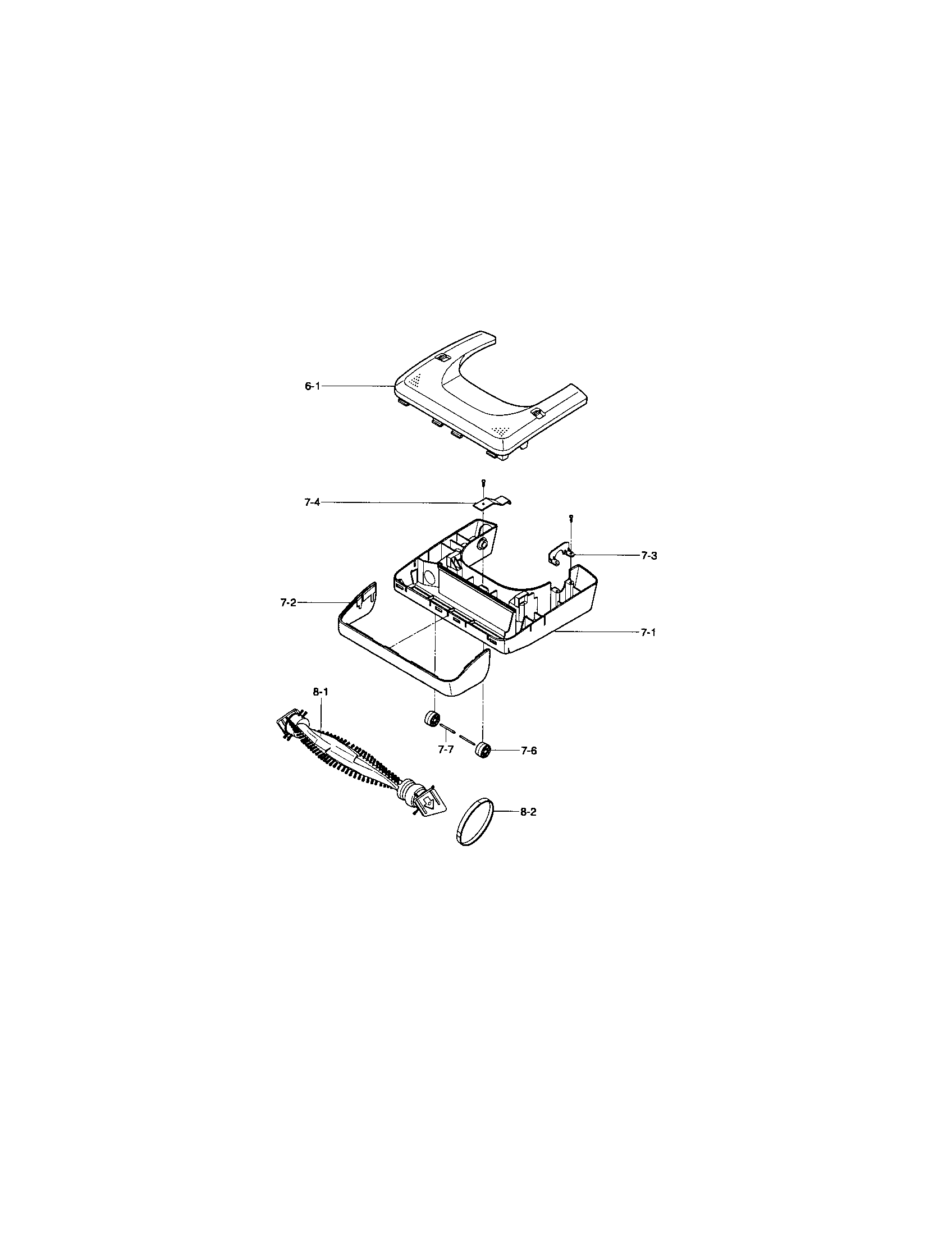

Nozzle cover/base, head/agitator diagram

Head base

Part #3040FI1512A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Upper Handle 3650FI1503A
#1-1

Handle/body cover/hose diagram

Vacuum upper handle

Part #3650FI1503A

The manufacturer no longer makes this part, and there's no substitute part

Shaft 4I22094C
#7-7

Nozzle cover/base, head/agitator diagram

Shaft

Part #4I22094C

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Lower Handle 3650FI1504A
#1-2

Handle/body cover/hose diagram

Vacuum lower handle

Part #3650FI1504A

The manufacturer no longer makes this part, and there's no substitute part

Cord 4930FI4669A
#4-12

Handle/body cover/hose diagram

Cord

Part #4930FI4669A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 4400FI3348A
#8-2

Nozzle cover/base, head/agitator diagram

Vacuum beater bar belt

Part #4400FI3348A

The manufacturer no longer makes this part, and there's no substitute part
