Magic Chef
Gas Range

Model # 3428PVA-D Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef 3428PVA-D gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

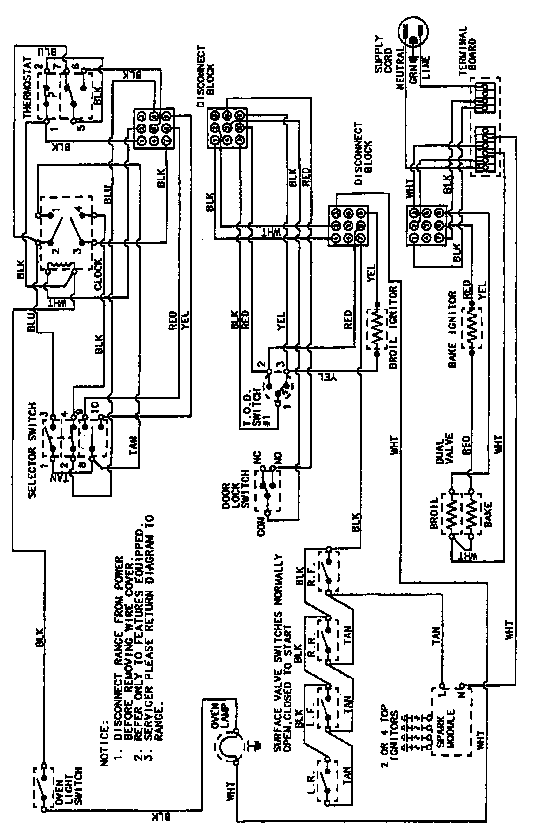

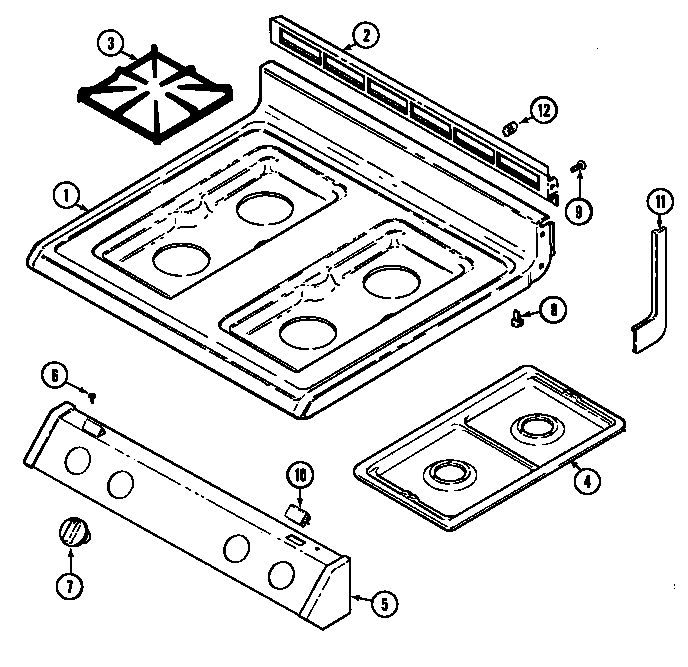

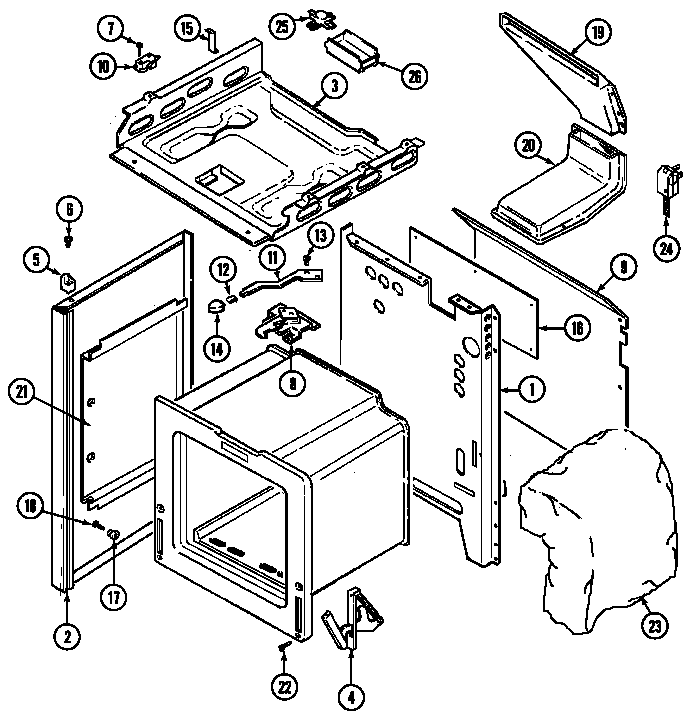

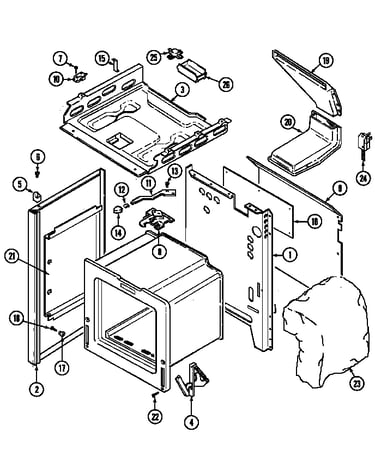

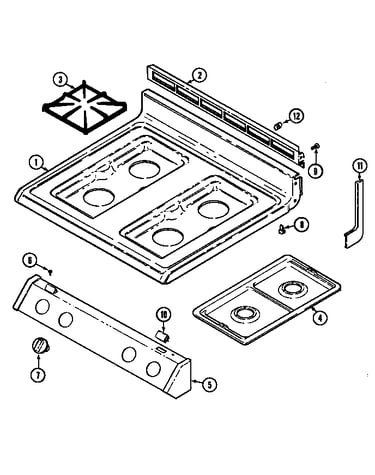

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Oven Igniter 7432P076-60
#13

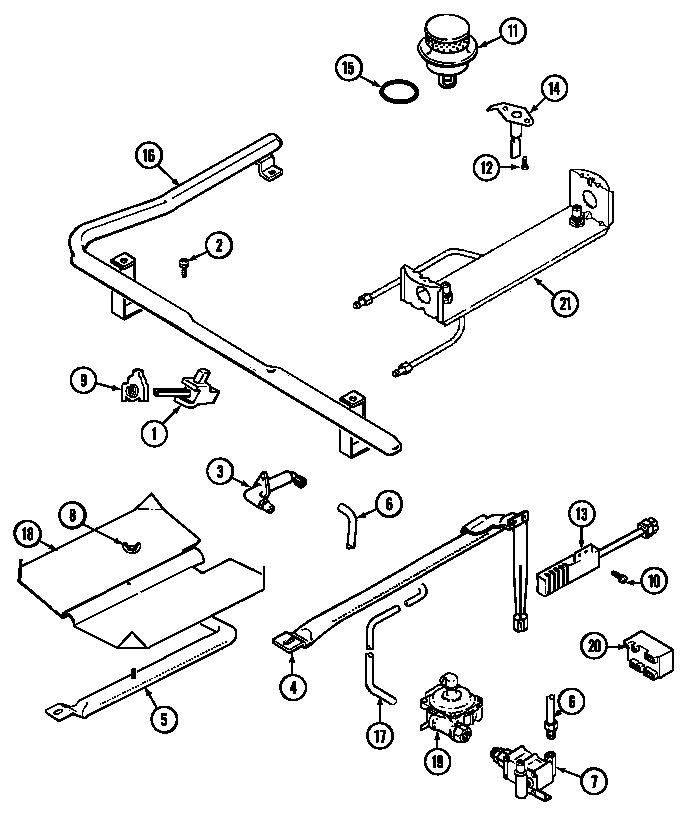

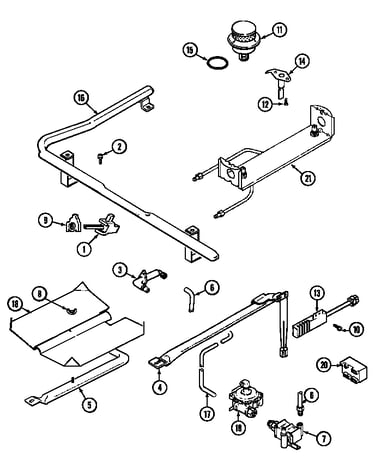

Gas controls diagram

Oven igniter

Part #7432P076-60

Replaced by #12400035

?
Manufacturer substitution
This part replaces 7432P076-60. Substitute parts can look different from the original.
BEST SELLER
$39.28 |
13% OFF Phone Price : $45.28
In Stock
Clamp Screw 7101P080-60
#10

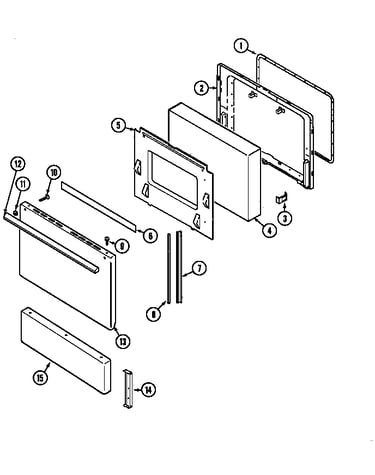

Door diagram

Clamp screw

Part #7101P080-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Gasket 7201P046-60
#1

Door diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Oven Rack 7801P047-60
#6

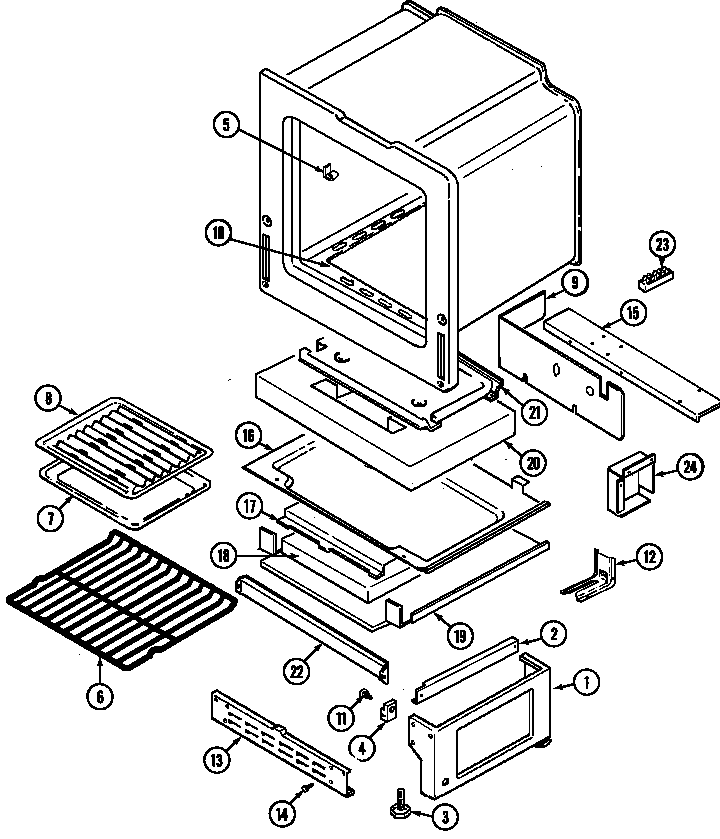

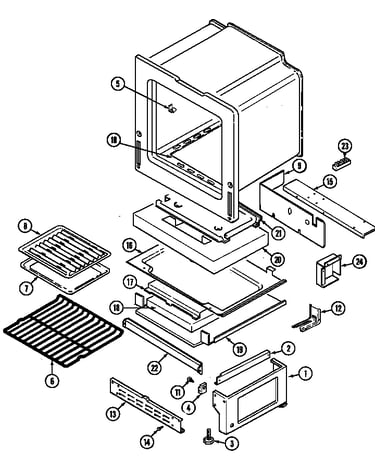

Oven/base diagram

Oven rack

Part #7801P047-60

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 7801P047-60. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
Screw 7101P328-60
#10

Gas controls diagram

Screw

Part #7101P328-60

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 7101P328-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 7101P347-60
#6A

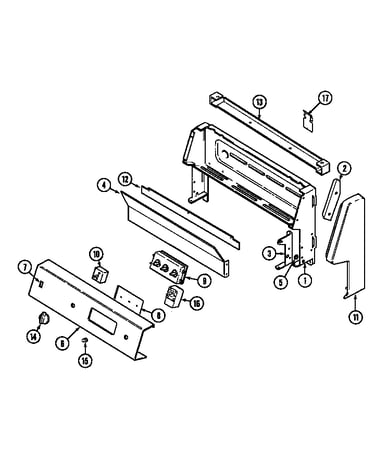

Control panel diagram

Screw

Part #7101P347-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P347-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 7101P315-60
#12

Gas controls diagram

Screw

Part #7101P315-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P315-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
"bracket, Ant" 3801F218-51
#12

Oven/base diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Cooktop Washer Screw 7101P124-60
Cooktop washer screw

Part #7101P124-60

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 7101P124-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw (black) 7101P309-60
Screw (black)

Part #7101P309-60

Replaced by #WP7101P309-60

?
Manufacturer substitution
This part replaces 7101P309-60. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
