Tappan
Dryer

Model # 47-2848-23-03 Official Tappan electric dryer - 5995202917

Here are the diagrams and repair parts for Official Tappan 47-2848-23-03 electric dryer - 5995202917, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

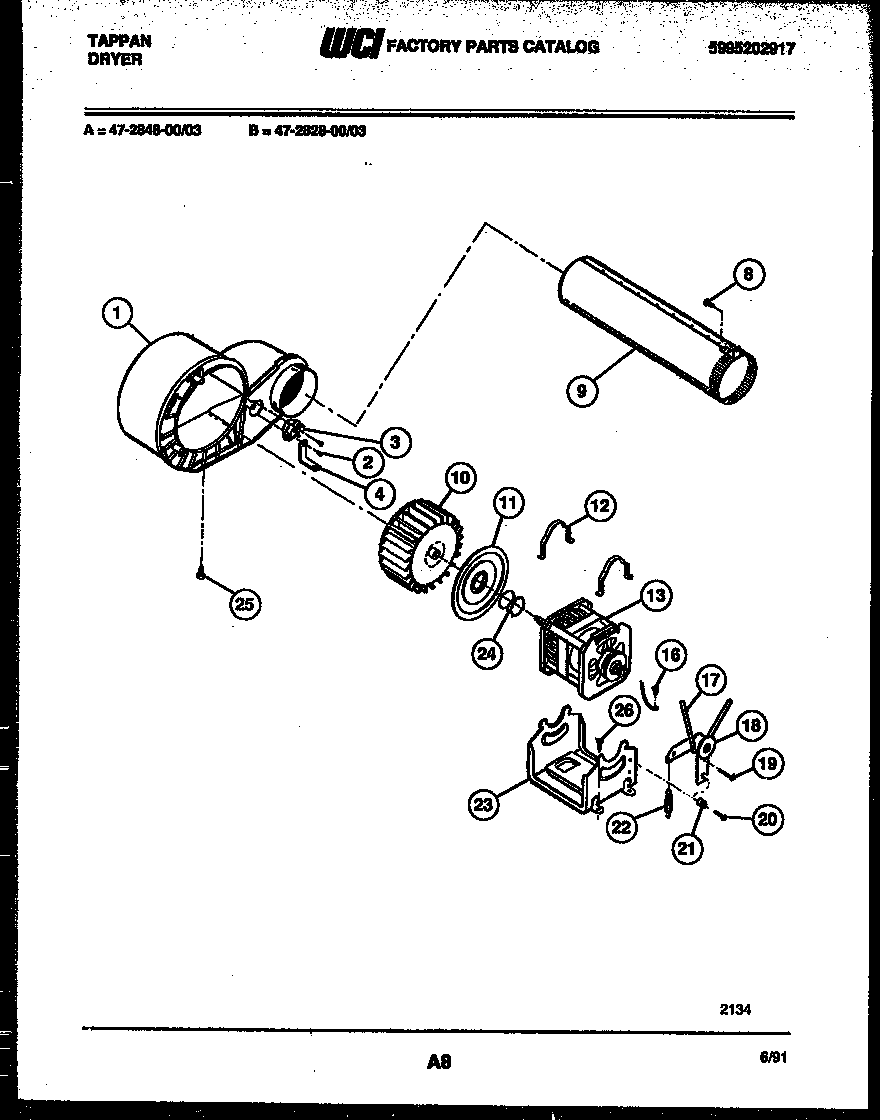

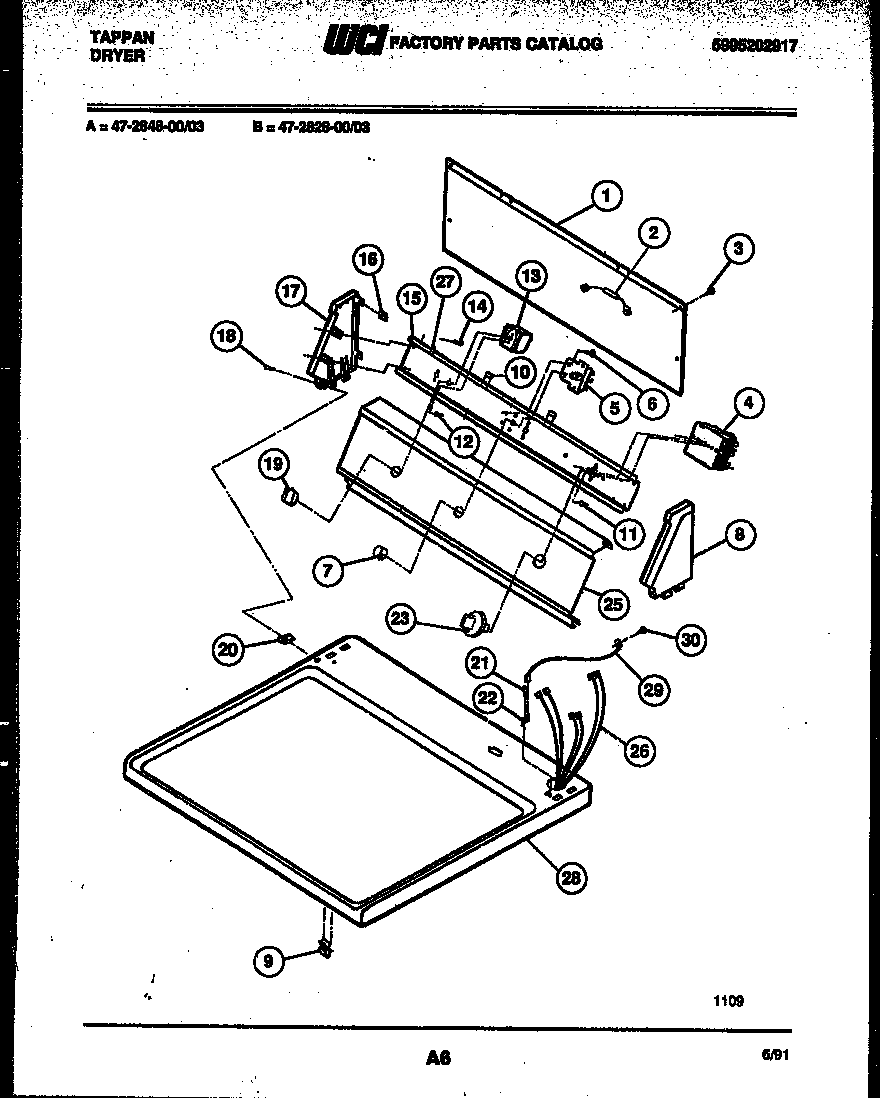

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Bearing 3281008
#13

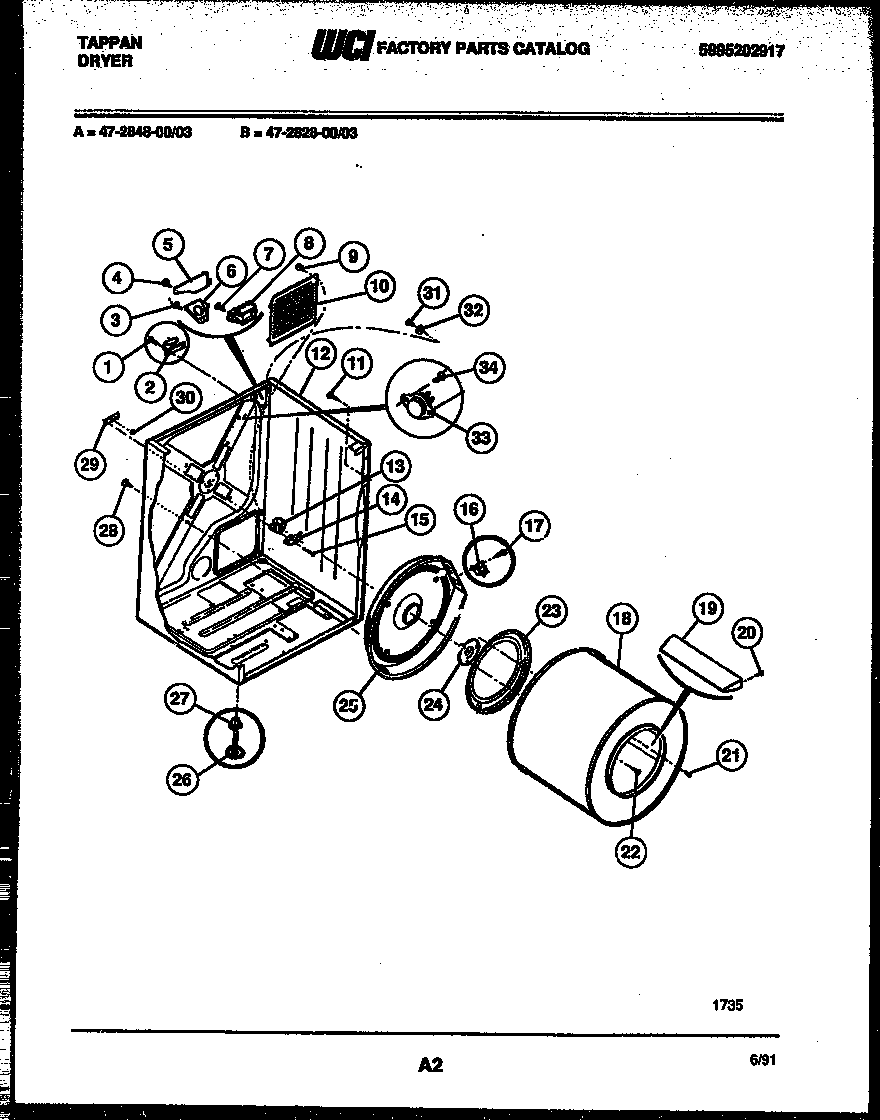

Cabinet and component parts diagram

Bearing

Part #3281008

Replaced by #131825900

?
Manufacturer substitution
This part replaces 3281008. Substitute parts can look different from the original.
BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Dryer Drum Bearing Kit (replaces 000142850, 142850, 3281153, Q000142850, Wq142850) 5303281153
#32A

Cabinet and component parts diagram

Dryer drum bearing kit (replaces 000142850, 142850, 3281153, q000142850, wq142850)

Part #5303281153

BEST SELLER
$29.64 |
17% OFF Phone Price : $35.64
In Stock
Glide 5303912549
#10

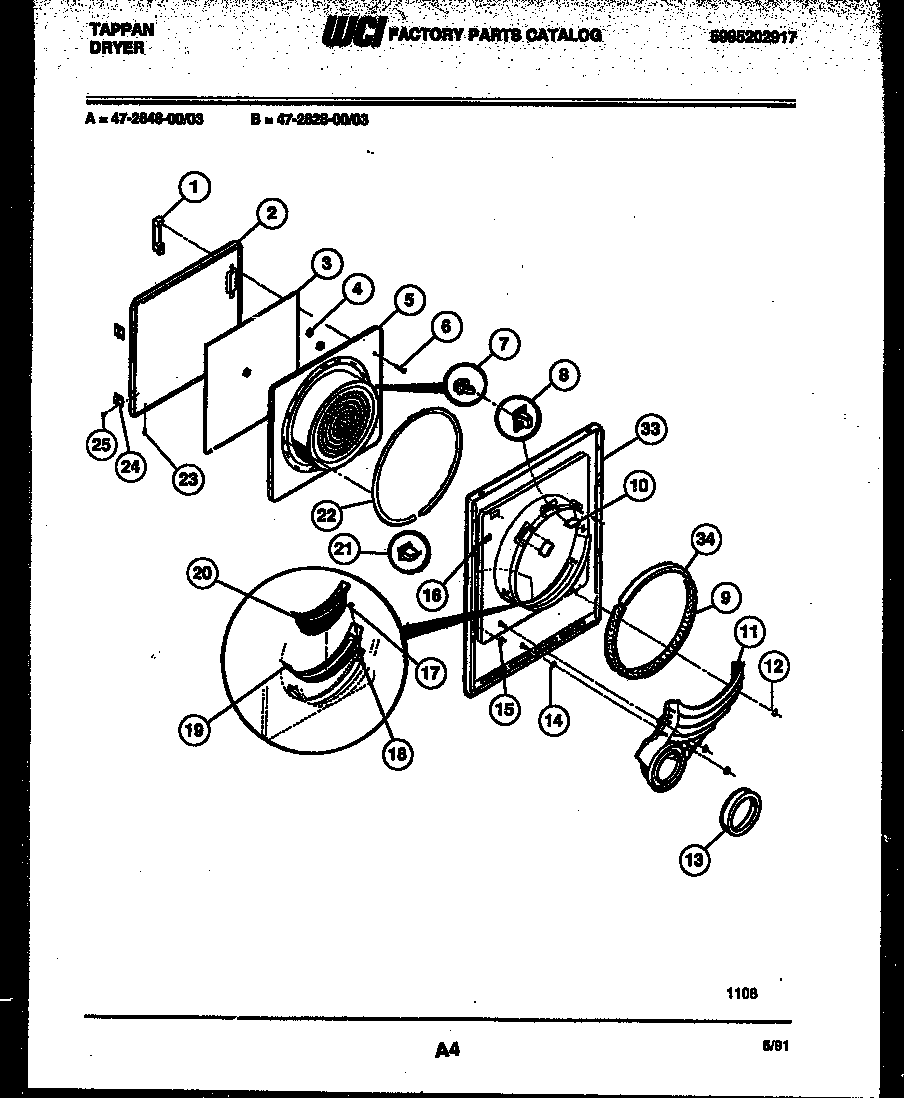

Door parts diagram

Glide

Part #5303912549

Replaced by #5303937139

?
Manufacturer substitution
This part replaces 5303912549. Substitute parts can look different from the original.
BEST SELLER
$35.84 |
14% OFF Phone Price : $41.84
In Stock
Thermostat 5303209192
#33

Cabinet and component parts diagram

Thermostat

Part #5303209192

Replaced by #134120900

?
Manufacturer substitution
This part replaces 5303209192. Substitute parts can look different from the original.
BEST SELLER
$26.79 |
18% OFF Phone Price : $32.79
In Stock
Dryer Grounding Ball (replaces 000022224, 08015113, 22224, 3281019, Q000022224, Wq22224) 5303281019
#30

Cabinet and component parts diagram

Dryer grounding ball (replaces 000022224, 08015113, 22224, 3281019, q000022224, wq22224)

Part #5303281019

BEST SELLER
$19.49 |
9% OFF Phone Price : $21.49
In Stock
Dryer Rear Bearing Clip (replaces 000500537, 08015324, 3281020, 500537, 5303286875, Q000500537, Wq500537) 5303281020
#29

Cabinet and component parts diagram

Dryer rear bearing clip (replaces 000500537, 08015324, 3281020, 500537, 5303286875, q000500537, wq500537)

Part #5303281020

BEST SELLER
$17.79 |
10% OFF Phone Price : $19.79
In Stock
Screw 5303281033
#15

Cabinet and component parts diagram

Screw

Part #5303281033

Replaced by #131205400

?
Manufacturer substitution
This part replaces 5303281033. Substitute parts can look different from the original.
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Gasket 5303281013
#13

Door parts diagram

Gasket

Part #5303281013

Replaced by #134417000

?
Manufacturer substitution
This part replaces 5303281013. Substitute parts can look different from the original.
This item is not returnable
$7.28 |
12% OFF Phone Price : $8.28
In Stock
Screw 3202754
#20

Cabinet and component parts diagram

Screw

Part #3202754

Replaced by #131382300

?
Manufacturer substitution
This part replaces 3202754. Substitute parts can look different from the original.
This item is not returnable
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Dryer Cabinet Clip 5303281074
#15

Door parts diagram

Dryer cabinet clip

Part #5303281074

This item is not returnable
$17.79 |
10% OFF Phone Price : $19.79
In Stock
