Model # 3627171192 Official Kenmore gas range
Here are the diagrams and repair parts for Official Kenmore 3627171192 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for3627171192 Ranges
- #218

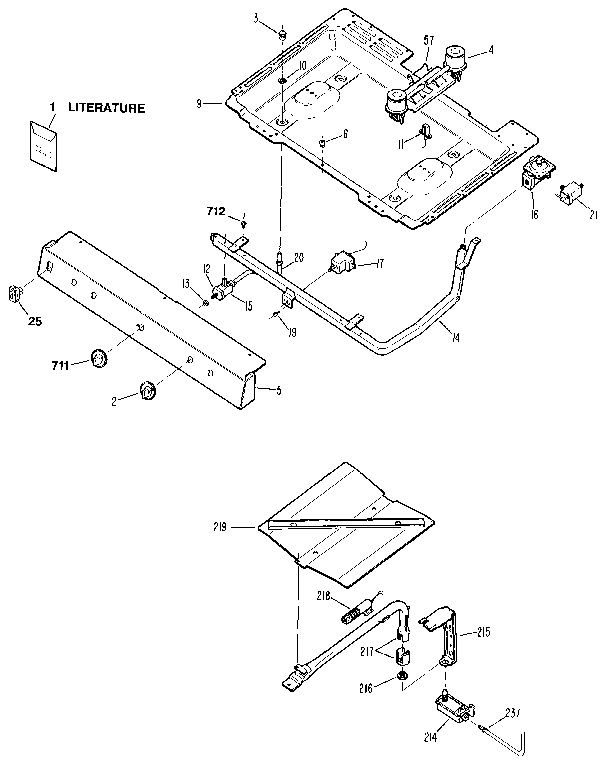

Burner section diagram
IgniterPart #WB13K0001
Replaced by #WB2X9154
?Manufacturer substitutionThis part replaces WB13K0001. Substitute parts can look different from the original.$93.95 |6% OFF Phone Price : $99.95In Stock - #235

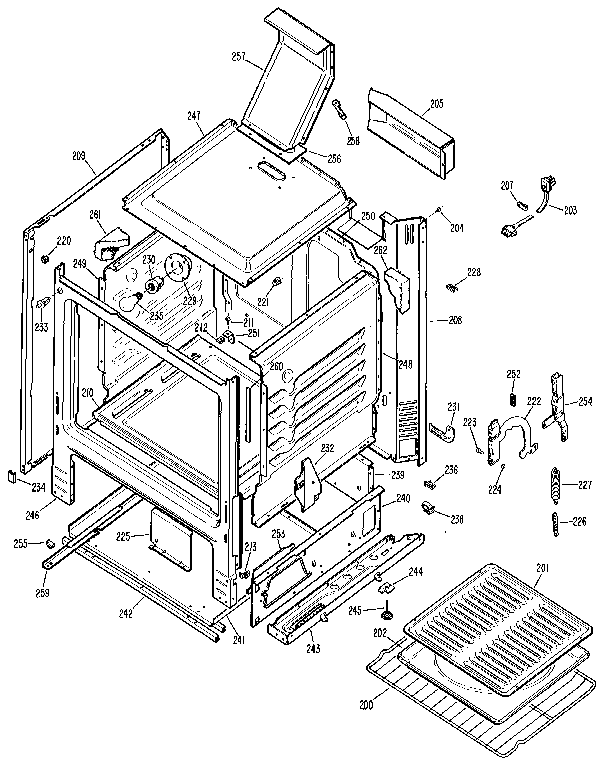

Cabinet diagram
40a15 bulbPart #STD372401
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372401. Substitute parts can look different from the original.$13.61 |13% OFF Phone Price : $15.61In Stock - #230
Cabinet diagram
Pushin receptaclePart #WB08K0002
Replaced by #WB08T10026
?Manufacturer substitutionThis part replaces WB08K0002. Substitute parts can look different from the original.This item is not returnable$8.96 |10% OFF Phone Price : $9.96In Stock - #200
Cabinet diagram
Oven rackPart #WB48K0004
Replaced by #WB48T10095
?Manufacturer substitutionThis part replaces WB48K0004. Substitute parts can look different from the original.$57.55 |9% OFF Phone Price : $63.55In Stock - #318

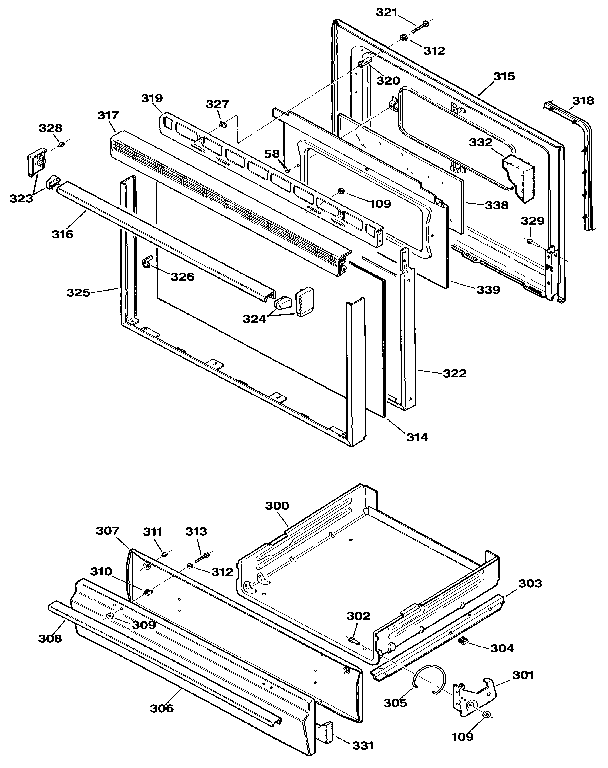

Door diagram
Door gasketPart #WB32K0003
Replaced by #WB35X29720
?Manufacturer substitutionThis part replaces WB32K0003. Substitute parts can look different from the original.$24.40 |20% OFF Phone Price : $30.40In Stock - #311
Door diagram
BumperPart #WB02K0015
Replaced by #WB2K15
?Manufacturer substitutionThis part replaces WB02K0015. Substitute parts can look different from the original.$8.70 |10% OFF Phone Price : $9.70In Stock - #121

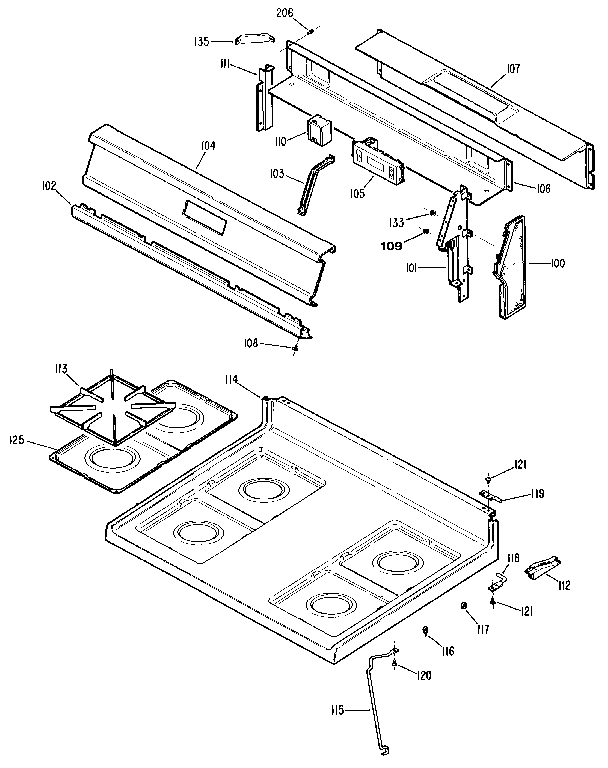

Main top section diagram
ScrewPart #WB01K0001
Replaced by #WB1K5119
?Manufacturer substitutionThis part replaces WB01K0001. Substitute parts can look different from the original.This item is not returnable$7.40 |12% OFF Phone Price : $8.40In Stock - #13
Burner section diagram
Valve coverPart #WB02K0024
Replaced by #WB2K24
?Manufacturer substitutionThis part replaces WB02K0024. Substitute parts can look different from the original.This item is not returnable$32.29 |16% OFF Phone Price : $38.29In Stock - #203
Cabinet diagram
Line cordPart #WB18K0001
Replaced by #WB18K10036
?Manufacturer substitutionThis part replaces WB18K0001. Substitute parts can look different from the original.This item is not returnable$22.78 |21% OFF Phone Price : $28.78In Stock - #353
Door diagram
ScrewPart #WB01K0031
Replaced by #WB1X5731D
?Manufacturer substitutionThis part replaces WB01K0031. Substitute parts can look different from the original.This item is not returnable$30.08 |17% OFF Phone Price : $36.08In Stock
