Kenmore
Mechanical Sewing Machine

Model # 38413012000 Official Kenmore mechanical sewing machine

Here are the diagrams and repair parts for Official Kenmore 38413012000 mechanical sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 236 parts  |
Sewing Machine Set Screw 000101404
Sewing machine set screw

Part #000101404

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 000002105
Snap ring

Part #000002105

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Rubber Cushion 739064003
#27

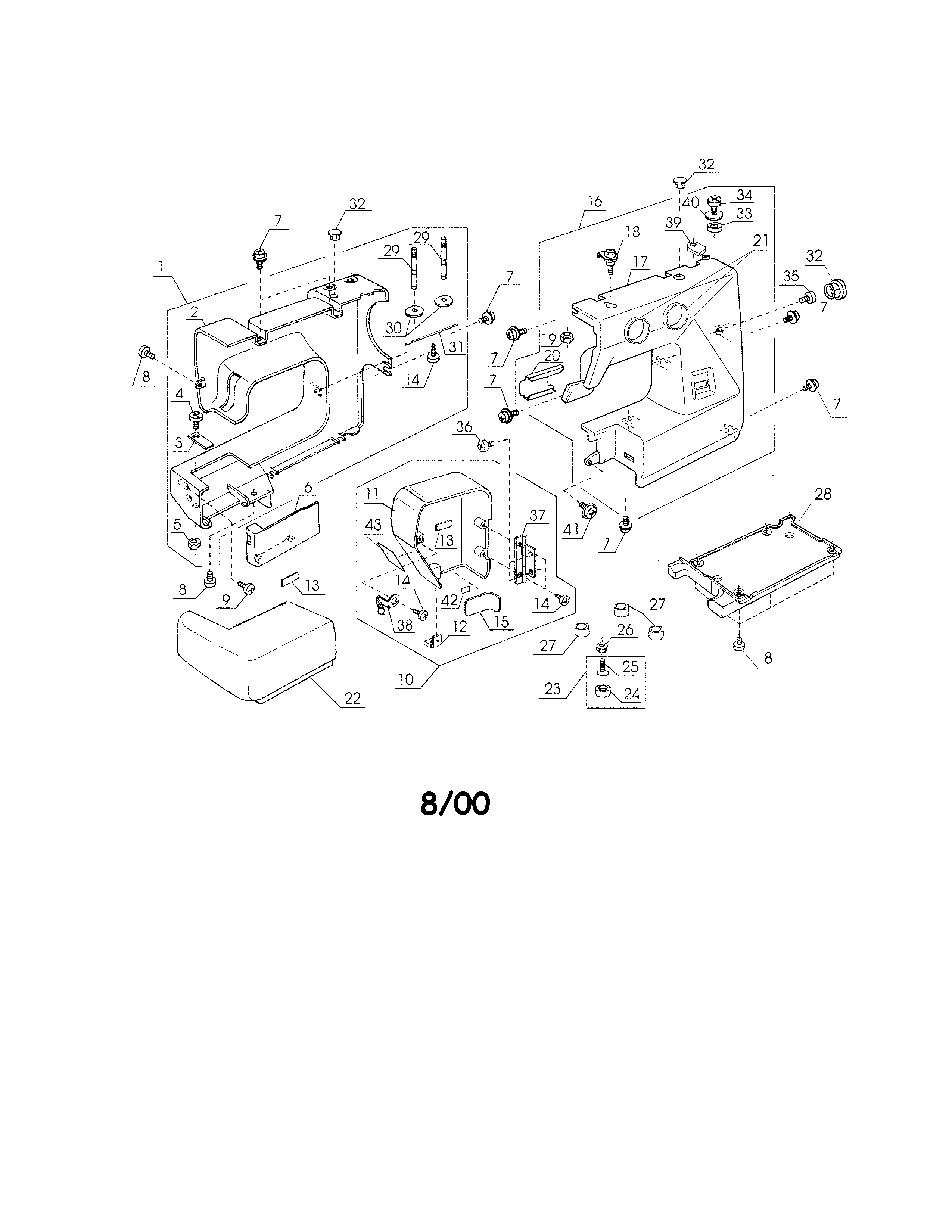

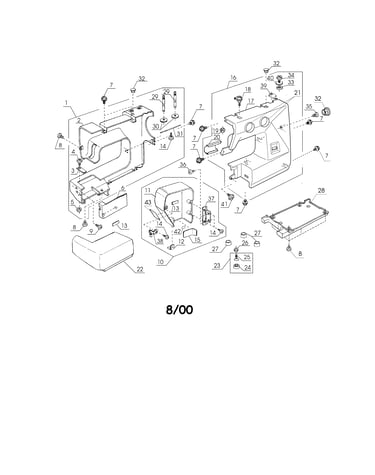

Rear/front cover diagram

Sewing machine rubber cushion

Part #739064003

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Feed Dog 735081004
#7

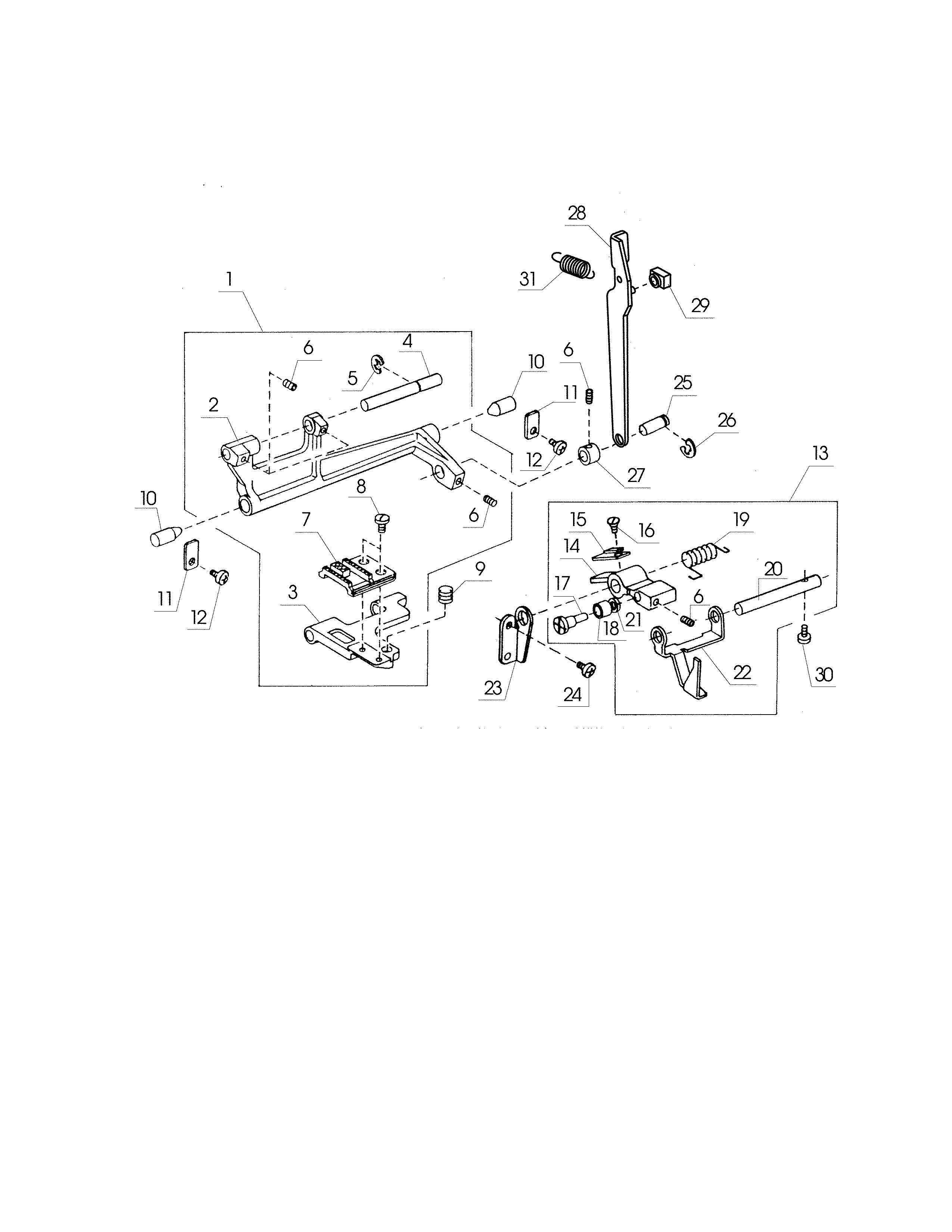

Feed rack shaft/lifting arm diagram

Sewing machine feed dog

Part #735081004

The manufacturer no longer makes this part, and there's no substitute part

Janome Sewing Machine Bobbin Case 647515006
#26

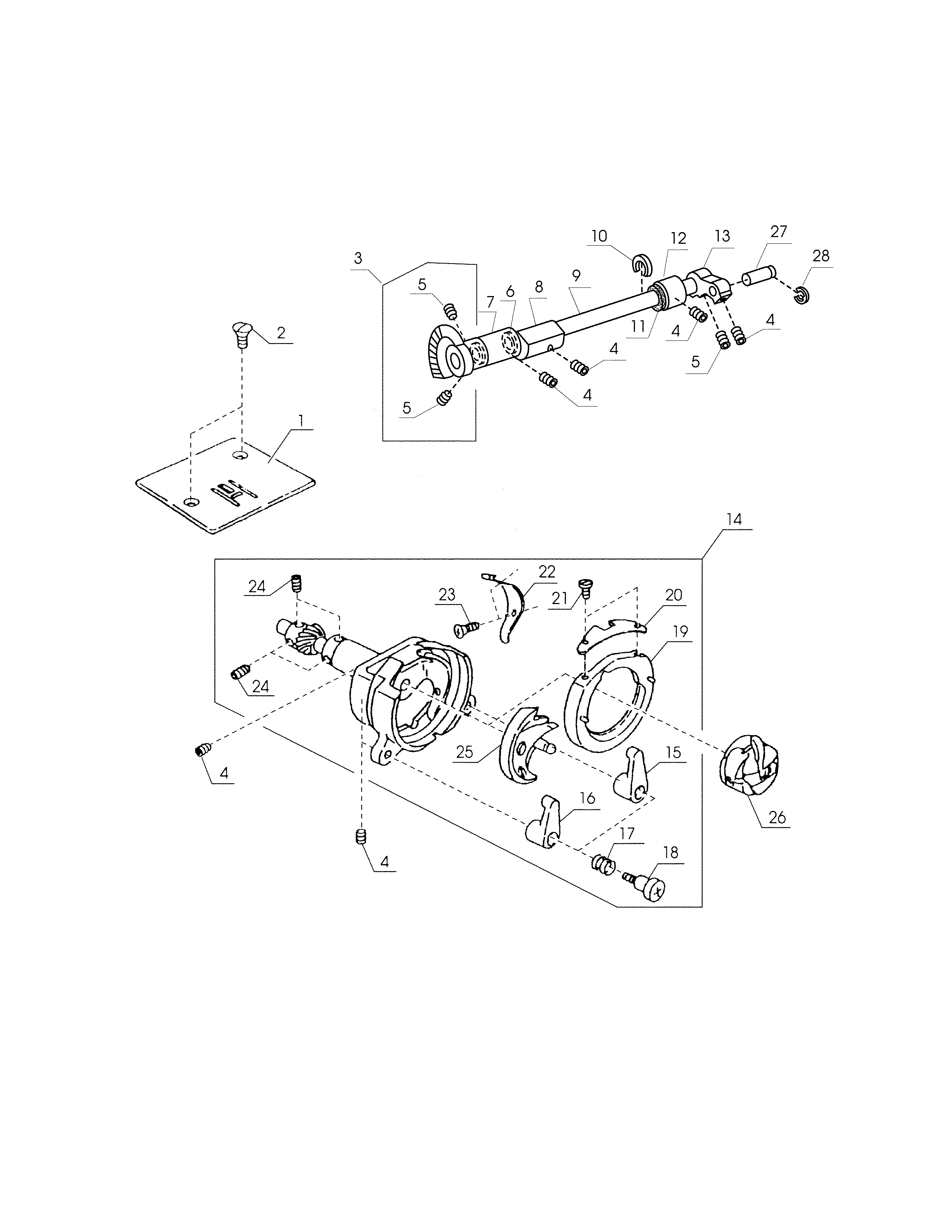

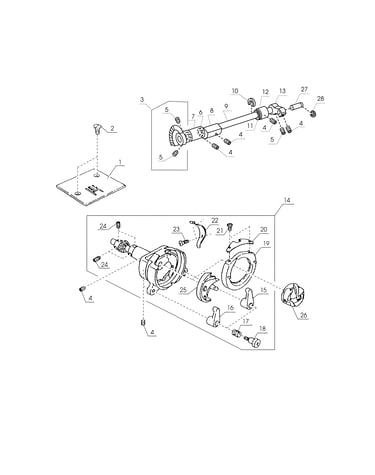

Needle plate/shuttle race body diagram

Janome sewing machine bobbin case

Part #647515006

The manufacturer no longer makes this part, and there's no substitute part

Fastener 000021708
#4

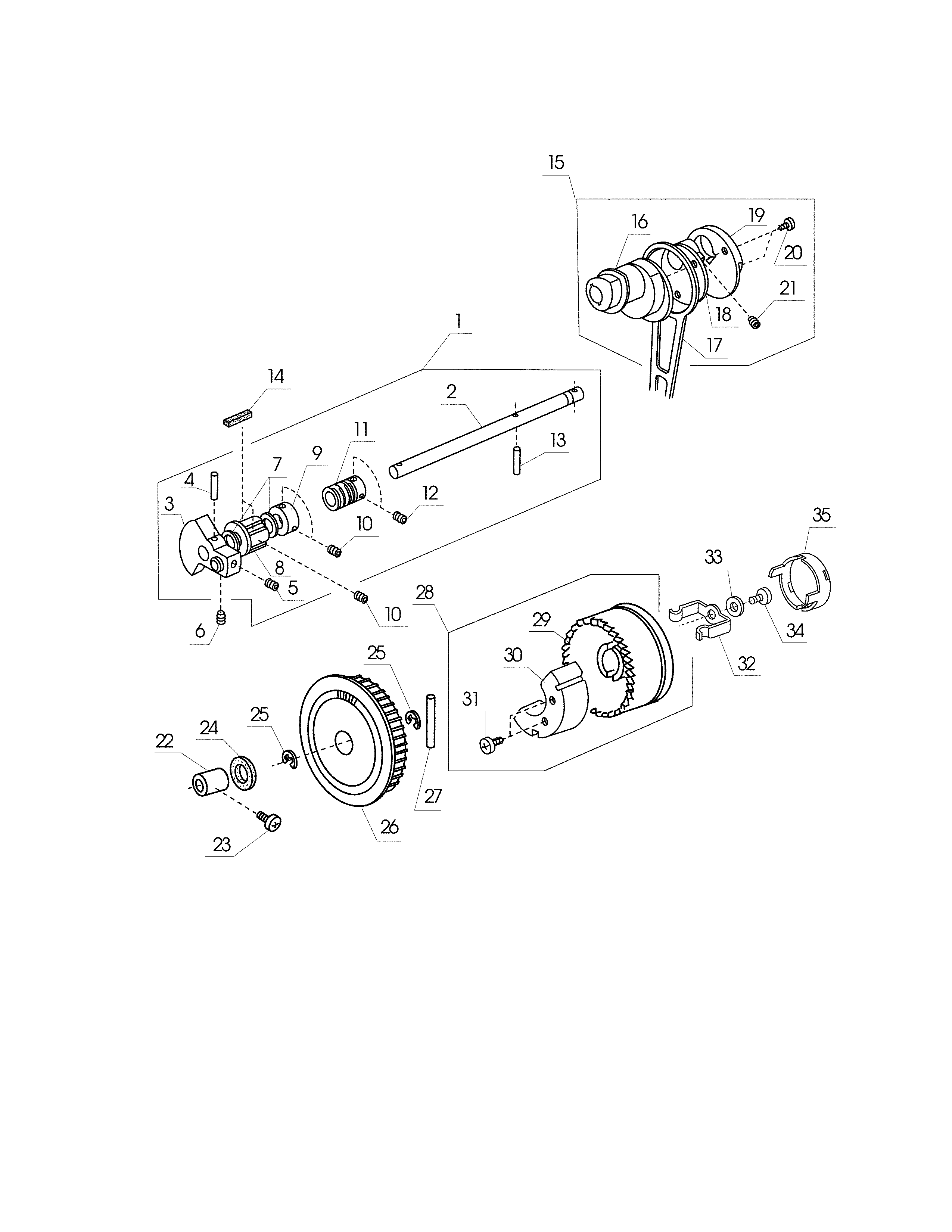

Upper shaft/crank rod diagram

Fastener

Part #000021708

The manufacturer no longer makes this part, and there's no substitute part

Janome Washer 000070609
#12

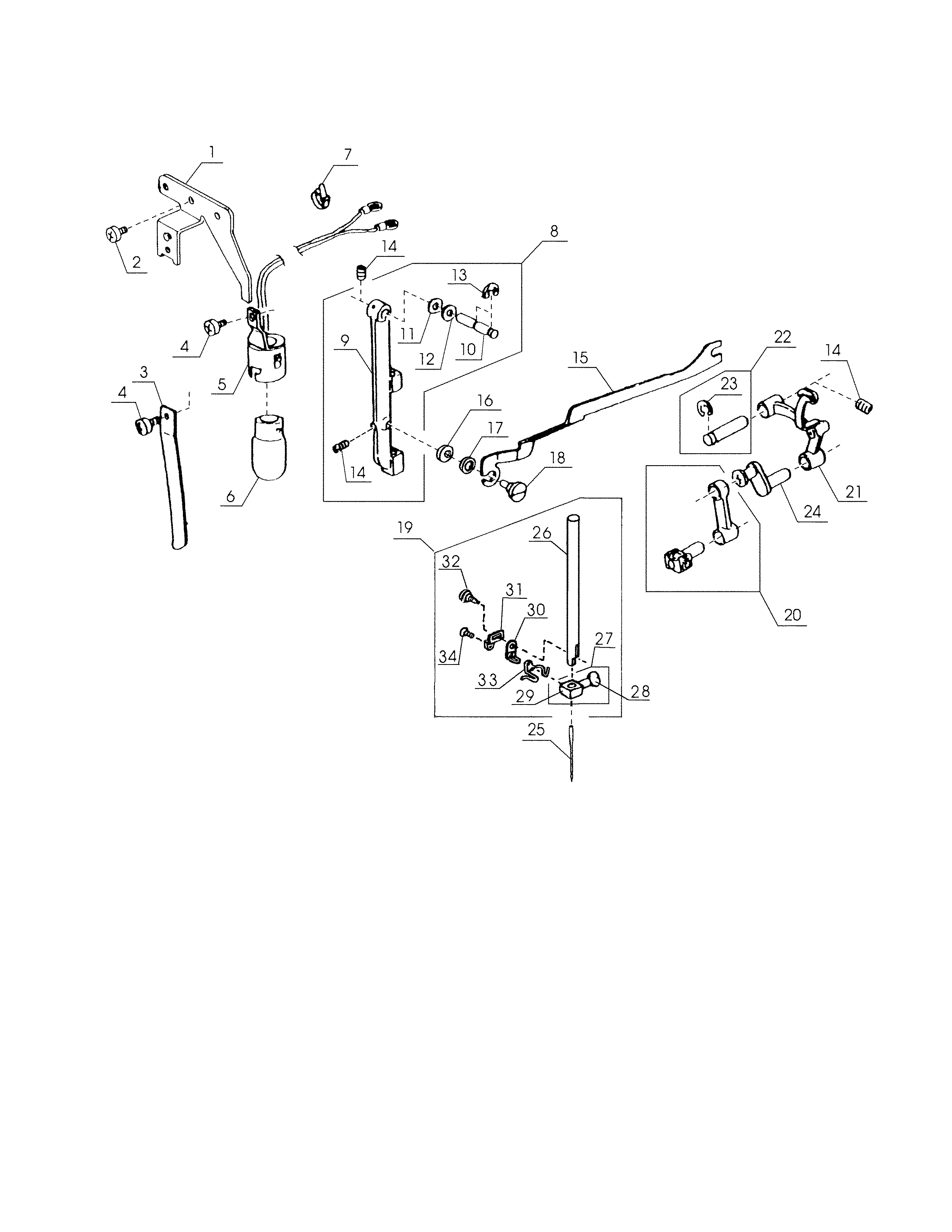

Lamp/needle bar diagram

Janome washer

Part #000070609

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Screw 102047008
#28

Lamp/needle bar diagram

Sewing machine screw

Part #102047008

The manufacturer no longer makes this part, and there's no substitute part

Janome Washer 000030205
#25

Upper shaft/crank rod diagram

Janome washer

Part #000030205

The manufacturer no longer makes this part, and there's no substitute part

Arm Base 739017001
#20

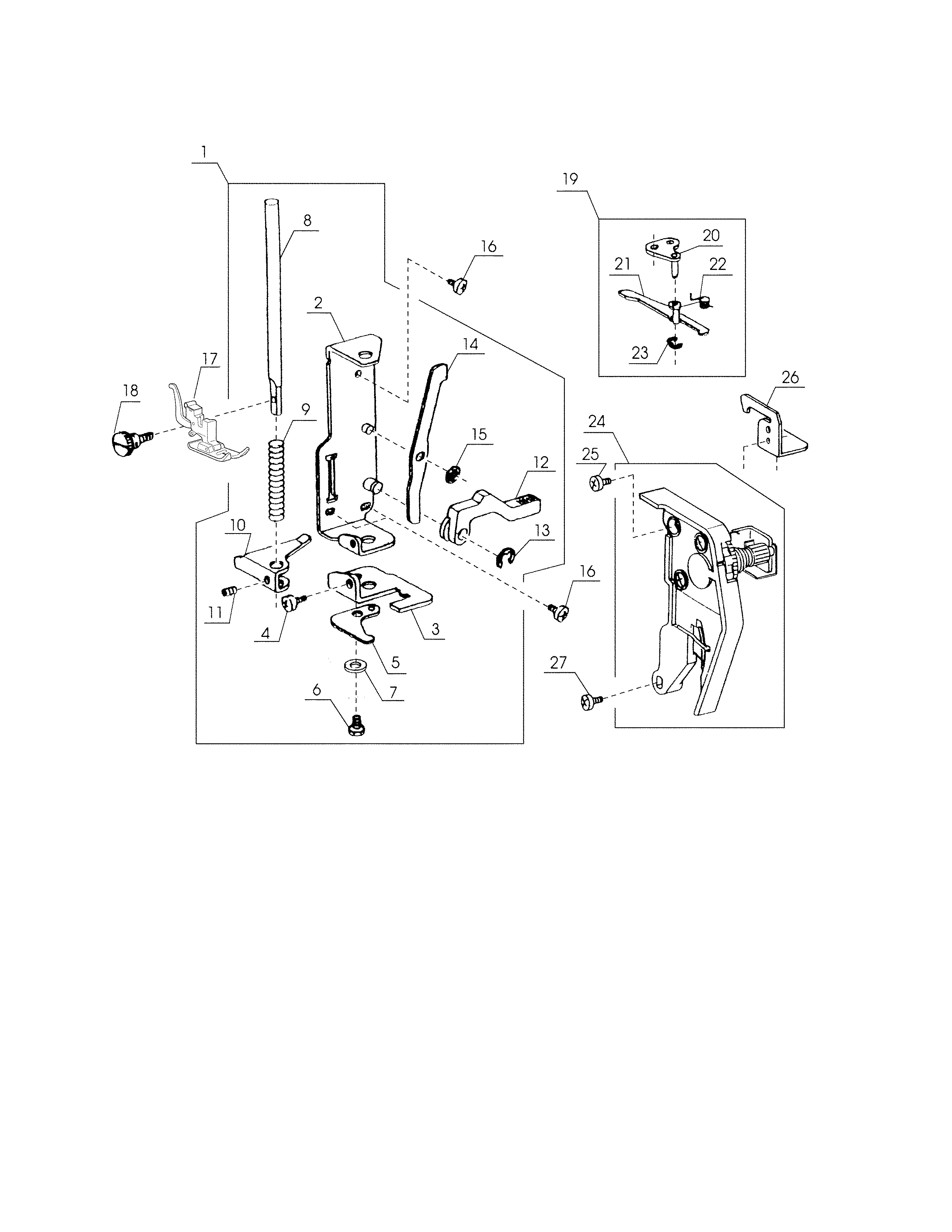

Presser bar base plate diagram

Arm base

Part #739017001

The manufacturer no longer makes this part, and there's no substitute part
