Model # T4H448GKB100 Official ICP heat pump

Here are the diagrams and repair parts for Official ICP T4H448GKB100 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Central Air Conditioner Contactor 1172472
#4

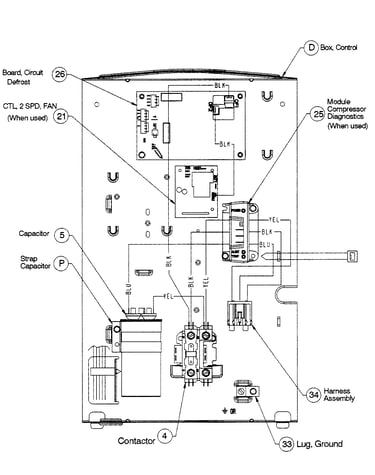

Control board diagram

Central air conditioner contactor

Part #1172472

$61.35 |
9% OFF Phone Price : $67.35
In Stock
Central Air Conditioner Heat Pump Defrost Control 1173637
#22

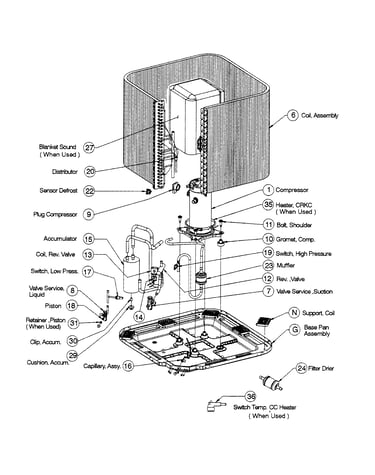

Inside cabinet parts diagram

Central air conditioner heat pump defrost control

Part #1173637

$34.73
In Stock
Central Air Conditioner Condenser Fan Blade 1172716
#3

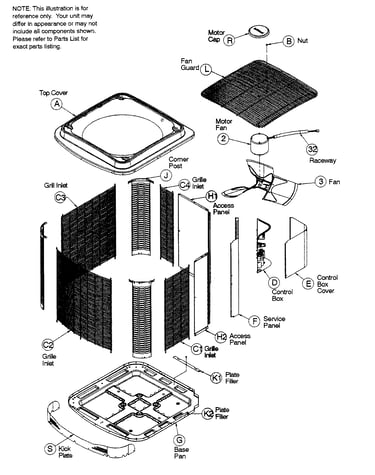

Outside cabinet parts diagram

Central air conditioner condenser fan blade

Part #1172716

$197.11
In Stock
Accss Panl 1173929
#H1

Outside cabinet parts diagram

Accss panl

Part #1173929

$101.18
In Stock
Carrier Heater 1173944
#35

Inside cabinet parts diagram

Carrier heater

Part #1173944

$67.11
In Stock
Capillary 1174096
#16

Inside cabinet parts diagram

Capillary

Part #1174096

$135.14
In Stock
Kit 1174192
#NI

Inside cabinet parts diagram

Kit

Part #1174192

The manufacturer no longer makes this part, and there's no substitute part

Piston 1173867
#18

Inside cabinet parts diagram

Piston

Part #1173867

$20.60
In Stock
Motor 1173779
#2

Outside cabinet parts diagram

Motor

Part #1173779

$443.52 |
$12.00 OFF Phone Price : $455.52
In Stock
Harness Ay 1173920
#34

Control board diagram

Harness ay

Part #1173920

$49.60
In Stock
