Samsung
DVD/VCR Combo

Model # DVD-V1000 Official Samsung dvd/vcr combination

Here are the diagrams and repair parts for Official Samsung DVD-V1000 dvd/vcr combination, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Motor AC31-00010A
#NI

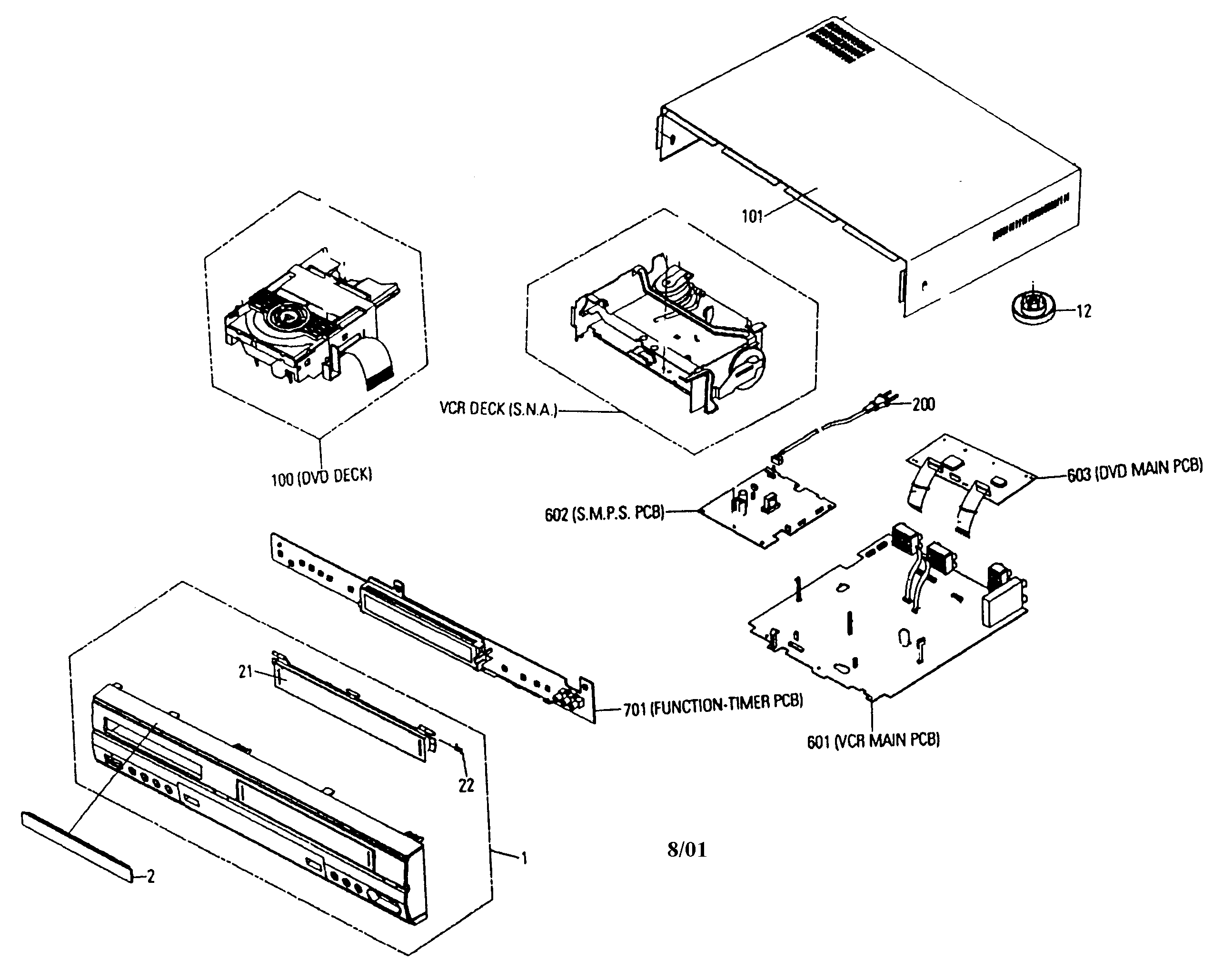

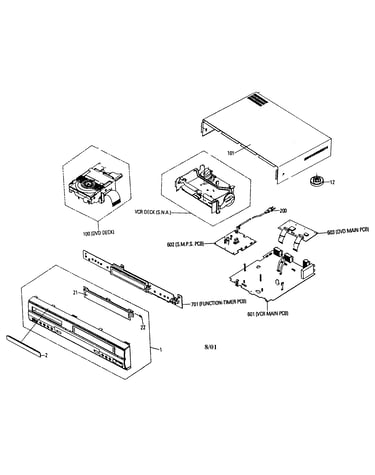

Cabinet parts diagram

Motor

Part #AC31-00010A

The manufacturer no longer makes this part, and there's no substitute part

Samsung Lever AC66-30524A
#NI

Cabinet parts diagram

Samsung lever

Part #AC66-30524A

The manufacturer no longer makes this part, and there's no substitute part

Ic La71201 1204-001832
#NI

Cabinet parts diagram

Ic la71201

Part #1204-001832

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit AC14-12009W
#NI

Cabinet parts diagram

Integrated circuit

Part #AC14-12009W

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1204-001479
#NI

Cabinet parts diagram

Integrated circuit

Part #1204-001479

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly AC92-01010A
#601

Cabinet parts diagram

Pcb assembly

Part #AC92-01010A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1203-000515
#NI

Cabinet parts diagram

Integrated circuit

Part #1203-000515

The manufacturer no longer makes this part, and there's no substitute part

Switch 3404-001008
#NI

Cabinet parts diagram

Switch

Part #3404-001008

The manufacturer no longer makes this part, and there's no substitute part

.01mfd500v 2201-000795
#NI

Cabinet parts diagram

.01mfd500v

Part #2201-000795

The manufacturer no longer makes this part, and there's no substitute part

Cassette Door AC64-00736A
#21

Cabinet parts diagram

Cassette door

Part #AC64-00736A

The manufacturer no longer makes this part, and there's no substitute part
