Model # RF267HERS/XAA-01 Official Samsung refrigerator
Here are the diagrams and repair parts for Official Samsung RF267HERS/XAA-01 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

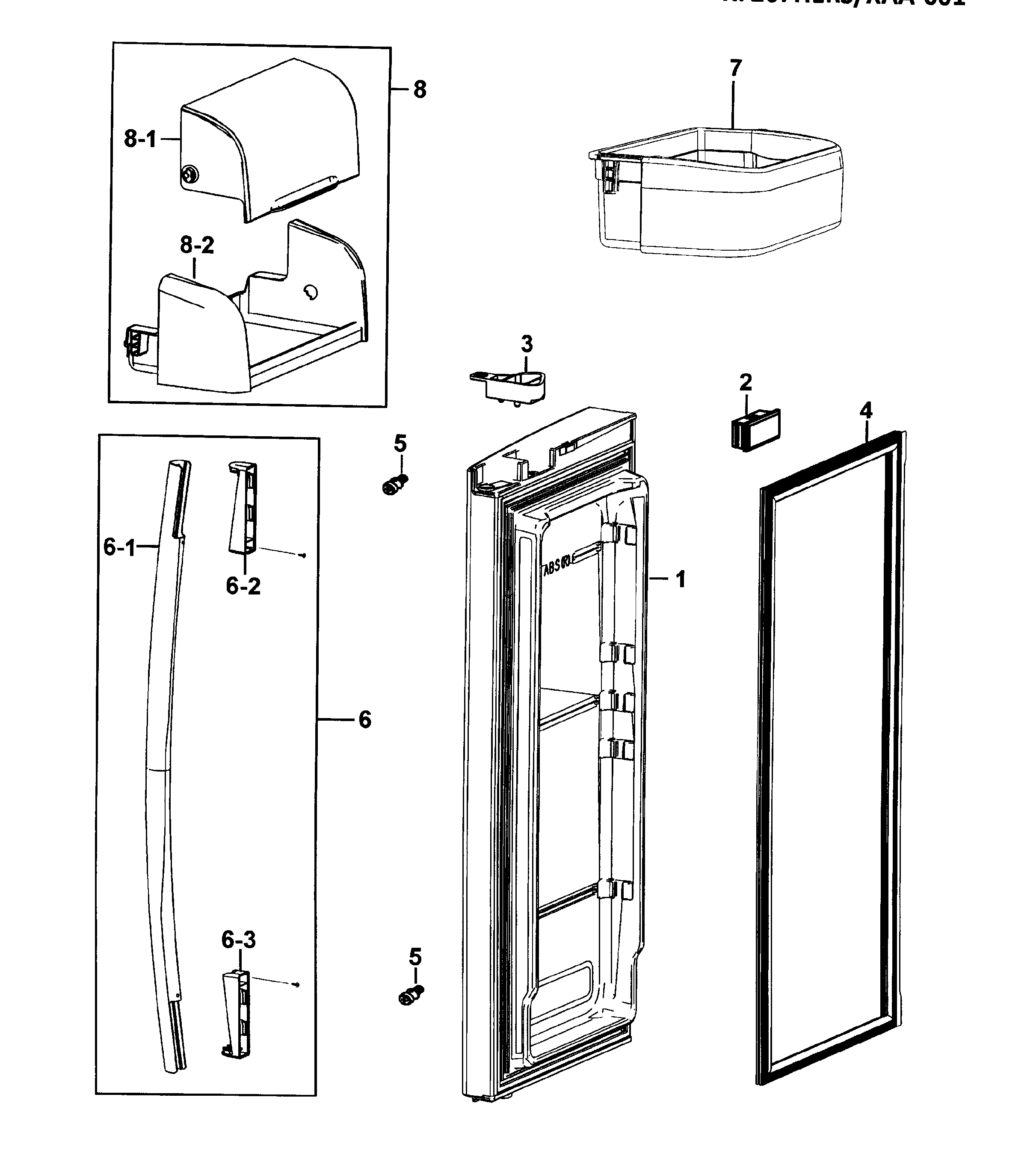

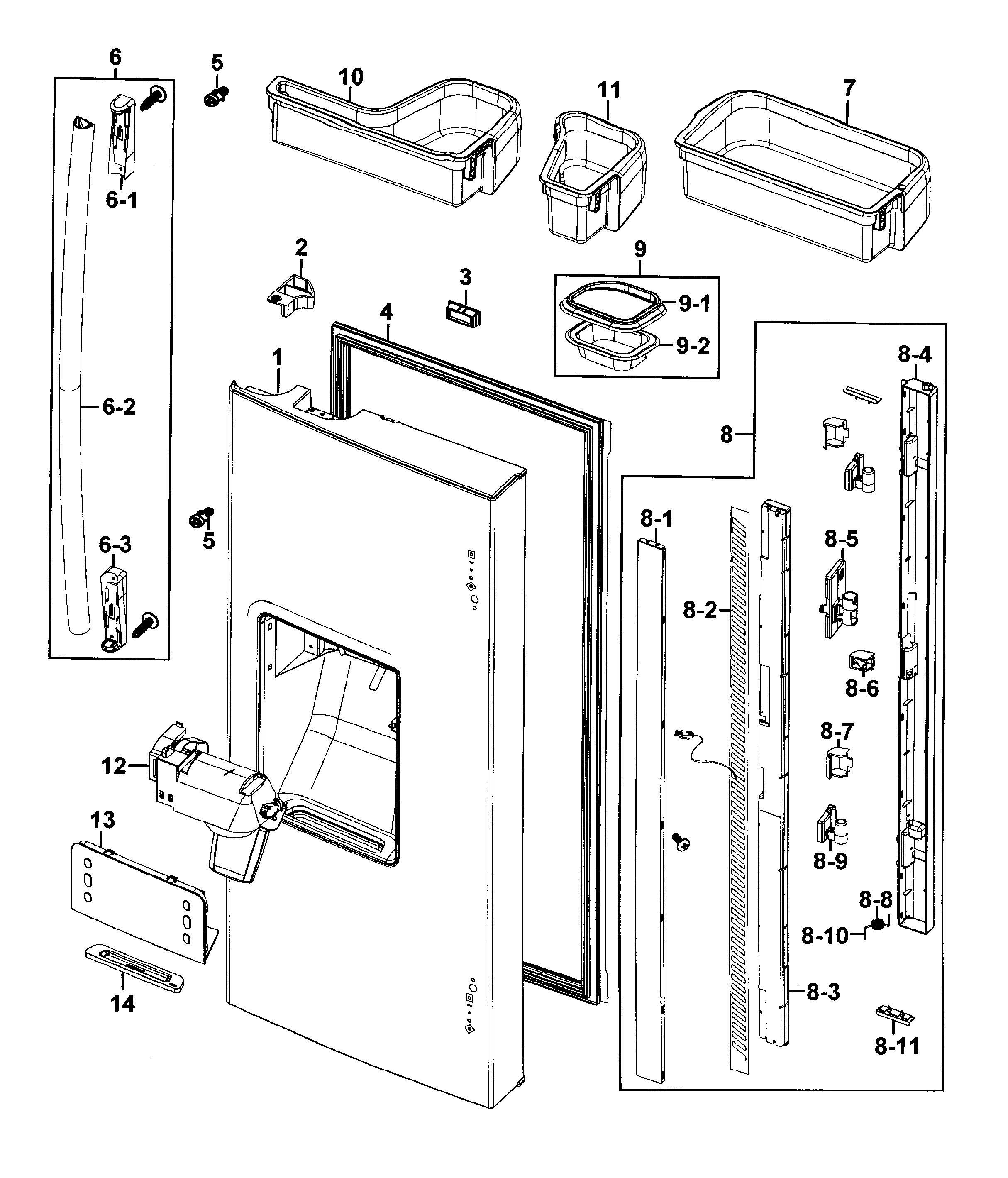

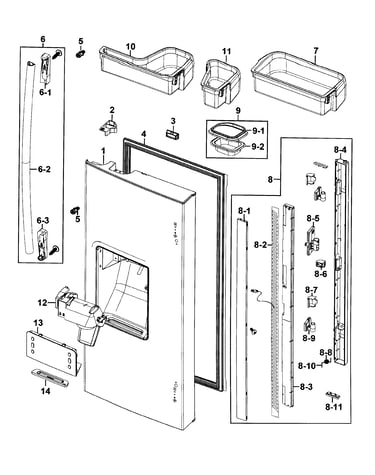

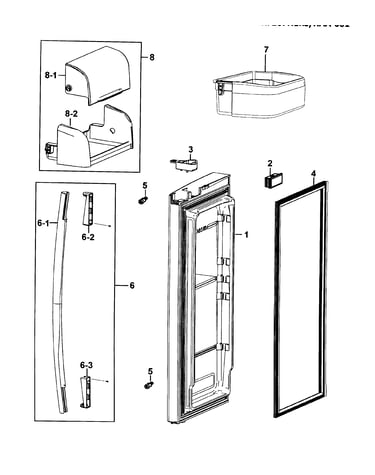

SELECT DIAGRAM
Browse Parts for
RF267HERS/XAA-01 Refrigerators
#24

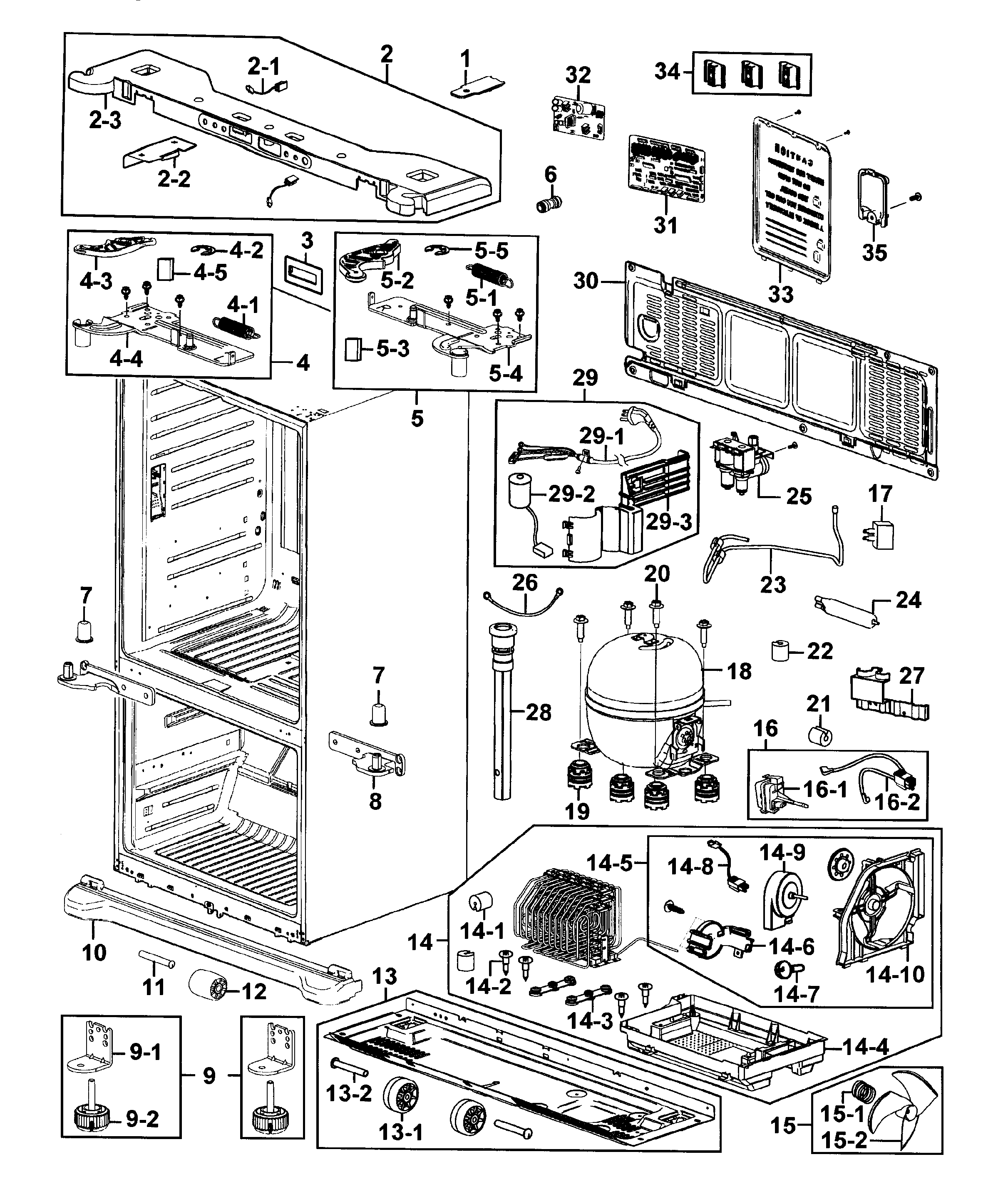

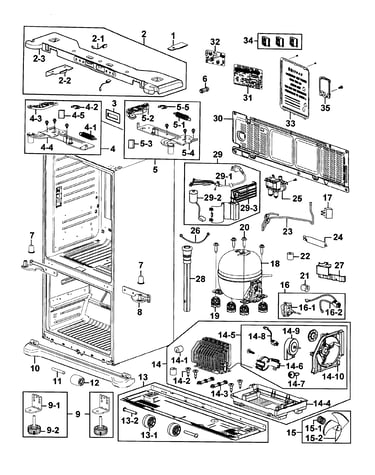

Cabinet diagram
Dryer-sing
Part #DA62-02614C
Replaced by #DA81-06006A
?
Manufacturer substitution
This part replaces DA62-02614C. Substitute parts can look different from the original.
$80.51 |
7% OFF Phone Price : $86.51
In Stock
#16-3

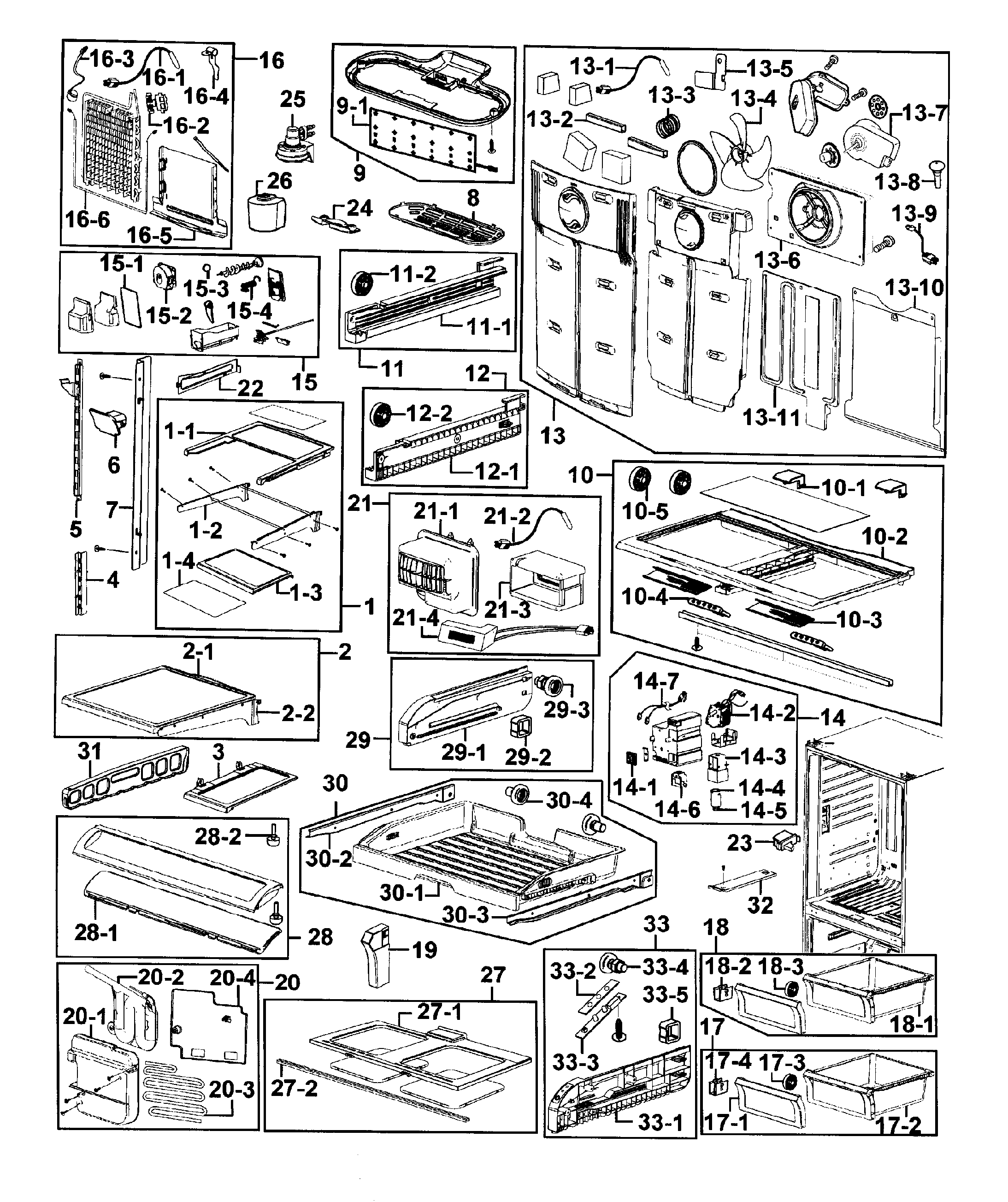

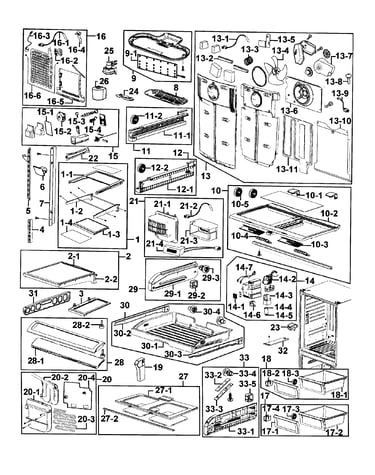

Refrigerator diagram
Refrigerator protector
Part #DA47-00243C
Replaced by #DA47-00243K
?
Manufacturer substitution
This part replaces DA47-00243C. Substitute parts can look different from the original.
$48.25 |
11% OFF Phone Price : $54.25
In Stock
#1-3

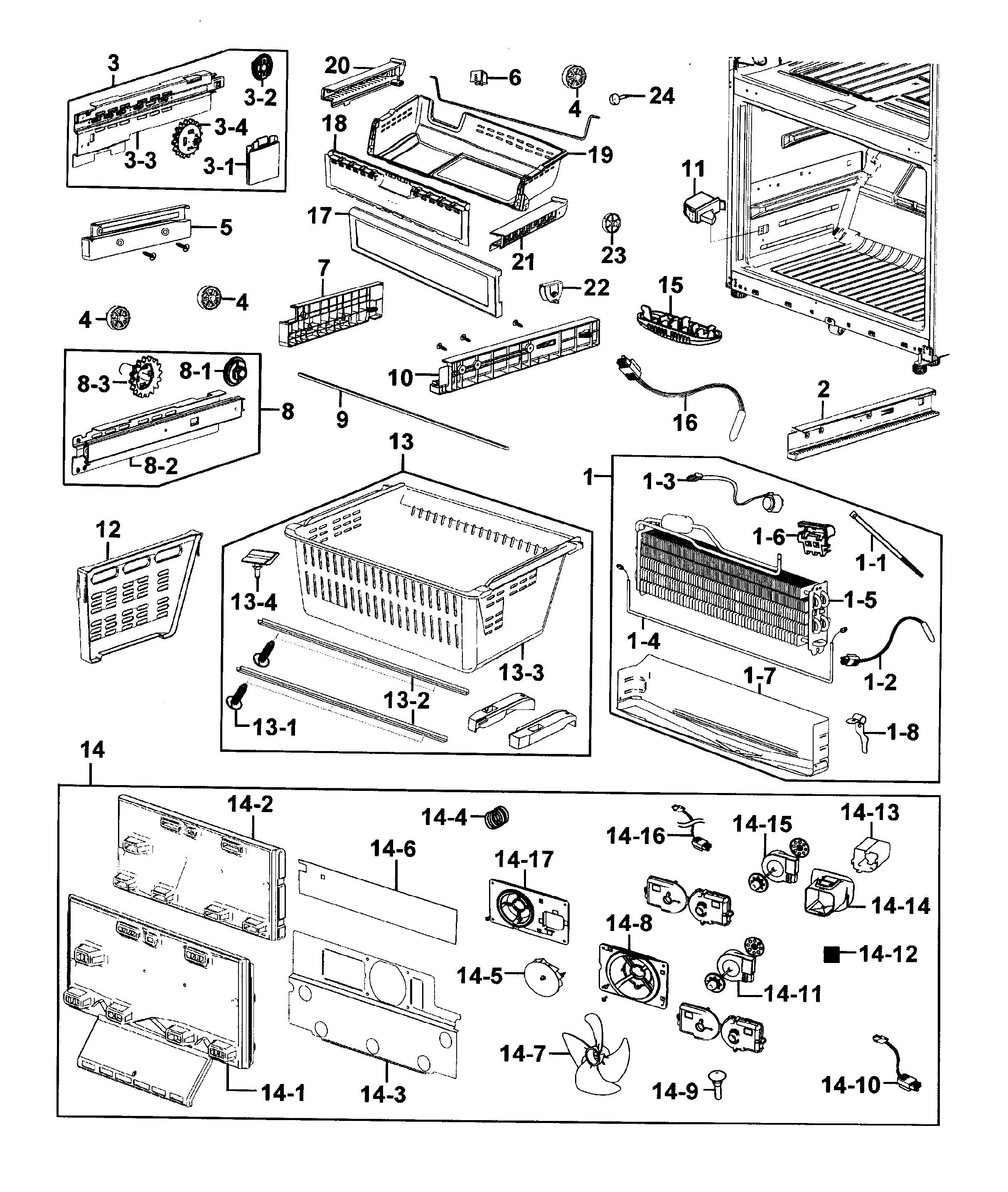

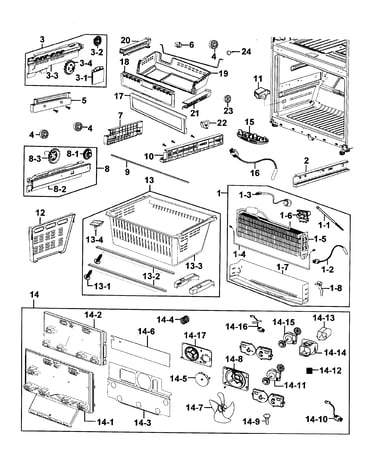

Freezer diagram
Refrigerator protector
Part #DA47-00243B
Replaced by #DA47-00243K
?
Manufacturer substitution
This part replaces DA47-00243B. Substitute parts can look different from the original.
$48.25 |
11% OFF Phone Price : $54.25
In Stock
Refrigerator defrost sensor (replaces da32-000006s, da32-000065)
Part #DA32-00006S
$32.36 |
16% OFF Phone Price : $38.36
In Stock
#15
Refrigerator diagram
Refrigerator ice bin
Part #DA97-11117A
$158.31 |
7% OFF Phone Price : $170.31
In Stock
#13-1
Refrigerator diagram
Kenmore pro refrigerator temperature sensor
Part #DA32-10105X
$26.98 |
18% OFF Phone Price : $32.98
In Stock
#16-1
Cabinet diagram
Refrigerator compressor overload protector
Part #DA34-00004D
$46.64 |
11% OFF Phone Price : $52.64
In Stock
#18
Cabinet diagram
Samsung refrigerator compressor (replaces mkv190cl2b/e0i)
Part #MKV190CL2B/E01
Replaced by #MKV190CL2B/ASH
?
Manufacturer substitution
This part replaces MKV190CL2B/E01. Substitute parts can look different from the original.
This item is not returnable
$279.96 |
$12.00 OFF Phone Price : $291.96
In Stock
#14
Refrigerator diagram
Refrigerator auger motor
Part #DA97-05246G
$216.35 |
5% OFF Phone Price : $228.35
In Stock

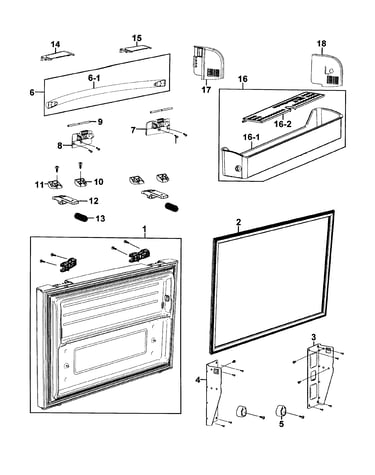

#2

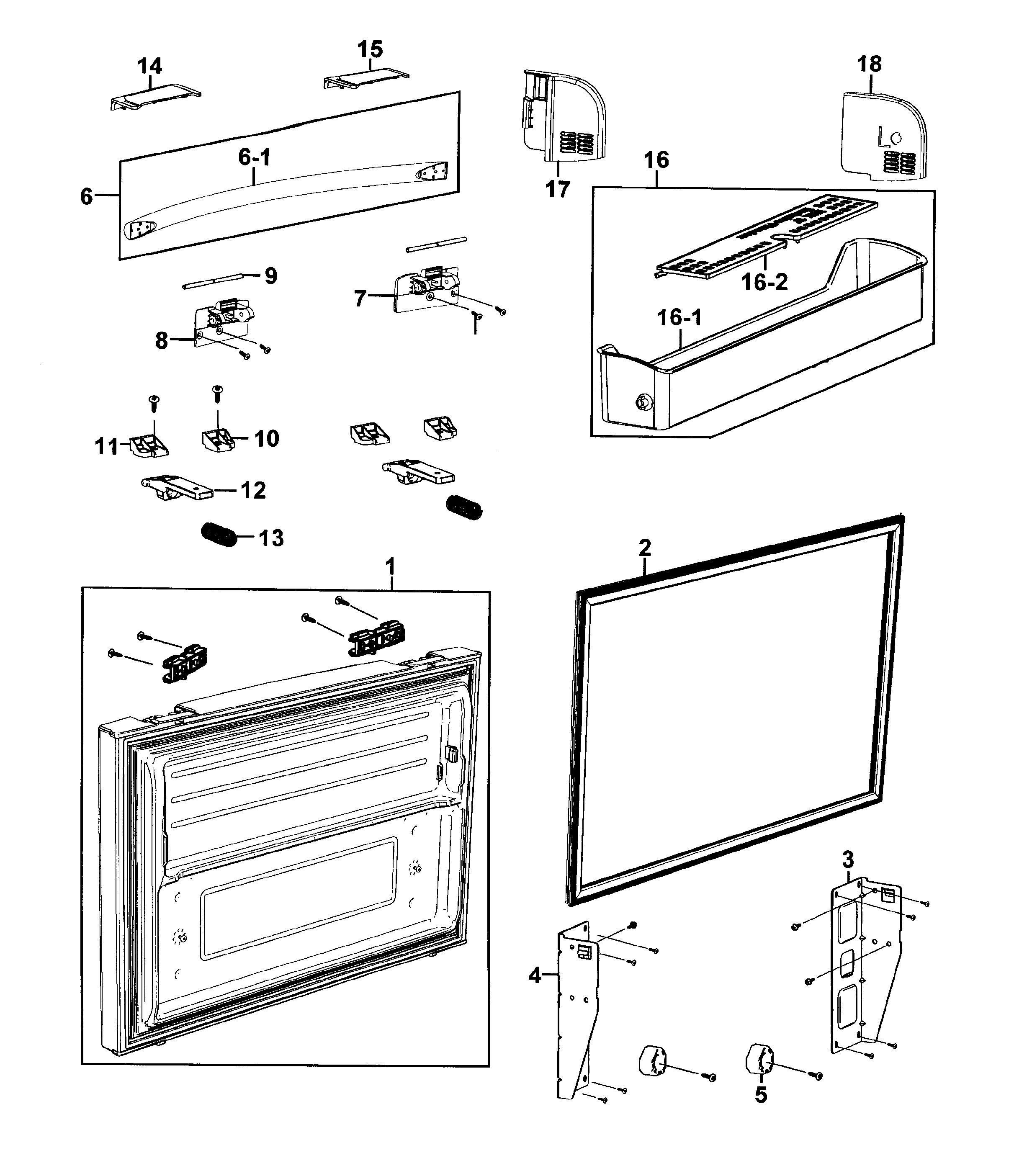

Freezer door diagram
Refrigerator freezer door gasket (replaces da97-03764j, da97-05557b)
Part #DA97-05557Y
$184.85 |
6% OFF Phone Price : $196.85
In Stock
