Model # SX-BK1 Official Sony audio speaker

Here are the diagrams and repair parts for Official Sony SX-BK1 audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Speaker 182555111
#SP1

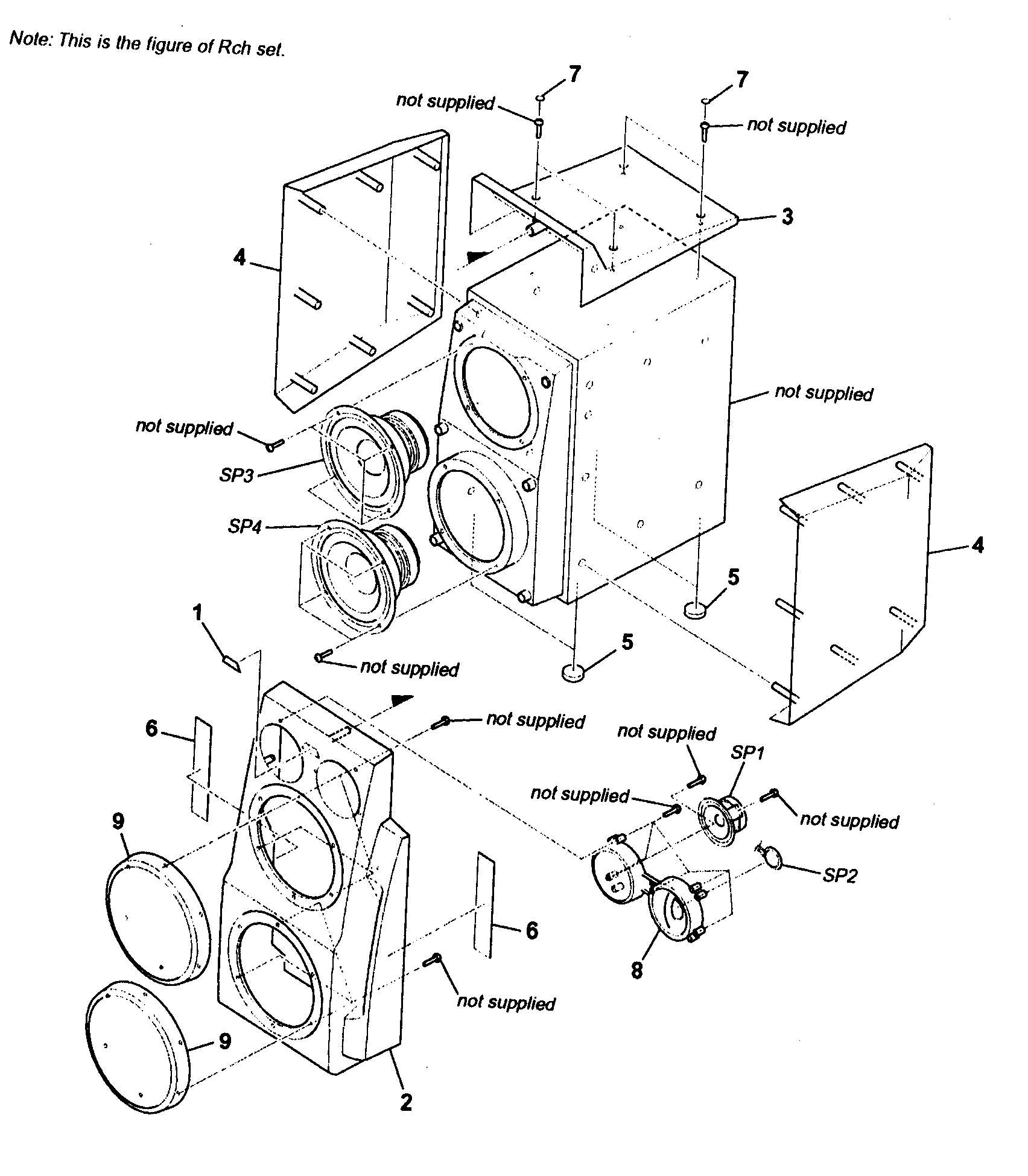

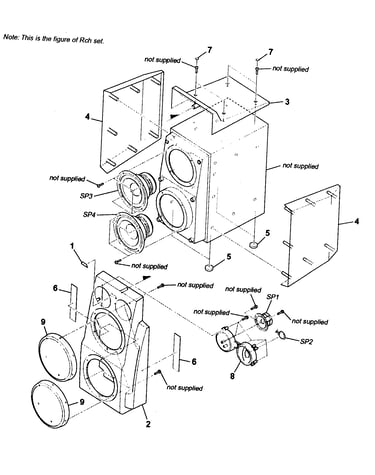

Speaker diagram

Speaker

Part #182555111

The manufacturer no longer makes this part, and there's no substitute part

Panel Assembly A4739631A
#8

Speaker diagram

Panel assembly

Part #A4739631A

The manufacturer no longer makes this part, and there's no substitute part

Side Panel 424837001
#4

Speaker diagram

Side panel

Part #424837001

The manufacturer no longer makes this part, and there's no substitute part

Service Manual 987743501
#NI

Speaker diagram

Service manual

Part #987743501

The manufacturer no longer makes this part, and there's no substitute part

Panel 424836901
#2

Speaker diagram

Panel

Part #424836901

The manufacturer no longer makes this part, and there's no substitute part

Speaker 182555311
#SP4

Speaker diagram

Speaker

Part #182555311

The manufacturer no longer makes this part, and there's no substitute part

Speaker 182555211
#SP3

Speaker diagram

Speaker

Part #182555211

The manufacturer no longer makes this part, and there's no substitute part

Speaker,2.5cm 182560411
#SP2

Speaker diagram

Speaker,2.5cm

Part #182560411

The manufacturer no longer makes this part, and there's no substitute part

Cover Screw 424838201
#7

Speaker diagram

Cover screw

Part #424838201

The manufacturer no longer makes this part, and there's no substitute part

Emblem 424596411
#1

Speaker diagram

Emblem

Part #424596411

The manufacturer no longer makes this part, and there's no substitute part
