Model # 663833800 Official Kenmore juice extractor

Here are the diagrams and repair parts for Official Kenmore 663833800 juice extractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Spatula 205077
#66

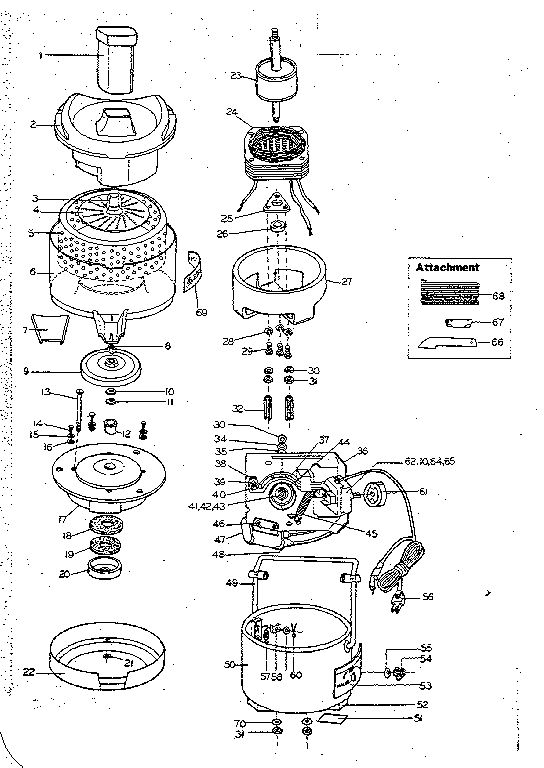

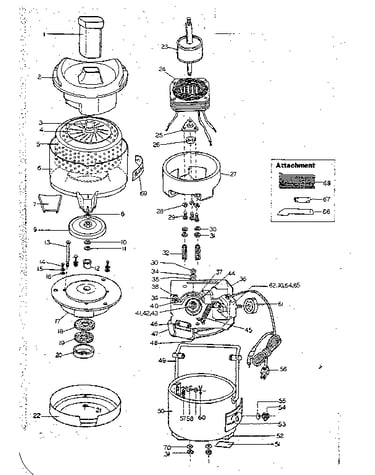

Replacement parts diagram

Spatula

Part #205077

The manufacturer no longer makes this part, and there's no substitute part

Washer 205856
#10

Replacement parts diagram

Washer

Part #205856

The manufacturer no longer makes this part, and there's no substitute part

Motor Frame 205844
#17

Replacement parts diagram

Motor frame

Part #205844

The manufacturer no longer makes this part, and there's no substitute part

Nut 205863
#43

Replacement parts diagram

Nut

Part #205863

The manufacturer no longer makes this part, and there's no substitute part

Filter 205080
#68

Replacement parts diagram

Filter

Part #205080

The manufacturer no longer makes this part, and there's no substitute part

Bearing 205845
#12

Replacement parts diagram

Bearing

Part #205845

The manufacturer no longer makes this part, and there's no substitute part

Rotor Assembly 205843
#23

Replacement parts diagram

Rotor assembly

Part #205843

The manufacturer no longer makes this part, and there's no substitute part

Bracket 205849
#27

Replacement parts diagram

Bracket

Part #205849

The manufacturer no longer makes this part, and there's no substitute part

Foot 205417
#52

Replacement parts diagram

Foot

Part #205417

The manufacturer no longer makes this part, and there's no substitute part

Handle 205071
#49

Replacement parts diagram

Handle

Part #205071

The manufacturer no longer makes this part, and there's no substitute part
