Frigidaire
Gas Cooktop

Model # FFGC3005LWB Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FFGC3005LWB cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

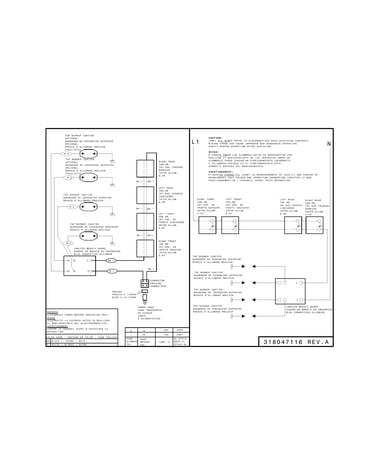

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Cooktop Wire Harness 318232604
#3

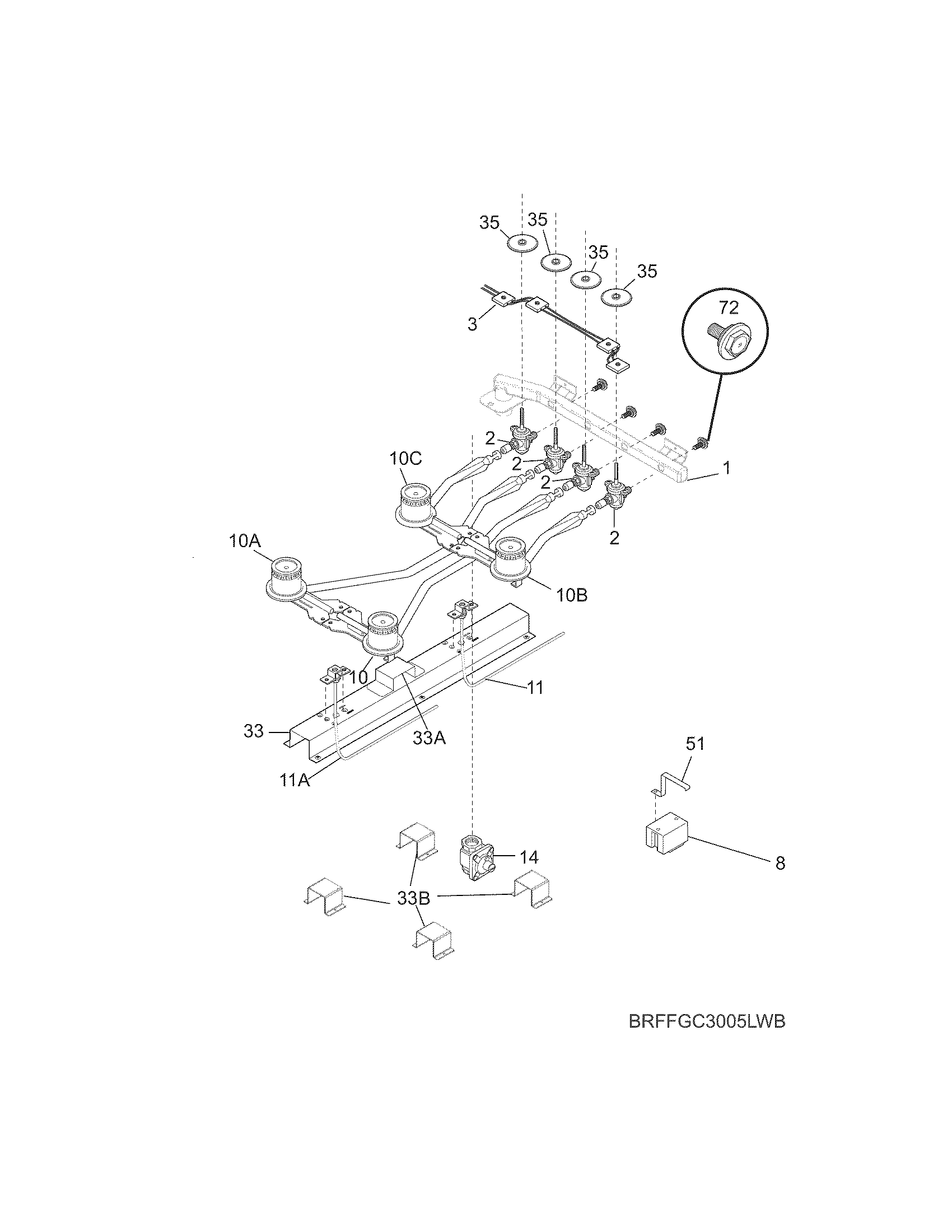

Burner diagram

Cooktop wire harness

Part #318232604

$179.68 |
6% OFF Phone Price : $191.68
In Stock
Cooktop Screw 305452400
#137

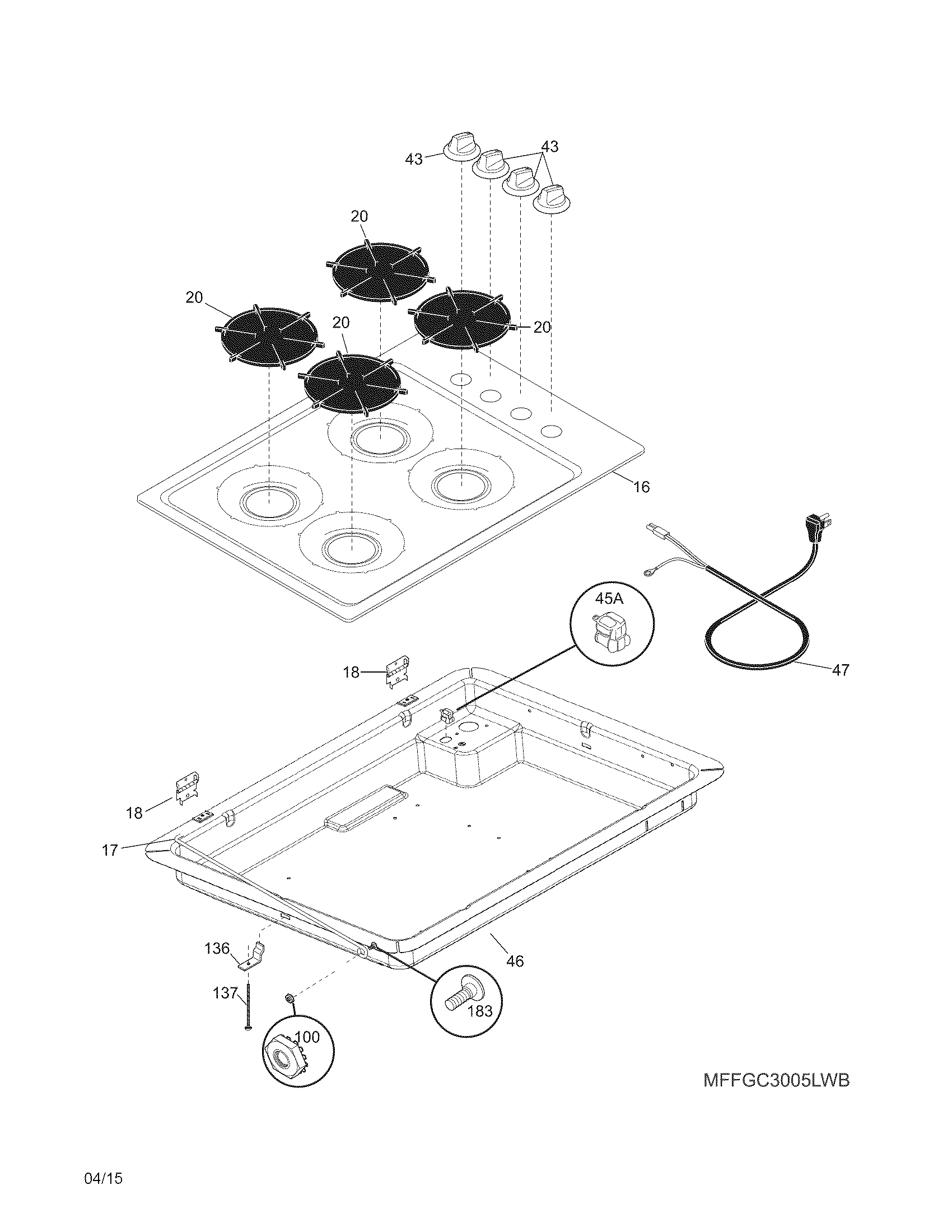

Main top diagram

Cooktop screw

Part #305452400

This item is not returnable
$11.89
In Stock
Screw 305338604
Screw

Part #305338604

This item is not returnable
$2.16
In Stock
Screw 803910601
#NI

Burner diagram

Screw

Part #803910601

This item is not returnable
$3.49
In Stock
Screw 305452800
#NI

Main top diagram

Screw

Part #305452800

$9.09
In Stock
Screw 305456500
#183

Main top diagram

Screw

Part #305456500

$11.66
In Stock
Cooktop Power Cord 305574902
#47

Main top diagram

Cooktop power cord

Part #305574902

$53.36
In Stock
Cooktop Firebox Support 318264301
#136

Main top diagram

Cooktop firebox support

Part #318264301

$36.11 |
14% OFF Phone Price : $42.11
In Stock
Screw 305338602
#NI

Burner diagram

Screw

Part #305338602

This item is not returnable
$4.14
In Stock
Regulator 318122712
#14

Burner diagram

Regulator

Part #318122712

Replaced by #318122707

?
Manufacturer substitution
This part replaces 318122712. Substitute parts can look different from the original.
$98.69 |
11% OFF Phone Price : $110.69
In Stock
