GE
Side-By-Side Refrigerator

Model # MRSC20KWBAAD Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE MRSC20KWBAAD refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

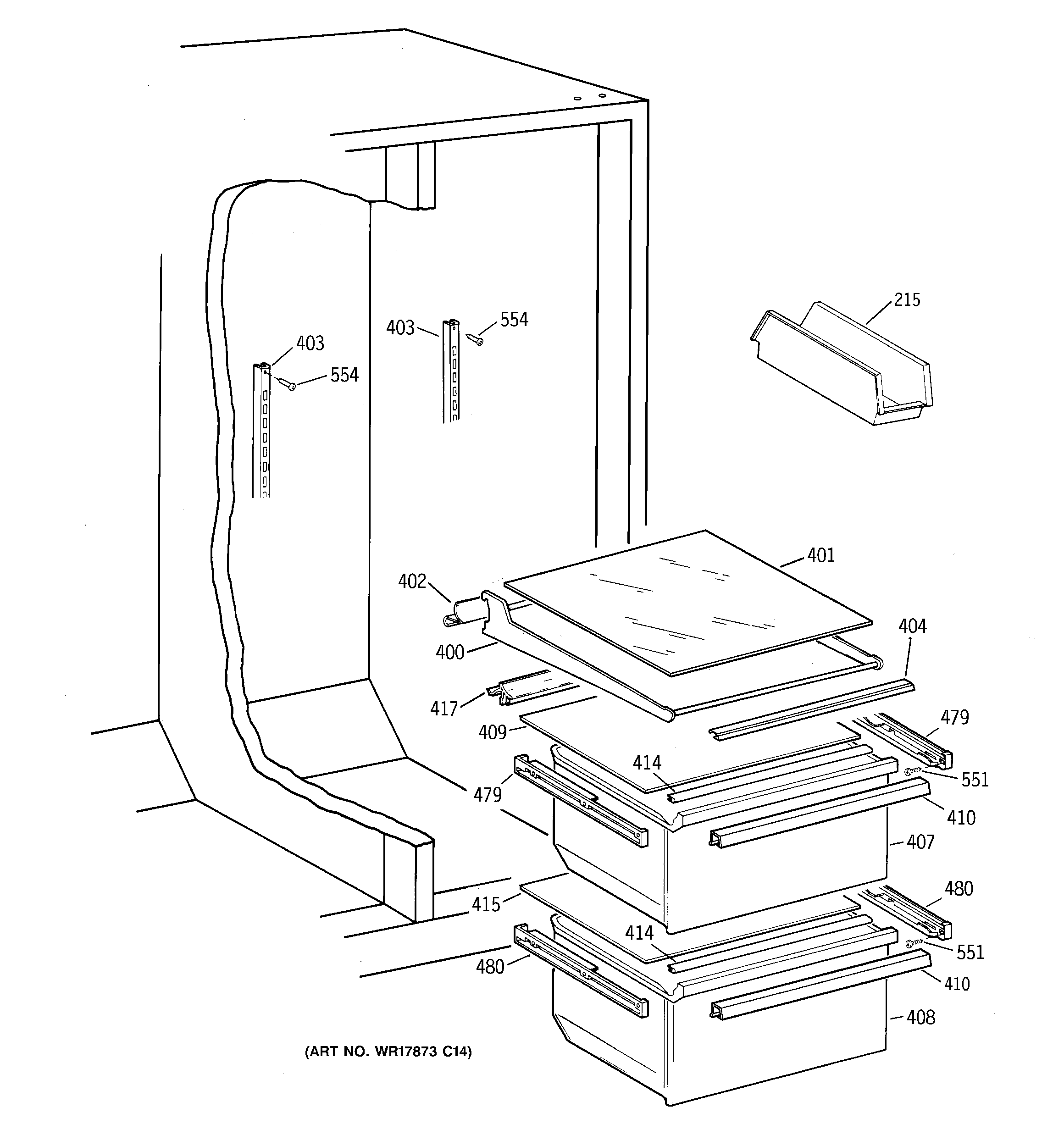

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 274 parts  |
Thermostat WR29X0157
#NI

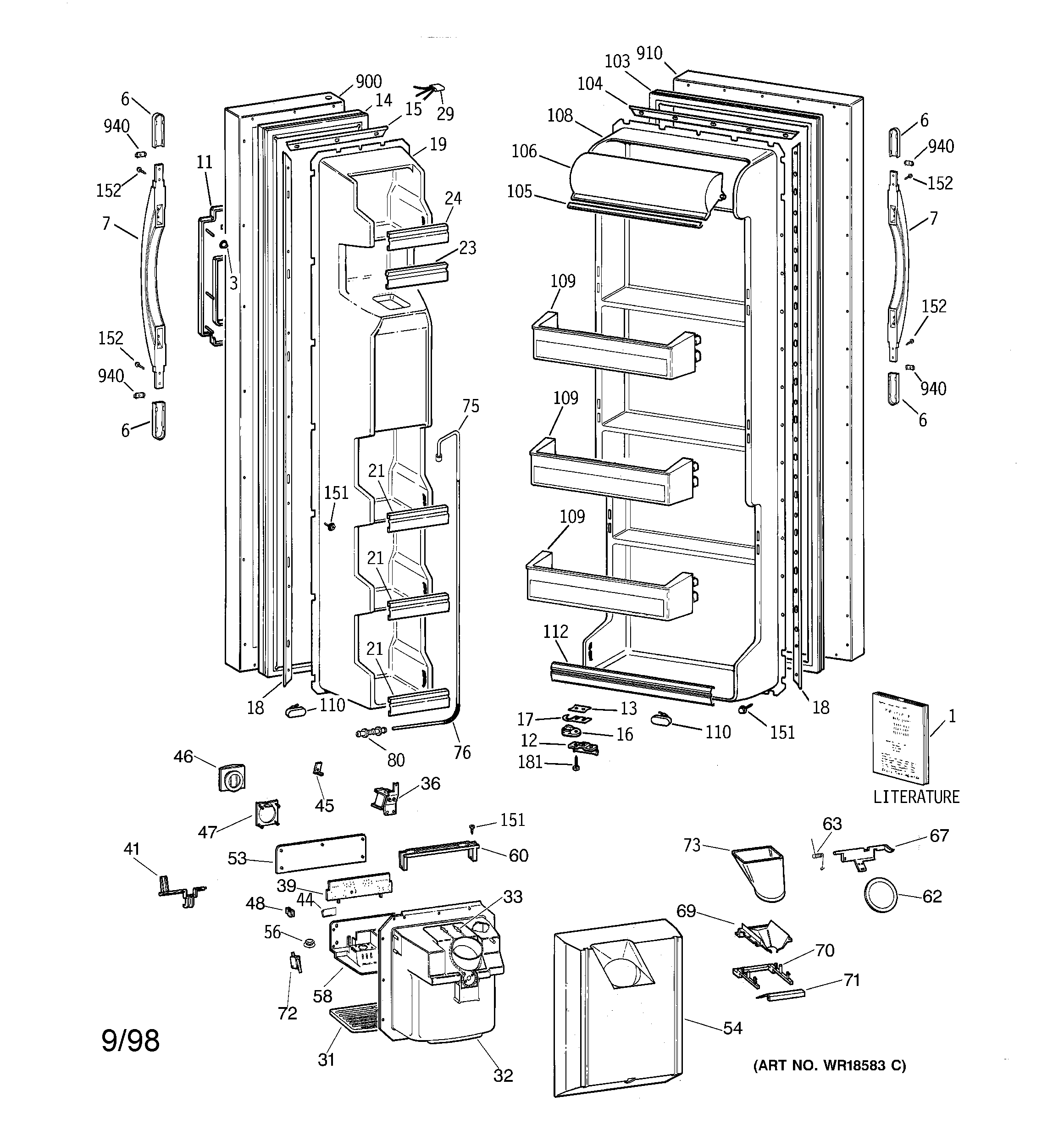

Doors diagram

Thermostat

Part #WR29X0157

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X0157. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Ice Maker WR30X0327
#820

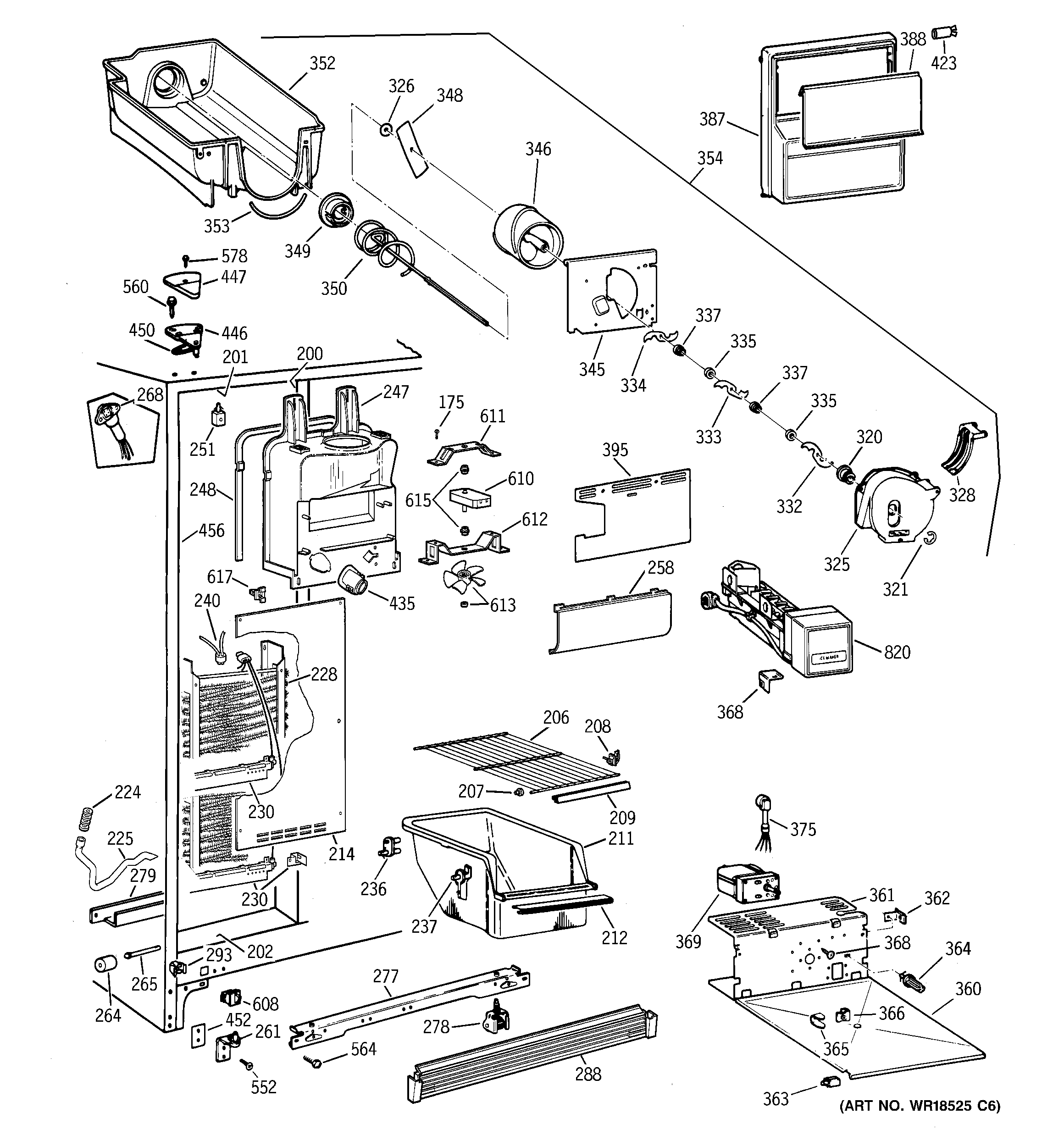

Freezer section diagram

Ice maker

Part #WR30X0327

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X0327. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Clamp T-stat WR29X0158
#NI

Doors diagram

Clamp t-stat

Part #WR29X0158

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X0158. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#740

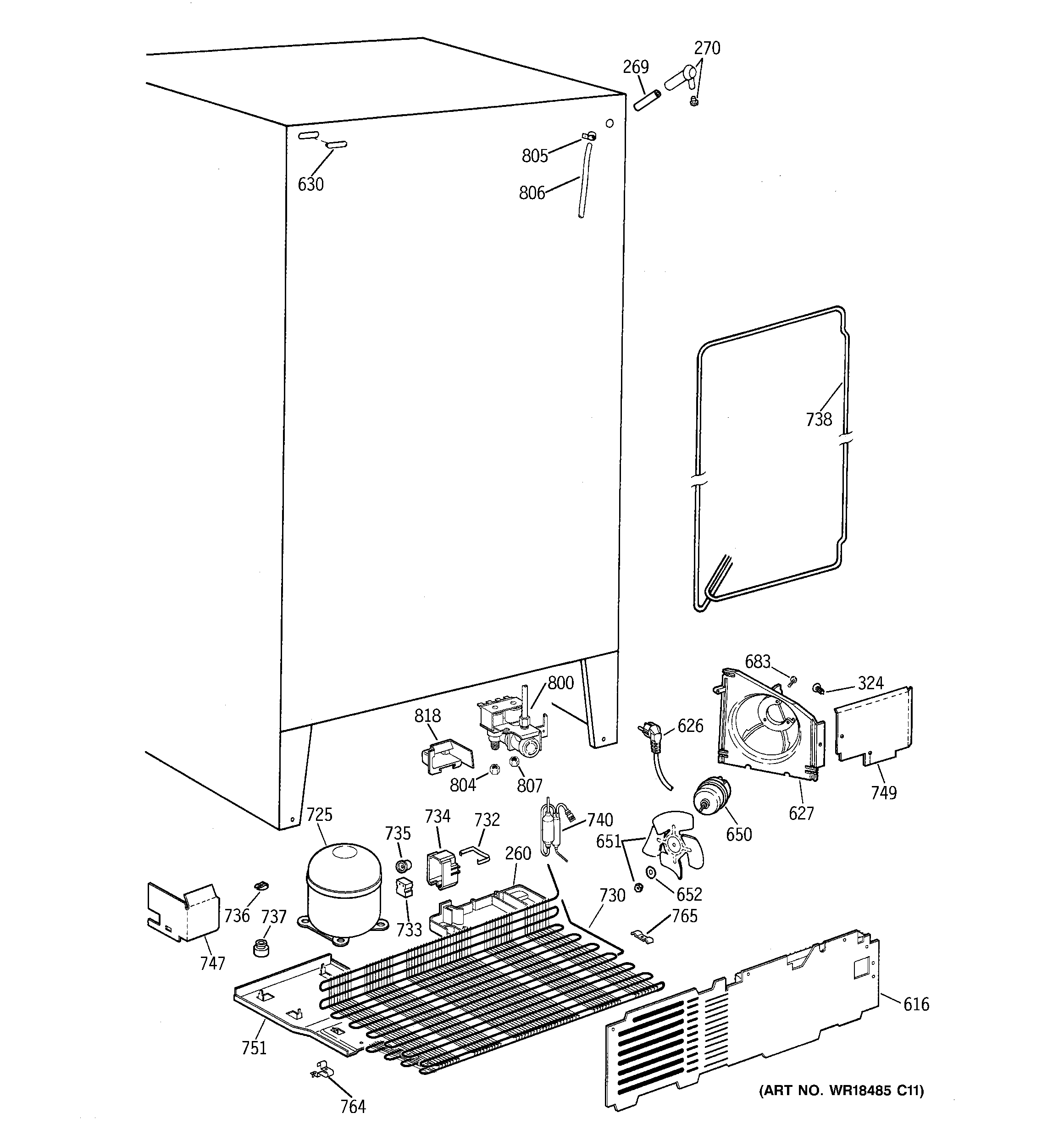

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Refrigerator Connector WR02X10067
#80

Doors diagram

Refrigerator connector

Part #WR02X10067

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X10067. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Nut & Union WR02X4048
#807

Unit parts diagram

Nut & union

Part #WR02X4048

Replaced by #WR02X11330

?
Manufacturer substitution
This part replaces WR02X4048. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Defrost Thermostat WR50X0122
#240

Freezer section diagram

Refrigerator defrost thermostat

Part #WR50X0122

Replaced by #WR50X122

?
Manufacturer substitution
This part replaces WR50X0122. Substitute parts can look different from the original.
BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Reservoir-to-dispenser Water Tubing (replaces Wr17x10732, Wr17x11439, Wr17x3104, Wr17x3140, Wr17x3228) WR17X2891
#812

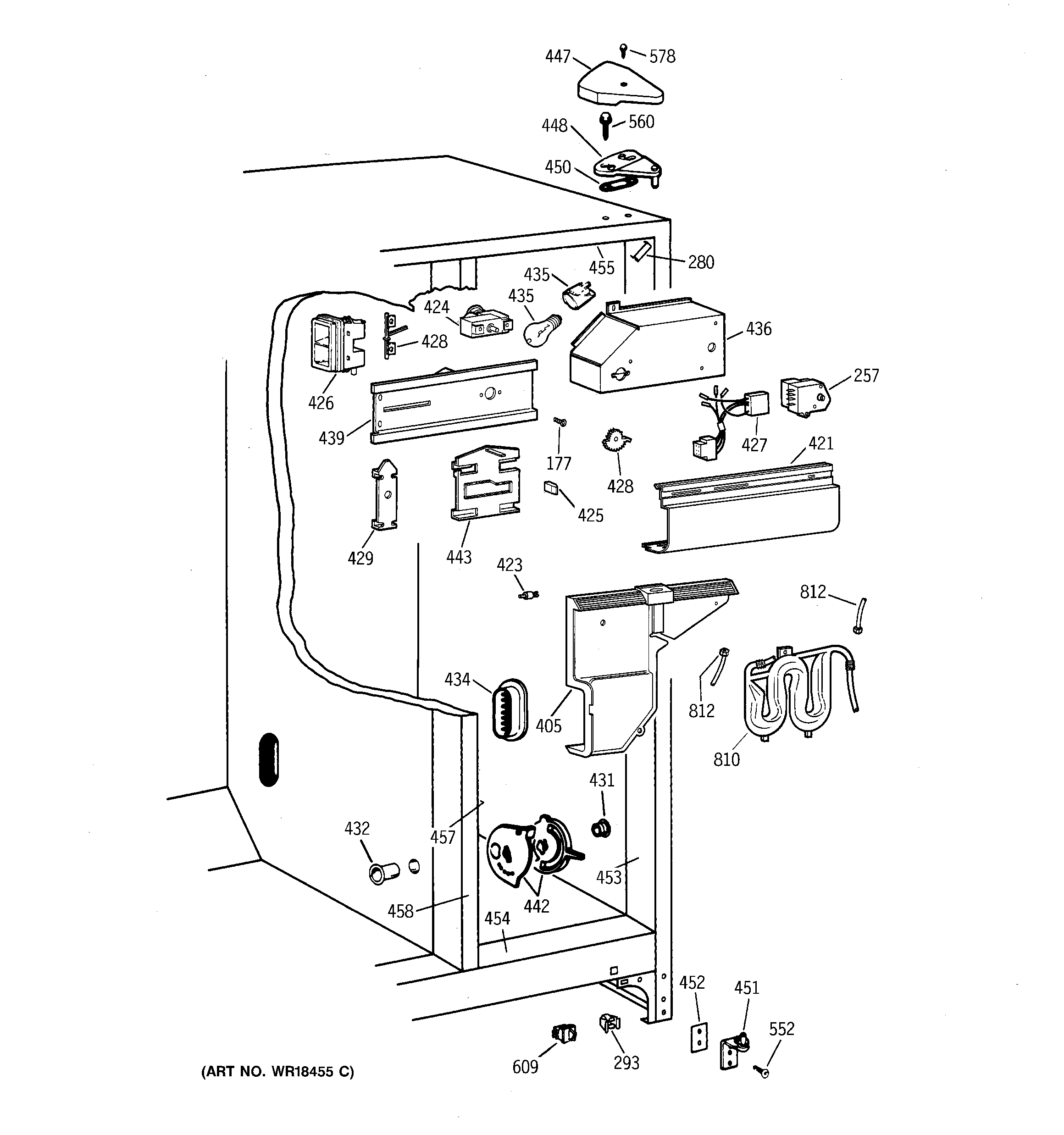

Fresh food section diagram

Refrigerator reservoir-to-dispenser water tubing (replaces wr17x10732, wr17x11439, wr17x3104, wr17x3140, wr17x3228)

Part #WR17X2891

BEST SELLER
$24.41 |
20% OFF Phone Price : $30.41
In Stock
Condenser Motor WR60X10010
#650

Unit parts diagram

Condenser motor

Part #WR60X10010

Replaced by #WR60X187

?
Manufacturer substitution
This part replaces WR60X10010. Substitute parts can look different from the original.
BEST SELLER
$207.94 |
5% OFF Phone Price : $219.94
In Stock
