Model # 7218911580 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218911580 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

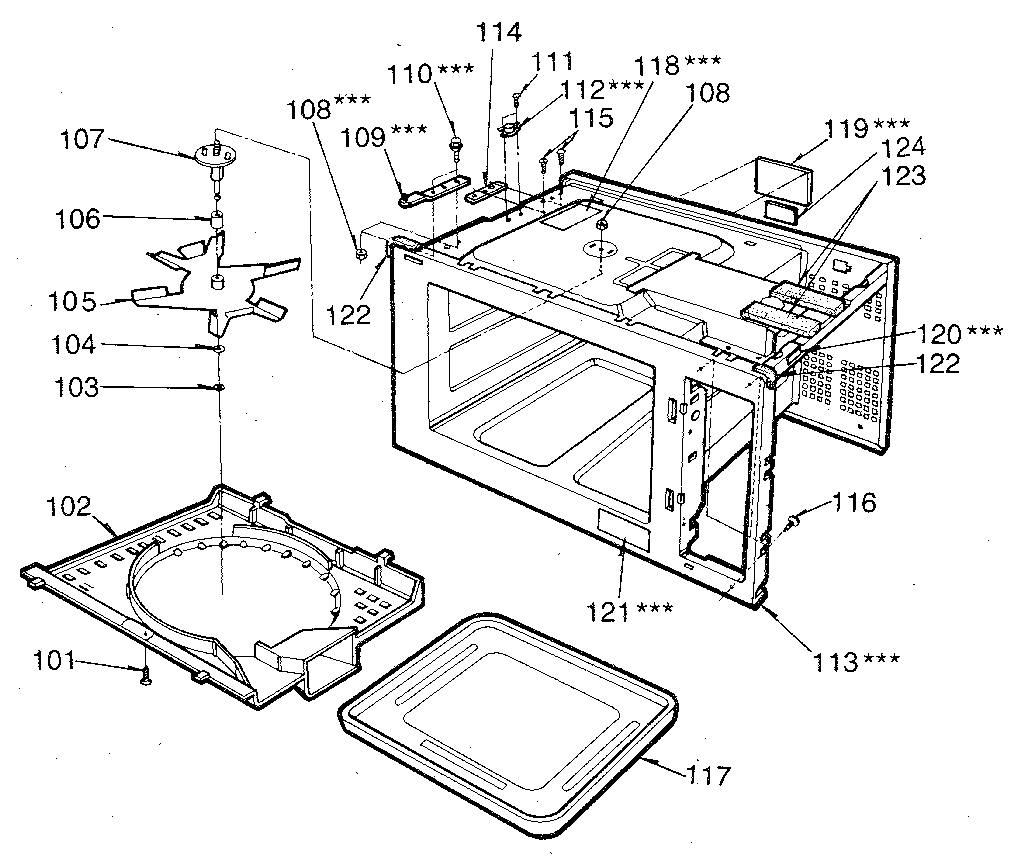

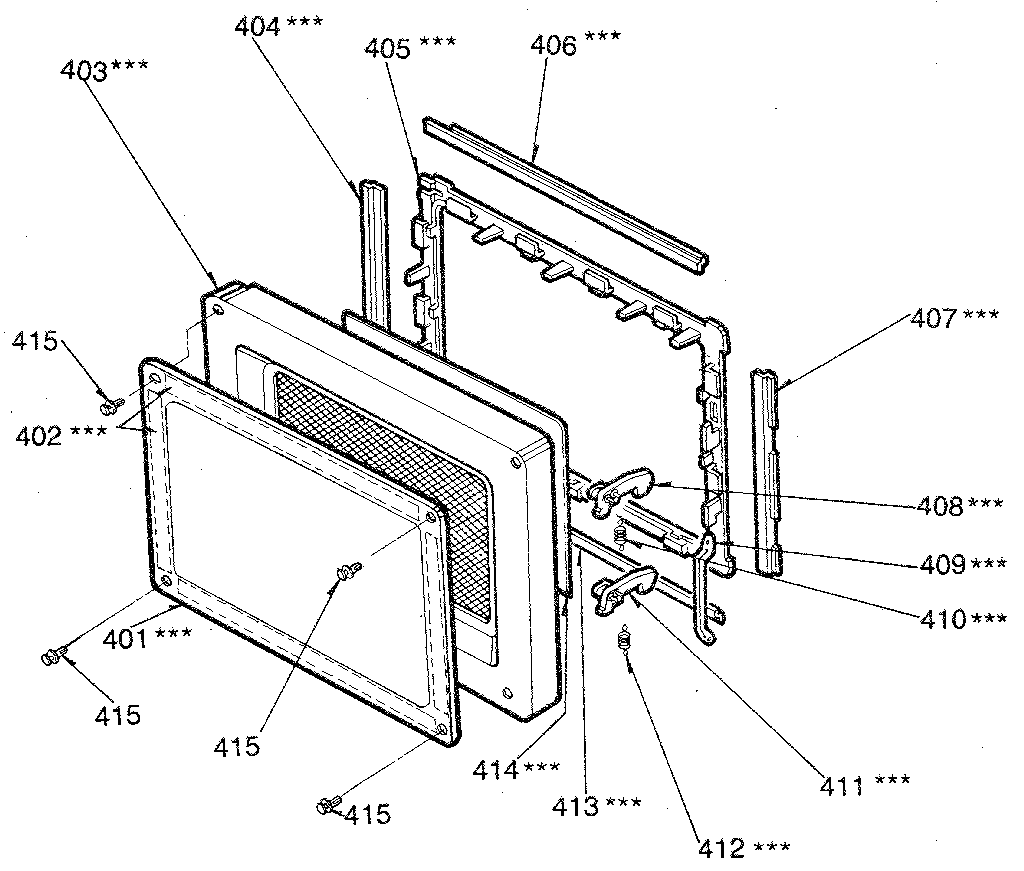

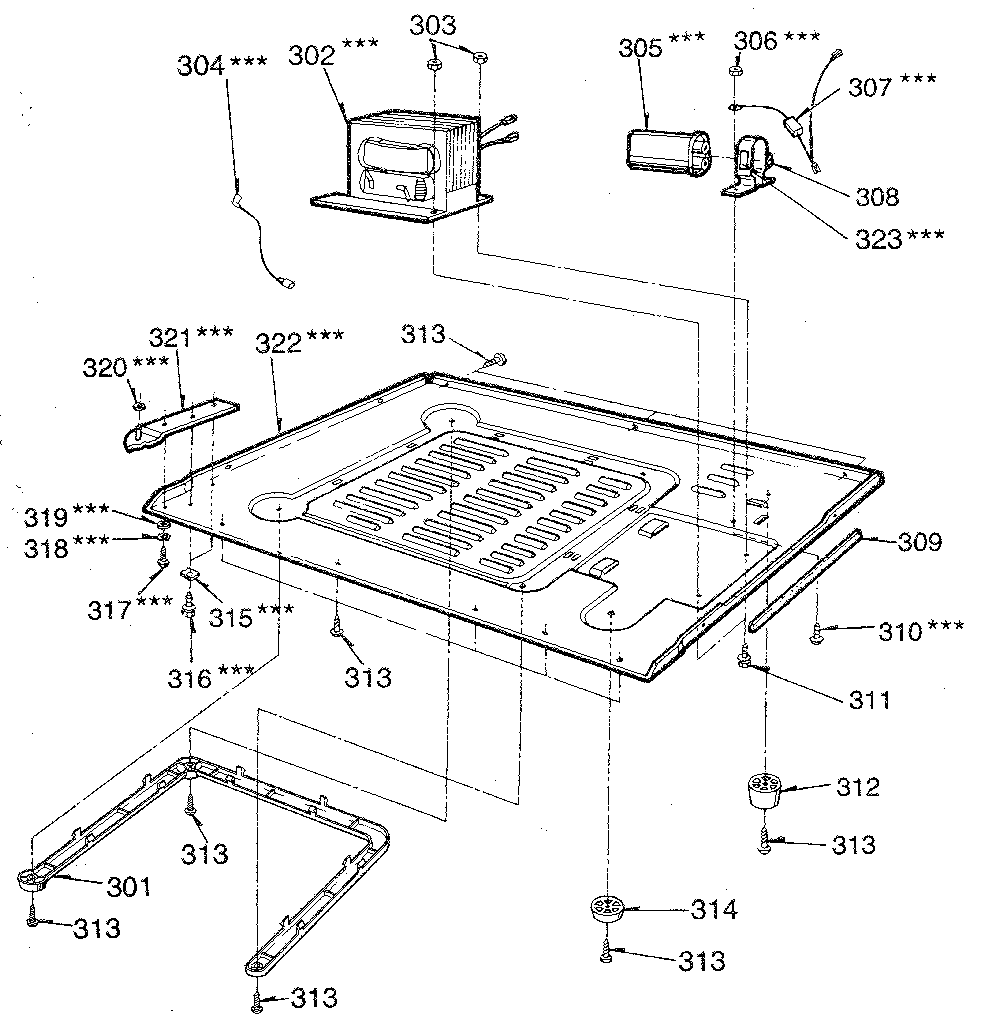

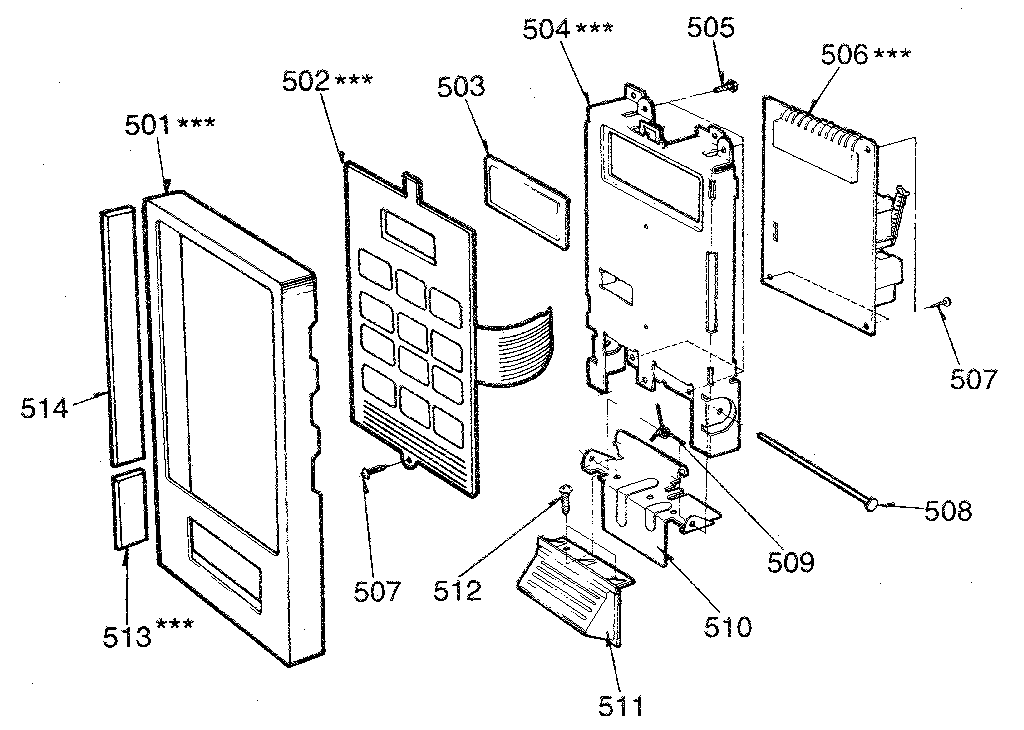

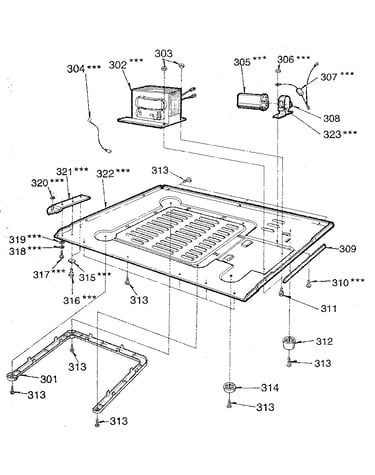

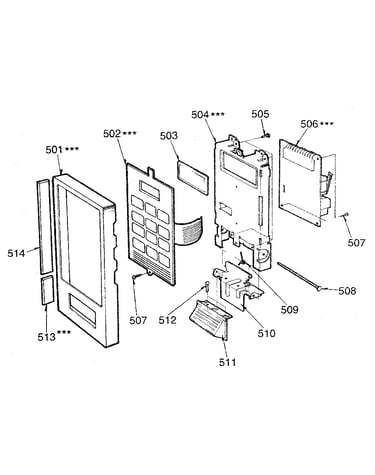

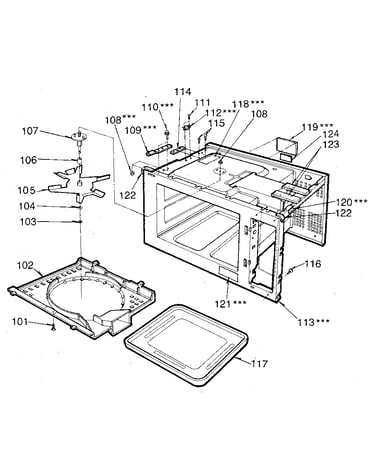

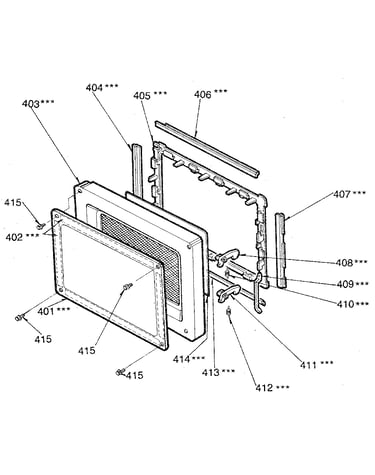

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Screw 500218
Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Magnetron 500202
#214

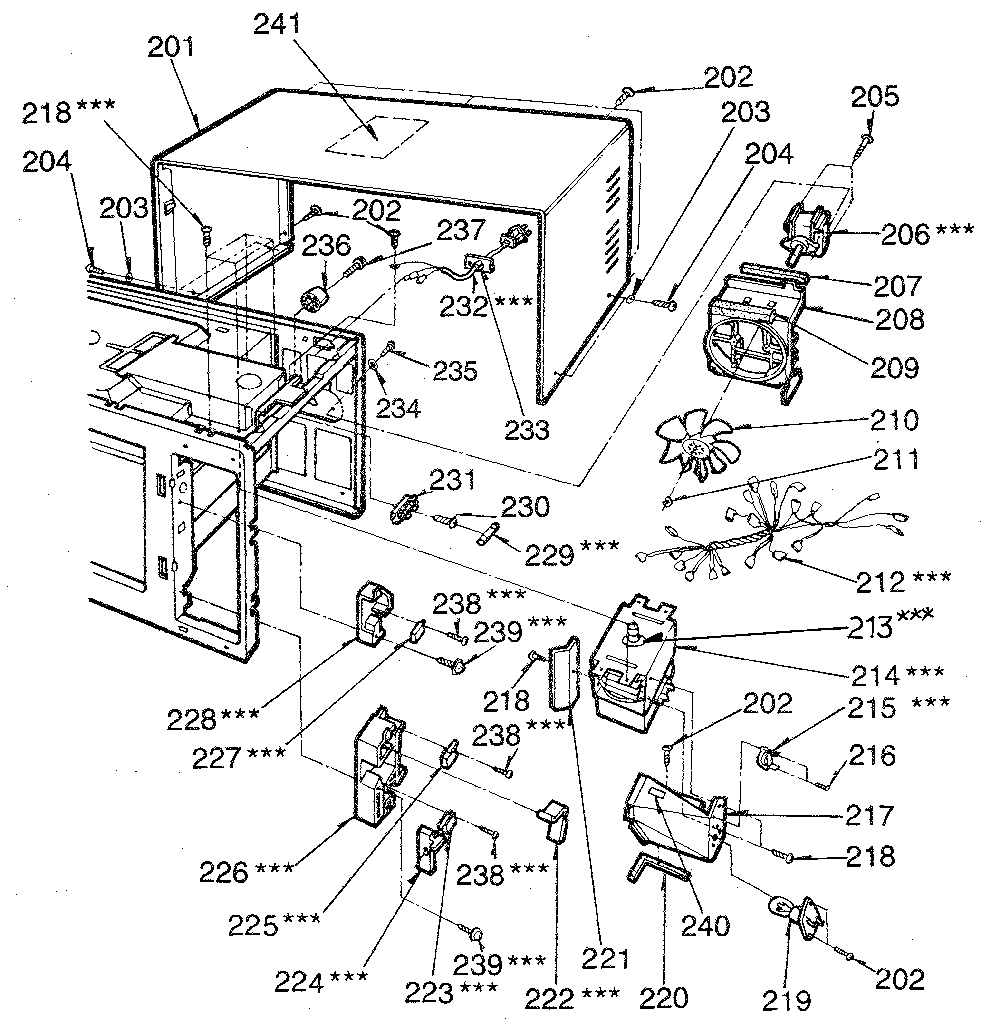

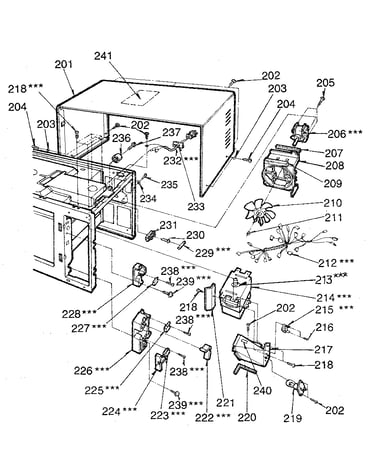

Switches and microwave diagram

Magnetron

Part #500202

$56.09
In Stock
Switch 500212
#227

Switches and microwave diagram

Switch

Part #500212

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 500212. Substitute parts can look different from the original.
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Diode 500285
#3A

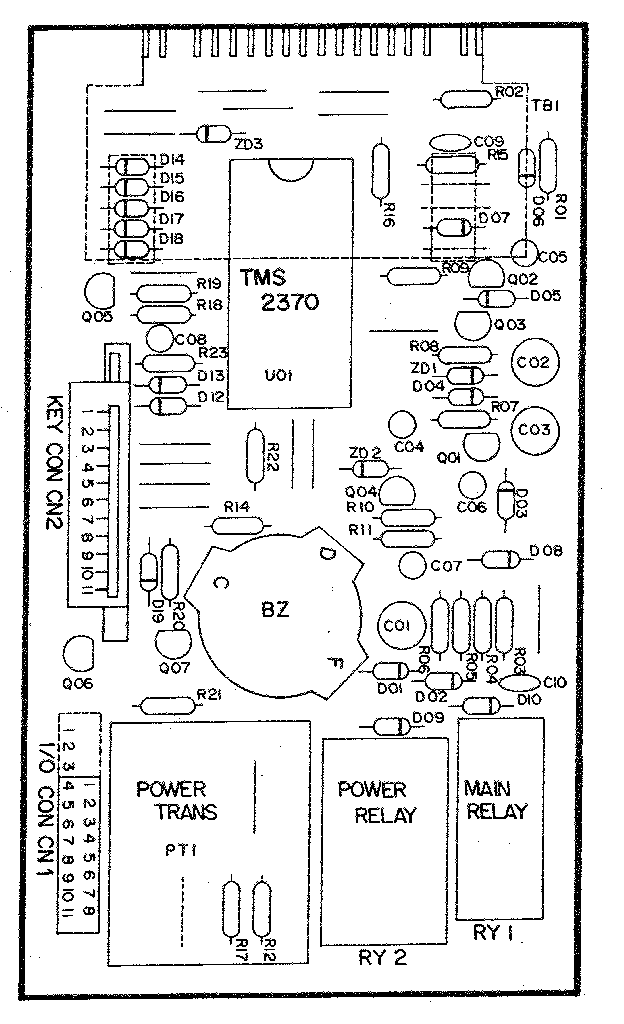

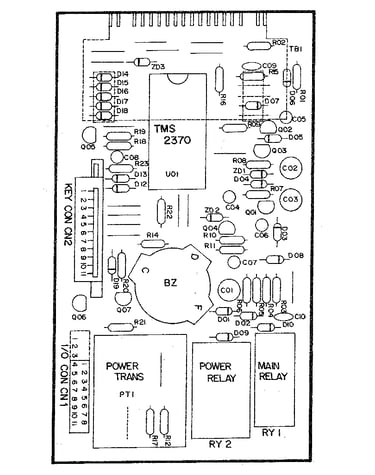

Power and control circuit board (part no. 2q10236b) diagram

Diode

Part #500285

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500026
#5A

Power and control circuit board (part no. 2q10236b) diagram

Resistor

Part #500026

The manufacturer no longer makes this part, and there's no substitute part

Zerer Diode 500040
#3B

Power and control circuit board (part no. 2q10236b) diagram

Zerer diode

Part #500040

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 500080
#231

Switches and microwave diagram

Fuse holder

Part #500080

The manufacturer no longer makes this part, and there's no substitute part

Resistor 500588
#5T

Power and control circuit board (part no. 2q10236b) diagram

Resistor

Part #500588

The manufacturer no longer makes this part, and there's no substitute part

Transistor 500014
Transistor

Part #500014

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500273
#1C

Power and control circuit board (part no. 2q10236b) diagram

Capacitor

Part #500273

The manufacturer no longer makes this part, and there's no substitute part
