Model # 201727543 Official Kenmore 2-burner folding cookstove

Here are the diagrams and repair parts for Official Kenmore 201727543 2-burner folding cookstove, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Tray 100751
#2

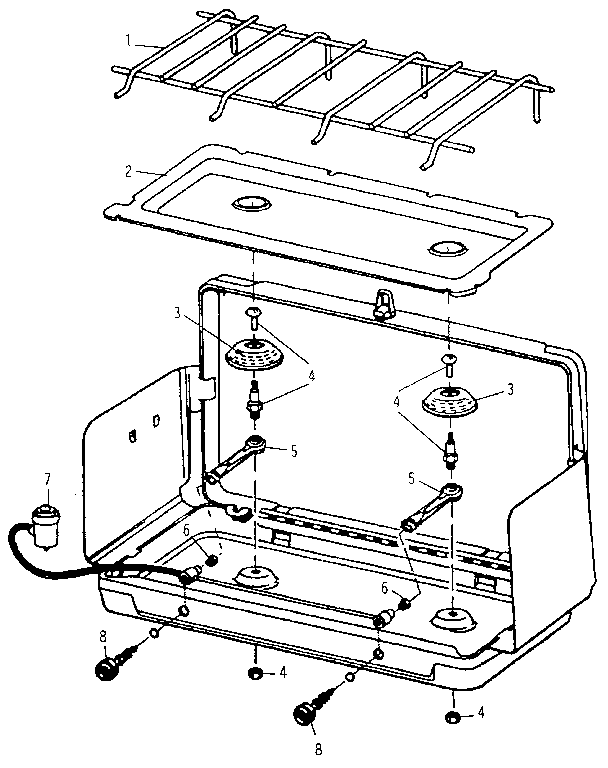

Two burning deluxe folding cookstove diagram

Tray

Part #100751

The manufacturer no longer makes this part, and there's no substitute part

Burn.tube.as 100750
#5

Two burning deluxe folding cookstove diagram

Burn.tube.as

Part #100750

The manufacturer no longer makes this part, and there's no substitute part

Orifice 100130
#6

Two burning deluxe folding cookstove diagram

Orifice

Part #100130

The manufacturer no longer makes this part, and there's no substitute part

Bracket N/P
Bracket

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Grill 100659BN
#1

Two burning deluxe folding cookstove diagram

Grill

Part #100659BN

The manufacturer no longer makes this part, and there's no substitute part

Cylndr Adapt 8850

#NI

All parts diagram

Cylndr adapt

Part #8850

The manufacturer no longer makes this part, and there's no substitute part

Instr.book 120135

#NI

All parts diagram

Instr.book

Part #120135

The manufacturer no longer makes this part, and there's no substitute part

Vac-adapter 8848

#NI

All parts diagram

Vac-adapter

Part #8848

The manufacturer no longer makes this part, and there's no substitute part

Burner Asm. 100748
#3

Two burning deluxe folding cookstove diagram

Burner asm.

Part #100748

The manufacturer no longer makes this part, and there's no substitute part

Burn.mnt Kit 100764
#4

Two burning deluxe folding cookstove diagram

Burn.mnt kit

Part #100764

The manufacturer no longer makes this part, and there's no substitute part
