Porter Cable
Drill/Driver

Model # 872 Official Porter Cable cordless drill/driver

Here are the diagrams and repair parts for Official Porter Cable 872 cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |

Porter Screw 858008
#108

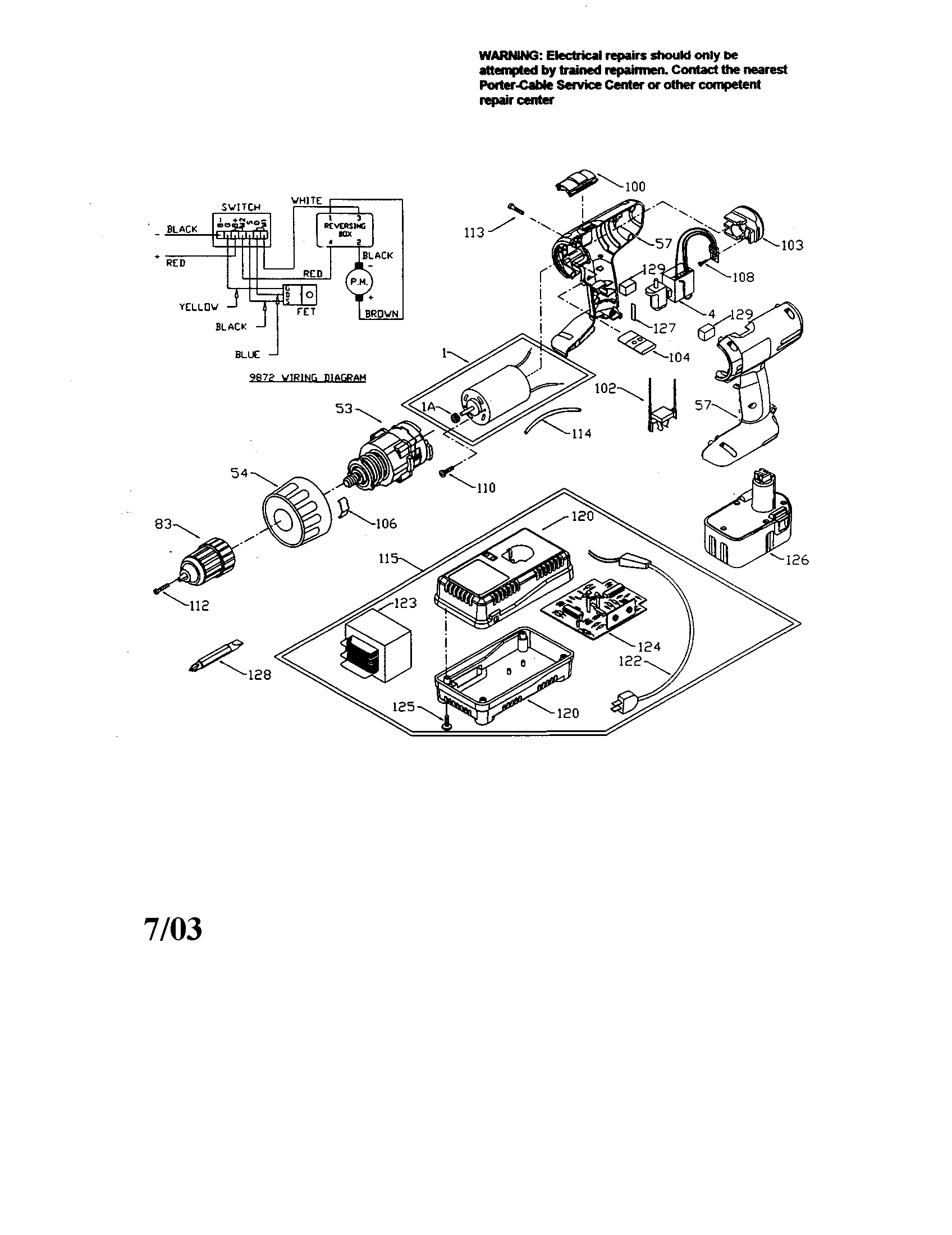

Cordless driver/drill diagram

Porter screw

Part #858008

The manufacturer no longer makes this part, and there's no substitute part

Housing 884685
#57

Cordless driver/drill diagram

Housing

Part #884685

The manufacturer no longer makes this part, and there's no substitute part

Porter Selector 884360
#100

Cordless driver/drill diagram

Porter selector

Part #884360

The manufacturer no longer makes this part, and there's no substitute part

Porter Latch 887712

#NI02

All parts diagram

Porter latch

Part #887712

The manufacturer no longer makes this part, and there's no substitute part

Chuck 892647
#83B

Cordless driver/drill diagram

Chuck

Part #892647

The manufacturer no longer makes this part, and there's no substitute part

Porter Clutch 884408
#54

Cordless driver/drill diagram

Porter clutch

Part #884408

The manufacturer no longer makes this part, and there's no substitute part

Porter Selector 884403
#104

Cordless driver/drill diagram

Porter selector

Part #884403

The manufacturer no longer makes this part, and there's no substitute part

Porter Plate 884324
#102

Cordless driver/drill diagram

Porter plate

Part #884324

The manufacturer no longer makes this part, and there's no substitute part

Screw 694015
#125

Cordless driver/drill diagram

Screw

Part #694015

The manufacturer no longer makes this part, and there's no substitute part

Heatsink 886842
#103

Cordless driver/drill diagram

Heatsink

Part #886842

The manufacturer no longer makes this part, and there's no substitute part
