Model # 3627105191 Official Kenmore gas range
Here are the diagrams and repair parts for Official Kenmore 3627105191 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for3627105191 Ranges
- #266

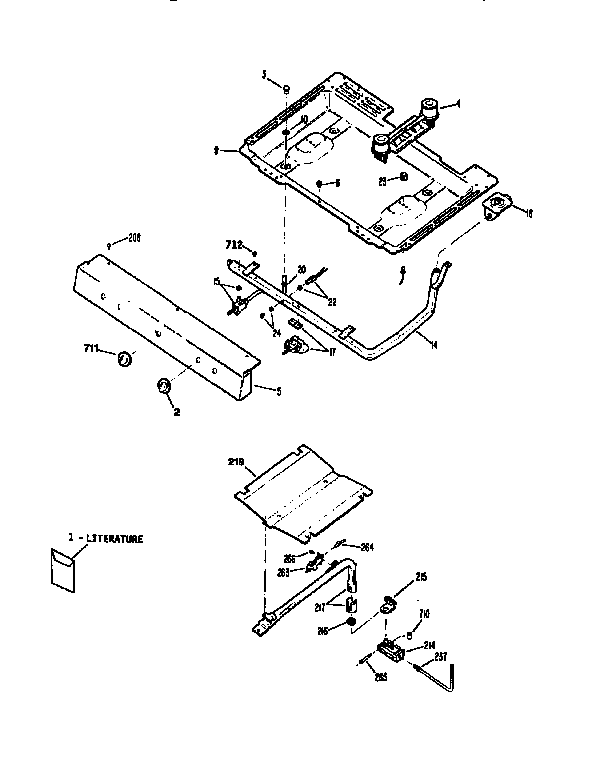

Burner section diagram
Hex washer head screwPart #WB01K0050
Replaced by #WB1X1293
?Manufacturer substitutionThis part replaces WB01K0050. Substitute parts can look different from the original.This item is not returnable$8.70 |10% OFF Phone Price : $9.70In Stock - #4
Burner section diagram
Double burnerPart #WB29K0017
Replaced by #WB16K10026
?Manufacturer substitutionThis part replaces WB29K0017. Substitute parts can look different from the original.$61.83 |9% OFF Phone Price : $67.83In Stock - Screw
Part #WB01K0021
Replaced by #WR01X10065
?Manufacturer substitutionThis part replaces WB01K0021. Substitute parts can look different from the original.This item is not returnable$7.40 |12% OFF Phone Price : $8.40In Stock - #262

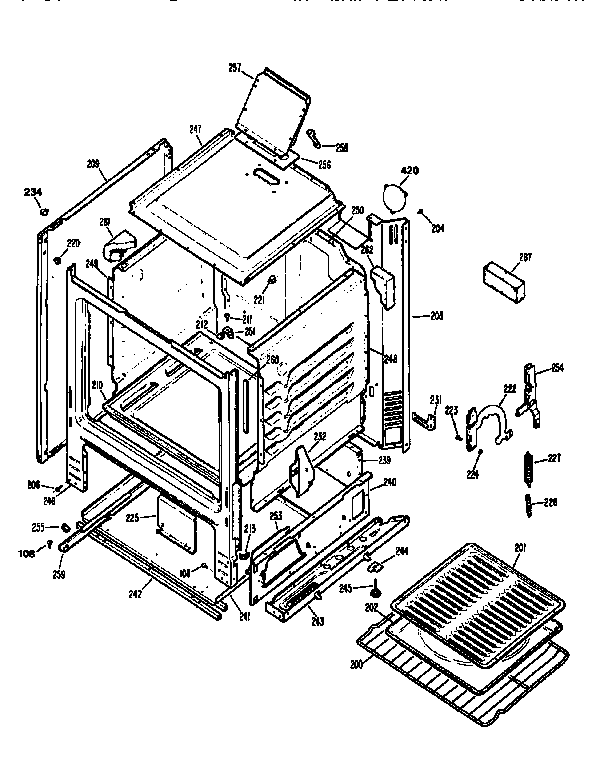

Cabinet diagram
Insul ovbackPart #WB35K0016
Replaced by #WB35K16
?Manufacturer substitutionThis part replaces WB35K0016. Substitute parts can look different from the original.$45.23 |12% OFF Phone Price : $51.23In Stock - #215
Burner section diagram
Bracket safety valvePart #WB02K0065
Replaced by #WB2K65
?Manufacturer substitutionThis part replaces WB02K0065. Substitute parts can look different from the original.$7.40 |12% OFF Phone Price : $8.40In Stock - #301A

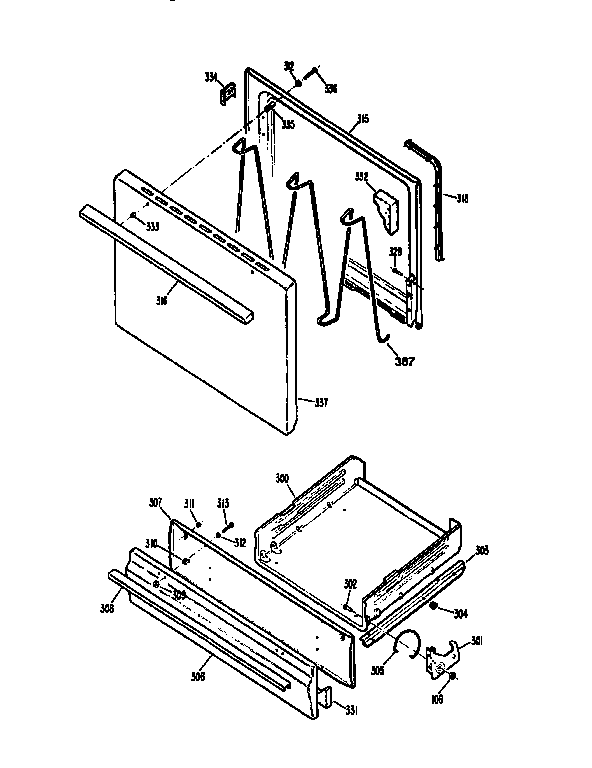

Door diagram
Hnge broil lPart #WB10K0006
Replaced by #WB10K6
?Manufacturer substitutionThis part replaces WB10K0006. Substitute parts can look different from the original.$12.87 |13% OFF Phone Price : $14.87In Stock - #120

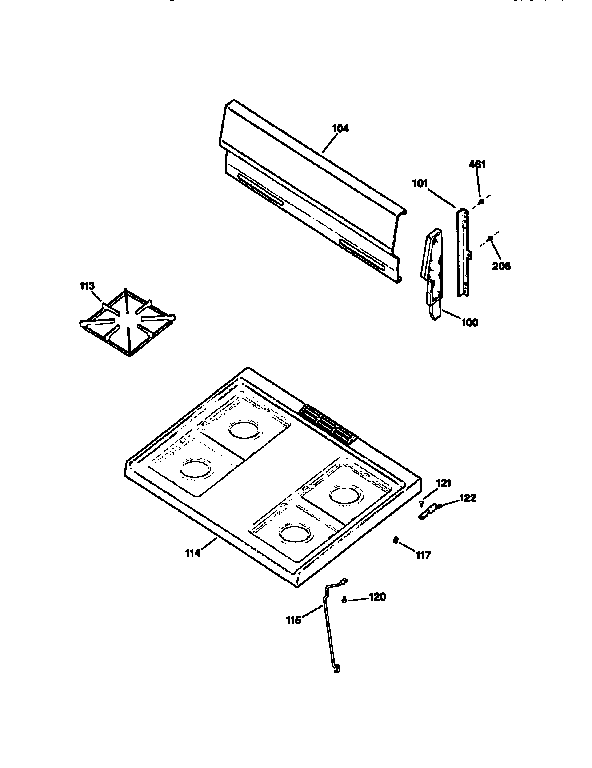

Main top section diagram
Scr&wshr asmPart #WB01K0045
Replaced by #WB1K45
?Manufacturer substitutionThis part replaces WB01K0045. Substitute parts can look different from the original.This item is not returnable$9.51In Stock - #221
Cabinet diagram
Clip capillyPart #WB02K0010
Replaced by #WB02K10073
?Manufacturer substitutionThis part replaces WB02K0010. Substitute parts can look different from the original.This item is not returnable$9.44 |10% OFF Phone Price : $10.44In Stock - #316
Door diagram
Broiler handlePart #WB15K0001
Replaced by #WB15K1
?Manufacturer substitutionThis part replaces WB15K0001. Substitute parts can look different from the original.$34.07 |15% OFF Phone Price : $40.07In Stock - #312
Door diagram
WasherPart #WB01X0119
Replaced by #WB02X32440
?Manufacturer substitutionThis part replaces WB01X0119. Substitute parts can look different from the original.$28.83In Stock
