Model # SP-PB214 Official Steele drill press

Here are the diagrams and repair parts for Official Steele SP-PB214 drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |

Cover Pull PB214-306-HY
#6

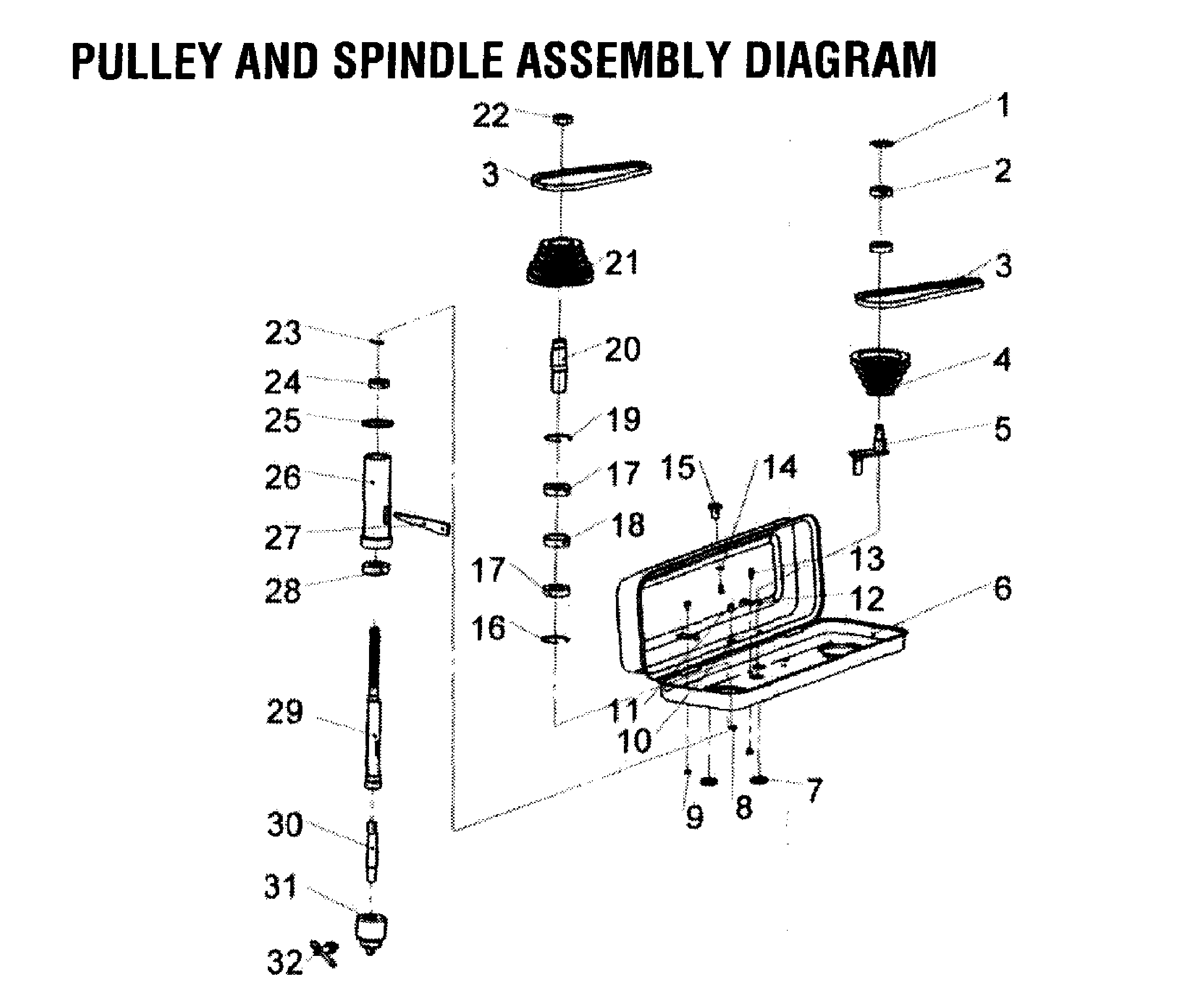

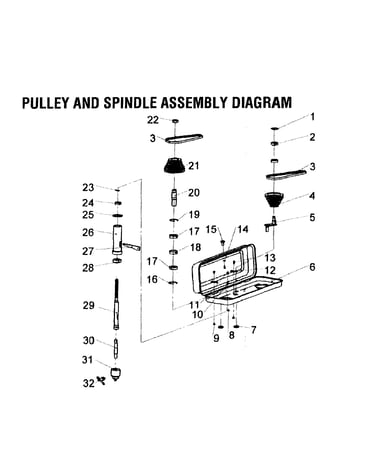

Pulley assy diagram

Cover pull

Part #PB214-306-HY

The manufacturer no longer makes this part, and there's no substitute part

Bar,motor PB214-45-HY
#45

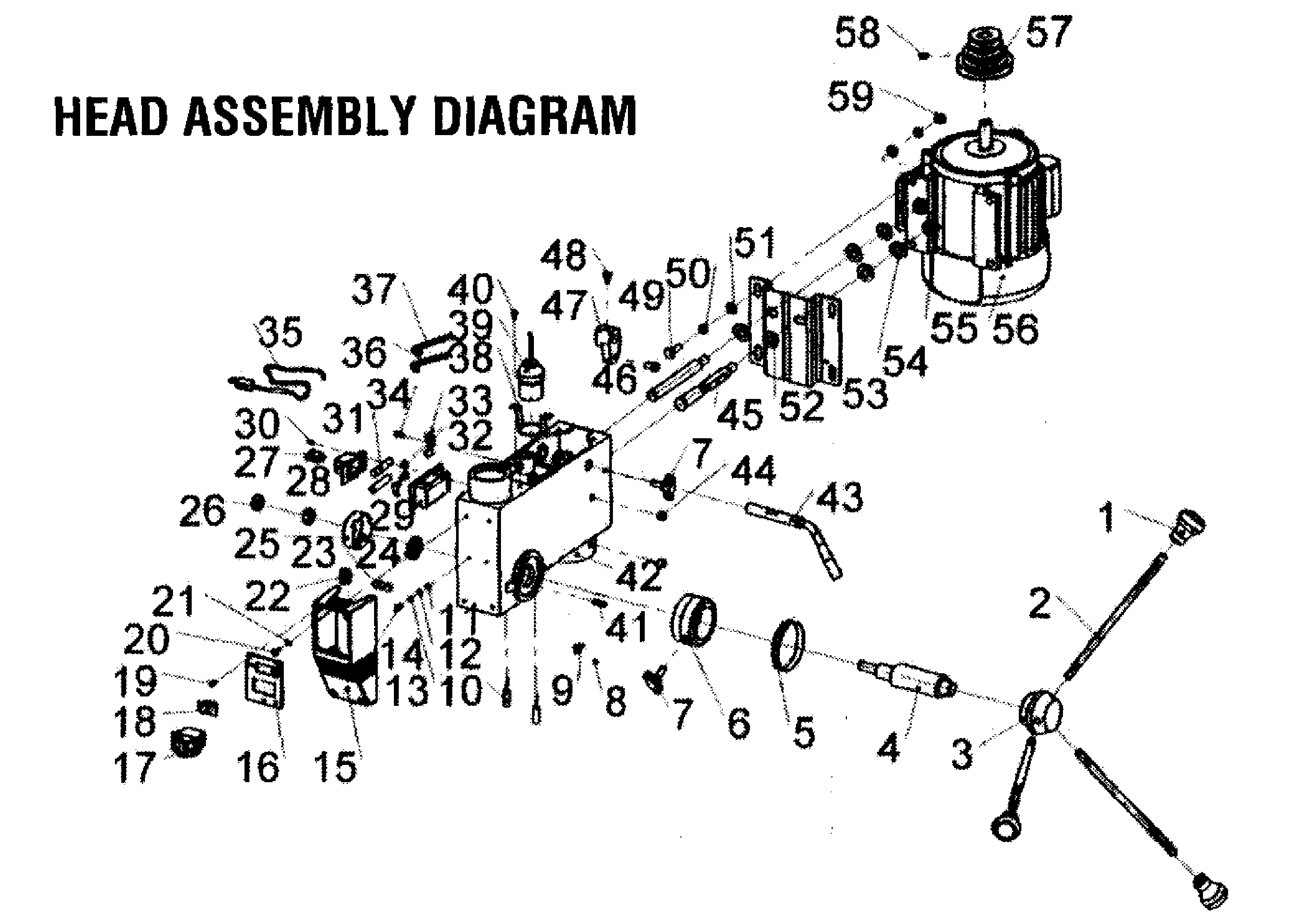

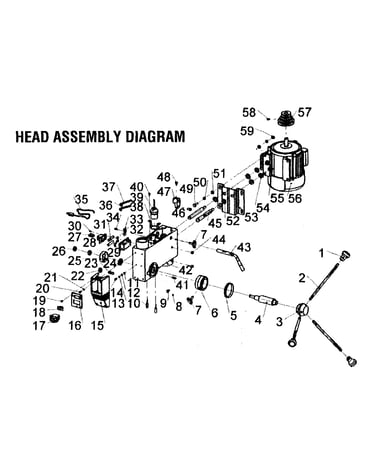

Dril press diagram

Bar,motor

Part #PB214-45-HY

The manufacturer no longer makes this part, and there's no substitute part

Holder,tab PB214-214-HY
#14

Head assy diagram

Holder,tab

Part #PB214-214-HY

The manufacturer no longer makes this part, and there's no substitute part

Gear Pin PB214-221-HY
#21

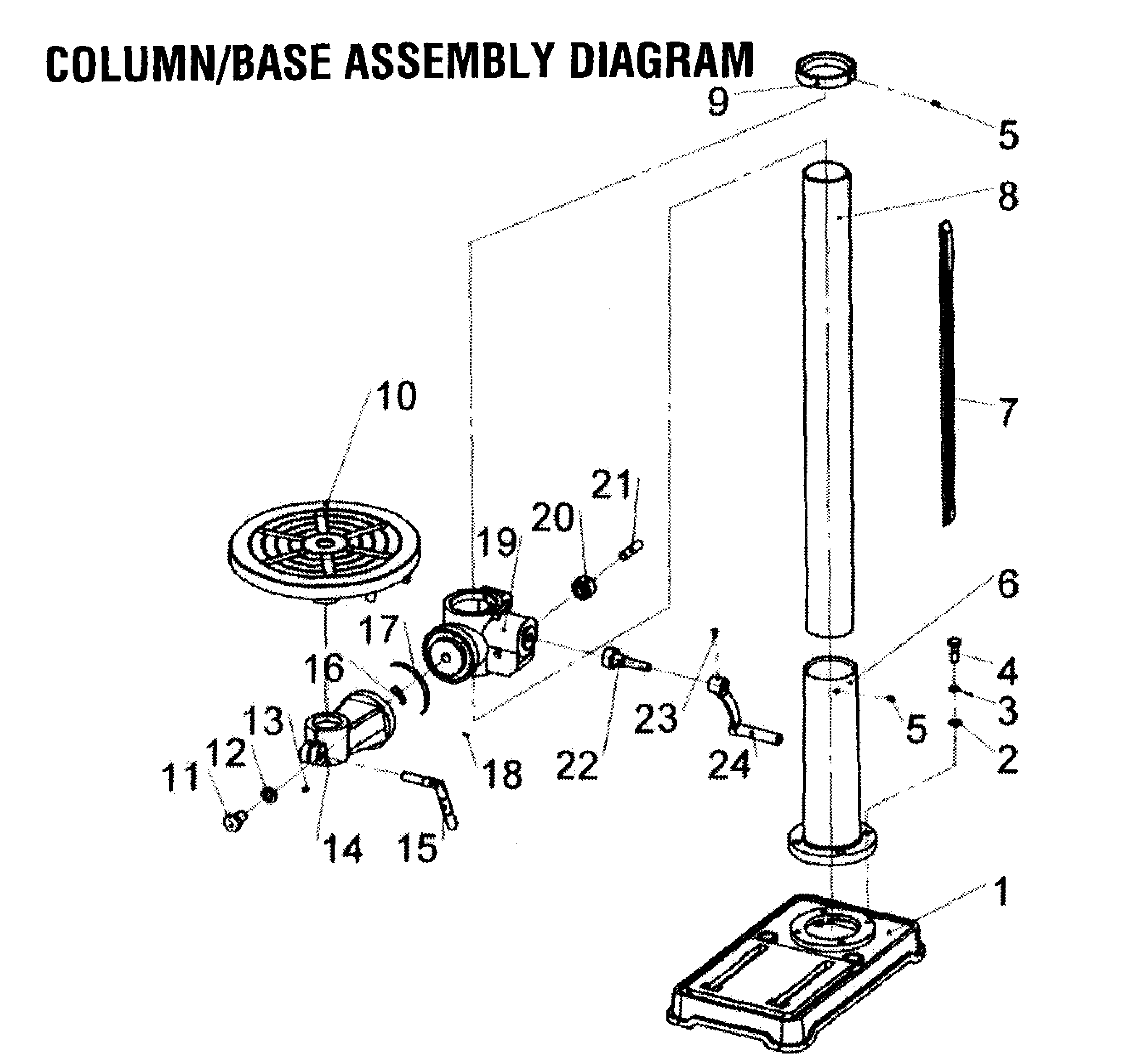

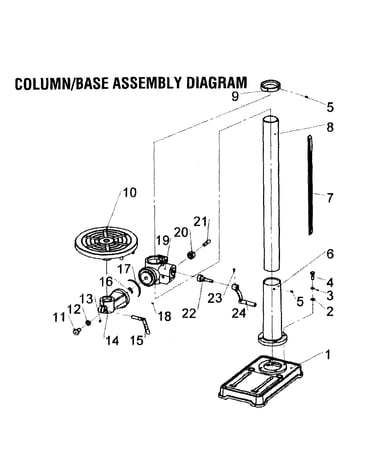

Head assy diagram

Gear pin

Part #PB214-221-HY

The manufacturer no longer makes this part, and there's no substitute part

Handle Loc PB214-215-HY
#15

Head assy diagram

Handle loc

Part #PB214-215-HY

The manufacturer no longer makes this part, and there's no substitute part

Washer PB214-50-HY
#50

Dril press diagram

Washer

Part #PB214-50-HY

The manufacturer no longer makes this part, and there's no substitute part

Holder,han PB214-03-HY
#3

Dril press diagram

Holder,han

Part #PB214-03-HY

The manufacturer no longer makes this part, and there's no substitute part

Spacer PB214-318-HY
#18

Pulley assy diagram

Spacer

Part #PB214-318-HY

The manufacturer no longer makes this part, and there's no substitute part

Motor Pulley PB214-57-HY
#57

Dril press diagram

Motor pulley

Part #PB214-57-HY

The manufacturer no longer makes this part, and there's no substitute part

Depth Knob PB214-07-HY
#7

Dril press diagram

Depth knob

Part #PB214-07-HY

The manufacturer no longer makes this part, and there's no substitute part
