Amana
Side-By-Side Refrigerator

Model # SX25MG-P1120706WG Official Amana side-by-side refrigerator/freezer - m model

Here are the diagrams and repair parts for Official Amana SX25MG-P1120706WG side-by-side refrigerator/freezer - m model, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

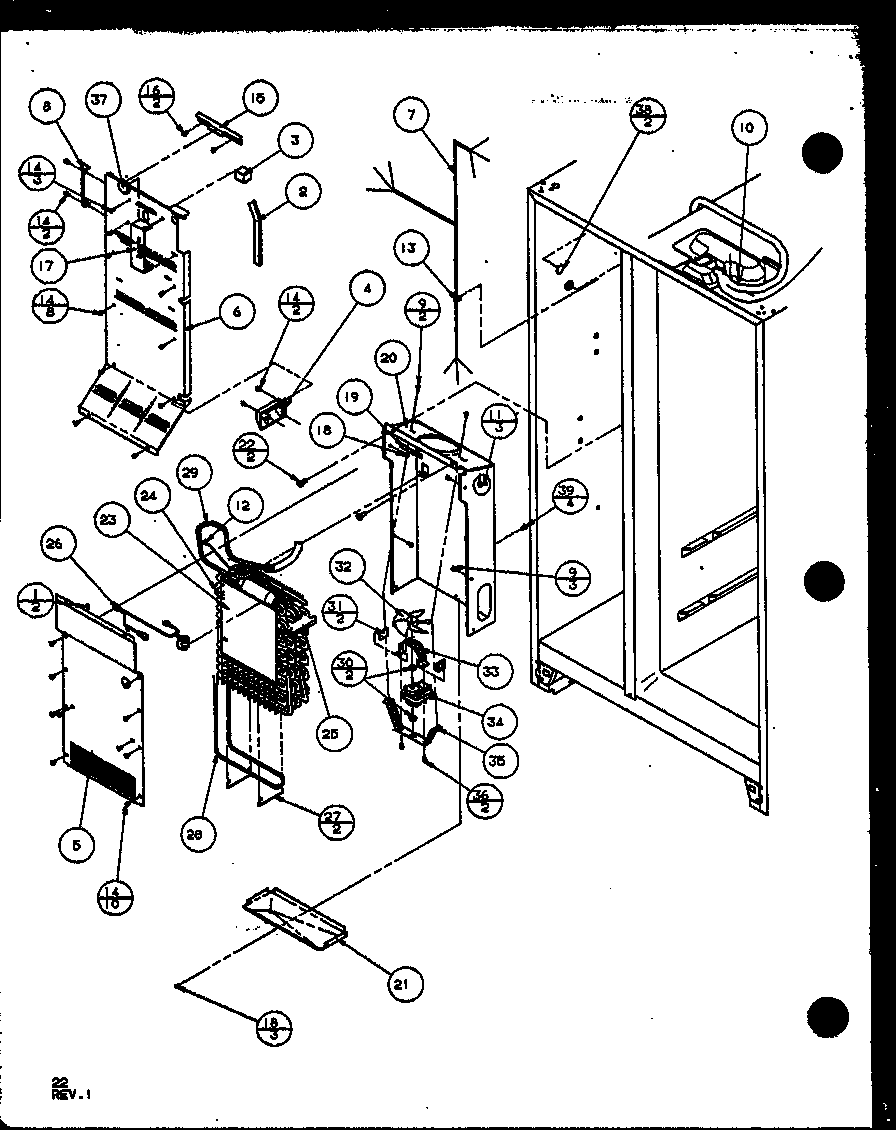

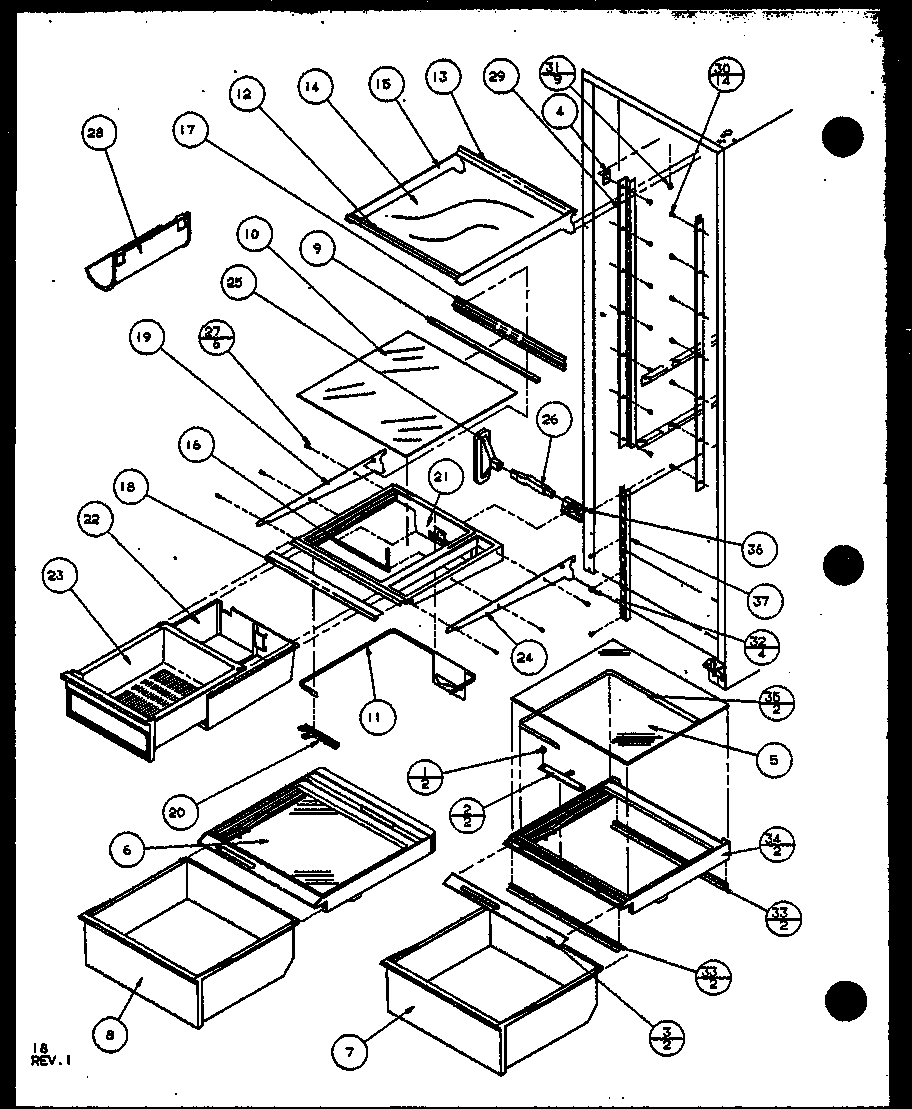

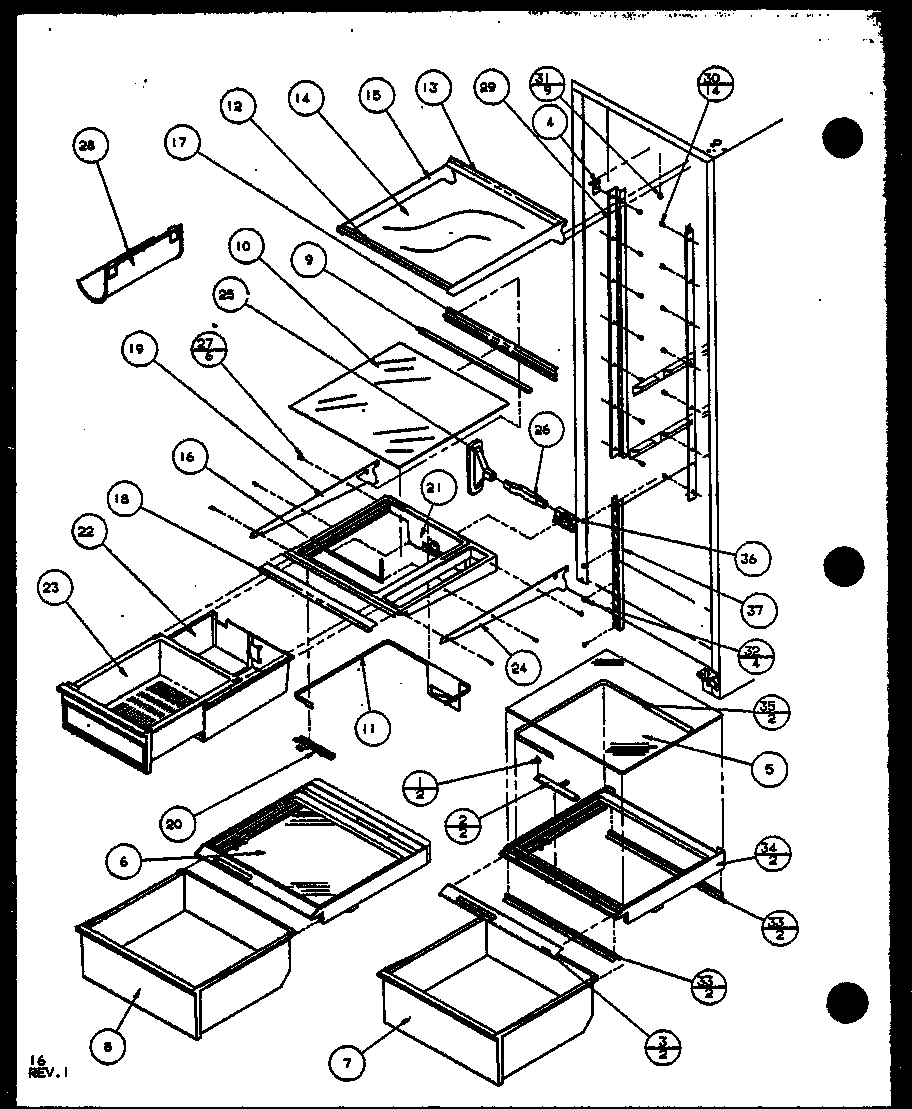

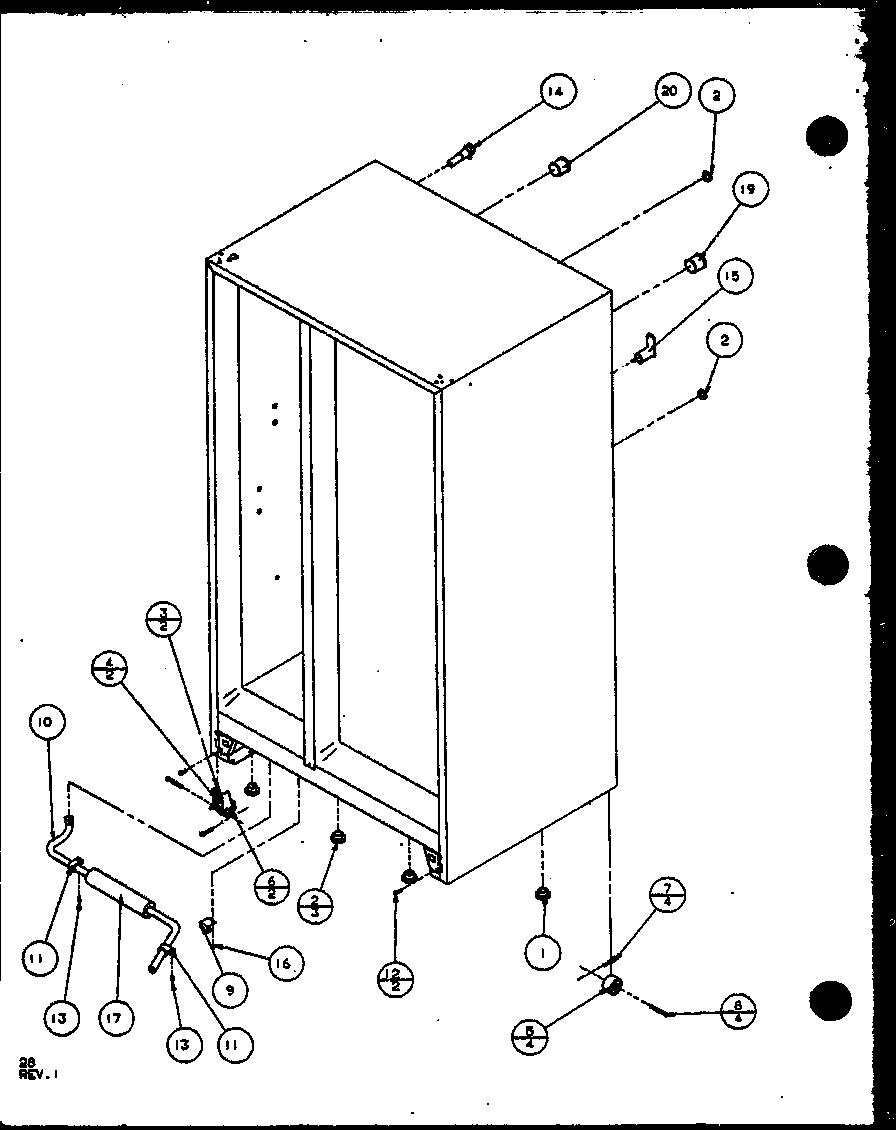

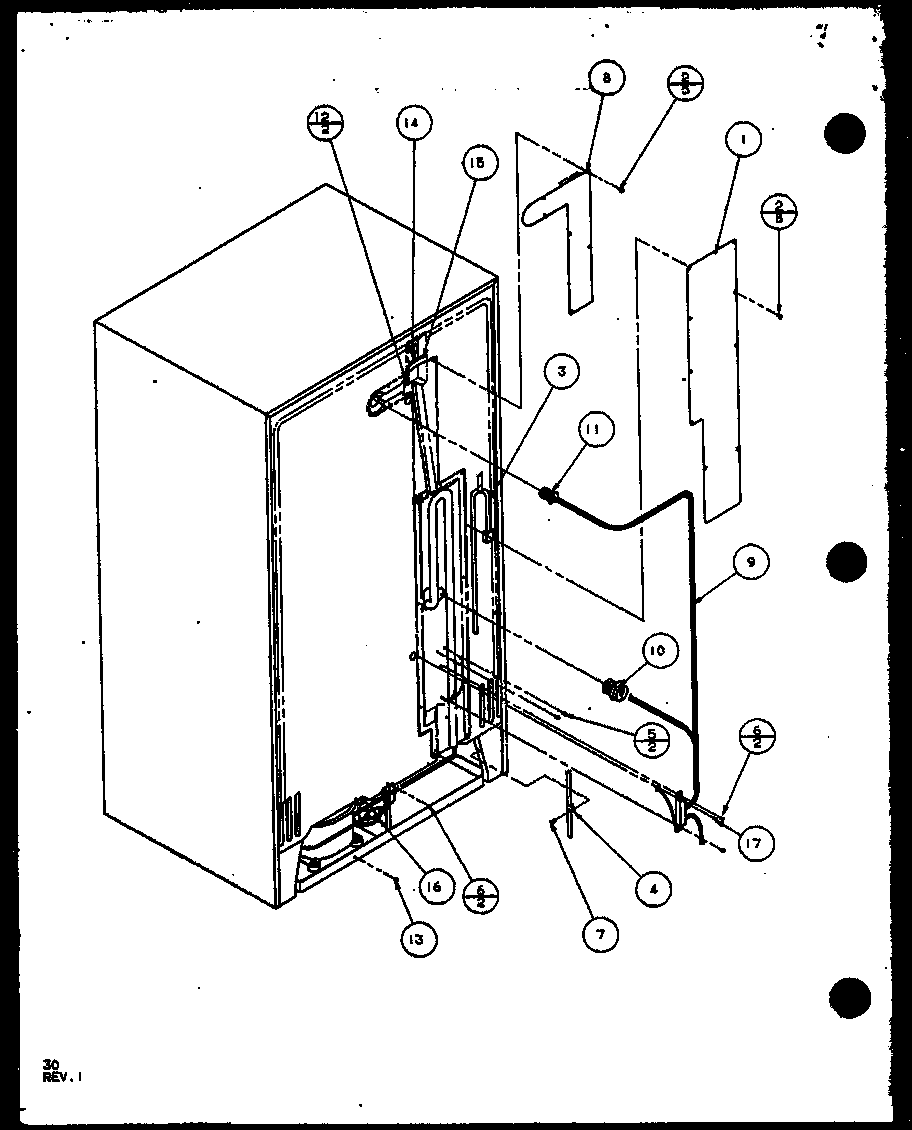

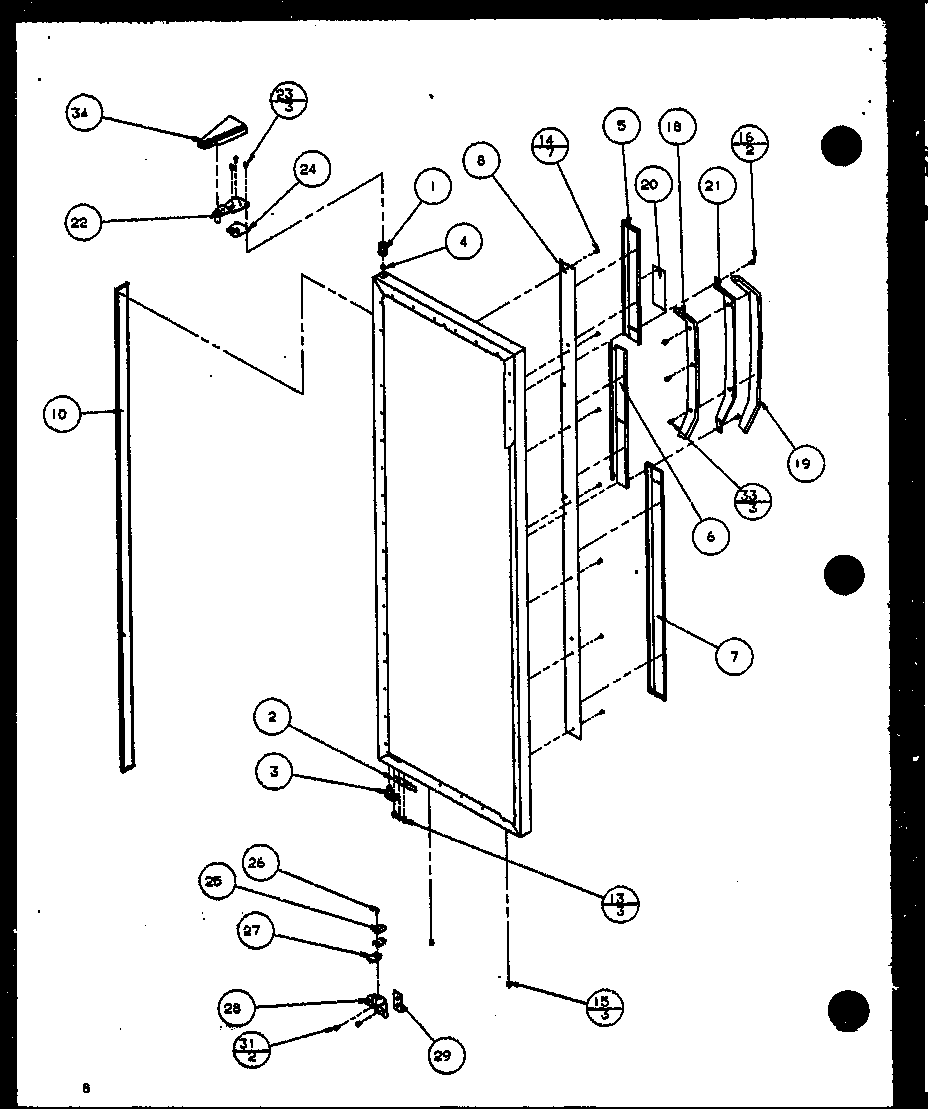

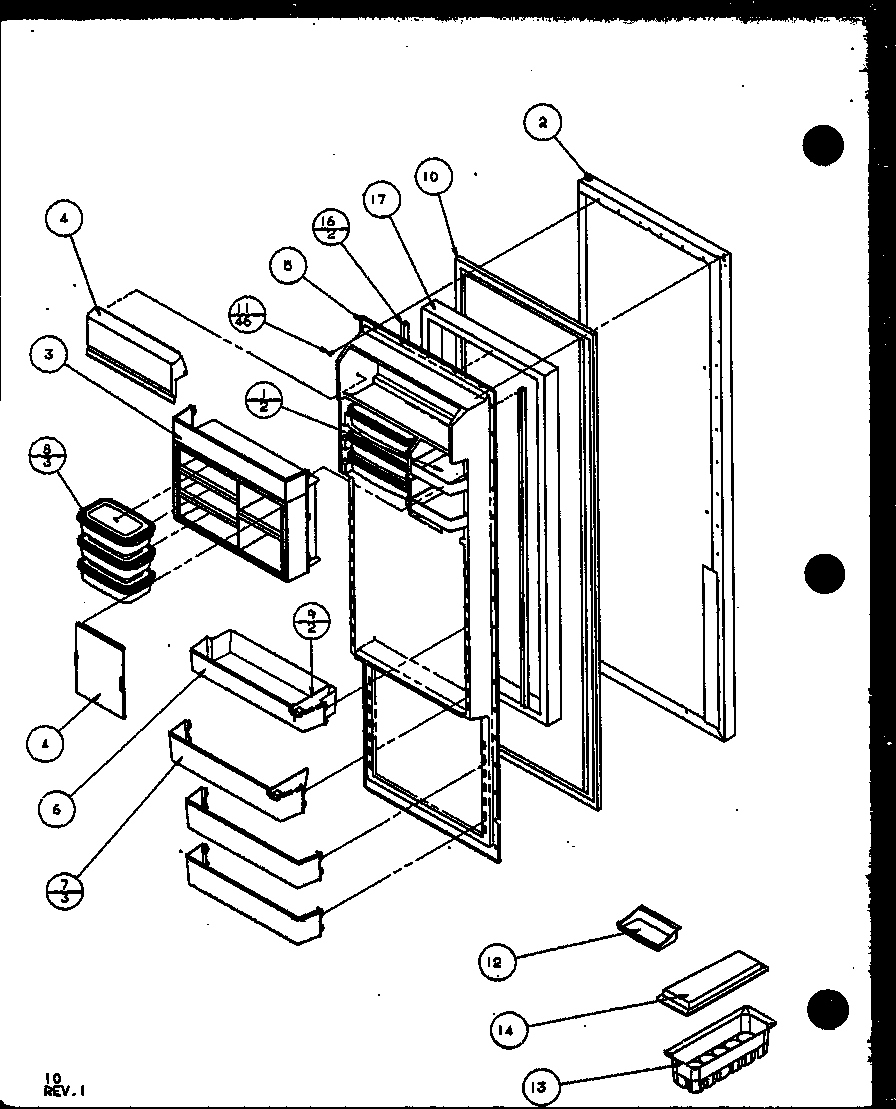

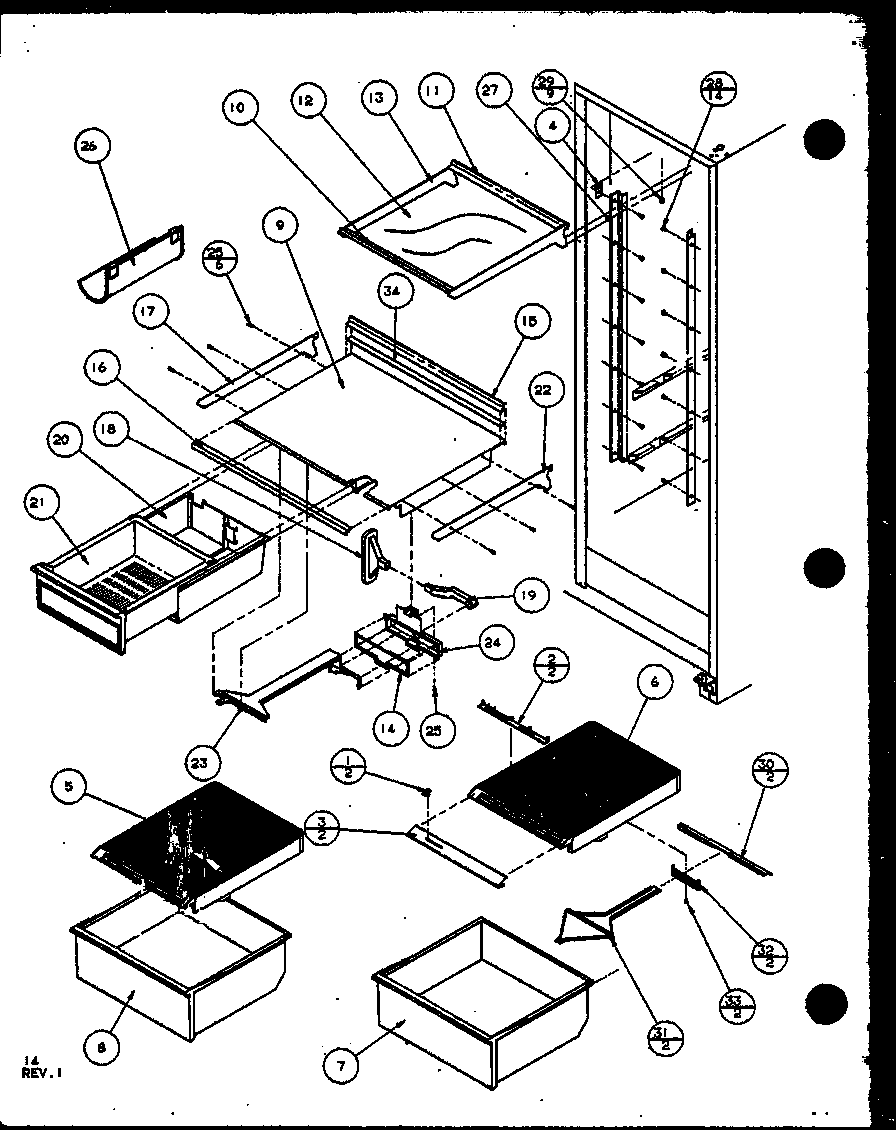

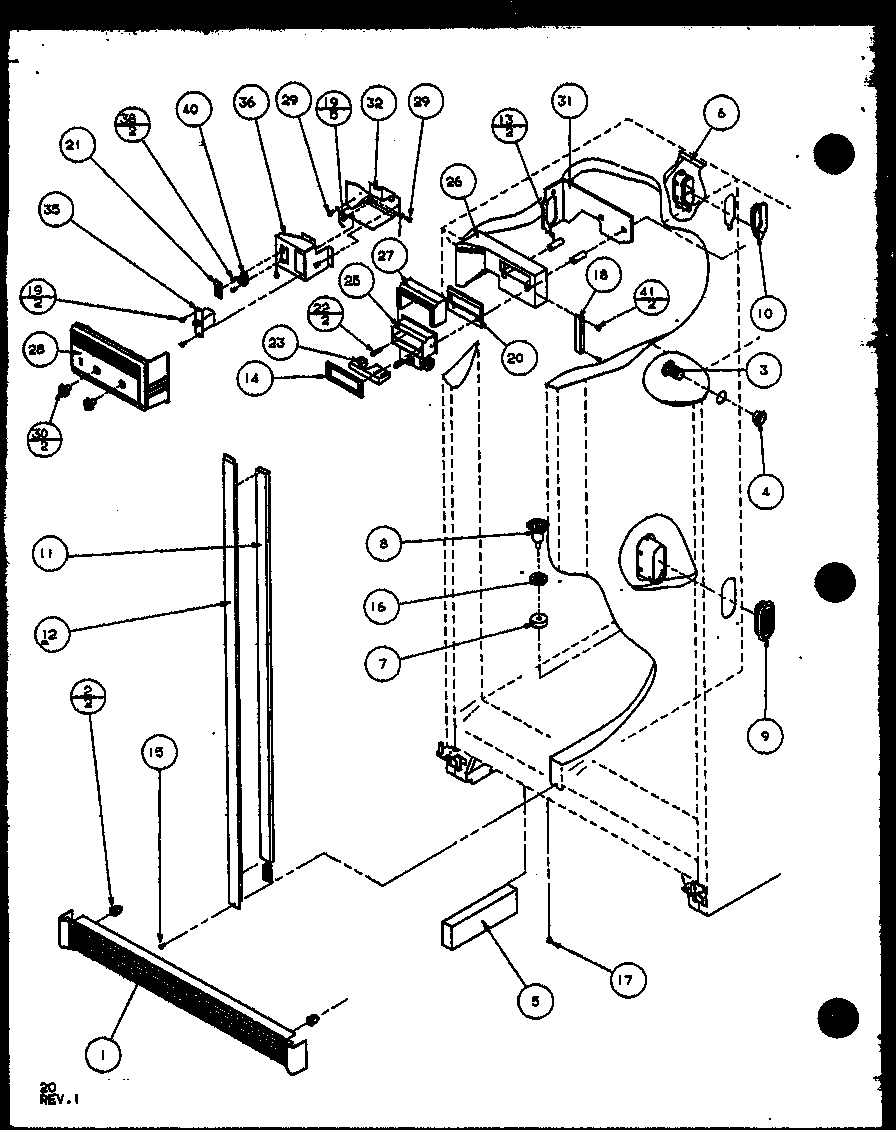

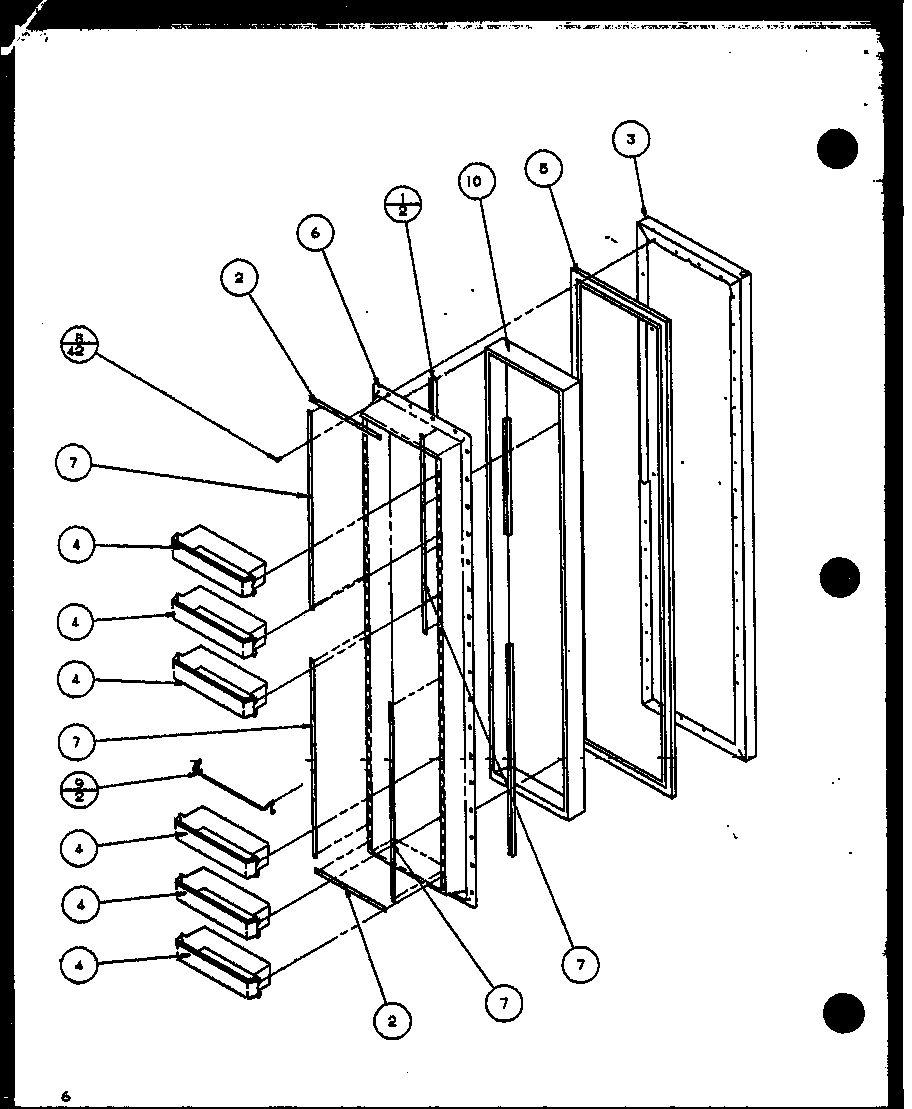

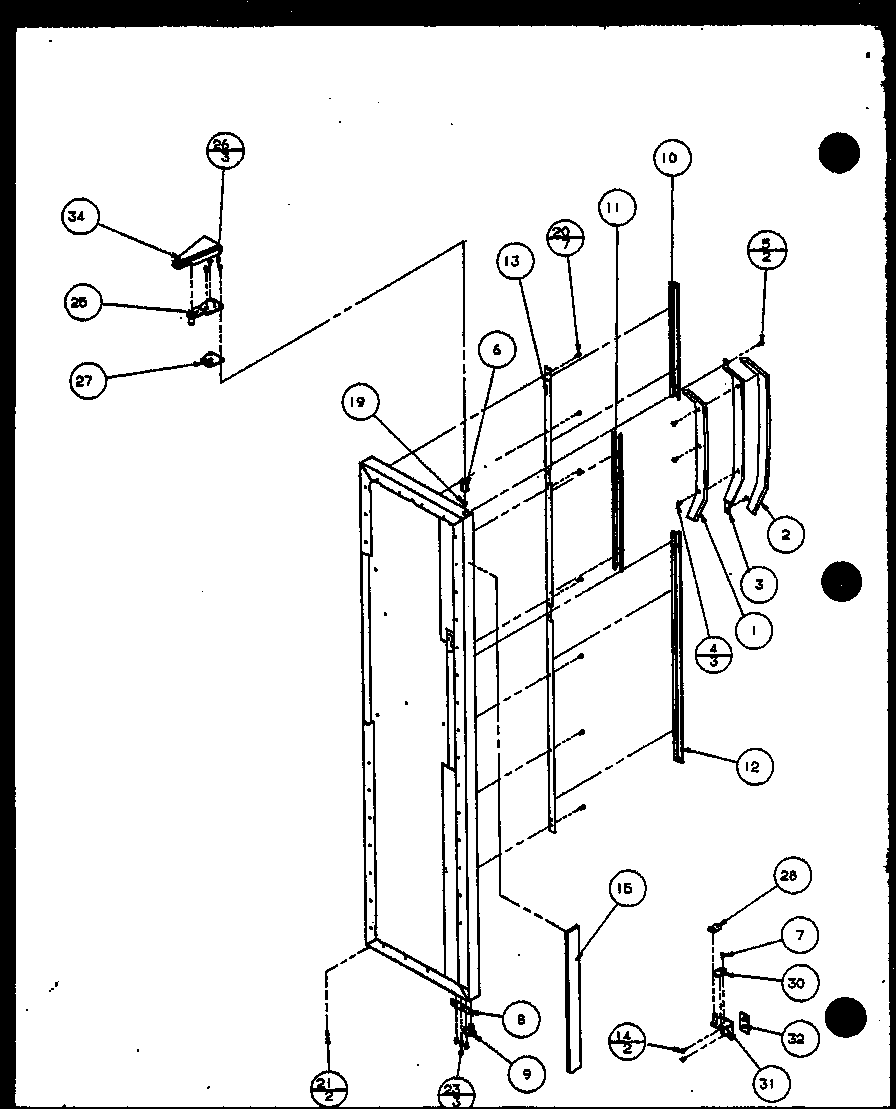

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 439 parts  |
Refrigerator Ice Maker R0161060
#5

8 cubc compact ice maker (ic4n/p1110801w) diagram

Refrigerator ice maker

Part #R0161060

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Motor R0167201
#7

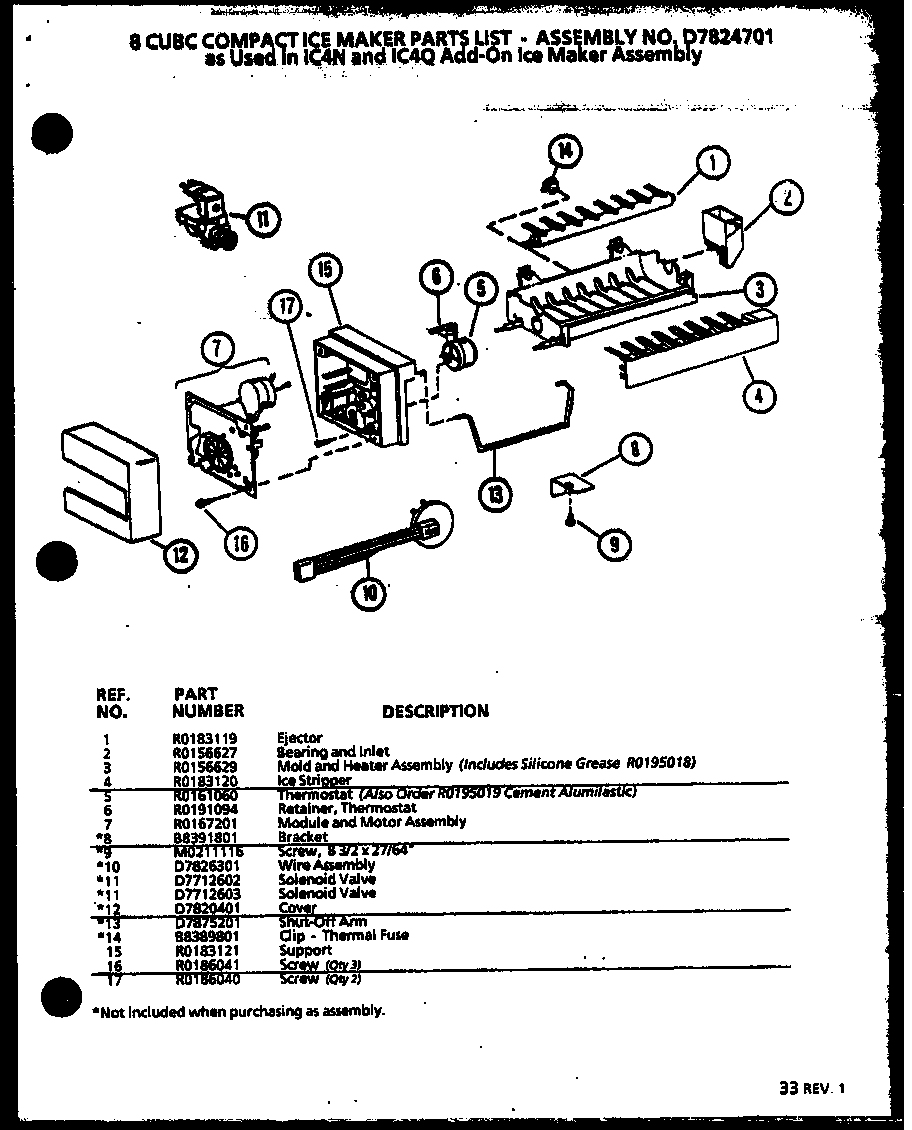

8 cubc compact ice maker (ic4n/p1110801w) diagram

Refrigerator motor

Part #R0167201

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces R0167201. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Refrigerator Ice Maker D7824701
#2

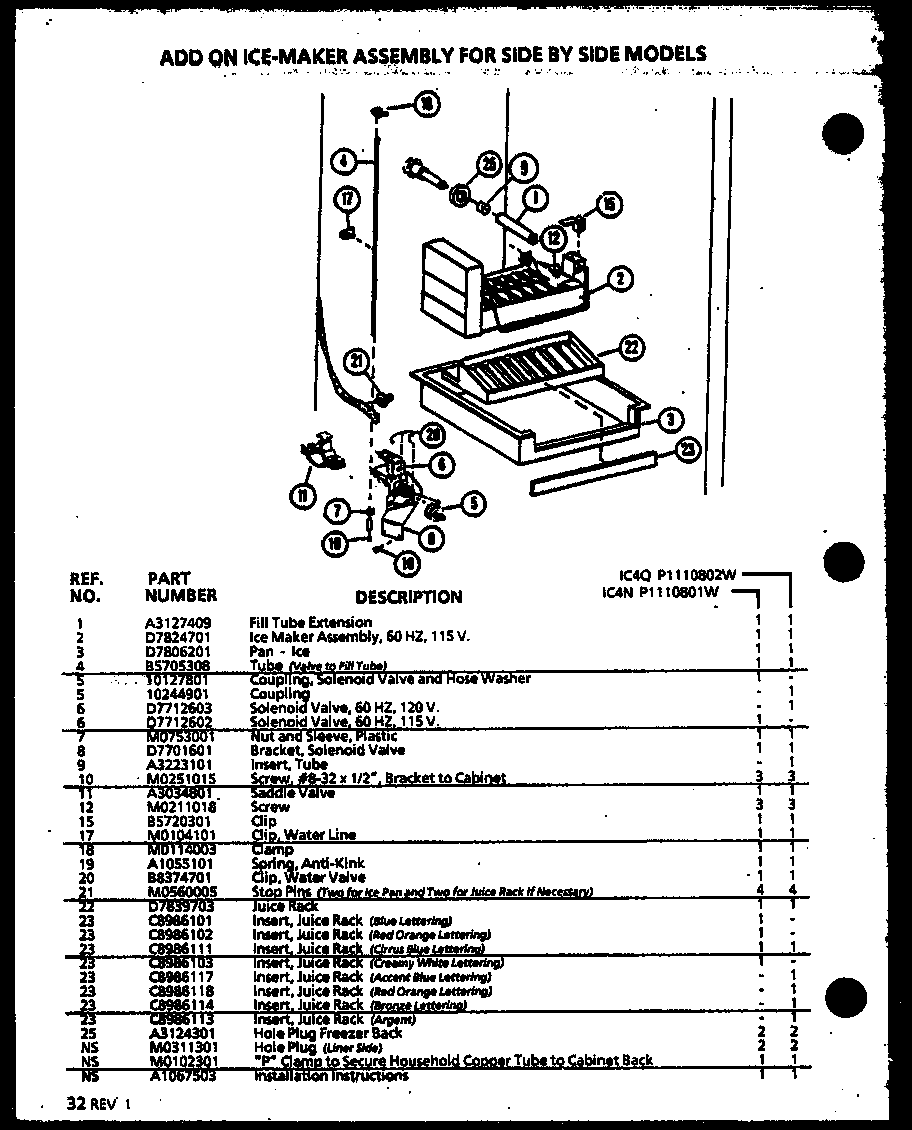

Add on ice-maker assembly for side by side models (ic4n/p1110801w) diagram

Refrigerator ice maker

Part #D7824701

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824701. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

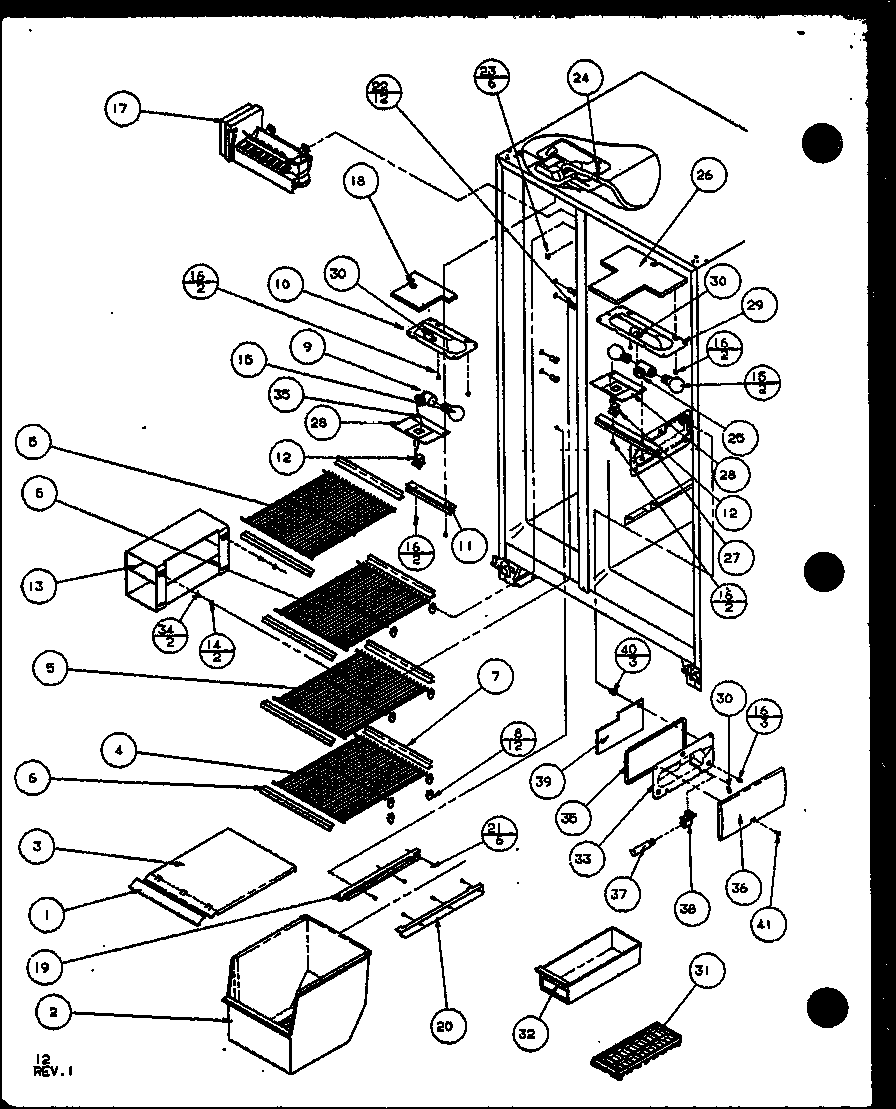

Freezer shelving and refrigerator light (sx19mw/p1121302ww) (sx19ml/p1121302wl) (sx22ml/p1120604wl) (sx22mg/p1120604wg) (sx22mw/p1120603ww) (sx22mw/p1120604ww) (sx22ml/p1120603wl) (sx22mg/p1120603wg) (sx25mw/p1120705ww) (sx25m2w/p1154902ww) (sx25ml/p11207 diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Capacitor C8931602
#22

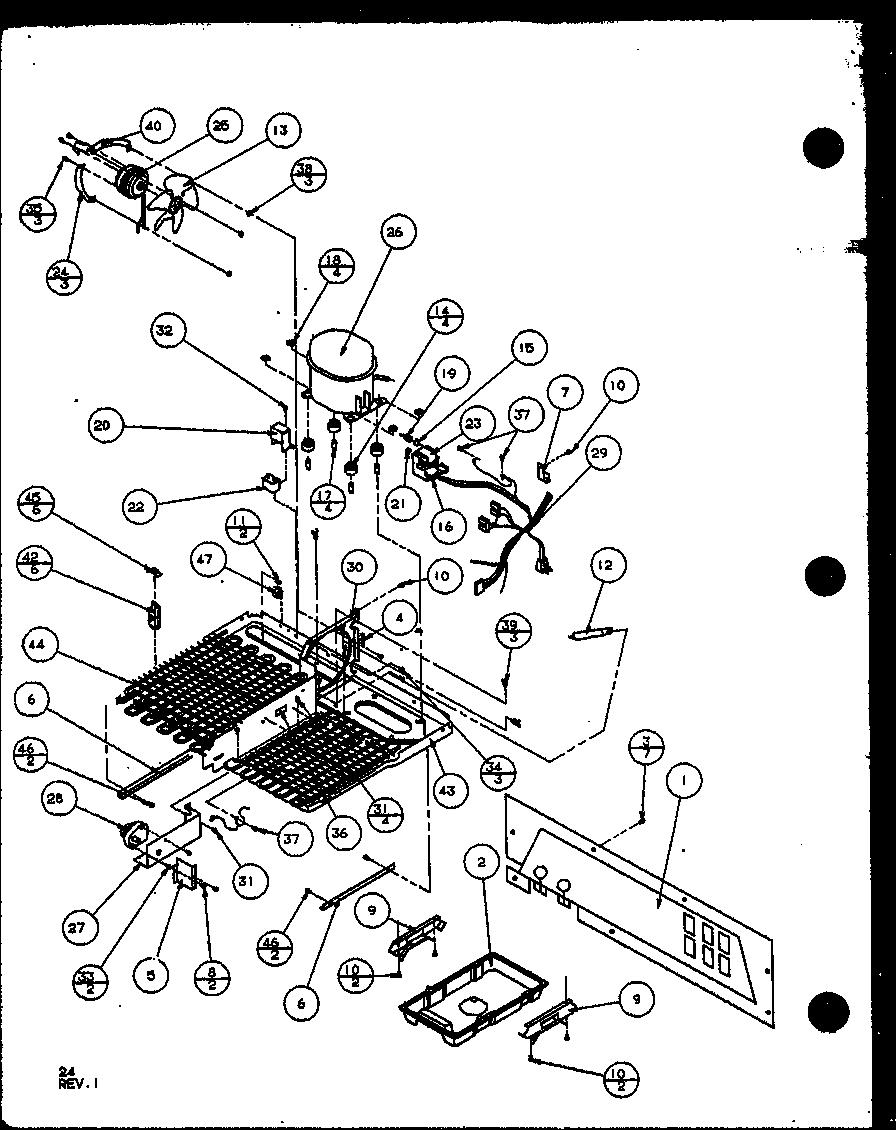

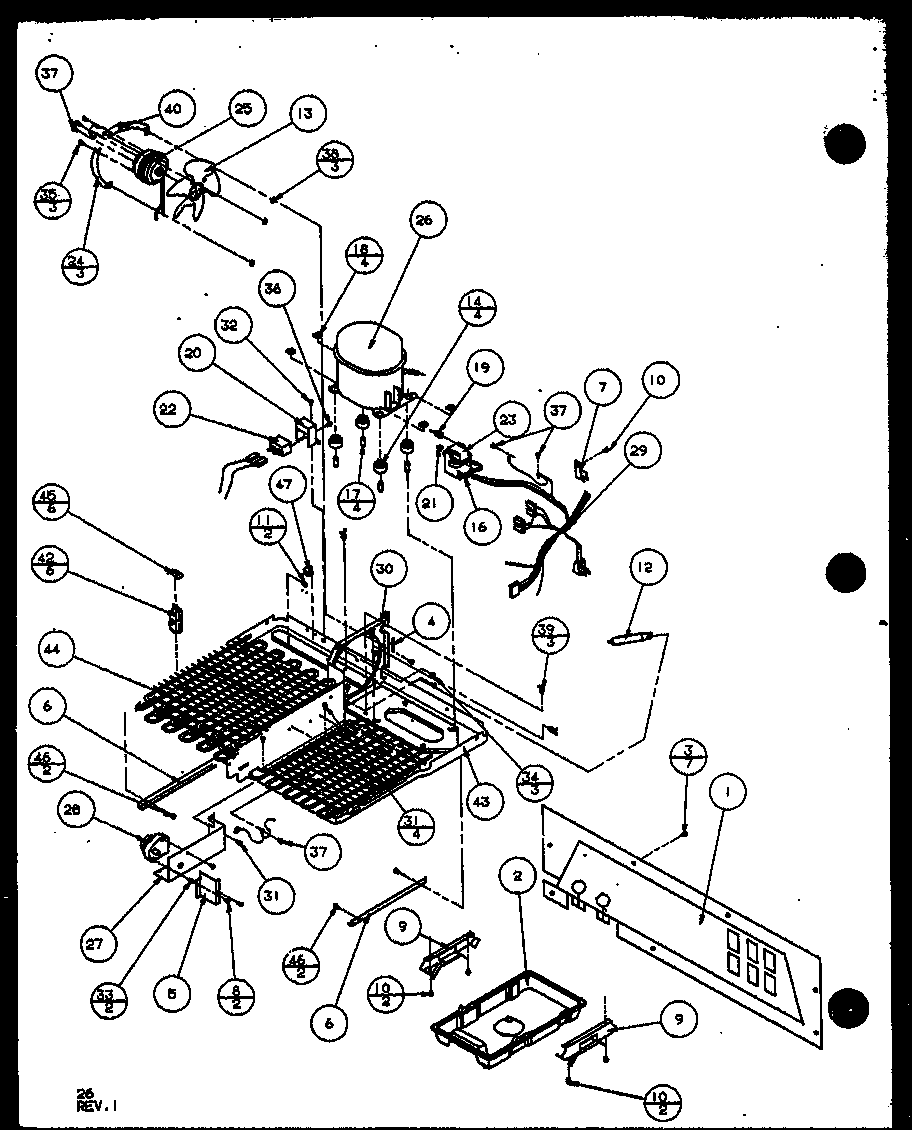

Machine compartment - panasonic compressor (sx19mw/p1121302ww) (sx19ml/p1121302wl) (sx22ml/p1120604wl) (sx22mg/p1120604wg) (sx22mw/p1120603ww) (sx22mw/p1120604ww) (sx22ml/p1120603wl) (sx22mg/p1120603wg) (sx25mw/p1120705ww) (sx25m2w/p1154902ww) (sx25ml/p11 diagram

Refrigerator capacitor

Part #C8931602

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces C8931602. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Refrigerator Fan Motor D7584001
#25B

Machine compartment - panasonic compressor (sx19mw/p1121302ww) (sx19ml/p1121302wl) (sx22ml/p1120604wl) (sx22mg/p1120604wg) (sx22mw/p1120603ww) (sx22mw/p1120604ww) (sx22ml/p1120603wl) (sx22mg/p1120603wg) (sx25mw/p1120705ww) (sx25m2w/p1154902ww) (sx25ml/p11 diagram

Refrigerator fan motor

Part #D7584001

Replaced by #833697

?
Manufacturer substitution
This part replaces D7584001. Substitute parts can look different from the original.
BEST SELLER
$62.30 |
9% OFF Phone Price : $68.30
In Stock
Refrigerator Fan Motor D7584002
Refrigerator fan motor

Part #D7584002

Replaced by #833697

?
Manufacturer substitution
This part replaces D7584002. Substitute parts can look different from the original.
BEST SELLER
$62.30 |
9% OFF Phone Price : $68.30
In Stock
Defrost Timer 10129304
Defrost timer

Part #10129304

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bulb A3079001
#37

Freezer shelving and refrigerator light (sx19mw/p1121302ww) (sx19ml/p1121302wl) (sx22ml/p1120604wl) (sx22mg/p1120604wg) (sx22mw/p1120603ww) (sx22mw/p1120604ww) (sx22ml/p1120603wl) (sx22mg/p1120603wg) (sx25mw/p1120705ww) (sx25m2w/p1154902ww) (sx25ml/p11207 diagram

Refrigerator bulb

Part #A3079001

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces A3079001. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Fitting M0753001
#7

Add on ice-maker assembly for side by side models (ic4n/p1110801w) diagram

Fitting

Part #M0753001

The manufacturer no longer makes this part, and there's no substitute part
