Here are the diagrams and repair parts for Official Kenmore 1106617241 gas coin-operated dryer, as well as links to manuals and error code tables, if available.

By Schematic

By Part

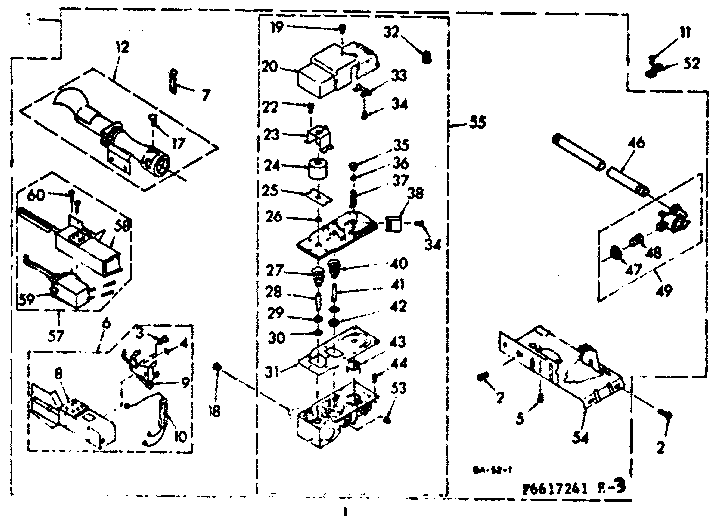

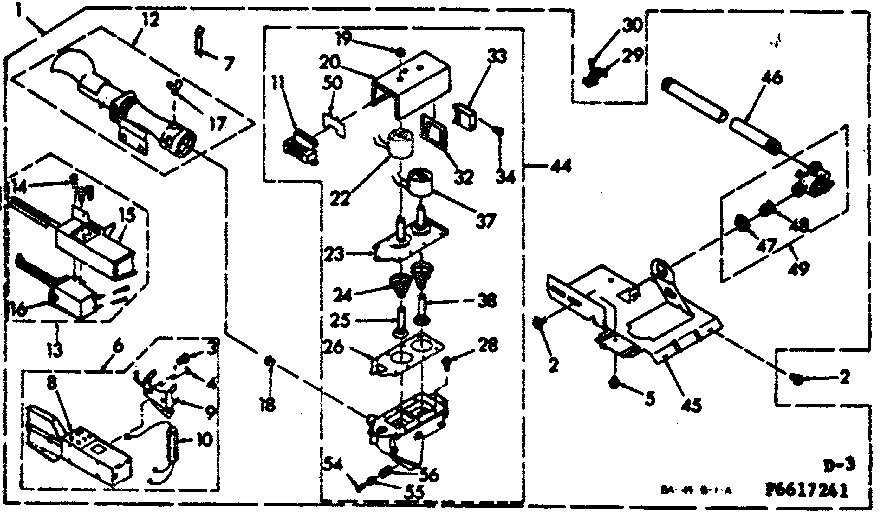

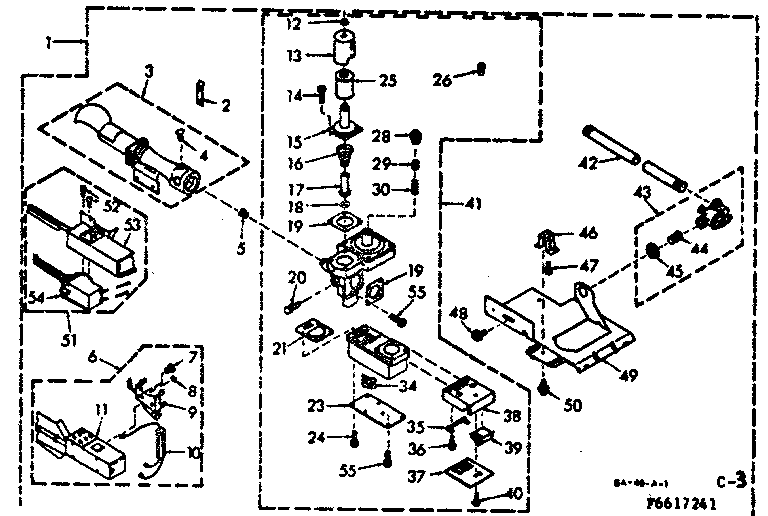

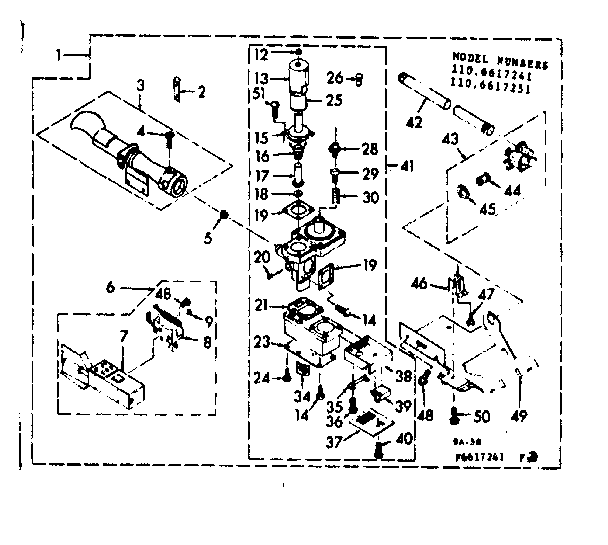

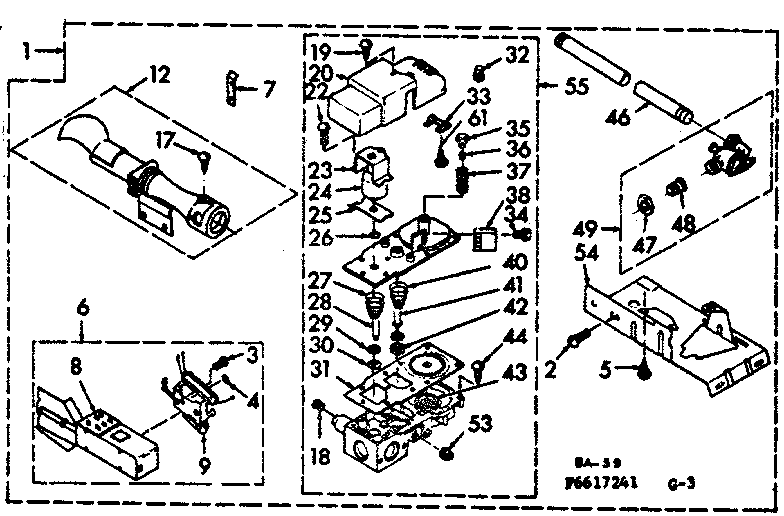

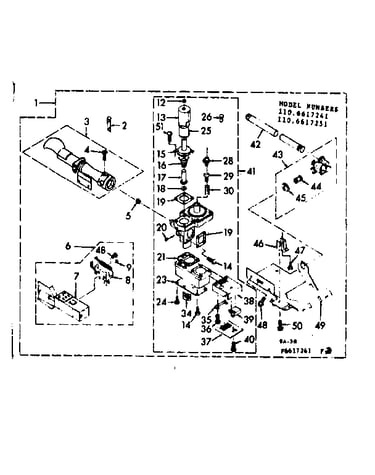

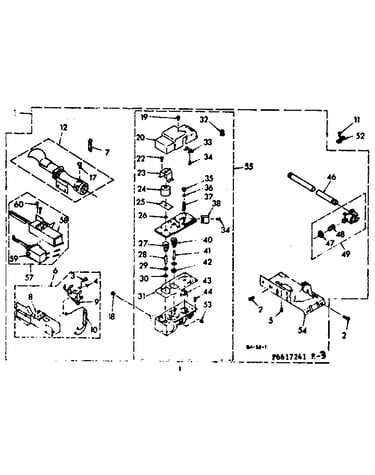

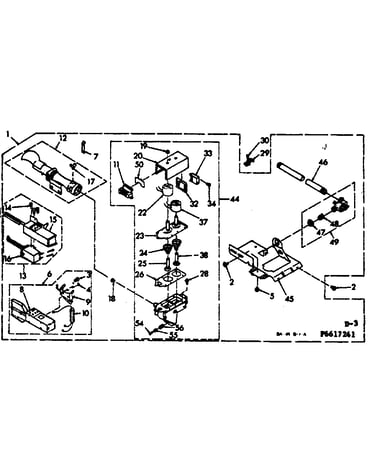

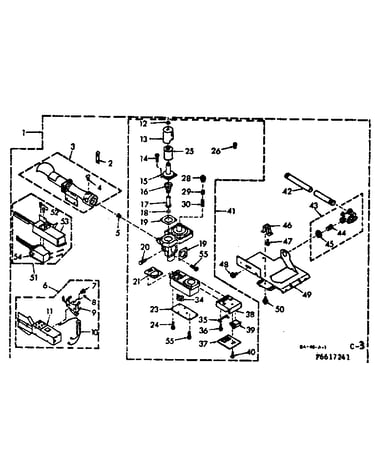

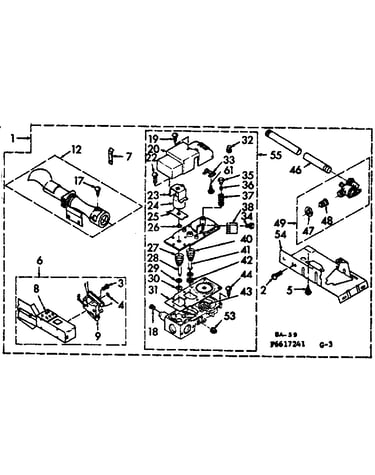

SELECT DIAGRAM

Browse Parts for1106617241 Gas Coin-Operated Dryer

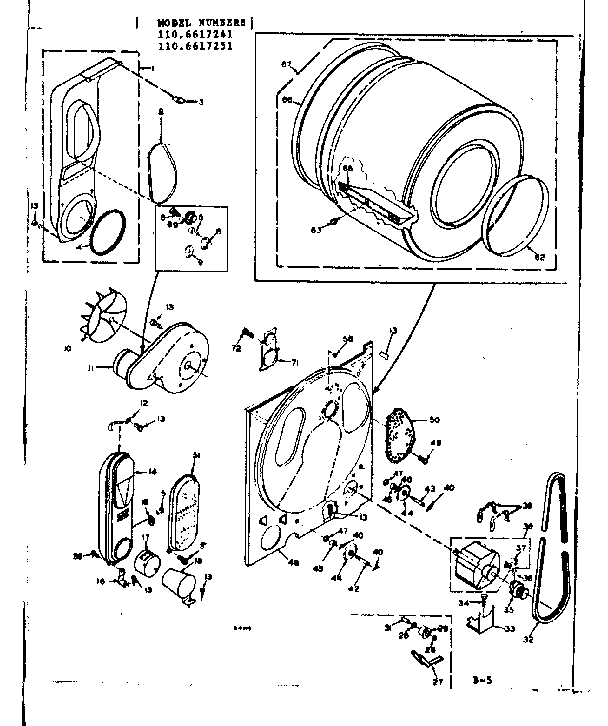

#38

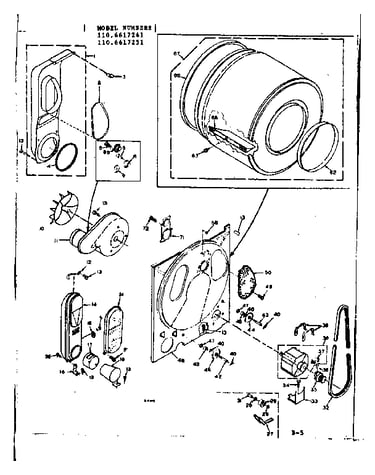

Bulkhead assembly diagram
Drive motor
Part #299992
Replaced by #279827
?
Manufacturer substitution
This part replaces 299992. Substitute parts can look different from the original.
4.4 (53)
$81.17 |
7% OFF Phone Price : $87.17
In Stock
Qty
#37
Bulkhead assembly diagram
Switch
Part #337351
Replaced by #279827
?
Manufacturer substitution
This part replaces 337351. Substitute parts can look different from the original.
4.4 (53)
$81.17 |
7% OFF Phone Price : $87.17
In Stock
Qty
#10
Bulkhead assembly diagram
Dryer blower wheel
Part #299678
Replaced by #WP694089
?
Manufacturer substitution
This part replaces 299678. Substitute parts can look different from the original.
5 (6)
$23.60 |
20% OFF Phone Price : $29.60
In Stock
Qty
#77

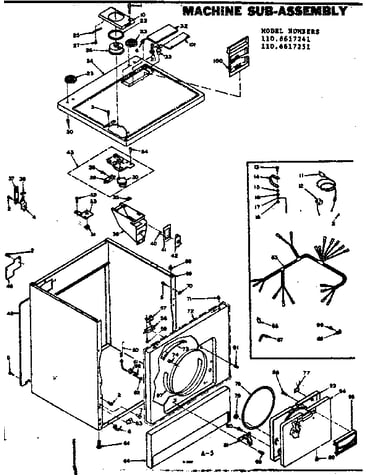

Machine sub-assembly diagram
Catch
Part #236877
Replaced by #279570
?
Manufacturer substitution
This part replaces 236877. Substitute parts can look different from the original.
4.5 (102)
This item is not returnable
$4.25 |
19% OFF Phone Price : $5.25
In Stock
Qty
#91
Machine sub-assembly diagram
Door strike
Part #236876
Replaced by #279570
?
Manufacturer substitution
This part replaces 236876. Substitute parts can look different from the original.
4.5 (102)
This item is not returnable
$4.25 |
19% OFF Phone Price : $5.25
In Stock
Qty
#2
Bulkhead assembly diagram
Dryer lint screen housing foam seal
Part #339956
Replaced by #WP339956
?
Manufacturer substitution
This part replaces 339956. Substitute parts can look different from the original.
3.7 (3)
This item is not returnable
$6.57 |
13% OFF Phone Price : $7.57
In Stock
Qty
#42
Bulkhead assembly diagram
Shaft
Part #339490
Replaced by #WPW10359270
?
Manufacturer substitution
This part replaces 339490. Substitute parts can look different from the original.
4.1 (8)
$36.51 |
14% OFF Phone Price : $42.51
In Stock
Qty
#4
Bulkhead assembly diagram
Chute seal
Part #337179
Replaced by #W11415783
?
Manufacturer substitution
This part replaces 337179. Substitute parts can look different from the original.
3 (1)
This item is not returnable
$12.07 |
14% OFF Phone Price : $14.07
In Stock
Qty
#43
Bulkhead assembly diagram
Shaft
Part #339489
Replaced by #WPW10359269
?
Manufacturer substitution
This part replaces 339489. Substitute parts can look different from the original.
4.5 (2)
$43.11 |
12% OFF Phone Price : $49.11
In Stock
Qty
Tap screw
Part #90767
Replaced by #WP90767
?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
1 (1)
This item is not returnable
$4.31 |
19% OFF Phone Price : $5.31
In Stock
Qty
