White-Westinghouse
Electric Range

Model # KF520GDW2 Official White-Westinghouse 30" electric freestanding range - l2811078

Here are the diagrams and repair parts for Official White-Westinghouse KF520GDW2 30" electric freestanding range - l2811078, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

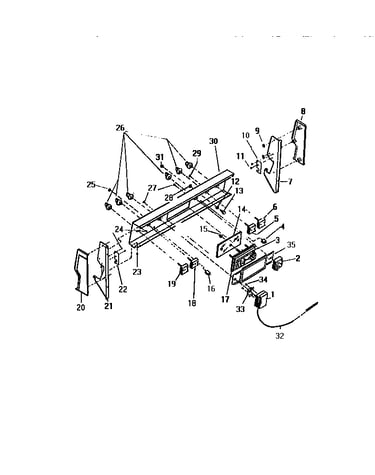

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Base 500411
#57

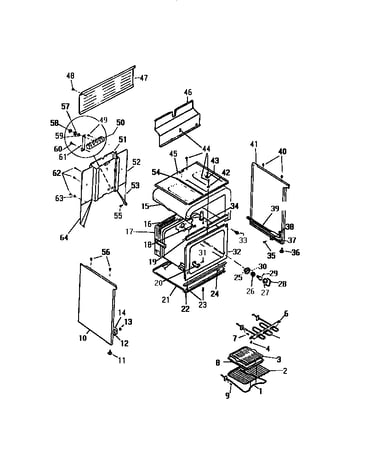

Body, side panels diagram

Base

Part #500411

Replaced by #3281107

?
Manufacturer substitution
This part replaces 500411. Substitute parts can look different from the original.
$14.14
In Stock
End Panel, Rh, Avocado K5024607
#41

Body, side panels diagram

End panel, rh, avocado

Part #K5024607

The manufacturer no longer makes this part, and there's no substitute part

End Panel, Rh, Wheat K5024609
#41

Body, side panels diagram

End panel, rh, wheat

Part #K5024609

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block (4) K1167733
#11

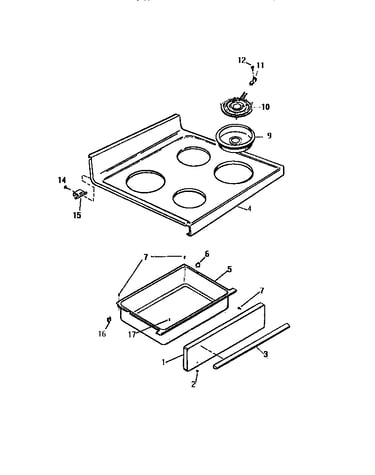

Top/drawer diagram

Terminal block (4)

Part #K1167733

The manufacturer no longer makes this part, and there's no substitute part

Lens K1325528
#27

Body, side panels diagram

Lens

Part #K1325528

The manufacturer no longer makes this part, and there's no substitute part

Screw K1164477
Screw

Part #K1164477

The manufacturer no longer makes this part, and there's no substitute part

End Panel, Lh, Coffee K5024606
#10

Body, side panels diagram

End panel, lh, coffee

Part #K5024606

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Therm. Bulb K1311369
#20

Body, side panels diagram

Bracket, therm. bulb

Part #K1311369

The manufacturer no longer makes this part, and there's no substitute part

Wire Shield K5029503
#46

Body, side panels diagram

Wire shield

Part #K5029503

The manufacturer no longer makes this part, and there's no substitute part

Hanger K1314456
#6

Body, side panels diagram

Hanger

Part #K1314456

The manufacturer no longer makes this part, and there's no substitute part
