Model # 11620804 Official Kenmore vacuum cleaner & attachment set
Here are the diagrams and repair parts for Official Kenmore 11620804 vacuum cleaner & attachment set, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
11620804 Vacuum Cleaners
#NI
All parts diagram
Instruction insert
Part #763618
The manufacturer no longer makes this part, and there's no substitute part
#47

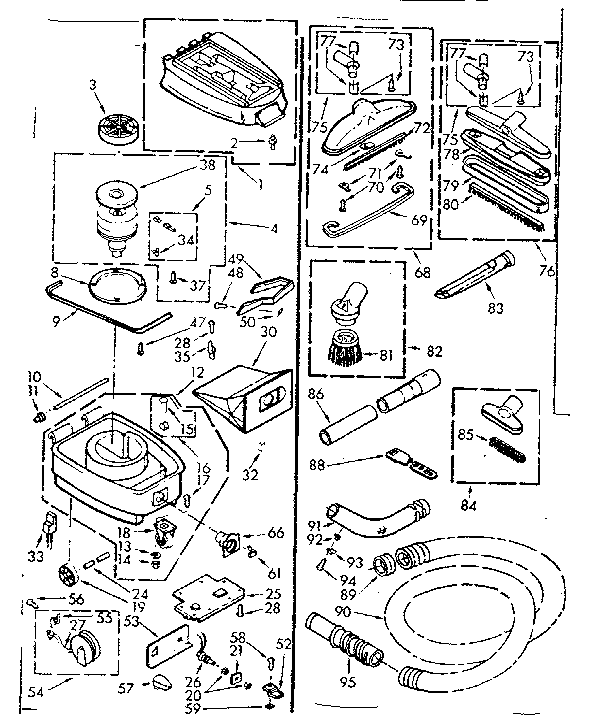

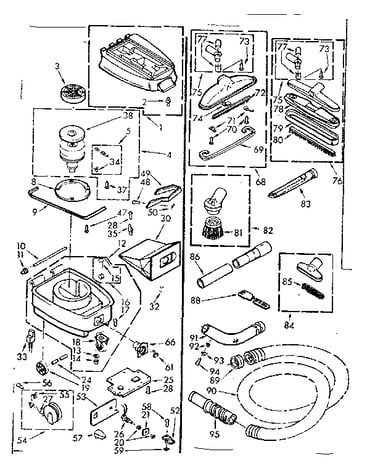

Unit parts diagram
Screw
Part #681265
The manufacturer no longer makes this part, and there's no substitute part
#5
Unit parts diagram
Brush kit
Part #569379
The manufacturer no longer makes this part, and there's no substitute part
#85
Unit parts diagram
Upholstery brush
Part #721677
The manufacturer no longer makes this part, and there's no substitute part
#84
Unit parts diagram
Brush
Part #722370
The manufacturer no longer makes this part, and there's no substitute part
#71
Unit parts diagram
Anchor
Part #668157
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Parts list
Part #763755
The manufacturer no longer makes this part, and there's no substitute part
#53
Unit parts diagram
Cover
Part #763169
The manufacturer no longer makes this part, and there's no substitute part
#83
Unit parts diagram
Crevice tool
Part #722374
The manufacturer no longer makes this part, and there's no substitute part
#57
Unit parts diagram
Plug
Part #569416
The manufacturer no longer makes this part, and there's no substitute part
