Kenmore
Countertop Microwave

Model # 7198842780 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7198842780 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

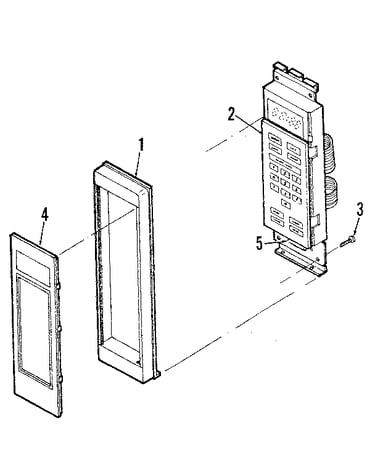

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Screw 636T143P01
#5

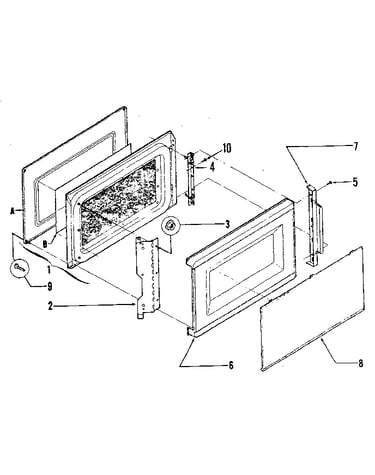

Door parts diagram

Screw

Part #636T143P01

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 636T143P01. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Magnetron 115T423P02
#1

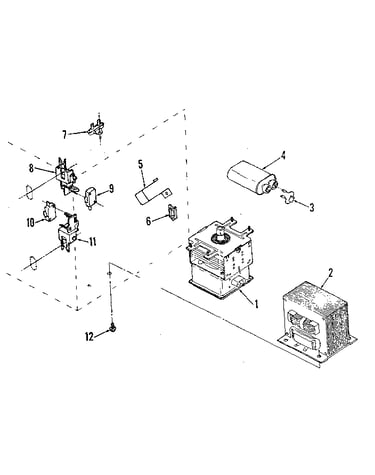

Power control parts diagram

Magnetron

Part #115T423P02

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Support 355T610S01
#26

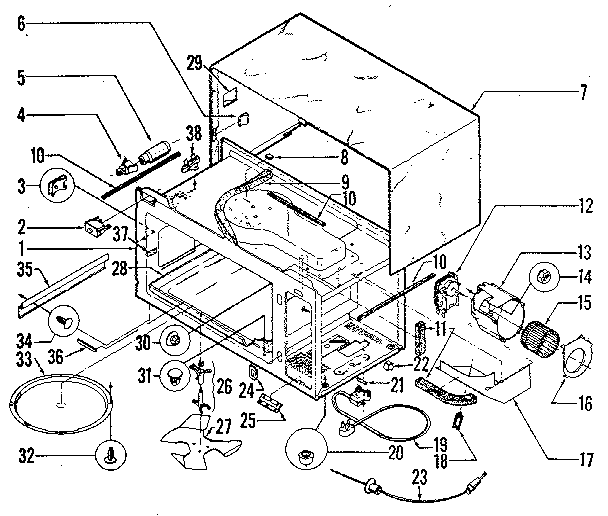

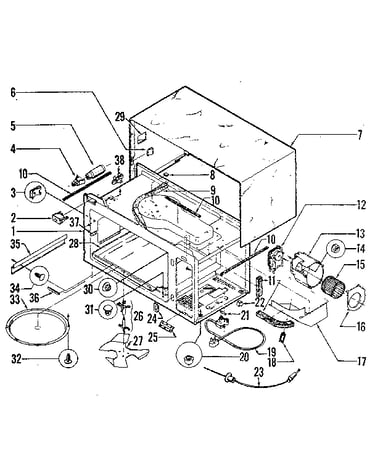

Body parts diagram

Stirrer support

Part #355T610S01

Replaced by #355T610S01

?
Manufacturer substitution
This part replaces 355T610S01. Substitute parts can look different from the original.
$7.99
In Stock
Fastener 241T017P235
#3

Body parts diagram

Fastener

Part #241T017P235

Replaced by #3203010

?
Manufacturer substitution
This part replaces 241T017P235. Substitute parts can look different from the original.
$14.69
In Stock
Rivet 615T030P05

#NI

All parts diagram

Rivet

Part #615T030P05

Replaced by #5303011680

?
Manufacturer substitution
This part replaces 615T030P05. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Air Duct 211T066P01
#17

Body parts diagram

Air duct

Part #211T066P01

Replaced by #5303273488

?
Manufacturer substitution
This part replaces 211T066P01. Substitute parts can look different from the original.
$8.19
In Stock
Plug 557T027P01

#NI

All parts diagram

Plug

Part #557T027P01

Replaced by #3013626

?
Manufacturer substitution
This part replaces 557T027P01. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Screw 636T090P54
#12C

Power control parts diagram

Screw

Part #636T090P54

Replaced by #5303273263

?
Manufacturer substitution
This part replaces 636T090P54. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw 3091100

#NI

All parts diagram

Screw

Part #3091100

Replaced by #5303273263

?
Manufacturer substitution
This part replaces 3091100. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Light Socket 662T043P02
#4

Body parts diagram

Light socket

Part #662T043P02

Replaced by #3014074

?
Manufacturer substitution
This part replaces 662T043P02. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
